Unlock unparalleled gaming prowess with GIGABYTE's NVIDIA graphics cards. Engineered for peak performance and visual excellence, our GPUs redefine gaming standards. With advanced cooling solutions and cutting-edge technologies, GIGABYTE NVIDIA graphics cards deliver stunning visuals and seamless gameplay experiences, empowering gamers to dominate every virtual battlefield with confidence and precision.
- Powered by GeForce RTX 5070 Ti
- Integrated with 16GB GDDR7 256bit memory interface
- WINDFORCE cooling system
- RGB Lighting
- Dual BIOS (Performance / Silent)
- Reinforced structure and versatile VGA holder
- 4 years warranty (Online registration required)
General
| Summary | GIGABYTE GeForce RTX 5070 Ti AERO OC 16G Graphics Card - 16GB GDDR7, 256bit, PCI-E 5.0, 2588 MHz Core Clock, 3 x DP 2.1a, 1 x HDMI 2.1b, NVIDIA DLSS 4, GV-N507TAERO OC-16GD. Graphics processor family: NVIDIA, Graphics processor: GeForce RTX 5070 Ti, Processor frequency: 2588 MHz. Discrete graphics card memory: 16 GB, Graphics card memory type: GDDR7, Memory bus: 256 bit, Memory clock speed: 30000 MHz. Maximum resolution: 7680 x 4320 pixels. DirectX version: 12.0, OpenGL version: 4.6. Interface type: PCI Express x16 5.0. Cooling type: Active, Number of fans: 3 fan(s) |
| Unit Box Height | 0.27 |
| Unit Box Length | 0.44 |
| Unit Box Width | 0.11 |
| Name | VGA PCIE16 RTX5070TI 16GB/GV-N507TAERO OC-16GD GIGABYTE |
| Model | GeForce RTX 5070 Ti AERO OC 16G |
Processor
| Maximum displays per videocard | 4 |
| Parallel processing technology support | Not supported |
| CUDA cores | 8960 |
| CUDA | Yes |
| Maximum resolution | 7680 x 4320 pixels |
| Processor frequency | 2588 MHz |
| Graphics processor | GeForce RTX 5070 Ti |
| Graphics processor family | NVIDIA |
Memory
| Memory bandwidth (max) | 28 GB/s |
| Memory clock speed | 30000 MHz |
| Memory bus | 256 bit |
| Graphics card memory type | GDDR7 |
| Discrete graphics card memory | 16 GB |

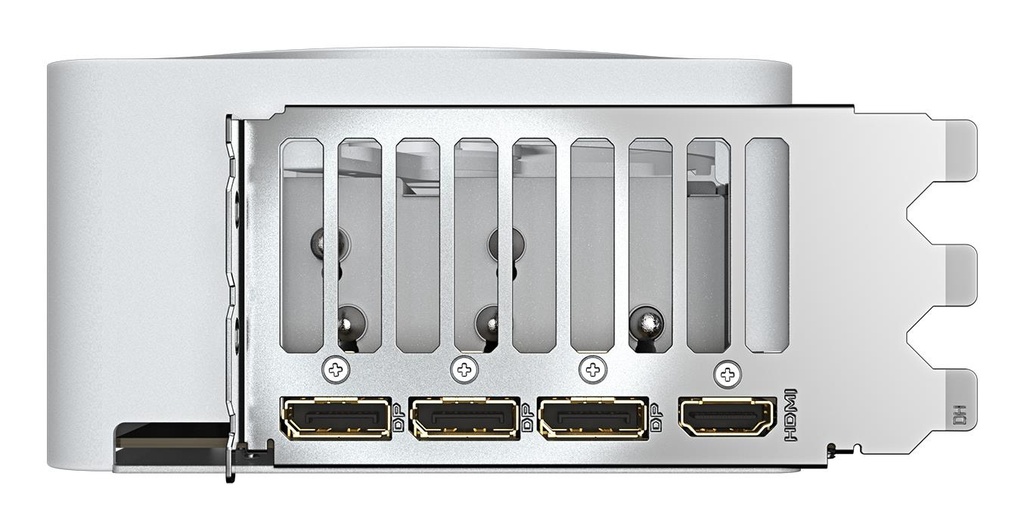

Ports & interfaces
| DisplayPort version | 2.1a |
| DisplayPorts quantity | 3 |
| HDMI version | 2.1b |
| HDMI ports quantity | 1 |
| Interface type | PCI Express x16 5.0 |
Performance
| Warranty period | 4 year(s) |
| Overclocked (OC) edition | Yes |
| NVIDIA G-SYNC | Yes |
| Dual Link DVI | No |
| OpenGL version | 4.6 |
| DirectX version | 12.0 |
| TV tuner integrated | No |
Design
| Product colour | White |
| Illumination | Yes |
| Number of slots | 2 |
| Form factor | Full-Height/Full-Length (FH/FL) |
| Number of fans | 3 fan(s) |
| Cooling technology | GIGABYTE WINDFORCE 3X |
| Cooling type | Active |
Power
| Supplementary power connectors | 1x 16-pin |
| Thermal Design Power (TDP) | 300 W |
| Minimum system power supply | 750 W |
Weight & dimensions
| Height | 149 mm |
| Depth | 75 mm |
| Length | 340 mm |
| Weight | 2000 g |
Packaging data
| Package type | Box |
| Package weight | 3000 g |
| Package height | 105 mm |
| Package depth | 427 mm |
| Package width | 264 mm |
Packaging content
| Cables included | Power |
Logistics data
| Products per shipping (inner) case | 1 pc(s) |
ELKO Logistics Data
| Unit Height | 27 cm |
| Unit Depth | 44 cm |
| Unit Width | 11 cm |
| Units per Pallet | 0 |
| Units per Shipping Box | 5 |
| Product Net Weight | 2 kg |
| Unit Calculated Weight | 2.7 kg |
ELKO Internal Logistics Data
| Shipping Box Width | 29 cm |
| Shipping Box Depth | 57.5 cm |
| Shipping Box Height | 58.5 cm |
| Shipping Box Weight | 13.5 kg |
| Unit Calculated Volume | 0.01951 cubm |
