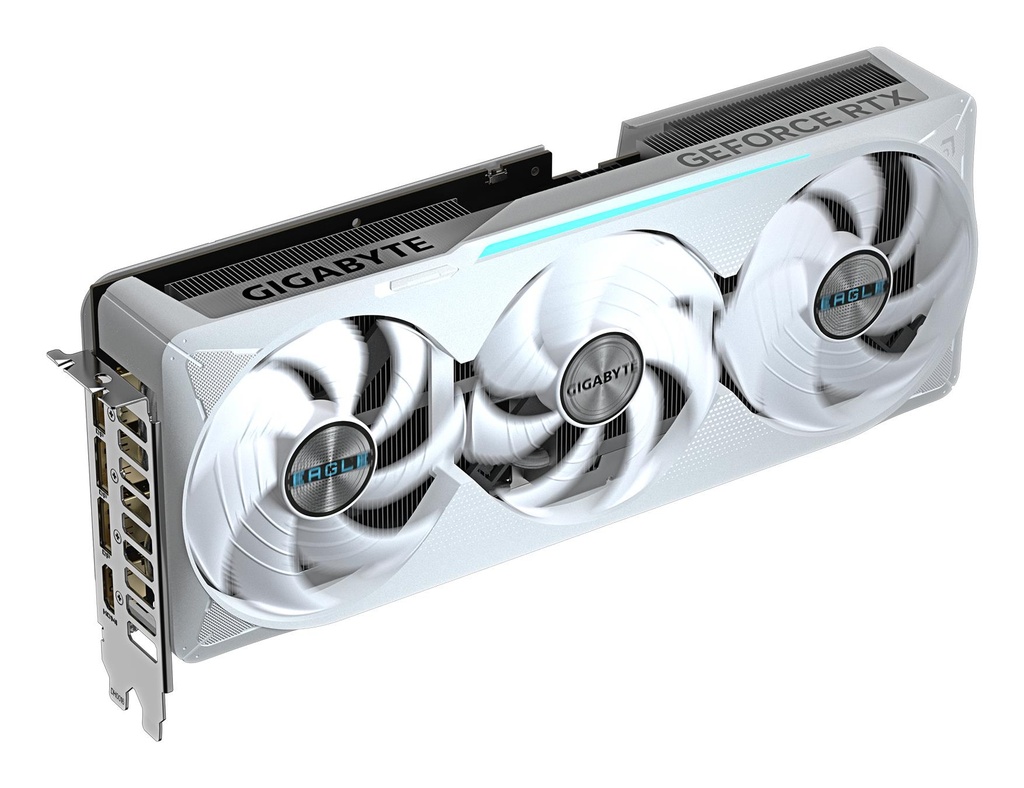

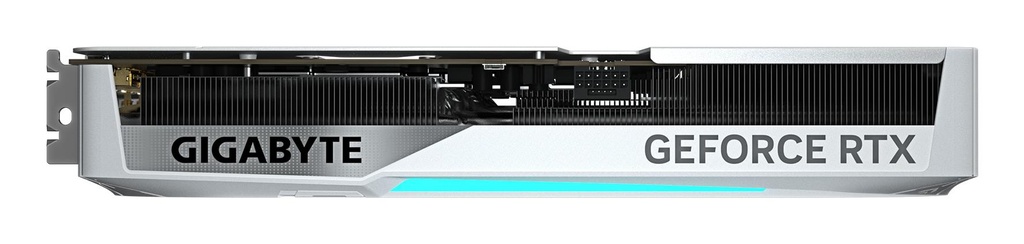

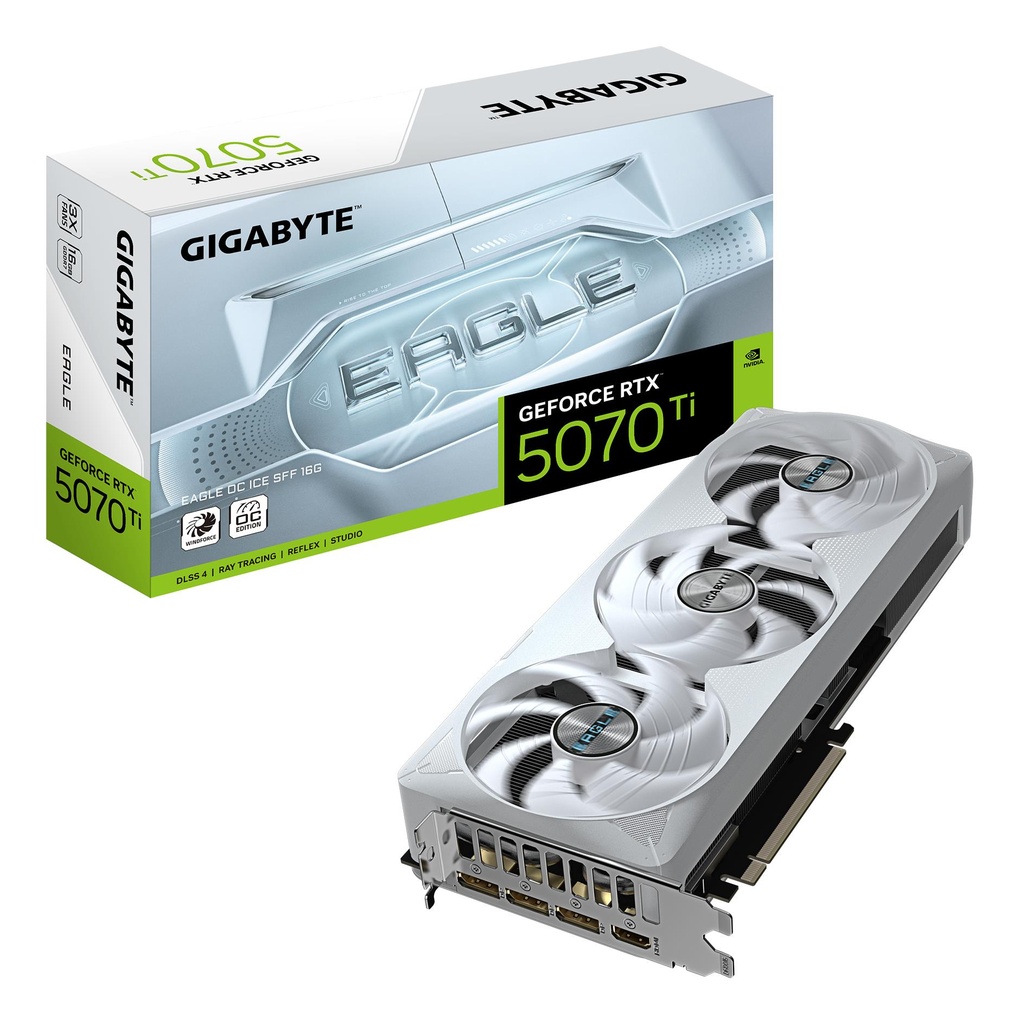

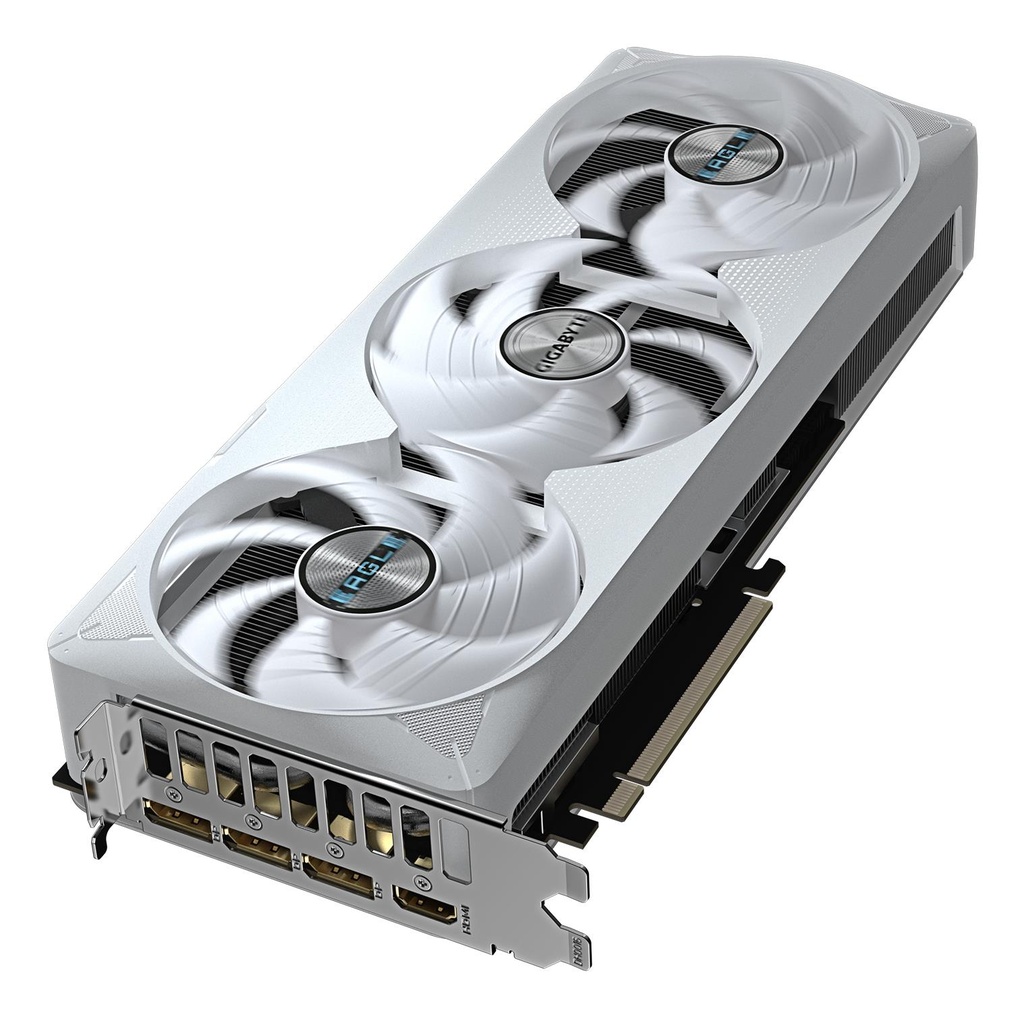

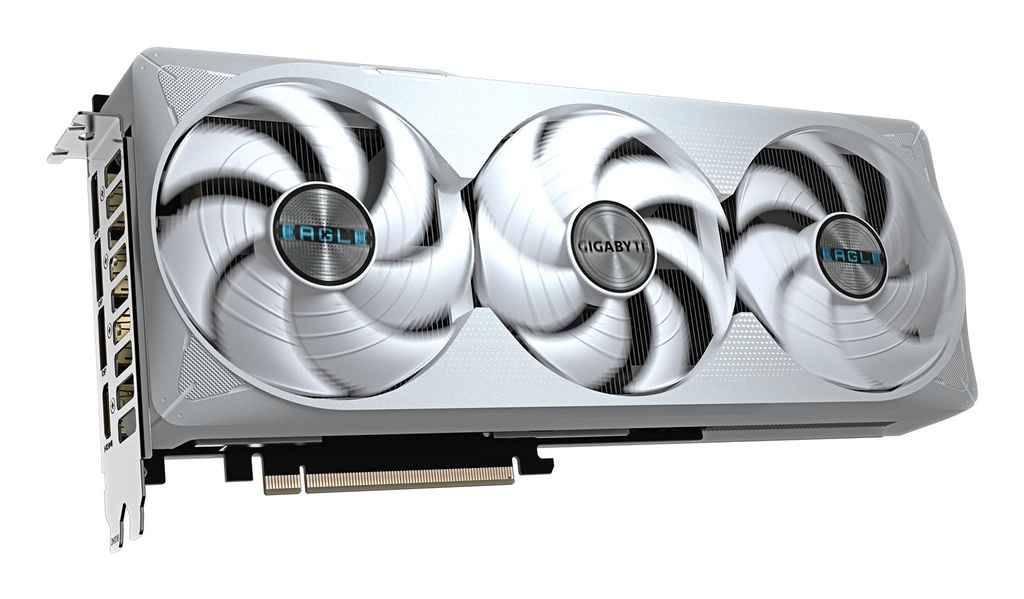

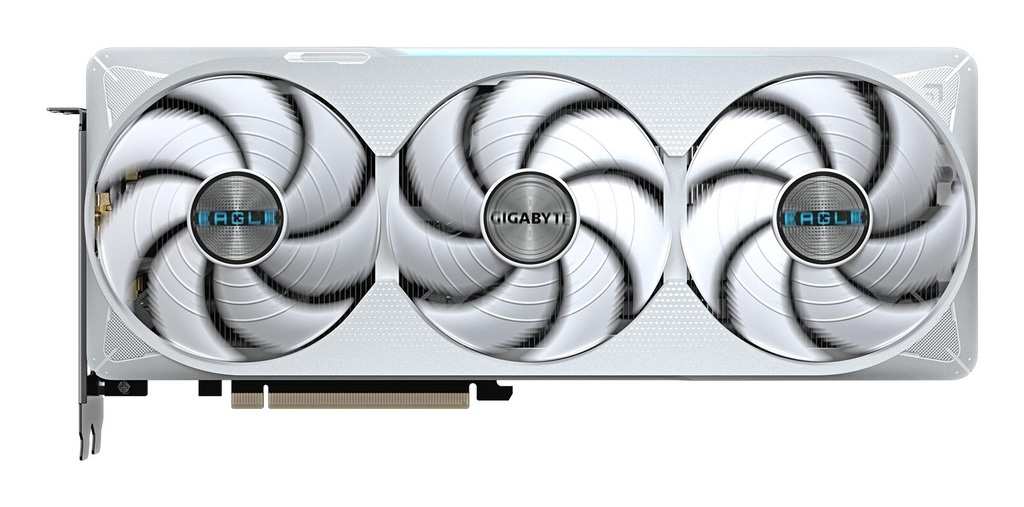

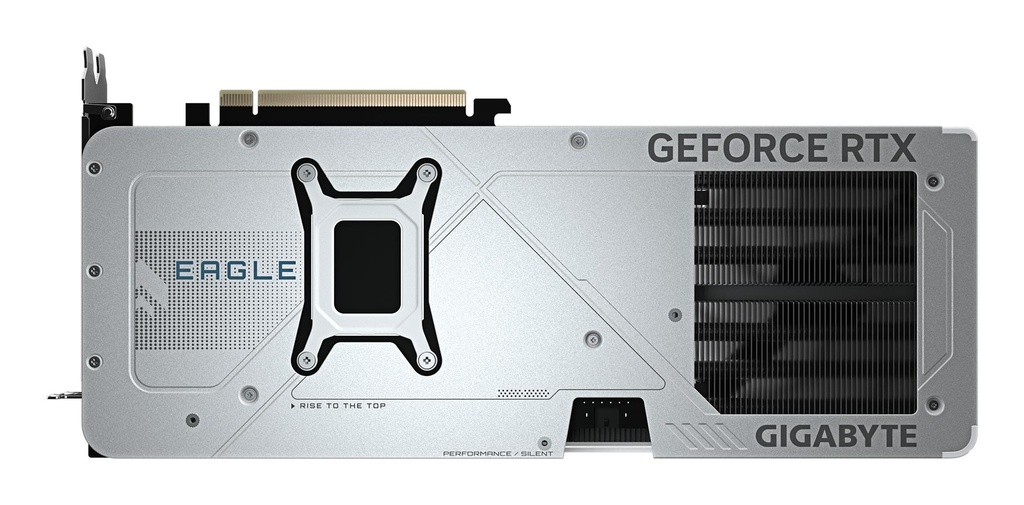

GIGABYTE GeForce RTX 5070 Ti EAGLE OC ICE SFF 16G
Unlock unparalleled gaming prowess with GIGABYTE's NVIDIA graphics cards. Engineered for peak performance and visual excellence, our GPUs redefine gaming standards. With advanced cooling solutions and cutting-edge technologies, GIGABYTE NVIDIA graphics cards deliver stunning visuals and seamless gameplay experiences, empowering gamers to dominate every virtual battlefield with confidence and precision.
- Powered by GeForce RTX 5070 Ti
- Integrated with 16GB GDDR7 256bit memory interface
- WINDFORCE cooling system
- RGB Lighting
- Dual BIOS (Performance / Silent)
- NVIDIA SFF-ready
- Reinforced structure and versatile VGA holder
General
| Unit Calculated Weight | 1.85 kg |
| Product Net Weight | 1 kg |
| Unit Calculated Volume | 0.01023 cubm |
| Units per Shipping Box | 10 |
| Units per Pallet | 0 |
| Model | GV-N507TEAGLEOC ICE-16GD |
| Summary | GIGABYTE GeForce RTX 5070 Ti EAGLE OC ICE SFF 16G Graphics Card - 16GB GDDR7, 256bit, PCI-E 5.0, 2542 MHz Core Clock, 3 x DP 2.1a, 1 x HDMI 2.1b, NVIDIA DLSS 4, GV-N507TEAGLEOC ICE-16GD. Graphics processor family: NVIDIA, Graphics processor: GeForce RTX 5070 Ti, Processor frequency: 2542 MHz. Discrete graphics card memory: 16 GB, Graphics card memory type: GDDR7, Memory bus: 256 bit, Memory clock speed: 30000 MHz. Maximum resolution: 7680 x 4320 pixels. DirectX version: 12.0, OpenGL version: 4.6. Interface type: PCI Express x16 5.0. Cooling type: Active, Number of fans: 3 fan(s) |
| Unit Box Height | 0.235 |
| Unit Box Length | 0.405 |
| Unit Box Width | 0.09 |
Processor
| CUDA | Yes |
| CUDA cores | 8960 |
| Graphics processor | GeForce RTX 5070 Ti |
| Graphics processor family | NVIDIA |
| Maximum displays per videocard | 4 |
| Maximum resolution | 7680 x 4320 pixels |
| Parallel processing technology support | Not supported |
| Processor frequency | 2542 MHz |
Memory
| Discrete graphics card memory | 16 GB |
| Graphics card memory type | GDDR7 |
| Memory bandwidth (max) | 28 GB/s |
| Memory bus | 256 bit |
| Memory clock speed | 30000 MHz |

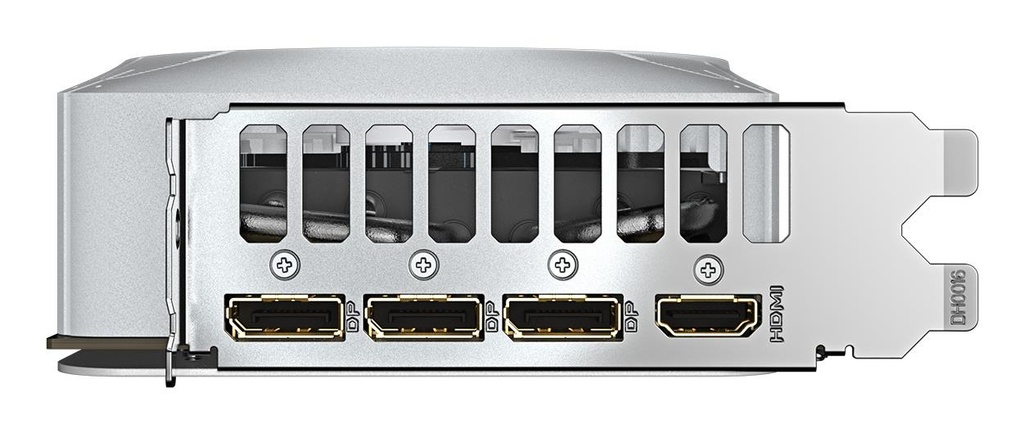

Ports & interfaces
| DisplayPort version | 2.1a |
| DisplayPorts quantity | 3 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1b |
| Interface type | PCI Express x16 5.0 |
Performance
| DirectX version | 12.0 |
| Dual Link DVI | No |
| NVIDIA G-SYNC | Yes |
| OpenGL version | 4.6 |
| Overclocked (OC) edition | Yes |
| TV tuner integrated | No |
| Warranty period | 3 year(s) |
Design
| Cooling technology | GIGABYTE WINDFORCE 3X |
| Cooling type | Active |
| Form factor | Full-Height/Full-Length (FH/FL) |
| Illumination | Yes |
| Number of fans | 3 fan(s) |
| Number of slots | 2 |
| Product colour | White |
Power
| Minimum system power supply | 750 W |
| Supplementary power connectors | 1x 16-pin |
| Thermal Design Power (TDP) | 300 W |
Weight & dimensions
| Depth | 50 mm |
| Height | 126 mm |
| Length | 304 mm |
| Weight | 2000 g |
Packaging data
| Package depth | 398 mm |
| Package height | 85 mm |
| Package type | Box |
| Package weight | 3000 g |
| Package width | 230 mm |
Packaging content
| Cables included | Power |
Logistics data
| Products per shipping (inner) case | 1 pc(s) |
