Unlock unparalleled gaming prowess with GIGABYTE's NVIDIA graphics cards. Engineered for peak performance and visual excellence, our GPUs redefine gaming standards. With advanced cooling solutions and cutting-edge technologies, GIGABYTE NVIDIA graphics cards deliver stunning visuals and seamless gameplay experiences, empowering gamers to dominate every virtual battlefield with confidence and precision.
- Powered by the NVIDIA Blackwell architecture and DLSS 4
- Powered by GeForce RTX 5080
- Integrated with 16GB GDDR7 256bit memory interface
- WINDFORCE cooling system
- NVIDIA SFF-ready
- Reinforced structure
- Versatile VGA holder
General
| Summary | GIGABYTE GeForce RTX 5080 WINDFORCE OC SFF 16G Graphics Card - 16GB GDDR7, 256bit, PCI-E 5.0, 2670MHz Core Clock, 3 x DP 2.1b, 1 x HDMI 2.1b, DLSS 4, GV-N5080WF3OCV2-16GD. Graphics processor family: NVIDIA, Graphics processor: GeForce RTX 5080, Processor frequency: 2670 MHz. Discrete graphics card memory: 16 GB, Graphics card memory type: GDDR7, Memory bus: 256 bit, Memory clock speed: 30000 MHz. Maximum resolution: 7680 x 4320 pixels. DirectX version: 12.0, OpenGL version: 4.6. Interface type: PCI Express x16 5.0. Cooling type: Active, Number of fans: 3 fan(s) |
| Unit Box Height | 0.09 |
| Unit Box Length | 0.405 |
| Unit Box Width | 0.235 |
| Name | VGA PCIE16 RTX5080 16GB GDDR7/GV-N5080WF3OCV2-16GD GIGABYTE |
| Model name | GeForce RTX 5080 WINDFORCE OC SFF 16G Graphics Card - 16GB GDDR7, 256bit, PCI-E 5.0, 2670MHz Core Clock, 3 x DP 2.1b, 1 x HDMI 2.1b, DLSS 4, GV-N5080WF3OCV2-16GD |
Processor
| Maximum displays per videocard | 4 |
| Parallel processing technology support | Not supported |
| CUDA cores | 10752 |
| CUDA | Yes |
| Maximum resolution | 7680 x 4320 pixels |
| Processor frequency | 2670 MHz |
| Graphics processor | GeForce RTX 5080 |
| Graphics processor family | NVIDIA |
Memory
| Data transfer rate | 30 Gbit/s |
| Memory clock speed | 30000 MHz |
| Memory bus | 256 bit |
| Graphics card memory type | GDDR7 |
| Discrete graphics card memory | 16 GB |

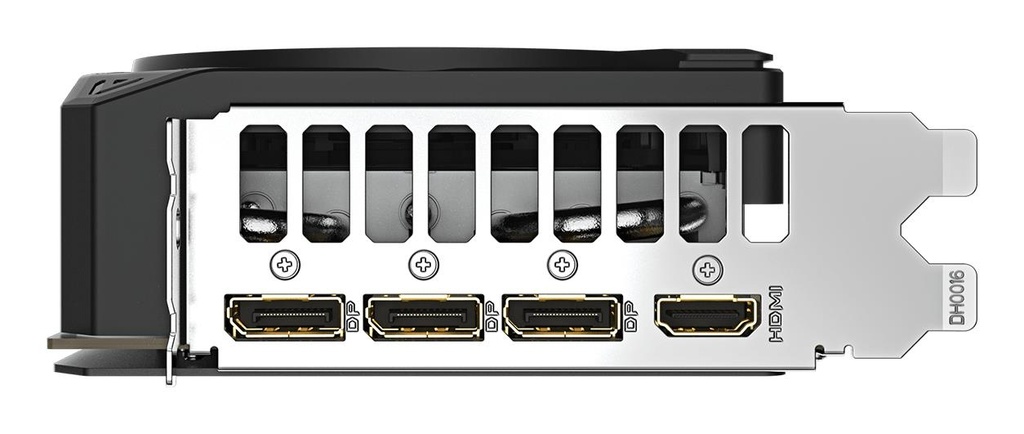

Ports & interfaces
| DisplayPort version | 2.1b |
| DisplayPorts quantity | 3 |
| HDMI version | 2.1b |
| HDMI ports quantity | 1 |
| Interface type | PCI Express x16 5.0 |
Performance
| Warranty period | 3 year(s) |
| NVIDIA G-SYNC | Yes |
| Dual Link DVI | No |
| OpenGL version | 4.6 |
| DirectX version | 12.0 |
| TV tuner integrated | No |
Design
| Product colour | Black |
| SFF ready | Yes |
| Number of slots | 2.5 |
| Form factor | Full-Height/Full-Length (FH/FL) |
| Number of fans | 3 fan(s) |
| Cooling technology | GIGABYTE WINDFORCE 3X |
| Cooling type | Active |
Power
| Supplementary power connectors | 1x 16-pin |
| Thermal Design Power (TDP) | 293 W |
| Minimum system power supply | 850 W |
Weight & dimensions
| Height | 126 mm |
| Depth | 50 mm |
| Length | 304 mm |
Packaging data
| Package type | Box |
| Package height | 425 mm |
| Package depth | 488 mm |
| Package width | 470 mm |
Logistics data
| Products per shipping (inner) case | 1 pc(s) |
ELKO Logistics Data
| Unit Height | 9 cm |
| Unit Depth | 40.5 cm |
| Unit Width | 23.5 cm |
| Units per Pallet | 0 |
| Units per Shipping Box | 1 |
| Product Net Weight | 1.2 kg |
| Unit Calculated Weight | 1.8 kg |
ELKO Internal Logistics Data
| Shipping Box Width | 23.5 cm |
| Shipping Box Depth | 40.5 cm |
| Shipping Box Height | 9 cm |
| Shipping Box Weight | 1.79999995231628 kg |
| Unit Calculated Volume | 0.008566 cubm |
