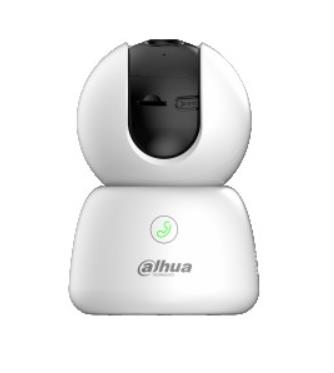

3MP Indoor Fixed-focal Wi-Fi Pan & Tilt Network Camera
- One Camera for 360° View Without Blind Spots
- One-click Privacy Mode
- Guards the Places that Matter to You Regularly
- Detects Abnormal Sounds and Sends Alarm Promptly
- Automatic Tracking of Targets
- AI Human & Pet Detection
- One-click Proactive Call
- Built-in Mic & Speaker, Support Two-way Talk
General
| Unit Box Height | 0.185 |
| Unit Box Length | 0.105 |
| Unit Box Width | 0.105 |
| Name | WRL CAMERA 3MP PT IR DOME/H3B DAHUA |
| Model | H3B |
Performance
| Certification | CE |
| Day/night mode | Yes |
| Placement supported | Indoor |
| Connectivity technology | Wired & Wireless |
| Type | IP security camera |
Design
| Housing material | Plastic |
| Product colour | White |
Camera
| Pan range | 0° to 350° ° |
| Tilt angle range | -5° to 80° ° |
| Lens viewing angle, diagonal | 94 ° |
| Lens viewing angle, vertical | 43 ° |
| Lens viewing angle, horizontal | 79 ° |
| Camera tilt control | Yes |
| Camera pan control | Yes |
Image sensor
| Sensor type | CMOS |
| Optical sensor size | 1/3.2 " |
Night vision
| LED type | IR |
| Night vision distance | 10 m |
| Night vision | Yes |
Video
| Digital Wide Dynamic Range (DWDR) | Yes |
| Video formats supported | H.265 |
| Total megapixels | 3 MP |
Audio
| Built-in microphone | Yes |
| Built-in speaker(s) | Yes |
Network
| Wi-Fi standards | Wi-Fi 6 (802.11ax) |
| Wi-Fi | Yes |
Storage
| Maximum memory card size | 256 GB |
| Compatible memory cards | MicroSD (TransFlash) |
Ports & interfaces
| Ethernet LAN (RJ-45) ports | 1 |
Security
| Intelligent Video Surveillance (IVS) system features | Human detection |
| Video motion detection | Yes |
Power
| Power consumption (max) | 3.8 W |
| Power consumption (typical) | 1.6 W |
| Power source type | DC |
Operational conditions
| Operating temperature (T-T) | –10 °C to +45 °C °C |
Weight & dimensions
| Weight | 206.5 g |
| Diameter | 84 mm |
| Height | 123.8 mm |
ELKO Verified Logistics Data
| Unit Height | 18.5 cm |
| Unit Depth | 10.5 cm |
| Unit Width | 10.5 cm |
| Product Net Weight | 0.206 kg |
| Unit Calculated Weight | 0.433 kg |
ELKO Internal Logistics Data
| Unit Calculated Volume | 0.0022 cubm |
