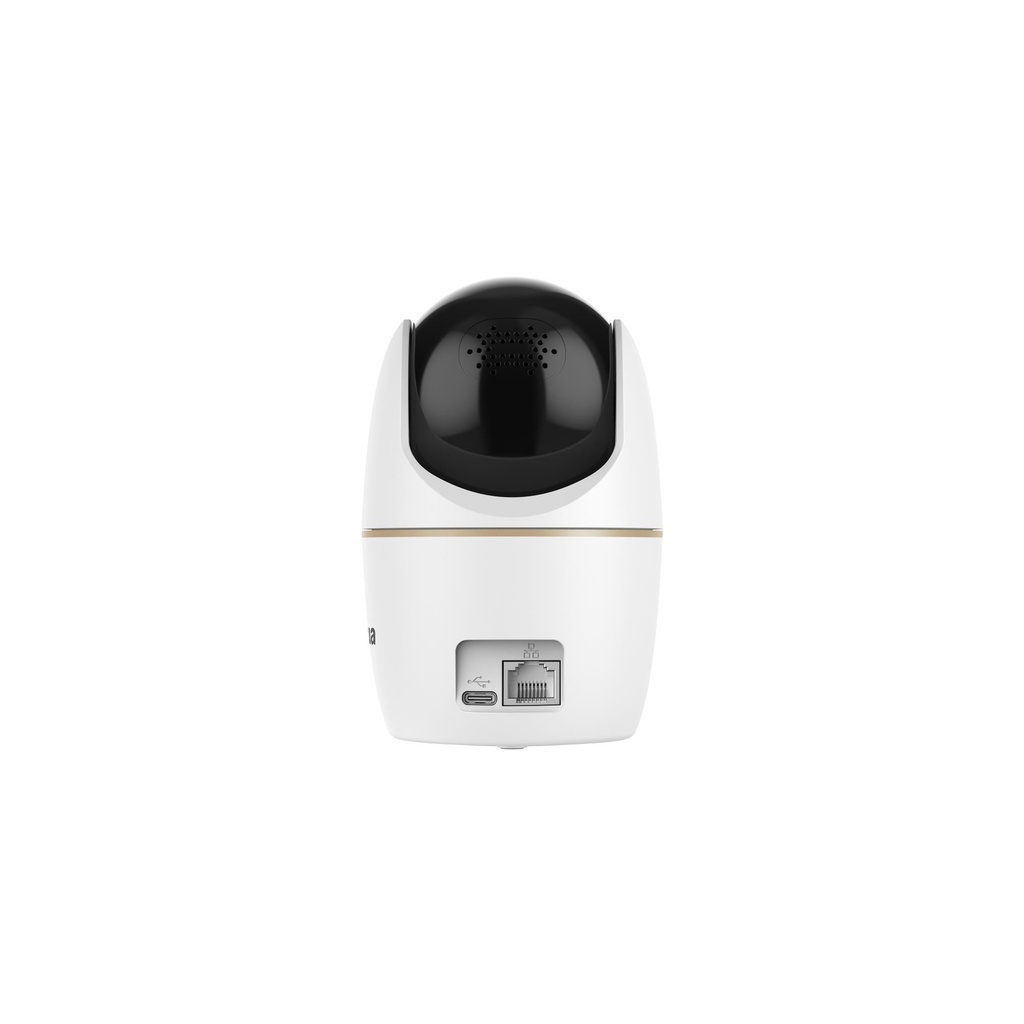

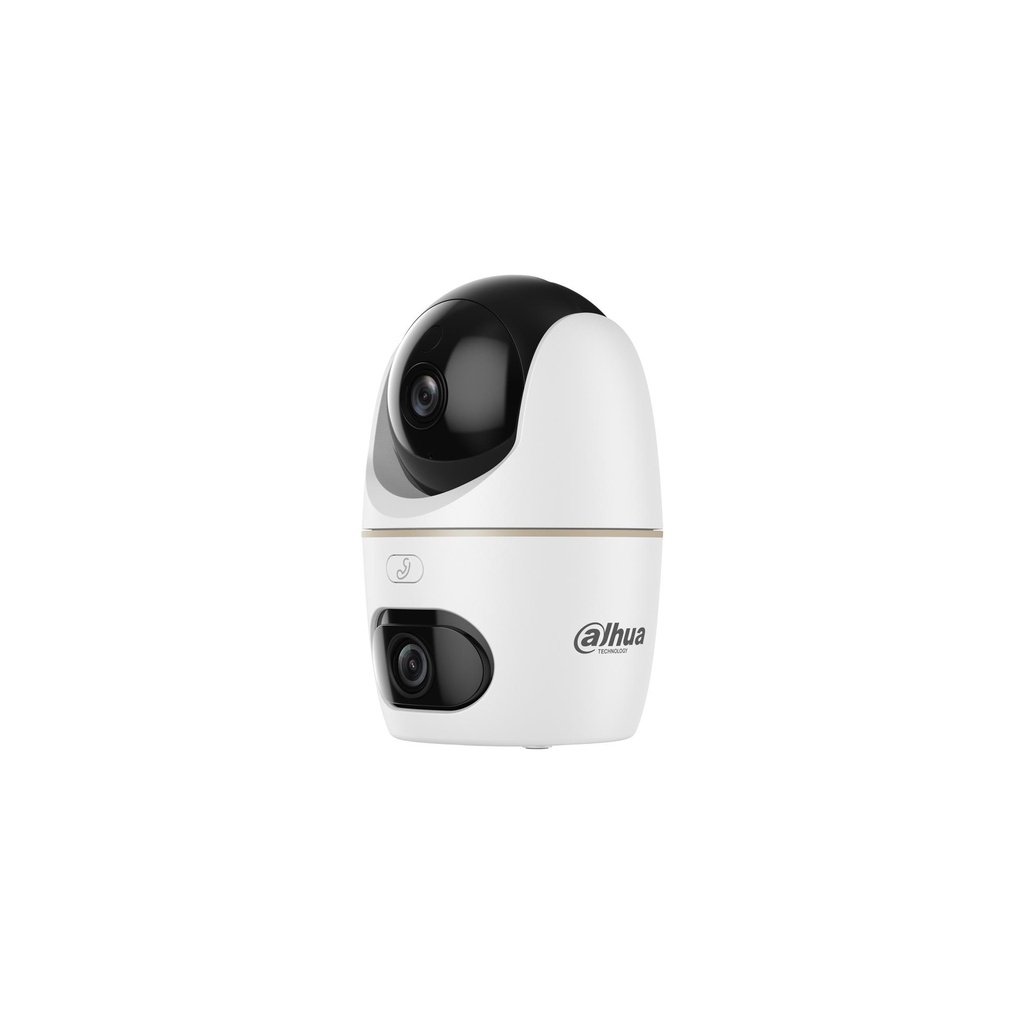

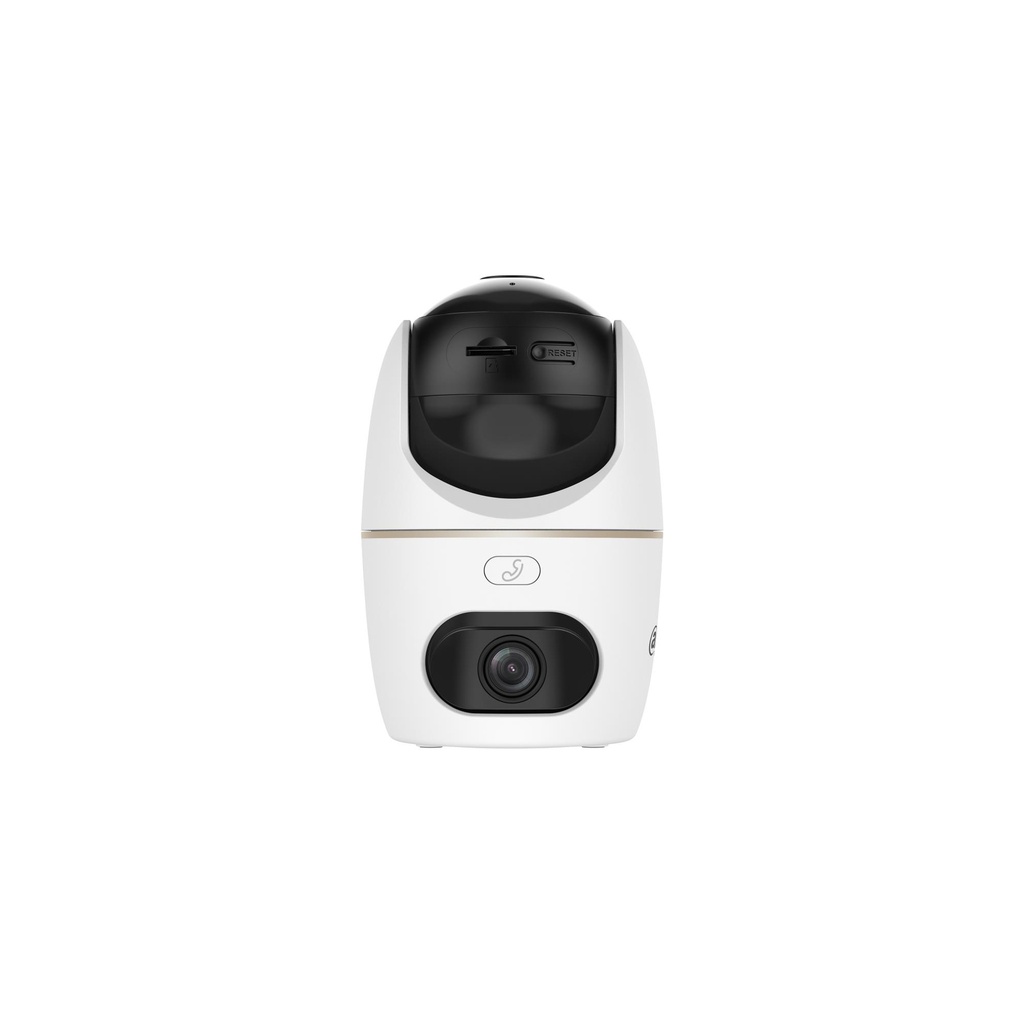

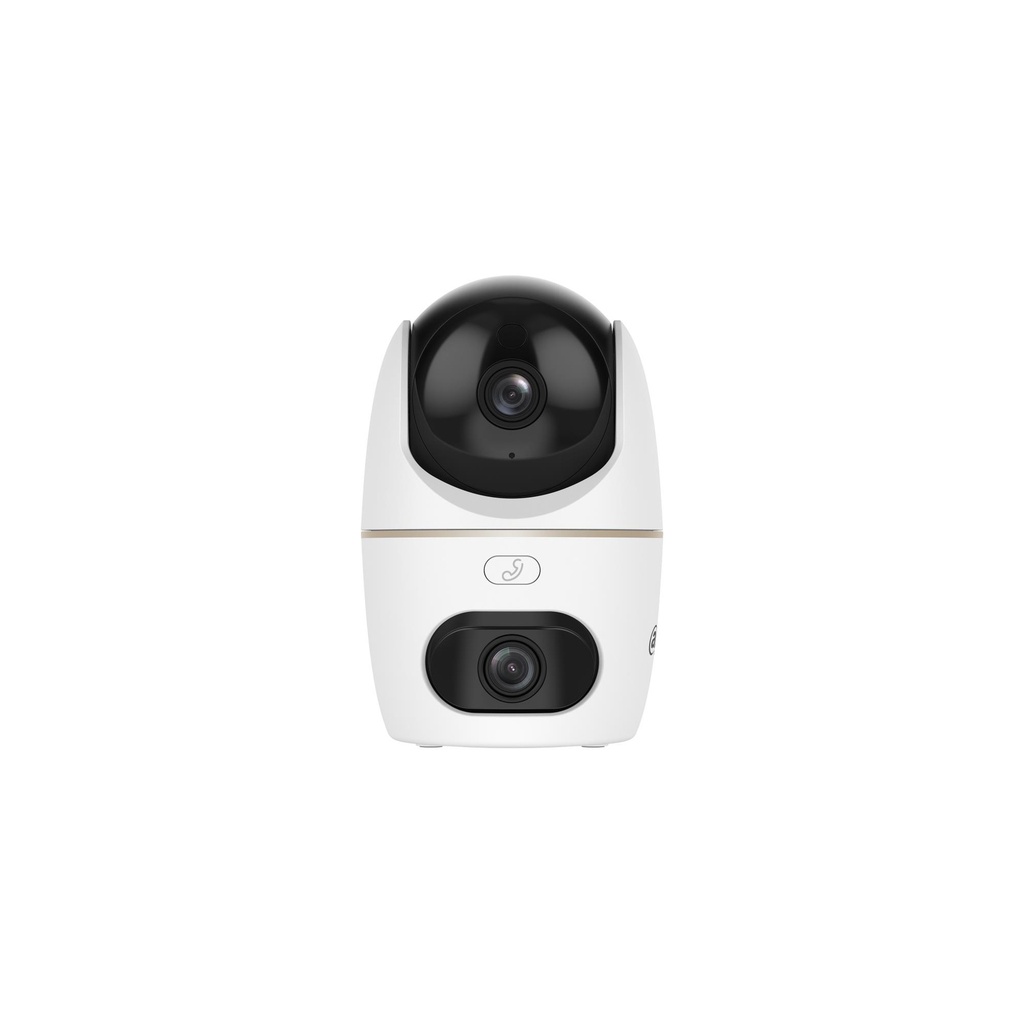

The Hero Dual Series, part of the Dahua Wireless series, has both fixed and PT lenses, allowing for simultaneous live monitoring of two areas with just one camera for multi-angle coverage. Both lenses offer AI human & pet detection, which significantly reduce the occurrence of false alarms. Particularly, the PT lens can identify moving targets and track them automatically. When the camera detects an intruder, it will trigger sound and light alerts and send notifications to the mobile client, keeping you up to date regardless of your location. These cameras are commonly used in such small-scale scenarios as stores and restaurants.
General
| Unit Calculated Weight | 0.483 kg |
| Unit Calculated Volume | 0.002495 cubm |
| Units per Shipping Box | 30 |
| Units per Pallet | 0 |
| Summary | Dahua Technology 3+3MP Indoor Wi-Fi Dual-Lens Pan & Tilt Camera. Type: IP security camera, Placement supported: Indoor, Connectivity technology: Wired & Wireless. Mounting type: Ceiling/wall, Product colour: White, Form factor: Spherical. Lens viewing angle, horizontal: 79°, Lens viewing angle, vertical: 43°, Lens viewing angle, diagonal: 94°. Sensor type: CMOS, Optical sensor size: 25.4 / 3.2 mm (1 / 3.2"). Fixed focal length: 3.6 mm |
| Unit Box Height | 0.195 |
| Unit Box Length | 0.105 |
| Unit Box Width | 0.1 |
| Model | H3D-3F |
Performance
| Connectivity technology | Wired & Wireless |
| Day/night mode | Yes |
| Placement supported | Indoor |
| Type | IP security camera |
Design
| Form factor | Spherical |
| Housing material | Plastic |
| Mounting type | Ceiling/wall |
| Product colour | White |
Camera
| Camera pan control | Yes |
| Camera tilt control | Yes |
| Lens viewing angle, diagonal | 94 ° |
| Lens viewing angle, horizontal | 79 ° |
| Lens viewing angle, vertical | 43 ° |
| Pan range | 0 - 349 ° |
| Tilt angle range | -5 - 90 ° |
Image sensor
| Optical sensor size | 1/3.2 " |
| Sensor type | CMOS |
Lens system
| Fixed focal length | 3.6 mm |
| Maximum aperture number | 2 |
| Number of lenses | 2 |
Night vision
| LED type | IR |
| Night vision | Yes |
| Night vision distance | 30 m |
Video
| Bit rate | 512 - 4096 kbps |
| Digital Wide Dynamic Range (DWDR) | Yes |
| Frame rate | 15 fps |
| Maximum resolution | 2304 x 1296 pixels |
| Video compression formats | H.265 |
Audio
| Audio formats supported | G.711 A-law |
| Built-in microphone | Yes |
| Built-in speaker(s) | Yes |
Network
| Bluetooth | Yes |
| Ethernet interface type | Fast Ethernet |
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a/802.11b/802.11g/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax) |
Storage
| Built-in HDD | No |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash) |
| Maximum memory card size | 256 GB |
Ports & interfaces
| Ethernet LAN (RJ-45) ports | 1 |
| USB port | Yes |
Security
| Intelligent Video Surveillance (IVS) system features | Abnormal sound detection/Human detection/Pet detection |
| Video motion detection | Yes |
Power
| DC output voltage | 5 |
| Power consumption (max) | 5.2 W |
| Power consumption (typical) | 2.3 W |
| Power source type | DC |
Operational conditions
| Operating relative humidity (H-H) | 0 - 95 % |
| Operating temperature (T-T) | -10 - 45 °C |
System requirements
| Mobile operating systems supported | Android/iOS |
Weight & dimensions
| Diameter | 80.9 mm |
| Height | 125.7 mm |
| Weight | 233 g |
Sustainability
| Compliance certificates | CE |
Packaging content
| AC adapter included | Yes |
| Cables included | AC |
| Mounting brackets included | Yes |
| Number of cameras | 1 |
| Quick start guide | Yes |
| Screws included | Yes |
