Driven by industry-leading technology, Dahua Wireless Series network cameras are highly precise and easy to install, producing high-quality images. They have strong wireless connection capabilities and do not require network cables, eliminating the need for a professional construction team. This series of cost-effective cameras supports local storage and is dustproof and waterproof. It is ideal for small and medium-sized scenes such as retail stores, homes, and other small and medium-sized enterprises.
- New look, New appearance design
- Wizcolor NEO：F1.6 + AI-ISP, See more vivid color even in low light environment
- AI Lab: Face Recognition, Gesture Recognition, Baby Crying Detection
- Dual MIC, 2W Enhanced Speaker, Smart Noise Cancelling Algorithm
- Anchor Motor, Smooth Pan&Tilt, Noise-Free during Audio Pick-up
- Wi-Fi 6th Dual Band, 2.4Ghz&5Ghz
- 2W Enhanced Speaker, Smart Noise Cancelling Algorithm
- One Camera for 360° View Without Blind Spots
- AI Human & Pet Detection
- Smart Dual Light, Colorful Night Vision
- Sound & Light Alarm
- Auto-Tracking
- Smart Recording Mode, Save your SD card memory space
General

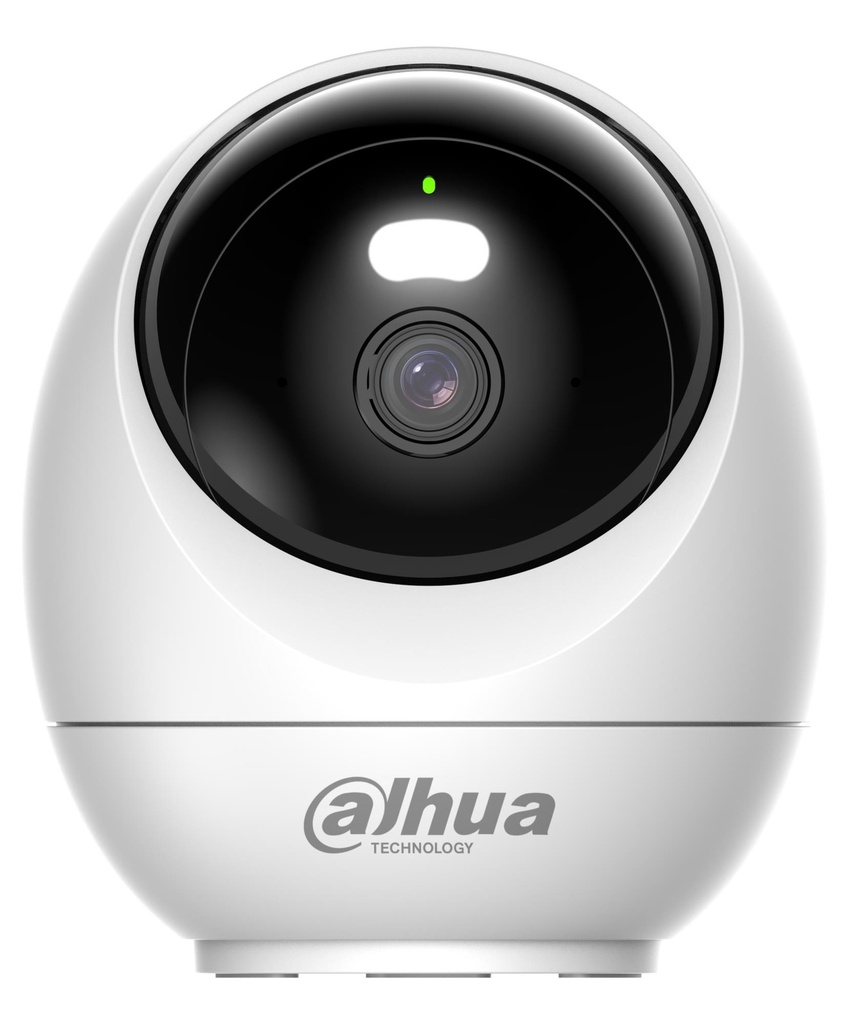

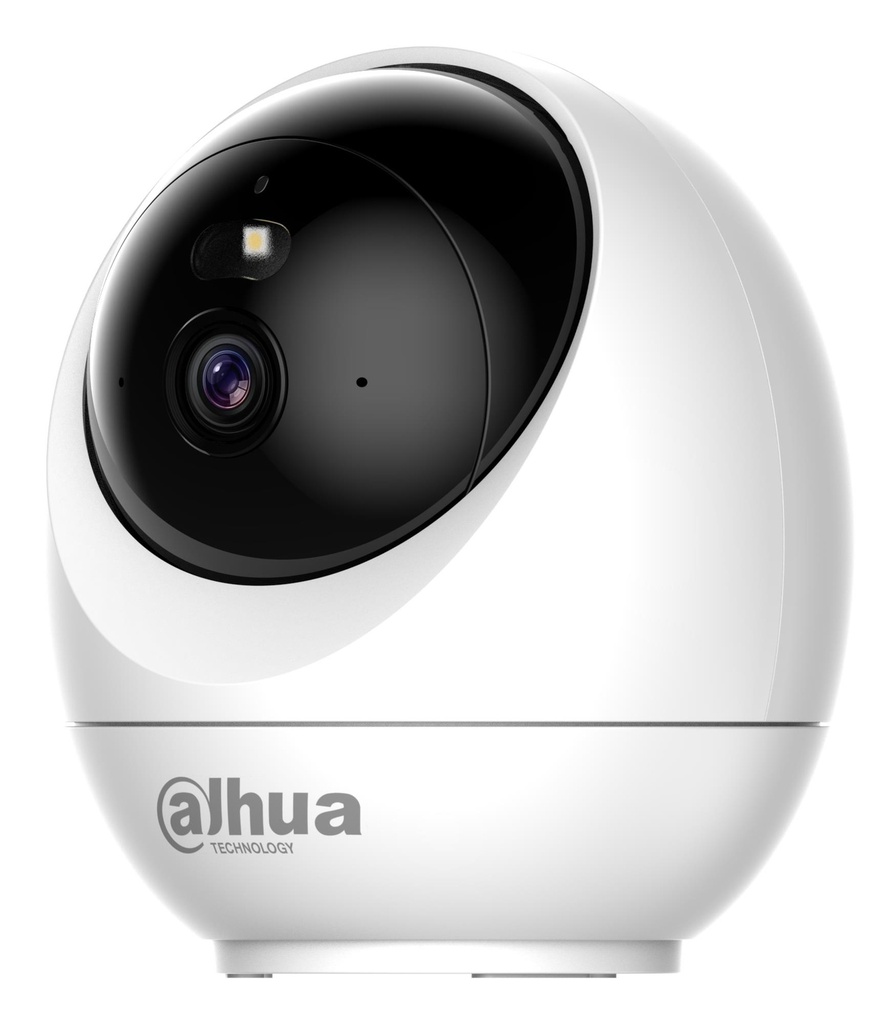

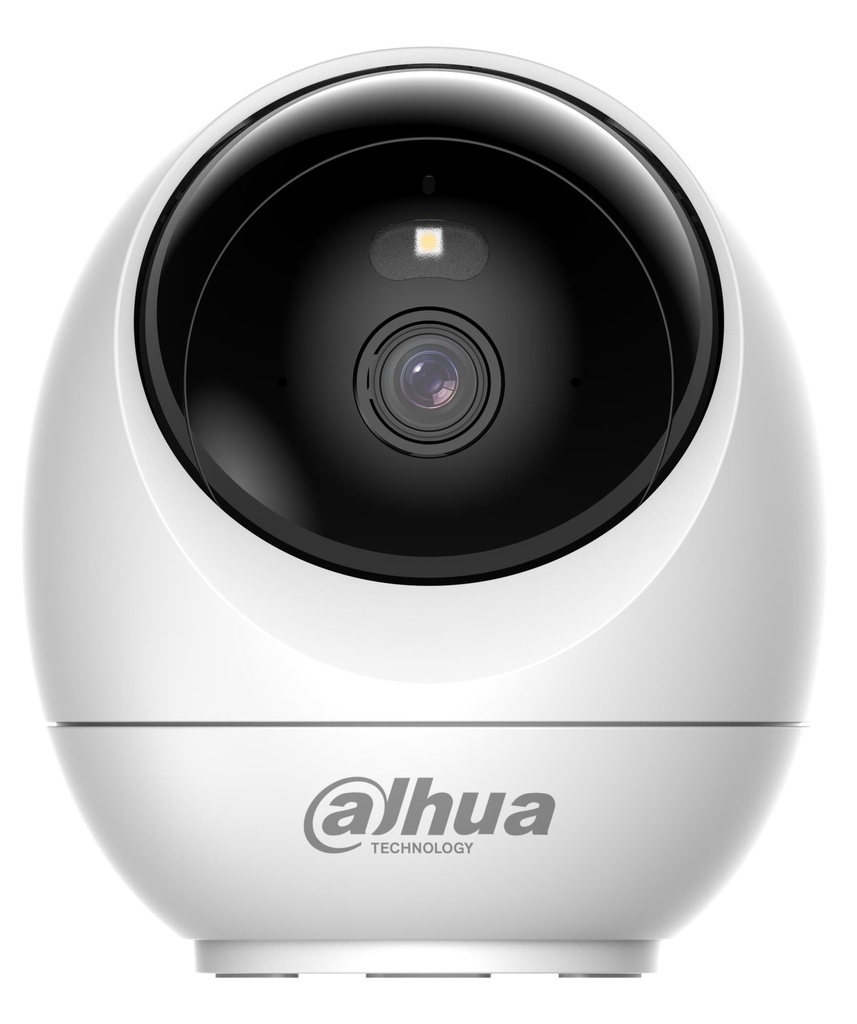

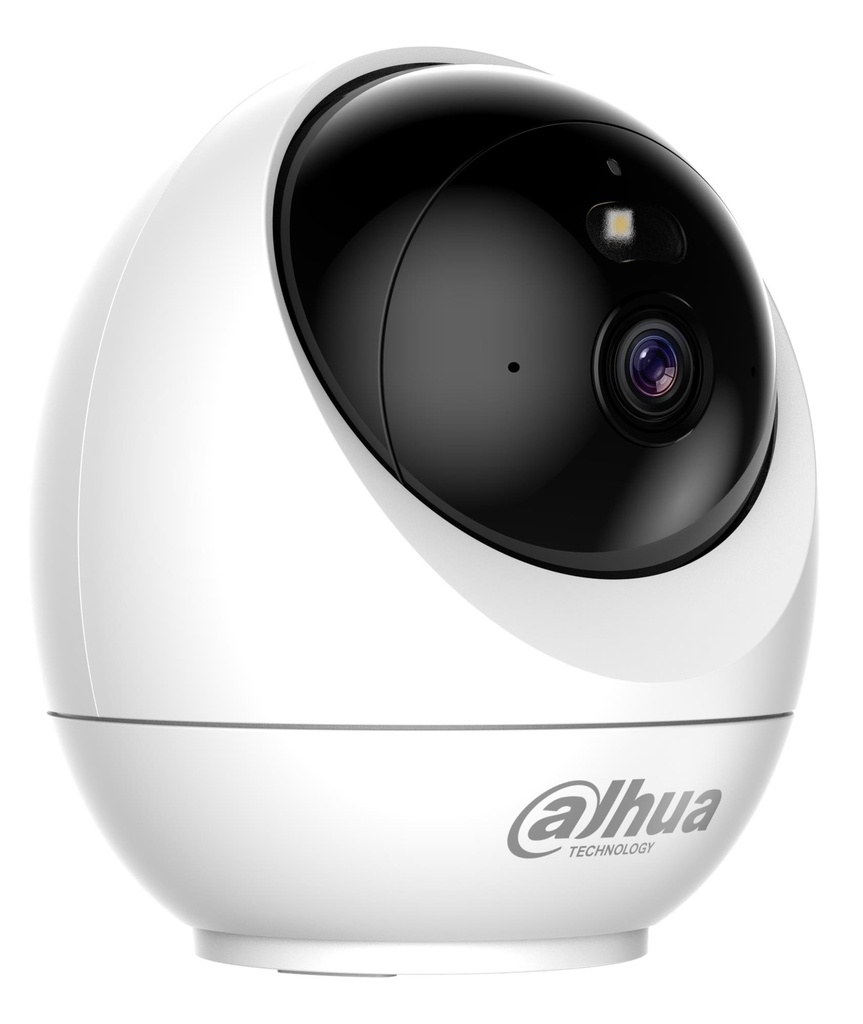

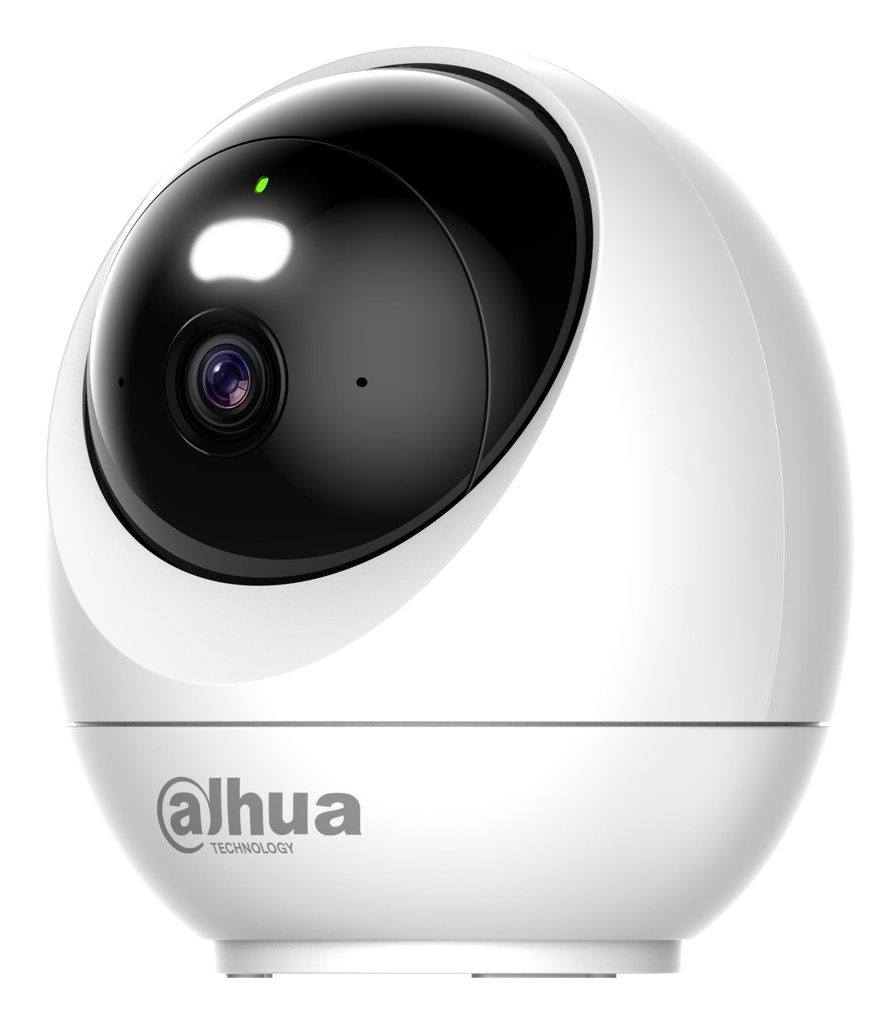

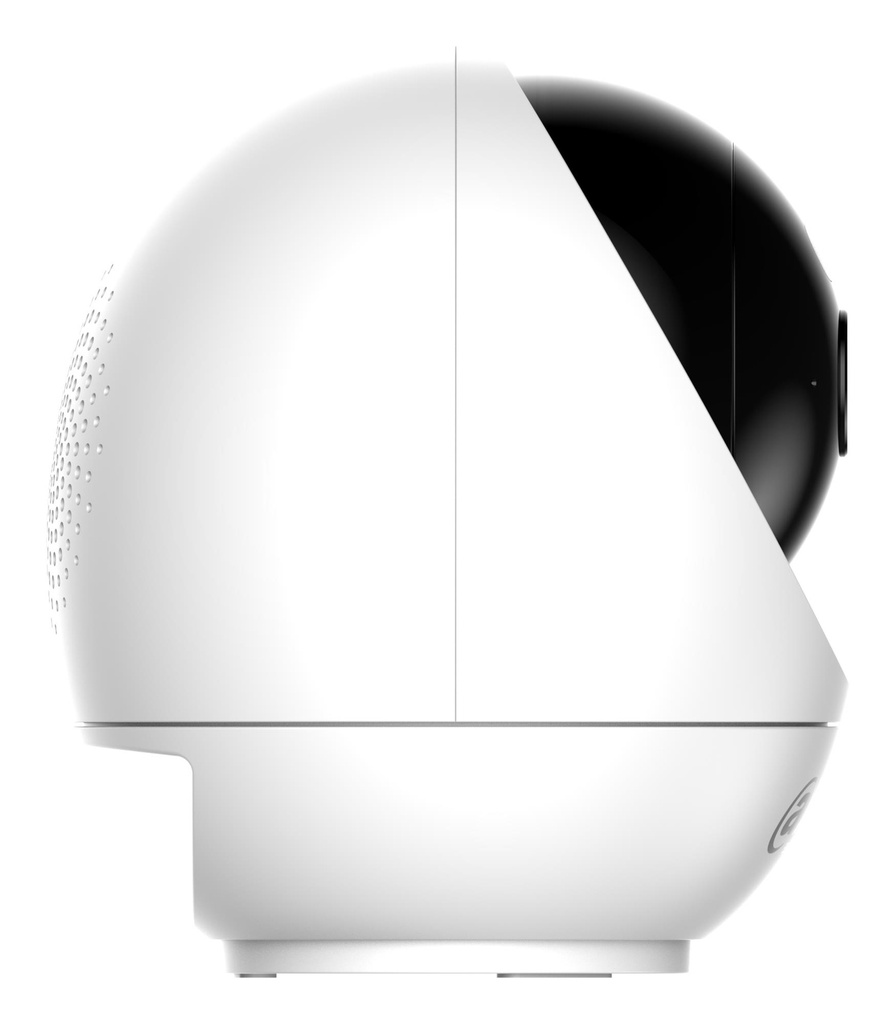

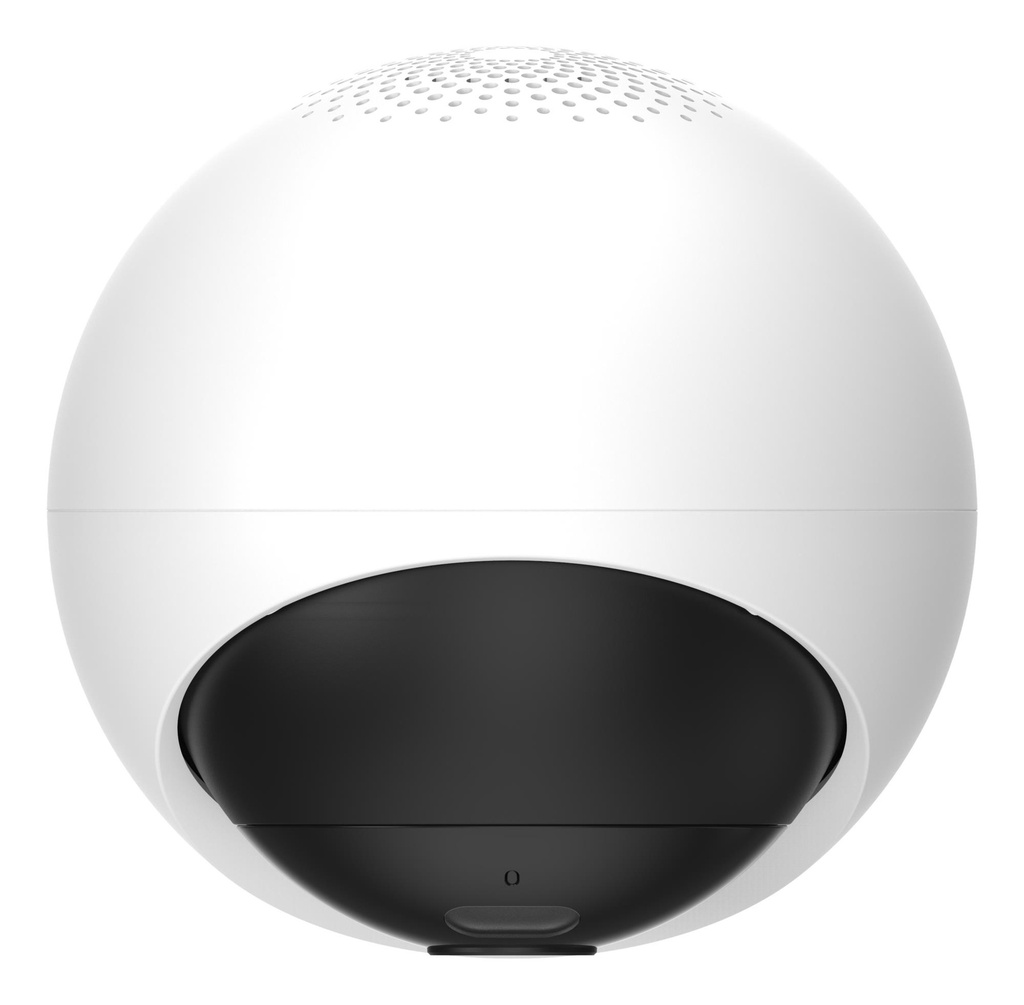

| Summary | Dahua Technology 5MP Indoor Fixed-focal Wi-Fi Pan & Tilt Strike Network Camera. Type: IP security camera, Placement supported: Indoor, Connectivity technology: Wired & Wireless. Mounting type: Ceiling/Wall/Desk, Product colour: White, Form factor: Spherical. Lens viewing angle, horizontal: 95°, Lens viewing angle, vertical: 53°, Lens viewing angle, diagonal: 110°. Sensor type: CMOS, Optical sensor size: 25.4 / 3.2 mm (1 / 3.2"). Digital zoom: 2.6x, Fixed focal length: 2.8 mm |
| CnCode | 85258900 |
| Unit Box Height | 0.175 |
| Unit Box Length | 0.12 |
| Unit Box Width | 0.12 |
| Model name | 5MP Indoor Fixed-focal Wi-Fi Pan & Tilt Strike Network Camera |
| Model | H5JS |
Performance
| Auto patrol mode | Yes |
| Auto-tracking | Yes |
| Built-in light | Yes |
| Certification | CE-RED: Radio Equipment Directive 2014/53/EU |
| Connectivity technology | Wired & Wireless |
| Day/night mode | Yes |
| Placement supported | Indoor |
| Type | IP security camera |
| Wide Dynamic Range (WDR) | Yes |
Design
| Form factor | Spherical |
| Housing material | Plastic |
| Mounting type | Ceiling/Wall/Desk |
| Product colour | White |
| Protection features | Corrosion resistant |
Camera
| Lens viewing angle, diagonal | 110 ° |
| Lens viewing angle, horizontal | 95 ° |
| Lens viewing angle, vertical | 53 ° |
| Pan range | 0 - 355 ° |
| Tilt angle range | -55 - 60 ° |
Image sensor
| Number of sensors | 1 |
| Optical sensor size | 1/3.2 " |
| Sensor type | CMOS |
Lens system
| Digital zoom | 2.6 x |
| Fixed focal length | 2.8 mm |
| Fixed focus | Yes |
| Maximum aperture number | 1.6 |
| Number of lenses | 1 |
| Zoom capability | Yes |
Night vision
| LED type | IR/White |
| Night vision | Yes |
| Night vision distance | 10 m |
| Number of illumination LEDs | 1 |
Video
| Bit rate | H.264: 12 kbps-4096 kbps H.265: 32 kbps-4096 kbps |
| Digital Wide Dynamic Range (DWDR) | Yes |
| Frame rate | 25 fps |
| Maximum resolution | 2880 x 1620 pixels |
| Smart IR | Yes |
| Supported graphics resolutions | 2880 x 1620/640 x 360 |
| Supported video modes | 1620p/360p |
| Total megapixels | 5 MP |
| Video compression formats | H.264/H.264B/H.264H/H.265 |
| Video streaming | Yes |
Audio
| Audio codecs | G.711a; G.711Mu; PCM |
| Audio formats supported | AAC-LC |
| Audio system | 2-way |
| Built-in microphone | Yes |
| Built-in speaker(s) | Yes |
| Number of microphones | 2 |
| Sample rate | 16 kHz |
Network
| Bluetooth | Yes |
| Cabling technology | 10/100Base-T(X) |
| Ethernet interface type | Fast Ethernet |
| Ethernet LAN | Yes |
| Frequency band | 2.4&5 GHz |
| Live view | Yes |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax) |
Storage
| Built-in HDD | No |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash) |
| Maximum memory card size | 512 GB |
Ports & interfaces
| Ethernet LAN (RJ-45) ports | 1 |
| USB port | Yes |
Security
| Intelligent Video Surveillance (IVS) system features | Face detection/Human detection/Pet detection |
| Privacy protection | Yes |
| Video motion detection | Yes |
Management features
| Management software | DMSS |
| Reset button | Yes |
Power
| DC output voltage | 5 |
| Power consumption (max) | 6.3 W |
| Power consumption (typical) | 1.6 W |
| Power source type | USB |
Operational conditions
| Operating relative humidity (H-H) | 0 - 95 % |
| Operating temperature (T-T) | -10 - 45 °C |
System requirements
| Mobile operating systems supported | Android/iOS |
Weight & dimensions
| Depth | 98 mm |
| Height | 96 mm |
| Weight | 200 g |
| Width | 111 mm |
Sustainability
| Compliance certificates | CE/Electromagnetic Compatibility (EMC)/Low Voltage Directive (LVD) |
Packaging content
| Number of cameras | 1 |
Technical details
| Alarm function | Y |
| USB connector | USB-C |
