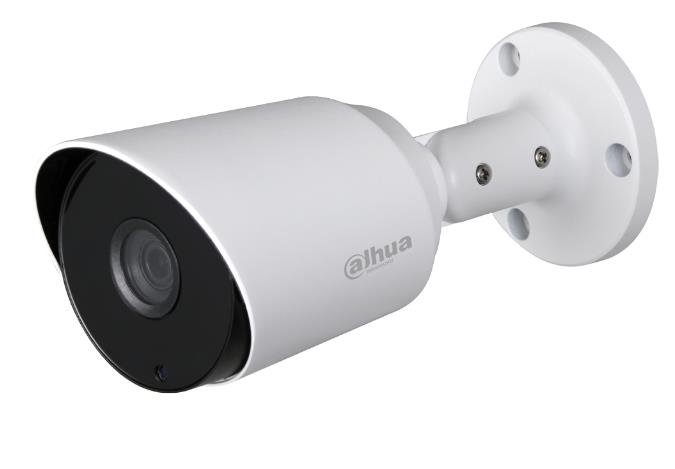

Experience 1080P full HD video and the simplicity of using existing cabling infrastructure with HDCVI. The Lite series 1080P HDCVI camera features a compact design and offers a high quality image at a friendly price. It offers various vari-focal/fixed lens models with a multi-language OSD and HD/SD switchable output. Its structural flexibility and high cost-performance makes the camera an ideal choice for SMB solutions.
- Max 30fps@1080P
- HD and SD output switchable
- 3.6mm fixed lens (2.8mm, 6mm optional)
- Max. IR length 20m, Smart IR
- IP67, DC12V
General
| Unit Calculated Weight | 0.52 kg |
| Unit Calculated Volume | 0.002125 cubm |
| Units per Shipping Box | 20 |
| Summary | Dahua Technology HD-CVI HAC-HFW1200T. Type: CCTV security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: White, Form factor: Bullet. Angle of rotation: 360°, Lens viewing angle, horizontal: 103°, Tilt angle range: 0 - 90°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.7 mm (1 / 2.7"), Number of effective pixels (H x V): 1920 x 1080 pixels. Fixed focal length: 2.8 mm, Closest focusing distance: 0.6 m |
| Unit Box Height | 0.092 |
| Unit Box Length | 0.205 |
| Unit Box Width | 0.092 |
| Model | HAC-HFW1200T-0280B-S6DAHUA |
Performance
| Certification | CE (EN55032, EN55024, EN50130-4)FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)UL (UL60950-1+CAN/CSA C22.2 No.60950-1) |
| Connectivity technology | Wired |
| Day/night mode | Yes |
| Infrared (IR) cut-off filter | Yes |
| Languages support | English/French/German/Italian/Japanese/Korean/Polish/Portuguese/Russian/Simplified Chinese/Spanish |
| Number of languages | 11 |
| Placement supported | Indoor & outdoor |
| Type | CCTV security camera |
| Wide Dynamic Range (WDR) | Yes |
Design
| Form factor | Bullet |
| Housing material | Aluminium |
| International Protection (IP) code | IP67 |
| Mounting type | Ceiling/wall |
| Product colour | White |
| Protection features | Dust resistant/Waterproof |
Camera
| Angle of rotation | 360 ° |
| Camera pan control | Yes |
| Camera shutter speed | 1/30 - 1/100000 s |
| Camera tilt control | Yes |
| Lens viewing angle, horizontal | 103 ° |
| Minimum illumination | 0 lx |
| Pan range | 0 - 360 ° |
| Tilt angle range | 0 - 90 ° |
| White balance | Auto/Manual |
Image sensor
| Number of effective pixels (H x V) | 1920 x 1080 pixels |
| Number of sensors | 1 |
| Optical sensor size | 1/2.7 " |
| Progressive scan | Yes |
| Sensor type | CMOS |
Lens system
| Closest focusing distance | 0.6 m |
| Fixed focal length | 2.8 mm |
| Fixed focus | Yes |
| Maximum aperture number | 1.85 |
| Number of lenses | 1 |
Night vision
| LED type | IR |
| Night vision | Yes |
| Night vision distance | 20 m |
| Number of illumination LEDs | 12 |
Video
| Back Light Compensation (BLC) | Yes |
| Digital Wide Dynamic Range (DWDR) | Yes |
| Gain control type | Auto |
| Highlight Compensation (HLC) | Yes |
| Maximum resolution | 1920 x 1080 pixels |
| Noise reduction | Yes |
| Privacy masking | Yes |
| Smart IR | Yes |
| Supported video modes | 1080p/720p |
| Total megapixels | 2 MP |
Audio
| Signal-to-Noise Ratio (SNR) | 65 dB |
Network
| Bluetooth | No |
| Ethernet LAN | No |
| Wi-Fi | No |
Storage
| Built-in HDD | No |
Ports & interfaces
| BNC output ports | 1 |
Security
| Video motion detection | Yes |
Power
| DC output voltage | 12 |
| Power consumption (max) | 3.2 W |
| Power source type | DC |
Operational conditions
| Operating temperature (T-T) | -40 - 60 °C |
| Storage temperature (T-T) | -40 - 60 °C |
Weight & dimensions
| Depth | 176 mm |
| Height | 72.5 mm |
| Weight | 340 g |
| Width | 72.4 mm |
Packaging data
| Package weight | 420 g |
Packaging content
| Number of cameras | 1 |
