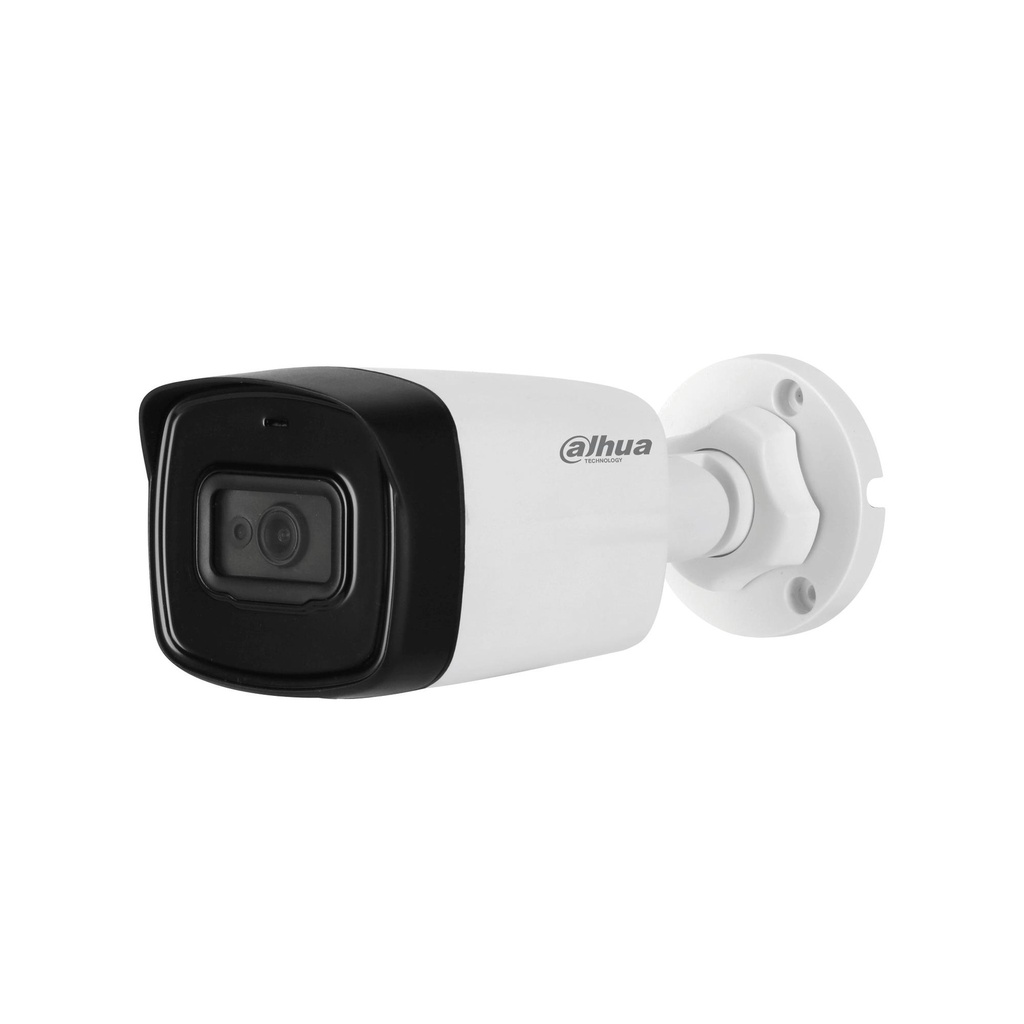

Experience 4K video surveillance with the simplicity of reusing existing coaxial infrastructure. The 4K HDCVI camera adopts a powerful Dahua ISP and advanced 1/2.7" CMOS sensor, which provides superior high quality images. In addition, the camera features broadcastquality audio to provide enhanced supplementary evidence collection. Ultra-high definition and a complete set of features makes the 4K HDCVI camera an ideal choice for mid to large-size businesses and projects where both
highly reliable surveillance and construction flexibility are demanded.
- Max. 4K resolution, real-time video transmission
- CVI/CVBS/AHD/TVI switchable
- Built-in mic (-A)
- Fixed lens (2.8mm; 3.6mm;6mm optional)
- Max. IR length 80m, Smart IR
- IP67, 12V±30%DC
General
| Unit Calculated Weight | 0.444 kg |
| Unit Calculated Volume | 0.003832 cubm |
| Units per Shipping Box | 1 |
| Summary | Dahua Technology DH-HAC HAC-HFW1800TL-A-0360B. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: White, Form factor: Bullet. Minimum illumination: 0.03 lx, Tilt angle range: 0 - 180°, Pan range: 0 - 360°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.7 mm (1 / 2.7"). Digital zoom: 4x, Detect distance: 160 m, Observe distance: 64 m |
| Unit Box Height | 0.111 |
| Unit Box Length | 0.252 |
| Unit Box Width | 0.137 |
Performance
| Certification | CE (EN55032, EN55024, EN50130-4,EN60950-1) FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) UL (UL60950-1+CAN/CSA C22.2 No.60950-1) |
| Connectivity technology | Wired |
| Placement supported | Outdoor |
| Type | IP security camera |
| Wide Dynamic Range (WDR) | Yes |
Design
| Form factor | Bullet |
| International Protection (IP) code | IP67 |
| Mounting type | Ceiling/wall |
| Product colour | White |
Camera
| Minimum illumination | 0.03 lx |
| Pan range | 0 - 360 ° |
| Tilt angle range | 0 - 180 ° |
Panoramic camera
| Number of Privacy masking areas (panoramic camera) | 8 |
Image sensor
| Number of sensors | 1 |
| Optical sensor size | 1/2.7 " |
| Progressive scan | Yes |
| Sensor type | CMOS |
Lens system
| Closest focusing distance | 1 m |
| Detect distance | 160 m |
| Digital zoom | 4 x |
| Maximum aperture number | 2 |
| Observe distance | 64 m |
| Recognize distance | 32 m |
| Zoom capability | Yes |
Night vision
| LED type | IR |
| Night vision | Yes |
| Night vision distance | 80 m |
| Number of illumination LEDs | 2 |
Video
| Maximum resolution | 3840 x 2160 pixels |
| Noise reduction | Yes |
| Noise reduction technology | 2D noise reduction |
| Privacy masking | Yes |
| Supported graphics resolutions | 2560 x 1440/2592 x 1944/3840 x 2160/960 x 480/960 x 576 |
| Video recording | Yes |
Network
| Bluetooth | No |
| Wi-Fi | No |
Storage
| Built-in HDD | No |
Security
| Mirror | Yes |
Power
| DC output voltage | 12 |
| Power consumption (max) | 6 W |
| Power source type | DC |
Operational conditions
| Operating relative humidity (H-H) | 0 - 95 % |
| Operating temperature (T-T) | -40 - 60 °C |
| Storage relative humidity (H-H) | 0 - 95 % |
| Storage temperature (T-T) | -40 - 60 °C |
Weight & dimensions
| Depth | 80.2 mm |
| Height | 76.2 mm |
| Weight | 280 g |
| Width | 198.9 mm |
Packaging data
| Package weight | 420 g |
Packaging content
| Number of cameras | 1 |
