The sleek, clean and modern design of this ATX uni-color chassis encourages both OFFICE and HOME applications. A vast amount of internal drive-bays allow random memory expansion while the spacious and innovative internal layout allows quick & easy installation of components.
- Elegant & modern HOME and OFFICE design
- Offers USB Type C to front panel
- Designed for optimized cooling
General
| Unit Calculated Weight | 5.5 kg |
| Unit Calculated Volume | 0.05696 cubm |
| Units per Shipping Box | 1 |
| Units per Pallet | 0 |
| Summary | Chieftec HC-10B-OP. Form factor: Mini Tower, Type: PC, Product colour: Black. Supported power supply form factors: ATX. Front fans diameters supported: 80,90,120 mm, Rear fans diameters supported: 80,90,120 mm. Supported HDD sizes: 2.5,3.5". Width: 185 mm, Depth: 450 mm, Height: 412 mm |
| CnCode | 84733080 |
| Unit Box Height | 0.505 |
| Unit Box Length | 0.47 |
| Unit Box Width | 0.24 |
| Cooling & Ventilation System | Front: 1x 120mm oder 90mm oder 80mm, Rear: 1x 120mm oder 90mm oder 80mm |
| Model name | HC-10B-OP |
Design
| Form factor | Mini Tower |
| Material | SECC |
| Maximum CPU cooler height | 155 mm |
| Maximum graphics card length | 380 mm |
| Number of 2.5" bays | 1 |
| Number of 3.5" bays | 6 |
| Number of 5.25" bays | 3 |
| Number of external 5.25" bays | 3 |
| Number of internal 3.5" bays | 5 |
| On/off button | Yes |
| Product colour | Black |
| Side window | No |
| Supported motherboard form factors | ATX/micro ATX/Mini-ITX |
| Type | PC |
Power supply
| Power supply included | No |
| Supported power supply form factors | ATX |

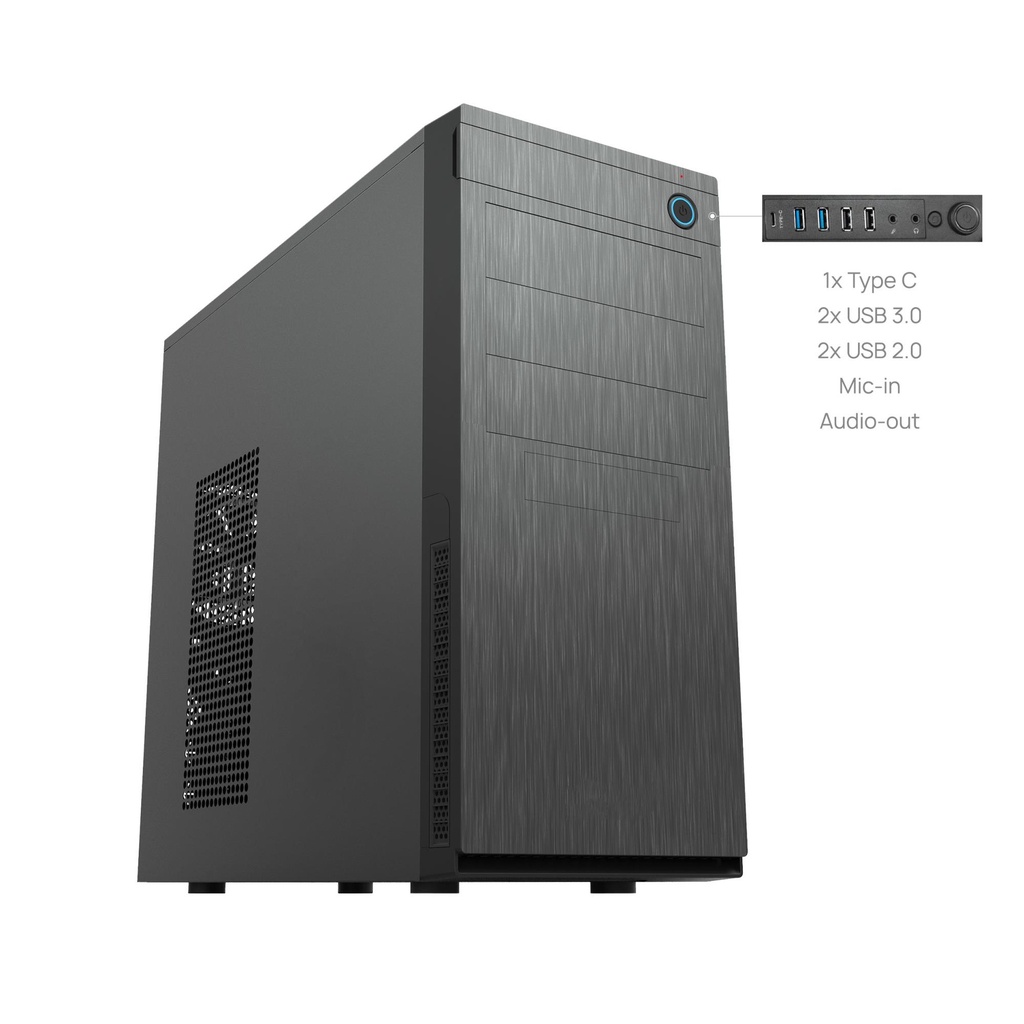

Ports & interfaces
| Audio input | Yes |
| Audio output | Yes |
| USB 2.0 ports quantity | 2 |
| USB 3.0 | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB Type-C ports quantity | 1 |
Cooling
| Front fans diameters supported | 120/80/90 mm |
| Number of front fans supported (max) | 1 |
| Number of rear fans supported (max) | 1 |
| Rear fans diameters supported | 120/80/90 mm |
Storage
| Supported HDD sizes | 2.5/3.5 " |
Weight & dimensions
| Depth | 450 mm |
| Height | 412 mm |
| Material thickness | 0.6 mm |
| Weight | 4000 g |
| Width | 185 mm |
Packaging data
| Package weight | 5000 g |
Logistics data
| Harmonized System (HS) code | 84733080 |
Other features
| Expansion slots | 7 |
