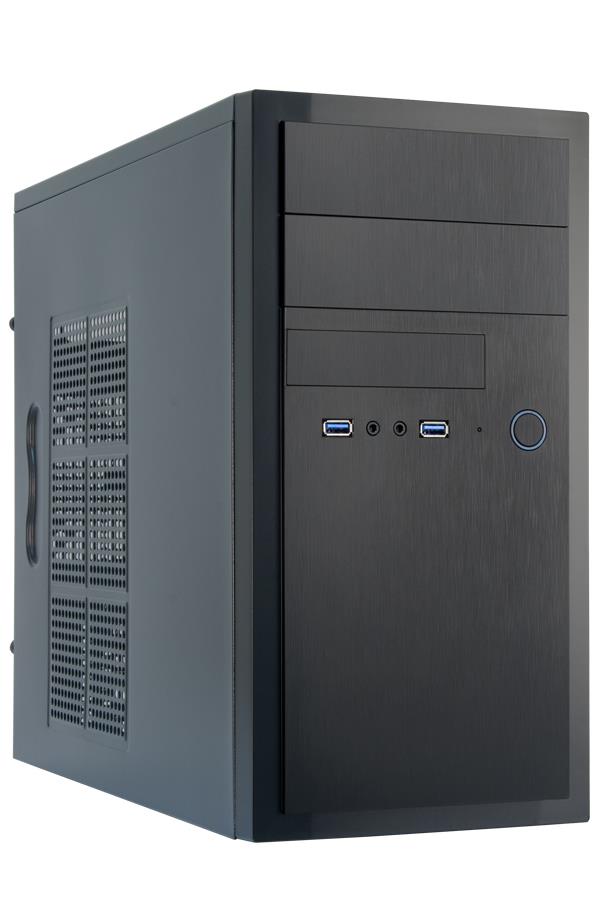

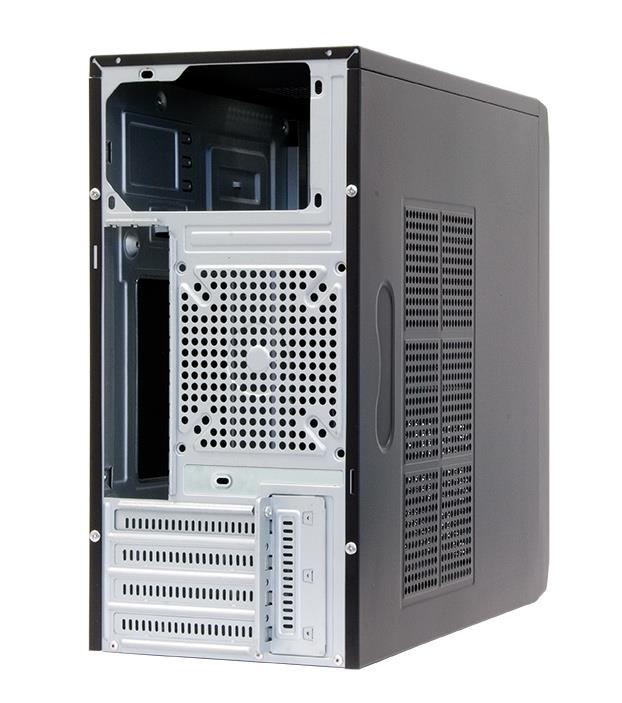

HT-01B – the outstanding and eye-catching hair-line design of the front panel of this brand new mATX chassis, transports a brushed aluminum feeling thereby blending perfectly into both Home and Office environments. Equipped with two USB 3.0 front ports, which allow data transfers of up to 5 GBit/s (USB 3.0 Super-Speed), the tool-free layout makes the integration of components a “Childs play”. Optionally, you can install either a 80, 90 or 120 mm fan on the rear side of the chassis.
- Ergonomically positioned front interfaces
- Solid
- Space saving
- 2x USB 3.0 front connector
General
| Unit Calculated Weight | 4 kg |
| Unit Calculated Volume | 0.0437 cubm |
| Units per Shipping Box | 1 |
| Summary | Chieftec HT-01B-OP. Form factor: Mini Tower, Type: PC, Product colour: Black. Rear fans diameters supported: 80,90,120 mm. Supported HDD sizes: 2.5,3.5". Width: 180 mm, Depth: 408 mm, Height: 352 mm |
| Unit Box Height | 0.475 |
| Unit Box Length | 0.4 |
| Unit Box Width | 0.23 |
Design
| Form factor | Mini Tower |
| Material | Aluminium |
| Maximum CPU cooler height | 140 mm |
| Maximum graphics card length | 340 mm |
| Number of 2.5" bays | 1 |
| Number of 3.5" bays | 3 |
| Number of 5.25" bays | 2 |
| Number of expansion slots | 4 |
| Number of external 5.25" bays | 2 |
| Number of internal 3.5" bays | 2 |
| Product colour | Black |
| Side window | No |
| Suitable for | Home/Office |
| Supported motherboard form factors | micro ATX |
| Type | PC |
Power supply
| Power supply included | No |
Ports & interfaces
| Audio input | Yes |
| Audio output | Yes |
| USB 3.0 | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
Cooling
| Number of rear fans supported (max) | 1 |
| Rear fans diameters supported | 120/80/90 mm |
Storage
| Supported HDD sizes | 2.5/3.5 " |
Weight & dimensions
| Depth | 408 mm |
| Height | 352 mm |
| Material thickness | 0.6 mm |
| Width | 180 mm |
Logistics data
| Harmonized System (HS) code | 84733080 |
