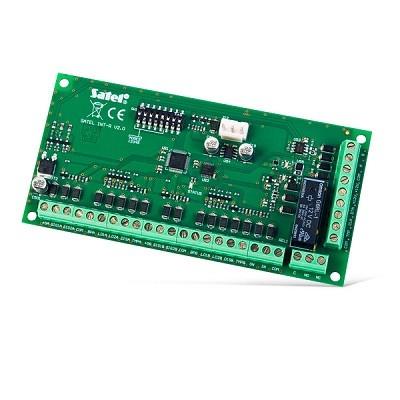

Extension module for INTEGRA control panels enabling proximity card readers and/or iButton chip readers to be connected to implement access control to and arming/disarming of the partition. The INT-R expander can interface with the INTEGRA and CA-64alarm control panels.
Features:
- support for two proximity card / iButton chip readers
- compatible with Wiegand 26 format readers
- relay to control electromagnetic door lockinput for door status control
- input for door opening with a buttoncapability to automatically open the door in case of fire alarm
- tamper input
General
| Operating temperature range | -10 °C...+55 °C |
| Unit Box Height | 0.04 |
| Unit Box Length | 0.165 |
| Unit Box Width | 0.085 |
| Power supply requirements | 12 V DC |
| Name | PROXIMITY CARD READER CONTR./INT-R SATEL |
ELKO Internal Logistics Data
| Shipping Box Width | 8.5 cm |
| Shipping Box Depth | 16.5 cm |
| Shipping Box Height | 4 cm |
| Shipping Box Weight | 0.13 kg |
| Unit Calculated Volume | 0.000561 cubm |
ELKO Logistics Data
| Units per Shipping Box | 1 |
| Product Net Weight | 0.08 kg |
| Unit Calculated Weight | 0.13 kg |
