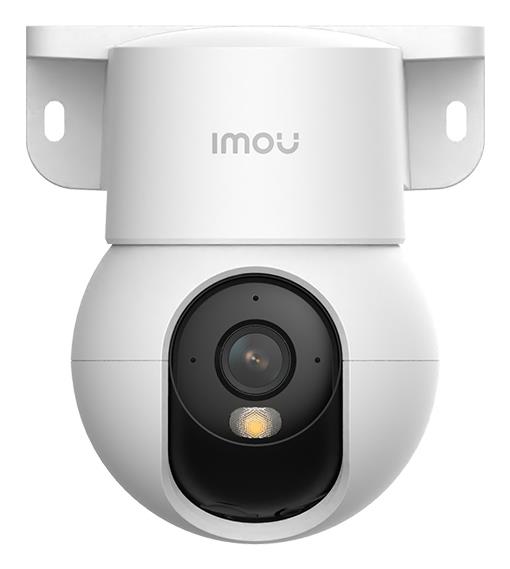

With 5MP/3K live monitoring and 0~355° pan & -5~50°tilt features, Ranger Mini 5MP ensures every corner of your home completely covered. The Integrated-Bracket design allows easy installation either Ceiling Mounting or Wall Mounting. Human Detection quickly finds human targets in images and immediately sends a notification to you. Privacy Mode helps protect your personal privacy when you are home, and Smart Tracking function lets the camera follows moving objects when it detects motion.
General
| Unit Calculated Weight | 0.38 kg |
| Unit Calculated Volume | 0.001638 cubm |
| Units per Shipping Box | 1 |
| Summary | Imou Ranger Mini 5MP (3K). Type: IP security camera, Placement supported: Indoor, Connectivity technology: Wired & Wireless. Mounting type: Ceiling/wall, Product colour: White, Form factor: Dome. Lens viewing angle, horizontal: 87°, Lens viewing angle, vertical: 48°, Lens viewing angle, diagonal: 108°. Sensor type: CMOS, Optical sensor size: 25.4 / 3 mm (1 / 3"). Digital zoom: 8x, Fixed focal length: 3.6 mm |
| Unit Box Height | 0.105 |
| Unit Box Length | 0.13 |
| Unit Box Width | 0.12 |
| Model name | Ranger Mini 5MP |
| Model | IPC-K2MP-5H1WE |
Performance
| Auto-tracking | Yes |
| Connectivity technology | Wired & Wireless |
| Placement supported | Indoor |
| Type | IP security camera |
Design
| Form factor | Dome |
| Mounting type | Ceiling/wall |
| Product colour | White |
Camera
| Lens viewing angle, diagonal | 108 ° |
| Lens viewing angle, horizontal | 87 ° |
| Lens viewing angle, vertical | 48 ° |
| Pan range | 0 - 355 ° |
| Tilt angle range | -5 - 50 ° |
Image sensor
| Number of sensors | 1 |
| Optical sensor size | 1/3 " |
| Progressive scan | Yes |
| Sensor type | CMOS |
Lens system
| Digital zoom | 8 x |
| Fixed focal length | 3.6 mm |
| Number of lenses | 1 |
| Zoom capability | Yes |
Night vision
| Night vision | Yes |
| Night vision distance | 10 m |
Video
| Frame rate | 20 fps |
| Maximum resolution | 2688 x 1664 pixels |
| Total megapixels | 5 MP |
| Video compression formats | H.264/H.265 |
Audio
| Audio system | 2-way |
| Built-in microphone | Yes |
| Built-in speaker(s) | Yes |
Network
| Ethernet interface type | Fast Ethernet |
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 6 (802.11ax) |
Storage
| Built-in HDD | No |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash) |
| Maximum memory card size | 512 GB |
Security
| Privacy protection | Yes |
| Video motion detection | Yes |
Management features
| Cloud-managed | Yes |
| Reset button | Yes |
Power
| DC output current | 1 A |
| DC output voltage | 5 |
| Power consumption (max) | 4.2 W |
| Power source type | DC |
Operational conditions
| Operating temperature (T-T) | -10 - 45 °C |
System requirements
| Mobile operating systems supported | Android/iOS |
Weight & dimensions
| Depth | 96 mm |
| Height | 109.2 mm |
| Weight | 200 g |
| Width | 95 mm |
Sustainability
| Compliance certificates | CE |
Packaging content
| Mounting brackets included | Yes |
| Number of cameras | 1 |
| Screws included | Yes |
