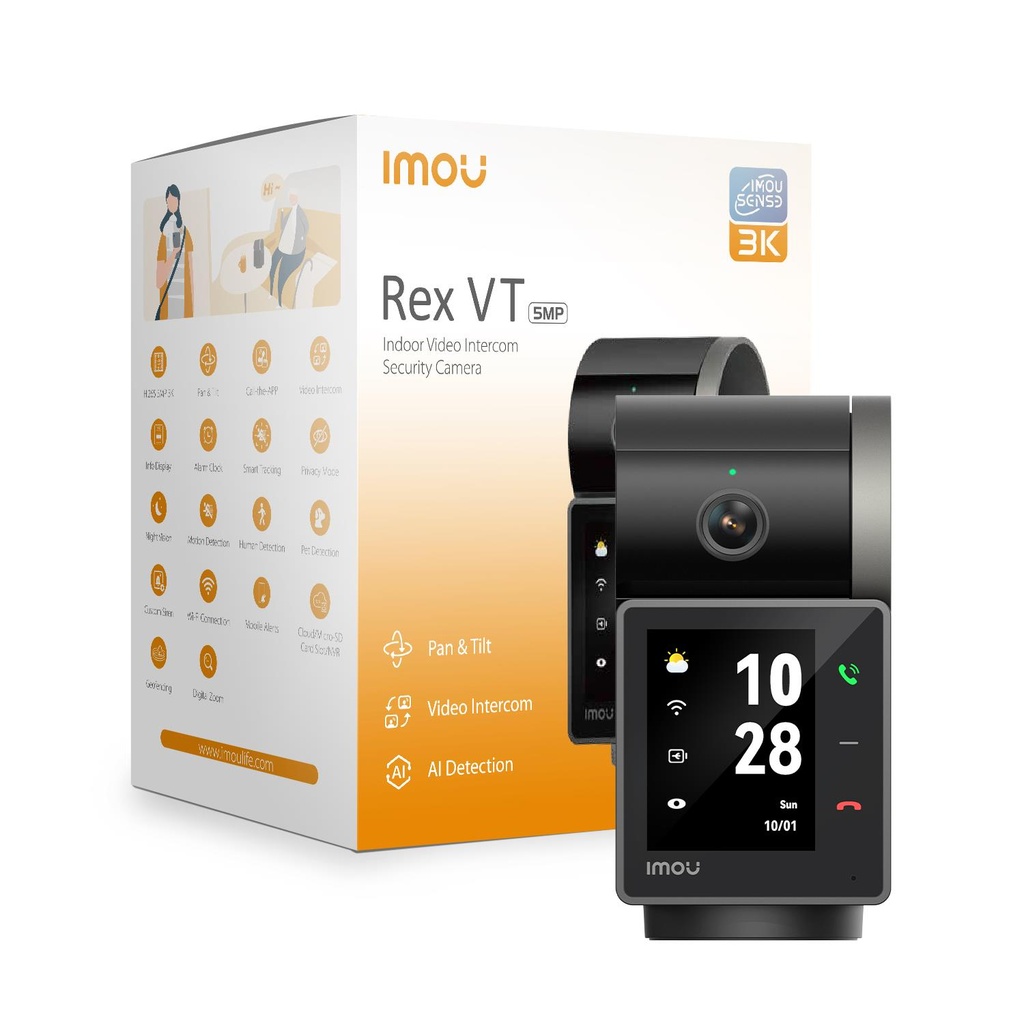

WRL CAMERA 5MP REX VT/IPC-S2VBP-5M0WR IMOU
General
| Summary | Imou Rex VT Pro. Type: IP security camera, Placement supported: Indoor, Connectivity technology: Wireless. Mounting type: Desk, Product colour: Black, Display diagonal: 6.1 cm (2.4"). Lens viewing angle, horizontal: 87°, Lens viewing angle, vertical: 48°, Lens viewing angle, diagonal: 108°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.7 mm (1 / 2.7"). Digital zoom: 8x, Fixed focal length: 3.6 mm |
| Unit Box Height | 0.15 |
| Unit Box Length | 0.13 |
| Unit Box Width | 0.095 |
| Name | WRL CAMERA 5MP REX VT/IPC-S2VBP-5M0WR IMOU |
| Model name | Rex VT |
| Model | IPC-S2VBP-5M0WR |
Performance
| Day/night mode | Yes |
| Maximum operating distance | 50 m |
| Auto-tracking | Yes |
| Placement supported | Indoor |
| Connectivity technology | Wireless |
| Type | IP security camera |
Design
| Display diagonal | 2.4 " |
| LED indicators | Yes |
| Product colour | Black |
| Mounting type | Desk |
Camera
| Pan range | 0 - 355 ° |
| Tilt angle range | 0 - 90 ° |
| Lens viewing angle, diagonal | 108 ° |
| Lens viewing angle, vertical | 48 ° |
| Lens viewing angle, horizontal | 87 ° |
| Camera tilt control | Yes |
| Camera pan control | Yes |
Image sensor
| Sensor type | CMOS |
| Progressive scan | Yes |
| Optical sensor size | 1/2.7 " |
Lens system
| Fixed focal length | 3.6 mm |
| Number of lenses | 1 |
| Digital zoom | 8 x |
| Zoom capability | Yes |
Night vision
| Night vision distance | 20 m |
| Night vision | Yes |
Video
| Frame rate | 15 fps |
| Video compression formats | H.264/H.265 |
| Total megapixels | 5 MP |
| Maximum resolution | 2880 x 1620 pixels |
Audio
| Audio detection | Yes |
| Built-in microphone | Yes |
| Built-in speaker(s) | Yes |
Network
| Wi-Fi standards | 802.11b/802.11g/Wi-Fi 4 (802.11n) |
| Wi-Fi | Yes |
| Ethernet LAN | No |
Storage
| Maximum memory card size | 256 GB |
| Compatible memory cards | MicroSD (TransFlash)/MicroSDHC/MicroSDXC |
| Card reader integrated | Yes |
| Built-in HDD | No |
Security
| Configurable region | Yes |
| Privacy protection | Yes |
| Video motion detection | Yes |
Management features
| Reset button | Yes |
Power
| Battery capacity | 2000 mAh |
| DC output current | 1.5 A |
| DC output voltage | 5 |
| Power consumption (typical) | 7.3 W |
| Power source type | Battery,DC |
Operational conditions
| Operating relative humidity (H-H) | 0 - 95 % |
| Operating temperature (T-T) | -10 - 45 °C |
System requirements
| Mobile operating systems supported | Android/iOS |
Weight & dimensions
| Weight | 290 g |
| Height | 124.5 mm |
| Depth | 60 mm |
| Width | 63 mm |
Sustainability
| Compliance certificates | CE/UKCA |
| Sustainability compliance | Yes |
Packaging content
| Quick start guide | Yes |
| AC adapter included | Yes |
| Battery included | Yes |
| Cables included | USB |
| Number of cameras | 1 |
ELKO Logistics Data
| Unit Height | 15 cm |
| Unit Depth | 13 cm |
| Unit Width | 9.5 cm |
| Units per Shipping Box | 1 |
| Product Net Weight | 0.25 kg |
| Unit Calculated Weight | 0.556 kg |
ELKO Internal Logistics Data
| Shipping Box Width | 9.5 cm |
| Shipping Box Depth | 13 cm |
| Shipping Box Height | 15 cm |
| Shipping Box Weight | 0.556 kg |
| Unit Calculated Volume | 0.001852 cubm |
