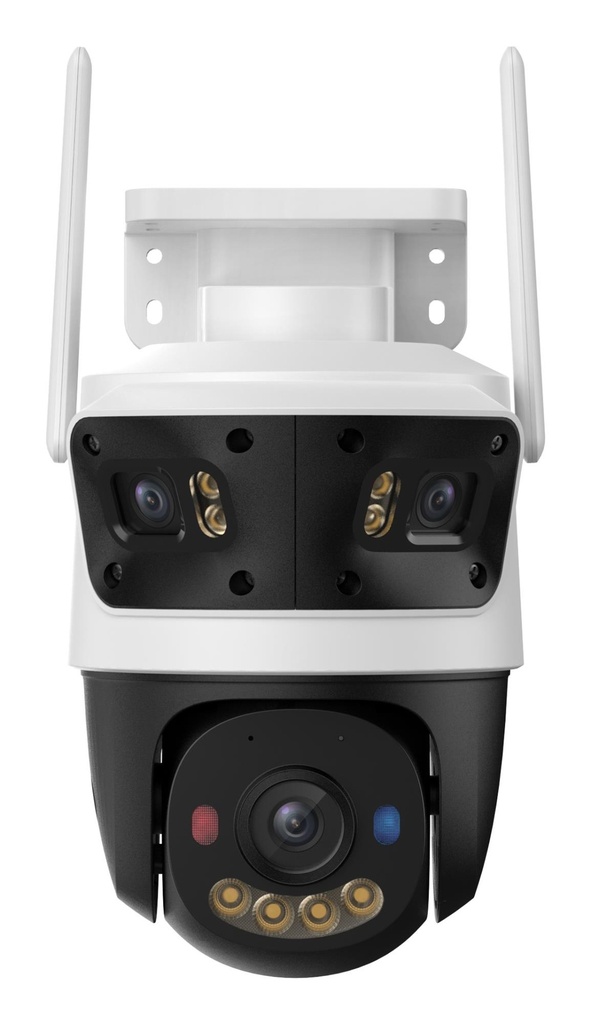

WRL CAMERA 3MP CRUISER TRIPLE/IPC-S7UP-11M0WED IMOU
General
| Unit Calculated Weight | 1.09 kg |
| Unit Calculated Volume | 0.009135 cubm |
| Units per Shipping Box | 12 |
| Units per Pallet | 0 |
| Summary | Imou Cruiser Triple. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired & Wireless. Mounting type: Ceiling/wall, Product colour: Black, White, Form factor: Turret. Lens viewing angle, horizontal: 51°, Lens viewing angle, vertical: 28°, Lens viewing angle, diagonal: 60°. Sensor type: CMOS, Optical sensor size: 25.4 / 3.06 mm (1 / 3.06"). Digital zoom: 8x, Focal length range: 6 mm |
| Unit Box Height | 0.16 |
| Unit Box Length | 0.235 |
| Unit Box Width | 0.205 |
| Model name | Cruiser Triple |
| Model | IPC-S7UP-11M0WED |
Performance
| Antenna type | External |
| Antennas quantity | 2 |
| Built-in light | Yes |
| Connectivity technology | Wired & Wireless |
| Day/night mode | Yes |
| Placement supported | Outdoor |
| Type | IP security camera |
Design
| Form factor | Turret |
| Mounting type | Ceiling/wall |
| Product colour | Black/White |
| Weatherproof | Yes |
Camera
| Camera pan control | Yes |
| Camera tilt control | Yes |
| Lens viewing angle, diagonal | 60 ° |
| Lens viewing angle, horizontal | 51 ° |
| Lens viewing angle, vertical | 28 ° |
| Pan range | 0 - 355 ° |
| Tilt angle range | 0 - 90 ° |
Image sensor
| Optical sensor size | 1/3.06 " |
| Progressive scan | Yes |
| Sensor type | CMOS |
Lens system
| Digital zoom | 8 x |
| Focal length range | 6 mm |
| Number of lenses | 3 |
| Zoom capability | Yes |
Night vision
| LED type | White |
| Night vision | Yes |
| Night vision distance | 30 m |
Video
| Frame rate | 15 fps |
| Maximum resolution | 2880 x 1620 pixels |
| Supported graphics resolutions | 2304 x 1296/2880 x 1620 |
| Total megapixels | 11 MP |
| Video compression formats | H.264/H.265 |
Audio
| Audio system | 2-way |
| Built-in microphone | Yes |
| Built-in speaker(s) | Yes |
Network
| Bluetooth | No |
| Ethernet interface type | Fast Ethernet |
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 6 (802.11ax) |
Storage
| Built-in HDD | No |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash) |
| Maximum memory card size | 1024 GB |
Ports & interfaces
| Ethernet LAN (RJ-45) ports | 1 |
Security
| Built-in siren | Yes |
| Intelligent Video Surveillance (IVS) system features | Crossing line/Human detection/Region entrance detection/Region exiting detection/Vehicle detection |
| Video motion detection | Yes |
Management features
| Behavior analysis | Intrusion detection |
| Reset button | Yes |
Power
| DC output current | 1.5 A |
| DC output voltage | 12 |
| Power consumption (typical) | 18 W |
| Power source type | DC |
Operational conditions
| Operating relative humidity (H-H) | 0 - 95 % |
| Operating temperature (T-T) | -30 - 50 °C |
System requirements
| Mobile operating systems supported | Android/iOS |
Weight & dimensions
| Depth | 126.18 mm |
| Height | 202.2 mm |
| Weight | 650.4 g |
| Width | 161.19 mm |
Packaging content
| Mounting kit | Yes |
| Number of cameras | 1 |
| Screws included | Yes |
