Micro Chip in Pen — Mega Power in Creation
A new generation marks a new beginning. The Artist series encourages creators to express themselves in an authentic way and courageously pursue their distinctive dreams. The new series comes with multiple sizes and colors. Powered by X3 Smart Chip technology, it opens more possibilities for your creativity.
X3 Smart Chip Stylus — Sharp, Stable, Precise
Initial activation force as low as 3 g
Retraction distance as short as 0.6 mm
Double the existing lifespan (compared to prior models)
No spring parts, improved anti-interference for stable performance
Digitally transmitted signal for more precise positioning
Display & Visual Features
Wide color gamut: 127 % sRGB (typical)
Full lamination to reduce parallax error
Matte / anti-glare surface for a paper-like texture
IPS-ADS panel with 178° viewing angle
Brightness: ~220 cd/m²
Contrast ratio: ~1000 : 1
Pen & Drawing Performance
8192 levels of pressure sensitivity
60° tilt support
Pen resolution: 5080 LPI
Reading height: 10 mm
Sampling rate: ~200 RPS
Features & Functionalities
8 customizable shortcut keys
One-click switch between drawing display mode and tablet mode

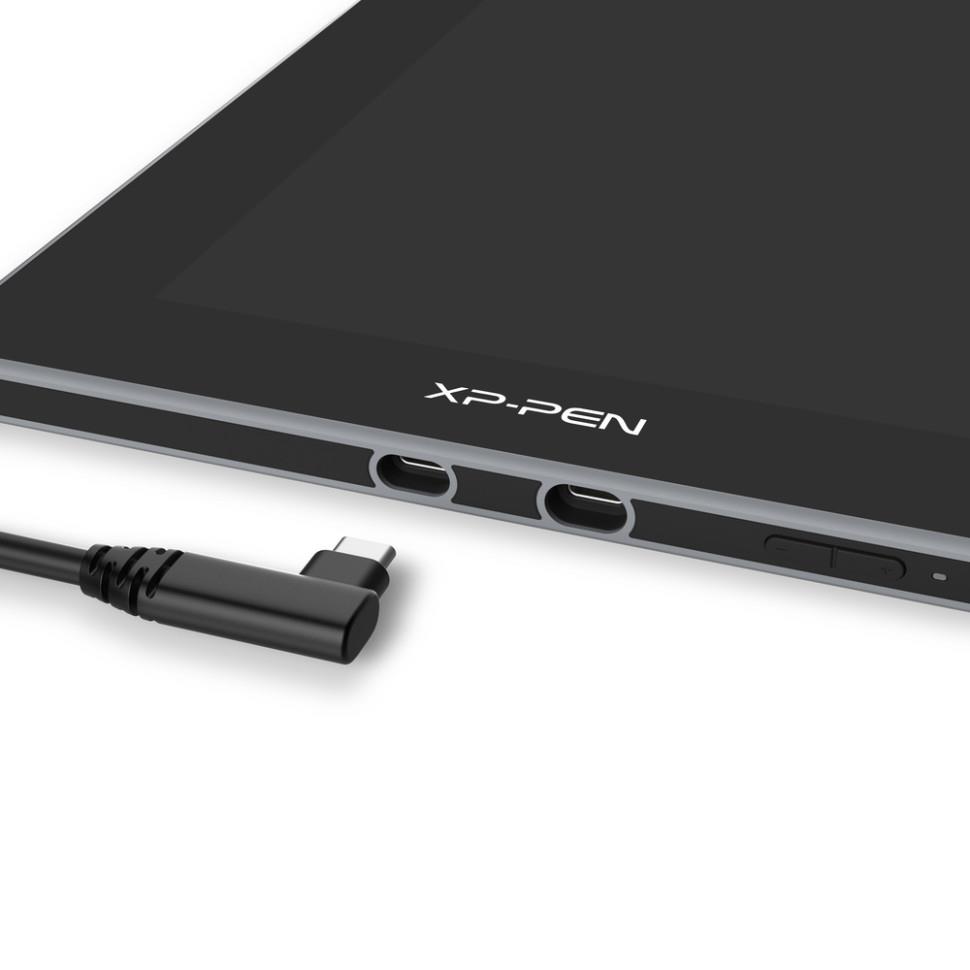

Dual-port design:
3-in-1 cable (HDMI + USB)
Full-featured USB-C port (supports USB-C to USB-C cable, sold separately)
Compatible with: Windows, macOS, Chrome OS, Android (USB 3.1 DP1.2), Linux
Works with software like Photoshop, Illustrator, SAI, GIMP, Krita, Blender, MediBang, etc.
- Display Area: 263.23 x 148.07 mm
- Display Resolution: 1920 x 1080
- Color Gamut (typical): 90% NTSC ，127% sRGB ，94% Adobe RGB
- Stylus: X3 Elite
- Tilt: 60°
- Pressure Levels: 8192
- Resolution: 5080LPI
- Compatibility: Windows 7 (or later), Mac OS X 10.10 (or later), Chrome OS 88 (or later), Android (USB3.1 DP1.2)，Linux
General
| Unit Calculated Weight | 1.55 kg |
| Unit Calculated Volume | 0.006844 cubm |
| Units per Shipping Box | 1 |
| Summary | XPPen Artist 12 Drawing Display (Gen 2). Connectivity technology: Wired, Resolution: 5080 lpi, Working area: 263.23 x 148.07 mm. Accuracy pen: 0.6 mm, Pen working area (WxD): 263.23 x 148.07 mm, Angle of rotation: 60°. Display diagonal: 30 cm (11.8"), Display: IPS, Display resolution: 1920 x 1080 pixels. Product colour: Black, Blue, Green, Pink, Windows operating systems supported: Windows 10, Windows 7, Windows 8, Mac operating systems supported: Mac OS X 10.10 Yosemite. Input voltage: 5 V, AC adapter output current: 2 A |
| Unit Box Height | 0.065 |
| Unit Box Length | 0.405 |
| Unit Box Width | 0.26 |
| Model name | Artist 12 Drawing Display (Gen 2) |
| Model | Artist 12 (2nd Gen) |
Tablet
| Buttons quantity | 8 |
| Connectivity technology | Wired |
| Device interface | USB |
| Maximum reading height | 10 mm |
| Number of programmable keys | 8 |
| Resolution | 5080 lpi |
| Working area | 263.23 x 148.07 mm |
Pen
| Accuracy pen | 0.6 mm |
| Angle of rotation | 60 ° |
| Battery-free pen | Yes |
| Pen included | Yes |
| Pen working area (WxD) | 263.23 x 148.07 mm |
| Pressure levels | 8192 |
| Wireless pen | Yes |
Display
| Brightness | 220 cd/m² |
| Colour gamut | 127 % |
| Contrast ratio (typical) | 1000:1 |
| Display | IPS |
| Display diagonal | 11.8 " |
| Display resolution | 1920 x 1080 pixels |
| Viewing angle, vertical | 178 ° |
Ports & interfaces
| USB Type-C ports quantity | 2 |
Features
| Compatible operating systems | Windows 7 (or later), Mac OS X 10.10 (or later), Chrome OS 88 (or later), Android (USB3.1 DP1.2),Linux |
| Linux operating systems supported | Yes |
| Mac operating systems supported | Mac OS X 10.10 Yosemite |
| Product colour | Black,Blue,Green,Pink |
| Windows operating systems supported | Windows 10/Windows 7/Windows 8 |
Power
| AC adapter output current | 2 A |
| Input voltage | 5 V |
| Number of batteries supported | 1 |
| USB powered | Yes |
Weight & dimensions
| Depth | 209 mm |
| Height | 12 mm |
| Pen weight | 3 g |
| Width | 346.2 mm |
Packaging data
| Package type | Box |
Packaging content
| Cables included | USB |
| Number of pen nibs | 10 |
| Number of pen tips | 1 |
| Packaging content | 1x extension cord, 1x cleaning cloth, 1x black drawing glove, 1x nib extractor, 1x quick guide, 1x 3-in-1 USB cable |
Certificates
| Certification | CE/WEEE/NOM/RCM/EAC/FCC/KC/RoHS/PSE/BIS/UKCA |
Other features
| Quantity per pack | 1 pc(s) |
| Warranty period | 1 year(s) |
Logistics data
| Country of origin | China |
