Micro Chip in Pen, Mega Power in Creation

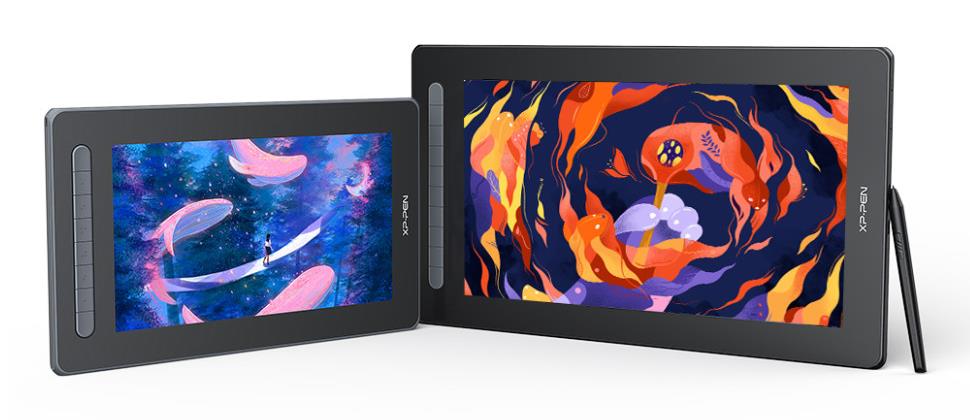

A new generation marks a new beginning. The Artist Series encourages creators to express themselves in an authentic way and courageously pursue their distinctive dreams. The new series comes with multiple sizes and colors. Powered by X3 Smart Chip technology, it opens more possibilities for your creativity.
X3 smart chip stylus --- "Sharp, Stable, Precise"
Initial activation force as low as 3 g
Retraction distance as short as 0.6 mm
Extended lifespan (claimed ""double the existing life span"")
No parallax error
Thanks to a fully laminated screen --- the screen and display are seamlessly laminated to reduce the distance between stylus tip and cursor.
Paper-like surface texture
For a natural drawing feel

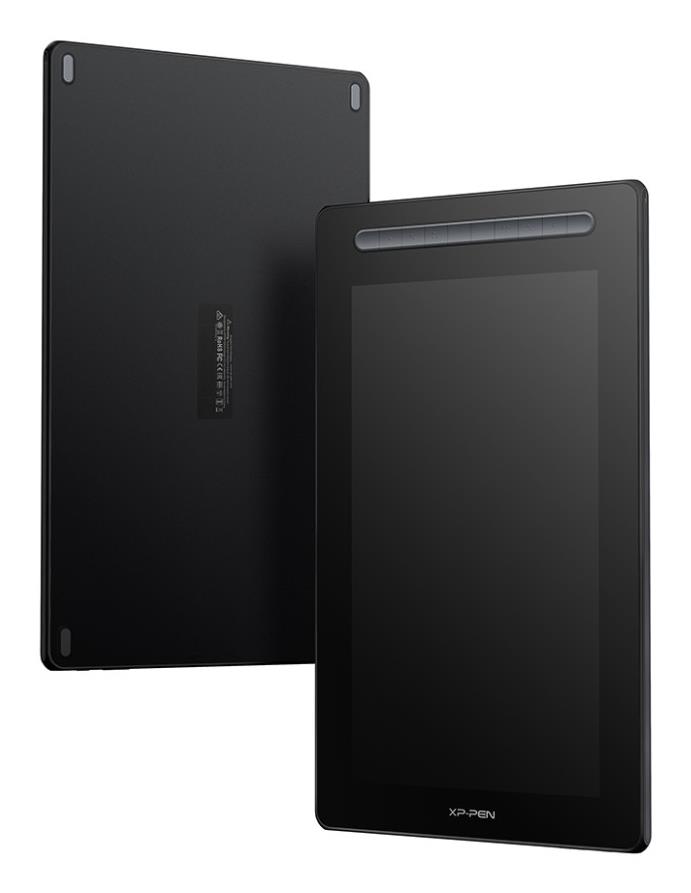

Portable & slim design
For easier carrying

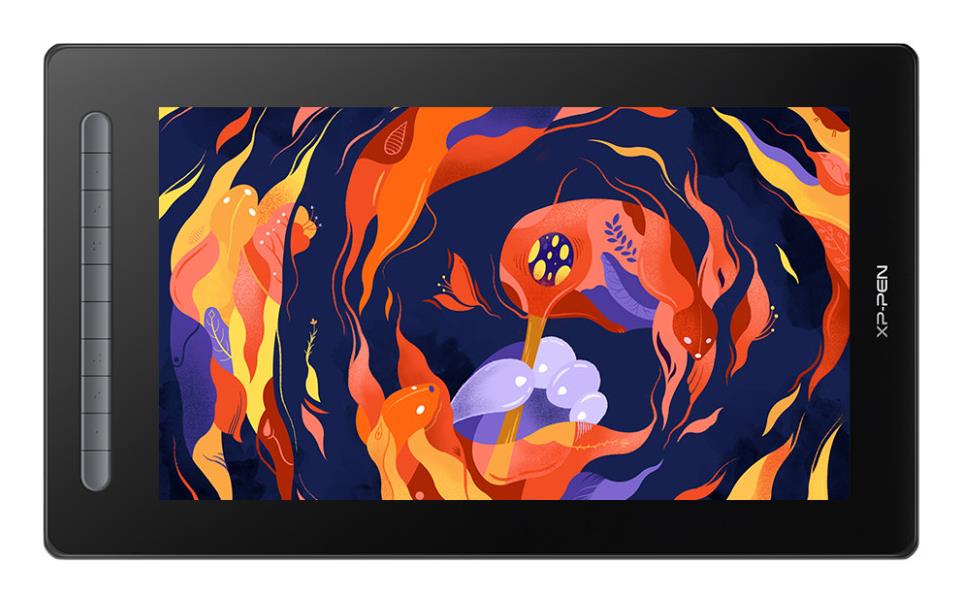

15.4-inch display
Balance between workspace and portability
Shortcut keys
Multiple user-defined keys to streamline your workflow

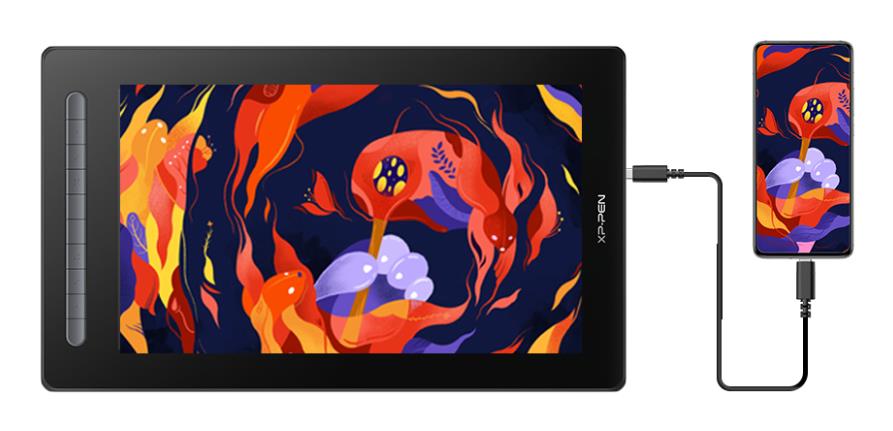

Versatile connectivity
3-in-1 cable (HDMI + USB) for PC, and a full-featured USB-C port for easier link with laptops, Android phones, etc.
Switch modes
Long-press power button for 3 seconds to alternate between drawing display mode and tablet mode
Broad compatibility
Windows, macOS, Android, Chrome OS, Linux; supports major creative software like Photoshop, Illustrator, SAI, GIMP, Krita, etc.
- Display Area: 340.99 x 191.81 mm
- Display Resolution: 1920 x 1080
- Color Gamut (typical): 90% NTSC，127% sRGB，94% Adobe RGB
- Stylus: X3 Elite
- Tilt: 60°
- Pressure Levels: 8192
- Contrast: 1000:1
- Resolution: 5080LPI
- Reading Height 10mm
- Compatibility: Windows 7 (or later), Mac OS X 10.10 (or later), Chrome OS 88 (or later), Android (USB3.1 DP1.2), Linux
General
| Unit Calculated Weight | 2.77 kg |
| Unit Calculated Volume | 0.01491 cubm |
| Units per Shipping Box | 5 |
| Summary | XPPen Artist 16 Drawing Display (Gen2). Connectivity technology: Wired, Resolution: 5080 lpi, Working area: 340.99 x 191.81 mm. Accuracy pen: 0.6 mm, Pen working area (WxD): 263.23 x 148.07 mm, Angle of rotation: 60°. Display diagonal: 30 cm (11.8"), Display: IPS, Aspect ratio: 16:9. Product colour: Black, Blue, Green, Pink, Windows operating systems supported: Windows 10, Windows 7, Windows 8, Mac operating systems supported: Mac OS X 10.10 Yosemite. Input voltage: 5 V, AC adapter output current: 2 A, Energy efficiency class (SDR): B |
| Unit Box Height | 0.085 |
| Unit Box Length | 0.485 |
| Unit Box Width | 0.31 |
| Model name | Artist 16 Drawing Display (Gen2) |
| Model | Artist 16 (2nd Gen) |
Tablet
| Buttons quantity | 8 |
| Connectivity technology | Wired |
| Device interface | USB |
| Maximum reading height | 10 mm |
| Number of programmable keys | 9 |
| Resolution | 5080 lpi |
| Working area | 340.99 x 191.81 mm |
Pen
| Accuracy pen | 0.6 mm |
| Angle of rotation | 60 ° |
| Battery-free pen | Yes |
| Pen included | Yes |
| Pen working area (WxD) | 263.23 x 148.07 mm |
| Pressure levels | 8192 |
| Wireless pen | Yes |
Display
| Aspect ratio | 16:9 |
| Brightness | 220 cd/m² |
| Colour gamut | 127 % |
| Contrast ratio (typical) | 1000:1 |
| Display | IPS |
| Display diagonal | 11.8 " |
| Display resolution | 1920 x 1080 pixels |
| Viewing angle, vertical | 178 ° |
Ports & interfaces
| USB Type-C ports quantity | 2 |
Features
| Compatible operating systems | Windows 7 (or later), Mac OS X 10.10 (or later), Chrome OS 88 (or later), Android (USB3.1 DP1.2),Linux |
| Linux operating systems supported | Yes |
| Mac operating systems supported | Mac OS X 10.10 Yosemite |
| Product colour | Black,Blue,Green,Pink |
| Windows operating systems supported | Windows 10/Windows 7/Windows 8 |
Power
| AC adapter output current | 2 A |
| Energy consumption (SDR) per 1000 hours | 5 kWh |
| Energy efficiency class (SDR) | B |
| Input voltage | 5 V |
| Number of batteries supported | 1 |
| USB powered | Yes |
Weight & dimensions
| Depth | 255.8 mm |
| Height | 12.89 mm |
| Pen weight | 3 g |
| Width | 434 mm |
Packaging data
| Package type | Box |
Packaging content
| Cables included | USB |
| Number of pen nibs | 10 |
| Number of pen tips | 1 |
Certificates
| Certification | CE/WEEE/NOM/RCM/EAC/FCC/KC/RoHS/PSE/BIS/UKCA |
Endurance
| Energy efficiency class | B |
Other features
| Quantity per pack | 1 pc(s) |
| Warranty period | 1 year(s) |
Logistics data
| Country of origin | China |
