MESH CERTIFIED MAKES IT WORK
The front mesh panel allows air to flow into the case easily without obstruction, providing the best system cooling performance. The micro-atx chassis provide small footprint but big perfromance.
HEAT DISSIPATION
You don't need to worry about system cooling with the help of the gaming cases.
HARDWARE COMPATIBILITY
The gaming cases offers extensive support for the installation of your hardware components.
STORAGE YOU NEED
Configure your own storage layout and install up to 3x2.5"+1x 3.5" or 2x 2.5" + 2x 3.5" storages.
MAGNETIC DUST FILTER
A magnetic filter sits on the top vents keeping dust from falling inside while being easily removed for cleaning.
AUTO-RGB SHOWROOM
Create your own Auto-RGB battle station with the MAG FORGE M100A.
- Can install up to 6x system fans, providing ventilation and stable performance to the whole system
- Built-in Auto RGB fans with striking lighting and vivid lighting effects
- The magnetic filter on the top vents being easily remove for cleaning
- Support up to 300 mm graphics card
General
| Unit Calculated Weight | 4.5 kg |
| Unit Calculated Volume | 0.05617 cubm |
| Units per Shipping Box | 1 |
| Units per Pallet | 0 |

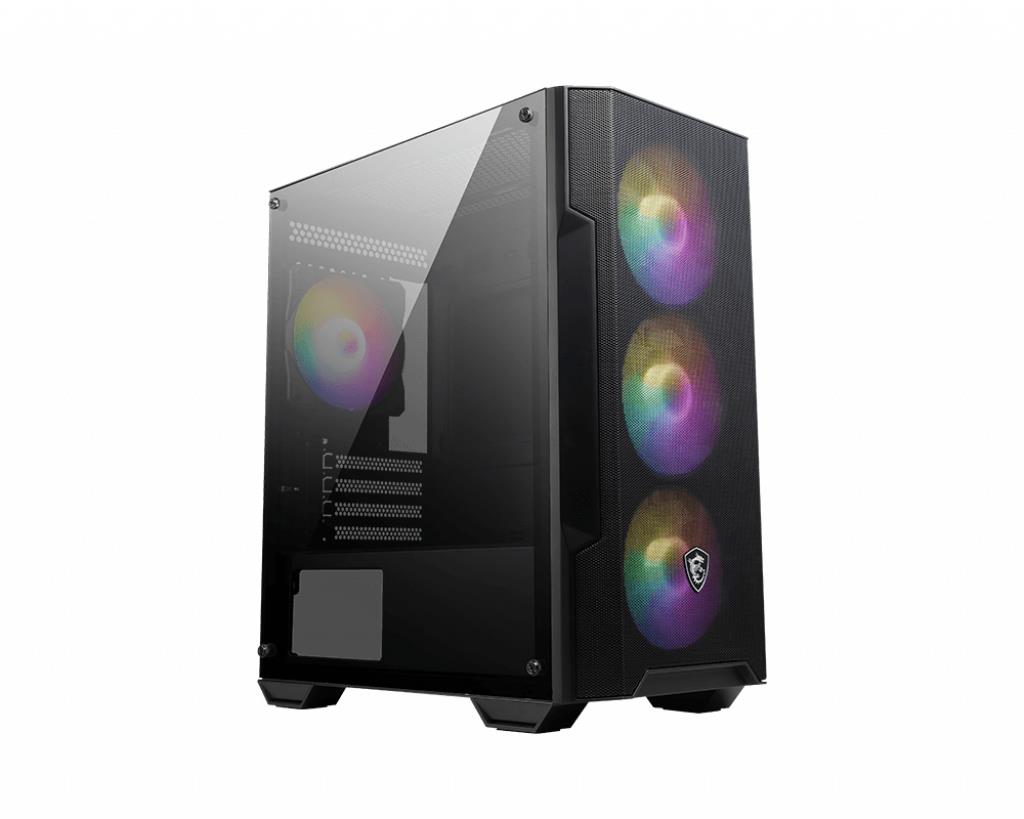

| Summary | MSI MAG Forge M100A. Form factor: Micro Tower, Type: PC, Product colour: Black, Transparent. Power supply location: Bottom. Front fans installed: 3x 120 mm, Front fans diameters supported: 120 mm, Rear fans installed: 1x 120 mm. Supported HDD sizes: 2.5,3.5". Width: 200 mm, Depth: 388 mm, Height: 423 mm |
| Unit Box Height | 0.445 |
| Unit Box Length | 0.495 |
| Unit Box Width | 0.255 |
| Cooling & Ventilation System | Front: 3 x 120mm Rear: 1 x 120mm; (Front: 3 x Auto-RGB Fan Rear: 1 x Auto-RGB Fan) |
| Design features | Max. GPU LENGTH: 300 mm; Max. CPU COOLER HEIGHT: 160mm |
| Model name | MAG FORGE M100A |
Design
| Anti-dust filter | Yes |
| Form factor | Micro Tower |
| Illumination | Yes |
| Illumination colour | Multi |
| Illumination location | Case fans |
| LED indicators | Yes |
| Material | Acrylic |
| Number of 2.5" bays | 2 |
| Number of 3.5" bays | 2 |
| On/off button | Yes |
| Product colour | Black/Transparent |
| Reset button | Yes |
| Side window | Yes |
| Suitable for | Gaming |
| Supported motherboard form factors | micro ATX/Mini-ITX |
| Tempered glass panel(s) | Yes |
| Type | PC |
Power supply
| Power supply included | No |
| Power supply location | Bottom |
Ports & interfaces
| Audio input | Yes |
| Audio output | Yes |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
Cooling
| Front fans diameters supported | 120 mm |
| Front fans installed | 3x 120 mm |
| Front radiator sizes supported | 120/240 mm |
| Number of front fans supported (max) | 3 |
| Number of rear fans supported (max) | 1 |
| Number of top fans supported (max) | 2 |
| Rear fans diameters supported | 120 mm |
| Rear fans installed | 1x 120 mm |
| Rear radiator sizes supported | 120 mm |
| Top fans diameters supported | 120 mm |
| Top radiator sizes supported | 120/240 mm |
Storage
| HDD/SSD combo cage | Yes |
| Supported HDD sizes | 2.5/3.5 " |
Weight & dimensions
| Depth | 388 mm |
| Height | 423 mm |
| Weight | 3360 g |
| Width | 200 mm |
Packaging data
| Package weight | 4250 g |
