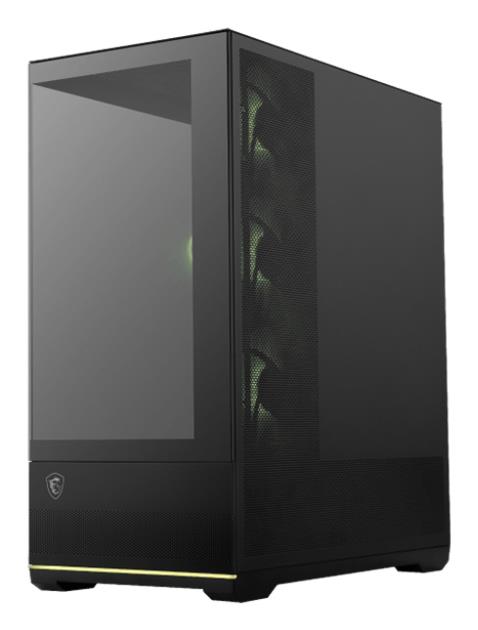

MSI MAG PANO 110R PZ MidiTower Case product features Transparent panel Not included Colour Black MAGPANO110RPZ

Kainos tik partneriams Prisijungti B2B

MSI
Garantija: 24 mėn.
  • Gamintojas
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days
Gamintojas: MSI

MSI's mainstream MAG series epitomizes stability and durability and is built to withstand the most intense gaming sessions. The entire lineup features robust construction with metallic-like hardness and excellent heat dissipation, ensuring stability for all critical gaming components.

To fulfill the desire for showcasing an ARGB PC build, the MAG PANO 110R Series features a 270-degree panoramic display, enhancing aesthetics and maintaining a clean design.

Decorated with a metal nameplate to highlight the MAG family identity.

Featuring a 1-to-5 ARGB fan control hub, this system is fully compatible with MSI Mystic Light, allowing for easy sync and customizable ARGB lighting effects.

Pre-installed with 3 x ARGB reverse blade fans at the side and 1 x ARGB fan at the rear for optimal airflow and a clean, stylish design.

  • 270-Degree Display: The chassis features a 270-degree panoramic design with tempered glass, providing an expansive view to showcase detailed components
  • Measurements: Supports multiple motherboard sizes, including regular ATX, Micro-ATX, Mini-ITX and back-connect ATX and Micro-ATX, allowing users to customize their PC setup
  • Pre-build with Reverse Blades Fan: Pre-installed reverse blade fans on the side ensure an unobstructed display of the ARGB fan’s lighting effects, free from interference by fan frames
  • ARGB-Fan Control Board: The 1-to-5 ARGB fan control board supports up to 5 ARGB fans, allowing users to adjust 18 ARGB lighting effects with a single LED switch button
  • Upgrade Airflow Layout: Supports up to 10 fans, a 360mm radiator on top and a 120mm radiator at rear. The lower chamber, surrounded by vents, further enhances heat dissipation for optimal performance
General
Unit Calculated Weight11.3 kg
Unit Calculated Volume0.09086/0.1006 cubm
Units per Shipping Box1
Units per Pallet0
SummaryMSI MAG PANO 110R PZ. Form factor: Midi Tower, Type: PC, Product colour: Black. Power supply location: Bottom, Supported power supply form factors: ATX. Side fans installed: 3x 120 mm, Side fans diameters supported: 120,140 mm, Rear fans installed: 1x 120 mm. Supported HDD sizes: 2.5,3.5". Width: 225 mm, Depth: 420 mm, Height: 485 mm
CnCode84733080
Unit Box Height0.535
Unit Box Length0.57
Unit Box Width0.33
Case product featuresTransparent panel
Model nameMAG PANO 110R PZ
Design
Form factorMidi Tower
Illumination locationCase fans
LED indicatorsYes
MaterialTempered glass
Maximum CPU cooler height160 mm
Maximum graphics card length200 mm
Maximum PSU length400 mm
Number of 2.5" bays2
Number of 3.5" bays2
Number of expansion slots7
On/off buttonYes
Product colourBlack
Side windowYes
Suitable forGaming
Supported motherboard form factorsATX/micro ATX/Mini-ATX
TypePC
Power supply
Power supply includedNo
Power supply locationBottom
Supported power supply form factorsATX
Ports & interfaces
Combo headphone/mic portYes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity1
Cooling
Bottom fans diameters supported120/140/160 mm
Bottom radiator sizes supported120/240/360 mm
Number of bottom fans supported (max)3
Number of rear fans supported (max)1
Number of side fans supported (max)3
Number of top fans supported (max)3
Rear fans diameters supported120 mm
Rear fans installed1x 120 mm
Rear radiator sizes supported120 mm
Side fans diameters supported120/140 mm
Side fans installed3x 120 mm
Side radiator sizes supported120/240/360 mm
Top fans diameters supported120/140 mm
Top radiator sizes supported120/240/360 mm
Storage
Supported HDD sizes2.5/3.5 "
Weight & dimensions
Depth420 mm
Height485 mm
Width225 mm
