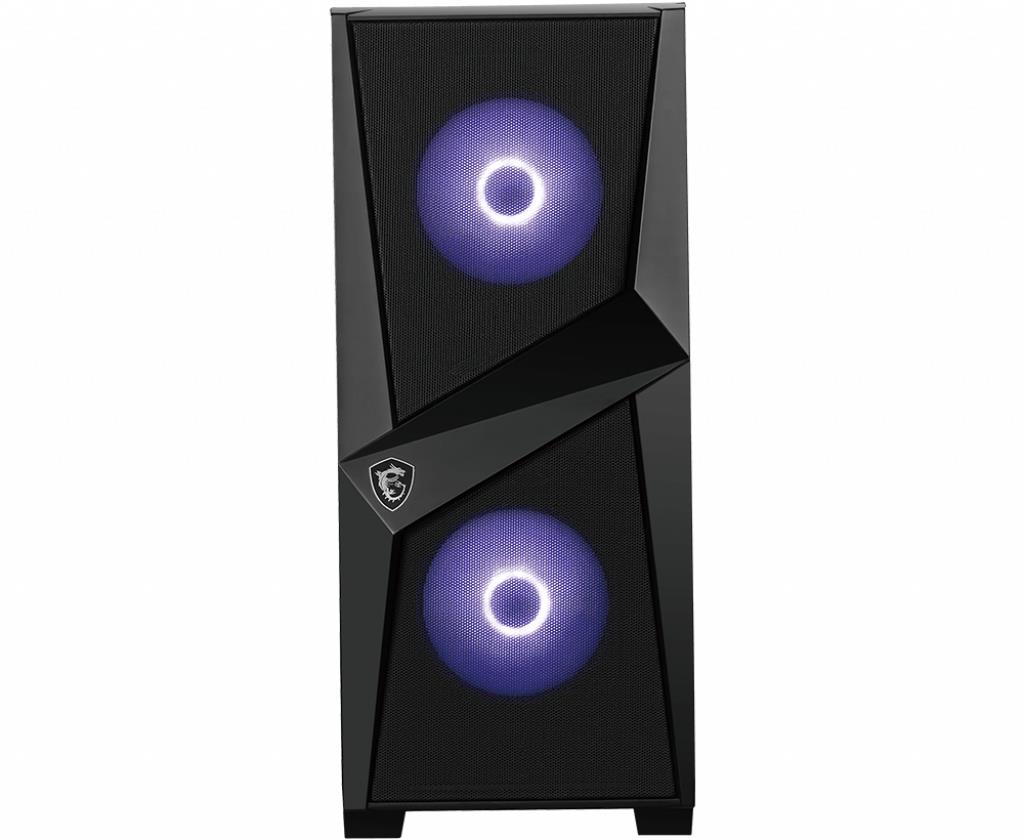

OPTIMIZED AIR FLOW
Two 120mm fans aligned vertically on the front to draw in air evenly across the entire face of the enclosure. That will contribute to positive air pressure within the case, the rising warm air will always be exhausted with the rear and top airflow from the MAG Forge 100 Series.
READY FOR OPTIMIZED MOTHERBOARD
Designed with multiple easy installation mechanisms and accommodated an up to ATX motherboard to provide an unhindered building experience.

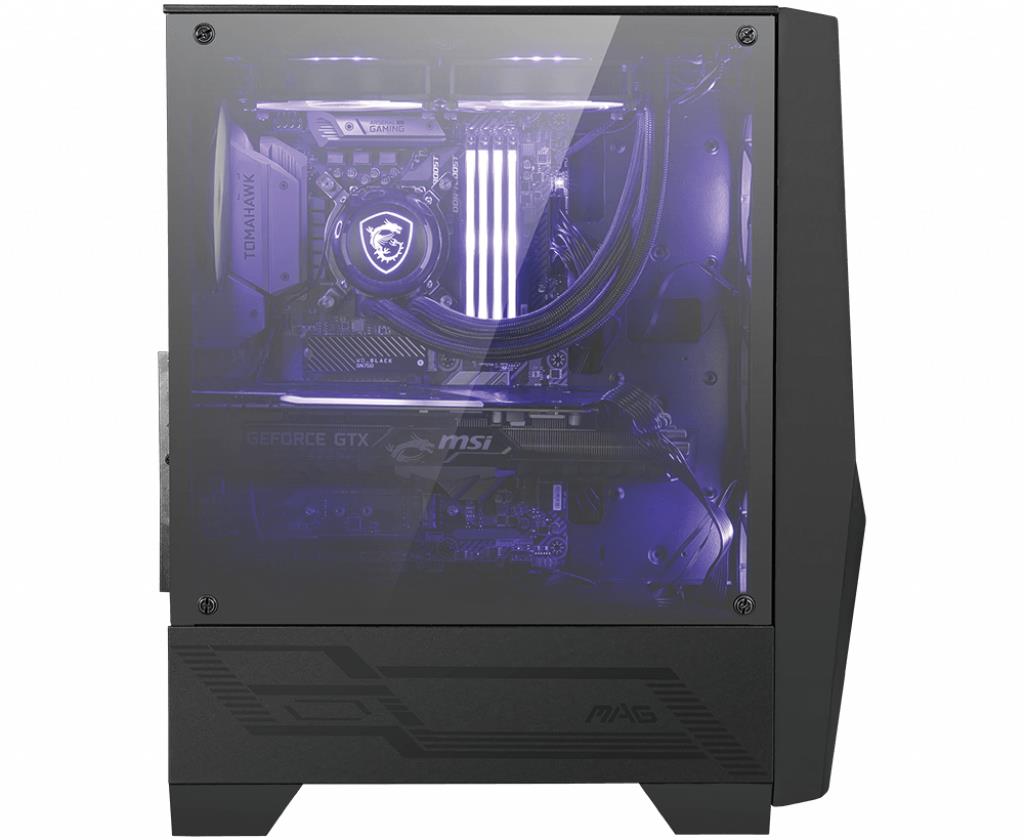

TOOL-LESS TEMPERED GLASS
he light gray tone of 4mm tempered glass side panel is ideal for displaying RGB lighting effects and provides clear internal component construction.
The Forge 100 Series’ thoughtful case design allows users to install/remove the tempered glass easily. Simply place the tempered glass on the stump of the case before installing it for a safe and simple process.
1 to 6 RGB LED Control Board
Bundled with a 1 to 6 RGB LED Control Board to help you have more attractive ways to decorate your gaming rig by add the LED strips.
LED Switch Button
User can intuitively control & switch 5 lighting effects through the LED switch button.
- MSI MAG Forge 100M chassis can support up to ATX motherboard, side panel of 4mm tempered glass, up to 140 mm RGB fan, reserved cooling space and front USB 3.2 Gen 1 Type A
- Optimize Airflow
- RGB Fan included
- 4mm Tempered Glass
- 330 mm Radiator Support
- 160 mm CPU Cooler Support
General
| Unit Calculated Weight | 6.65 kg |
| Unit Calculated Volume | 0.07258 cubm |
| Units per Shipping Box | 1 |
| Units per Pallet | 0 |
| Summary | MSI MAG FORGE 100M Mid Tower Gaming Computer Case 'Black, 2x 120mm RGB PWM Fan, 1x 120mm Fan, 1-6 RGB Hub, Tempered Glass Panel, ATX, mATX, mini-ITX'. Form factor: Midi Tower, Type: PC, Product colour: Black, Transparent. Power supply location: Bottom, Supported power supply form factors: ATX. Front fans installed: 2x 120 mm, Front fans diameters supported: 120,140 mm, Rear fans installed: 1x 120 mm. Supported HDD sizes: 2.5,3.5". Width: 210 mm, Depth: 421 mm, Height: 499 mm |
| Unit Box Height | 0.48 |
| Unit Box Length | 0.56 |
| Unit Box Width | 0.27 |
| Cooling & Ventilation System | Front：2 x 120 mm RGB LED Fan included, Rear：1 x 120 mm System Fan included |
| Model name | MAG FORGE 100M |
Design
| Cable management | Yes |
| Form factor | Midi Tower |
| Illumination | Yes |
| Illumination colour | Purple |
| Illumination location | Case fans/Front |
| Maximum CPU cooler height | 160 mm |
| Maximum graphics card length | 330 mm |
| Maximum PSU length | 200 mm |
| Number of 2.5" bays | 3 |
| Number of 3.5" bays | 2 |
| Number of expansion slots | 7 |
| Number of internal 3.5" bays | 2 |
| On/off button | Yes |
| Product colour | Black/Transparent |
| Reset button | Yes |
| Side window | Yes |
| Suitable for | Gaming |
| Supported motherboard form factors | ATX/Mini-ATX/Mini-ITX |
| Tempered glass panel(s) | Yes |
| Type | PC |
Power supply
| Power supply included | No |
| Power supply location | Bottom |
| Supported power supply form factors | ATX |
Ports & interfaces
| Audio input | Yes |
| Audio output | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
Cooling
| Front fans diameters supported | 120/140 mm |
| Front fans installed | 2x 120 mm |
| Number of front fans supported (max) | 3 |
| Number of rear fans supported (max) | 1 |
| Number of top fans supported (max) | 2 |
| Rear fans diameters supported | 120 mm |
| Rear fans installed | 1x 120 mm |
| Top fans diameters supported | 120/140 mm |
Storage
| HDD/SSD combo cage | Yes |
| Supported HDD sizes | 2.5/3.5 " |
Weight & dimensions
| Depth | 421 mm |
| Height | 499 mm |
| Weight | 5640 g |
| Width | 210 mm |
Logistics data
| Harmonized System (HS) code | 84733080 |
