Kingston memory is designed, manufactured and rigorously tested to meet the exact specifications of each brand name system.
General
| Unit Calculated Weight | 0.035 kg |
| Unit Calculated Volume | 8.344E-05 cubm |
| Units per Shipping Box | 25 |
| Units per Pallet | 0 |

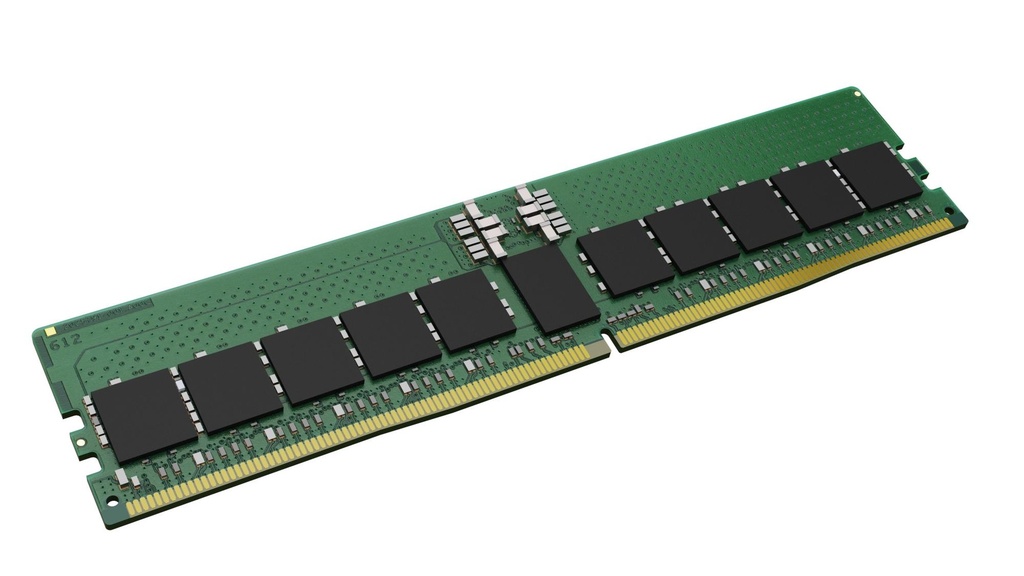

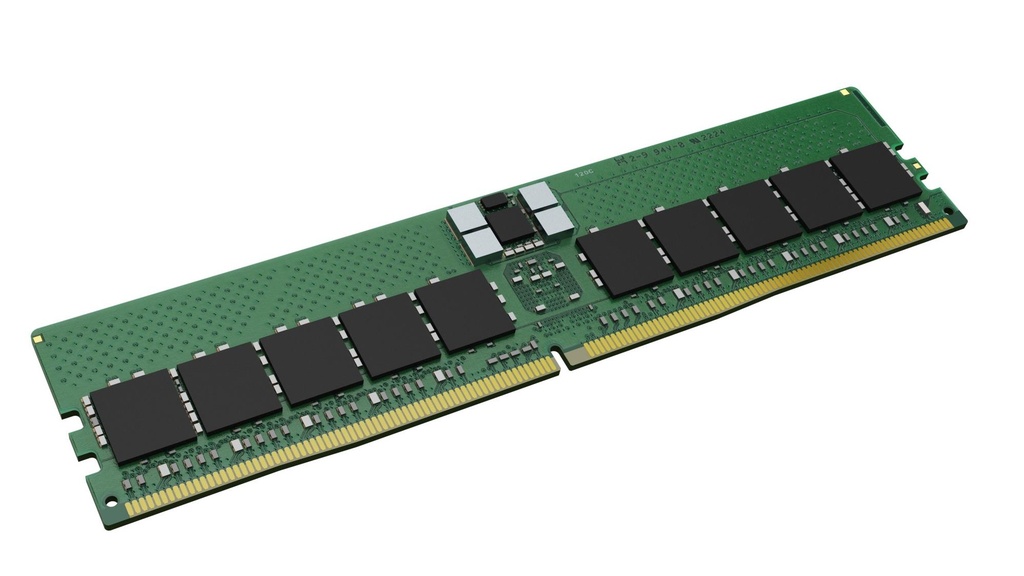

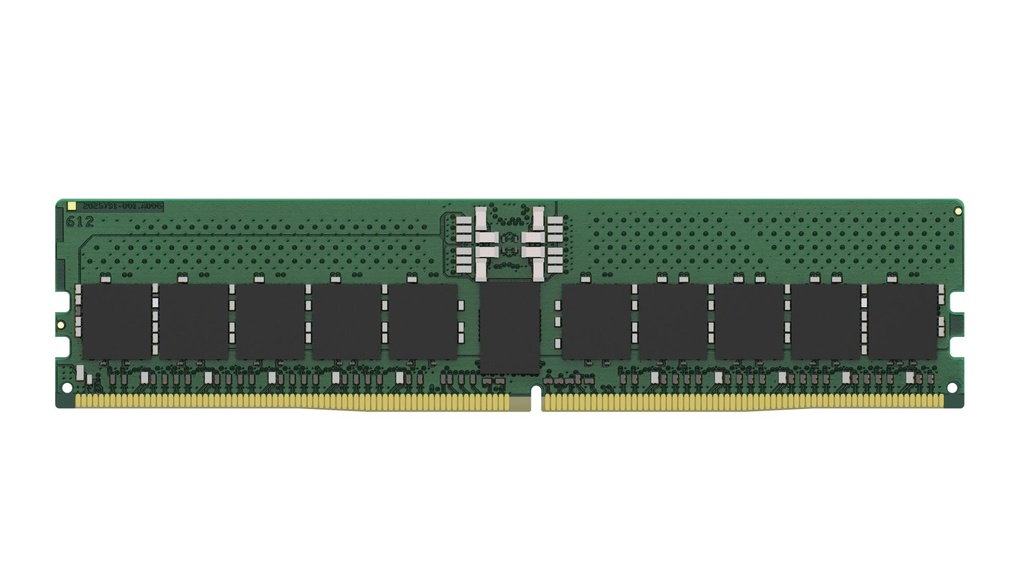

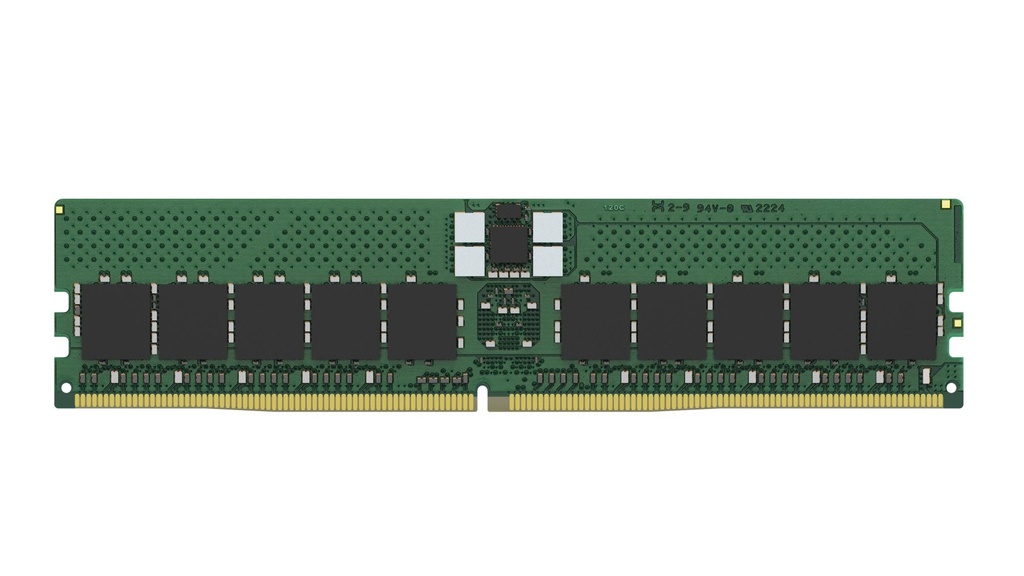

| Summary | Kingston Technology KSM56R46BD8-32HA. Component for: PC/Server, Internal memory: 32 GB, Memory layout (modules x size): 1 x 32 GB, Internal memory type: DDR5, Memory form factor: 288-pin DIMM, CAS latency: 46 |
| Unit Box Height | 0.01 |
| Unit Box Length | 0.16 |
| Unit Box Width | 0.045 |
Features
| Buffered memory type | Registered (buffered) |
| CAS latency | 46 |
| Component for | PC/Server |
| ECC | No |
| Internal memory | 32 GB |
| Internal memory type | DDR5 |
| JEDEC standard | Yes |
| Lead plating | Gold |
| Memory data transfer rate | 5600 MT/s |
| Memory form factor | 288-pin DIMM |
| Memory layout (modules x size) | 1 x 32 GB |
| Memory ranking | 2 |
| Memory voltage | 1.1 V |
| Module configuration | 4096M x 80 |
| On-Die ECC | Yes |
| Refresh row cycle time | 295 ns |
| Row active time | 32 ns |
| Row cycle time | 48 ns |
| Row Precharge Time (TRP) | 16 |
| SPD profile | Yes |
Operational conditions
| Operating temperature (T-T) | 0 - 95 °C |
| Storage temperature (T-T) | -55 - 100 °C |
Sustainability
| Compliance certificates | RoHS |
| Doesn't contain | Halogen |
Weight & dimensions
| Height | 31.25 mm |
| Width | 133.35 mm |
