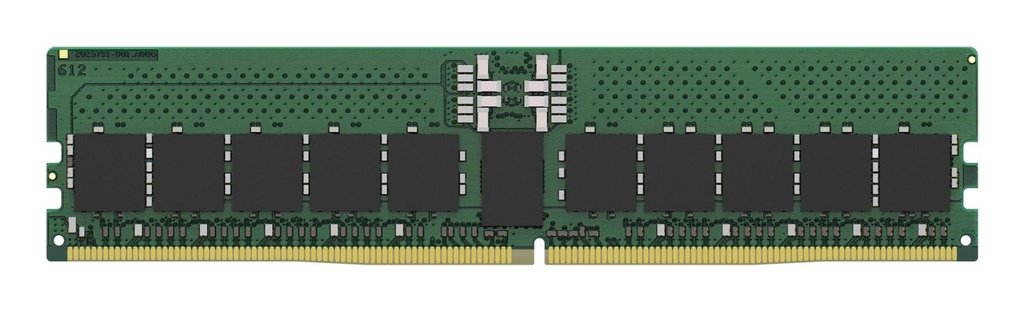

Kingston's KSM56R46BD8-32MH is a 4G x 80-bit (32GB) DDR5-5600 CL46 SDRAM (Synchronous DRAM), 2Rx8, ECC, memory module, based on twenty 2G x 8-bit FBGA components.
The SPD is programmed to JEDEC standard latency DDR5-5600 timing of 46-45-45 at 1.1V. Each 288-pin DIMM uses gold contact fingers.
General
| Summary | Kingston Technology 32GB 5600MT/s DDR5 ECC Reg CL46 DIMM 2Rx8 Micron H. Component for: Server, Internal memory: 32 GB, Memory layout (modules x size): 1 x 32 GB, Internal memory type: DDR5, Memory form factor: 288-pin DIMM, CAS latency: 46, ECC |
| Unit Box Height | 0.007 |
| Unit Box Length | 0.16 |
| Unit Box Width | 0.045 |
| Name | SERVER MEMORY 32GB DDR5-5600/REG KSM56R46BD8-32MH KINGSTON |
Features
| JEDEC standard | Yes |
| SPD profile | Yes |
| On-Die ECC | Yes |
| Row Precharge Time (TRP) | 16 |
| Row active time | 32 ns |
| Refresh row cycle time | 295 ns |
| Row cycle time | 48 ns |
| Module configuration | 4096M x 80 |
| Memory ranking | 2 |
| ECC | Yes |
| Memory layout (modules x size) | 1 x 32 GB |
| Component for | Server |
| Memory data transfer rate | 5600 MT/s |
| Memory form factor | 288-pin DIMM |
| Memory voltage | 1.1 V |
| CAS latency | 46 |
| Buffered memory type | Registered (buffered) |
| Internal memory | 32 GB |
| Internal memory type | DDR5 |
Operational conditions
| Storage temperature (T-T) | -55 - 100 °C |
| Operating temperature (T-T) | 0 - 95 °C |
Sustainability
| Compliance certificates | RoHS |
Weight & dimensions
| Height | 31.25 mm |
| Width | 133.35 mm |
ELKO Logistics Data
| Unit Height | 0.7 cm |
| Unit Depth | 16 cm |
| Unit Width | 4.5 cm |
| Units per Pallet | 0 |
| Units per Shipping Box | 25 |
| Unit Calculated Weight | 0.034 kg |
ELKO Internal Logistics Data
| Shipping Box Width | 18.5 cm |
| Shipping Box Depth | 20.5 cm |
| Shipping Box Height | 6 cm |
| Shipping Box Weight | 0.850000023841858 kg |
| Unit Calculated Volume | 9.102E-05 cubm |
