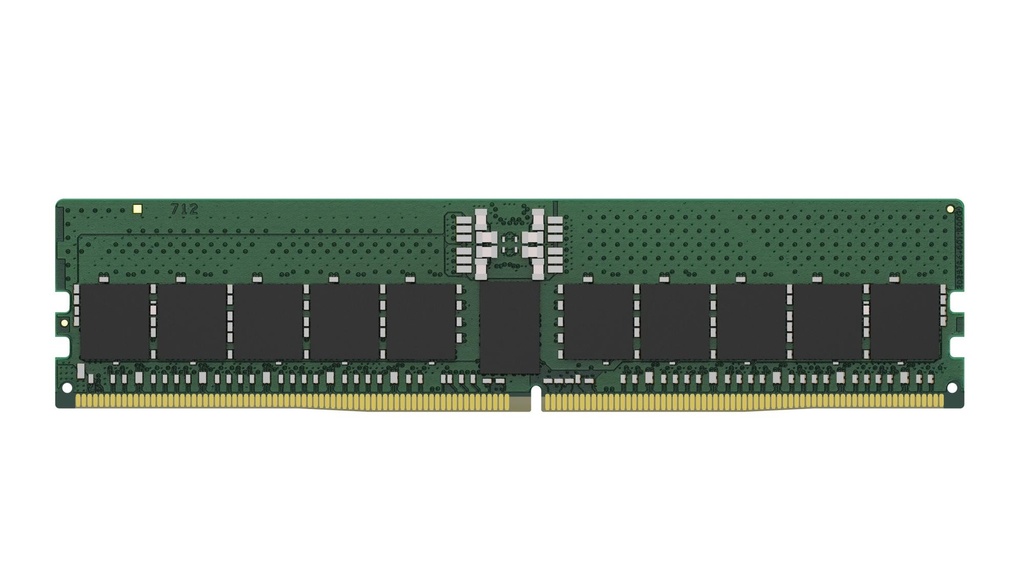

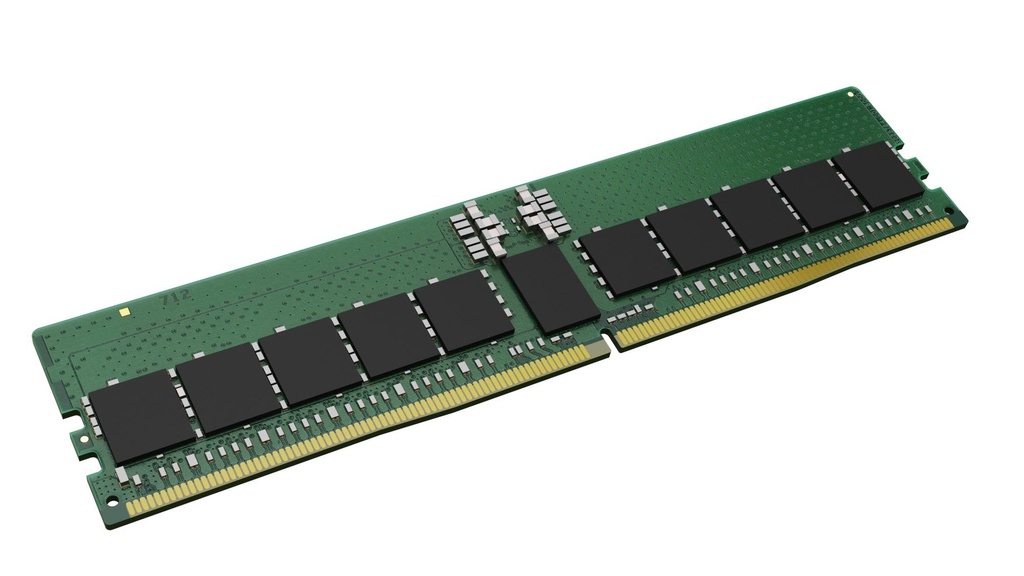

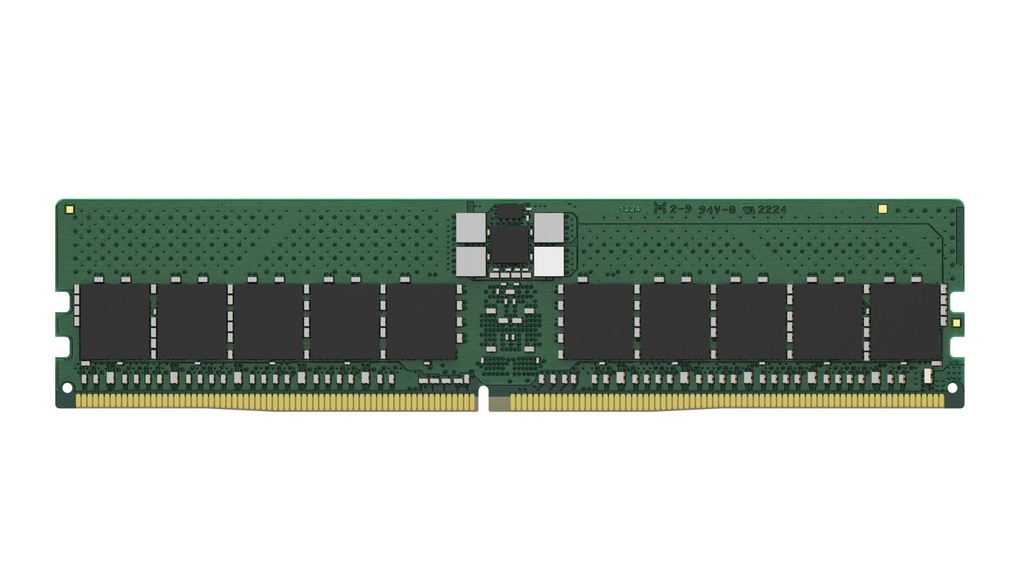

KINGSTON DDR5 32 GB Registered (buffered) CL 46 1.1 V 288-pin DIMM ECC Yes KSM56R46BD8PMI-32HAI
General
| Unit Calculated Weight | 0.034 kg |
| Unit Calculated Volume | 8.547E-05 cubm |
| Units per Shipping Box | 25 |
| Units per Pallet | 0 |
| Summary | Kingston Technology 32GB, DDR5, 5600MT/s, ECC, Registered, DIMM, CL46, x80, 2RX8, 1.1V, 288-pin, 16Gbit. Component for: PC/Server, Internal memory: 32 GB, Memory layout (modules x size): 1 x 32 GB, Internal memory type: DDR5, Memory form factor: 288-pin DIMM, CAS latency: 46, ECC |
| Unit Box Height | 0.005 |
| Unit Box Length | 0.15 |
| Unit Box Width | 0.045 |
Features
| Buffered memory type | Registered (buffered) |
| CAS latency | 46 |
| Component for | PC/Server |
| Cooling type | Heatsink |
| ECC | Yes |
| Internal memory | 32 GB |
| Internal memory type | DDR5 |
| JEDEC standard | Yes |
| Lead plating | Gold |
| Memory data transfer rate | 5600 MT/s |
| Memory form factor | 288-pin DIMM |
| Memory layout (modules x size) | 1 x 32 GB |
| Memory ranking | 2 |
| Memory voltage | 1.1 V |
| Module configuration | 4096M x 80 |
| On-Die ECC | Yes |
| Programming power voltage (VPP) | 1.8 V |
| Refresh row cycle time | 295 ns |
| Row active time | 32 ns |
| Row cycle time | 48 ns |
| Row Precharge Time (TRP) | 16 |
| SPD profile | Yes |
Operational conditions
| Operating temperature (T-T) | 0 - 95 °C |
| Storage temperature (T-T) | -55 - 100 °C |
Sustainability
| Compliance certificates | RoHS |
| Doesn't contain | Halogen |
| Sustainability compliance | Yes |
Weight & dimensions
| Height | 31.25 mm |
| Width | 133.35 mm |
