ValueRAM, Kingston’s industry standard memory, delivers award-winning performance and legendary Kingston reliability. When you know what you want, you want ValueRAM.
- Nominal and dynamic on-die termination (ODT) for data, strobe, and mask signals
- Low-power auto self refresh (LPASR)
- Data bus inversion (DBI) for data bus
- On-die VREFDQ generation and calibration
- Dual-rank
- On-board I2 serial presence-detect (SPD) EEPROM
- Fixed burst chop (BC) of 4 and burst length (BL) of 8 via the mode register set (MRS)
- Selectable BC4 or BL8 on-the-fly (OTF)
- Terminated control command and address bus
General
| Unit Calculated Weight | 0.02 kg |
| Unit Calculated Volume | 3.6E-05 cubm |
| Units per Shipping Box | 1 |

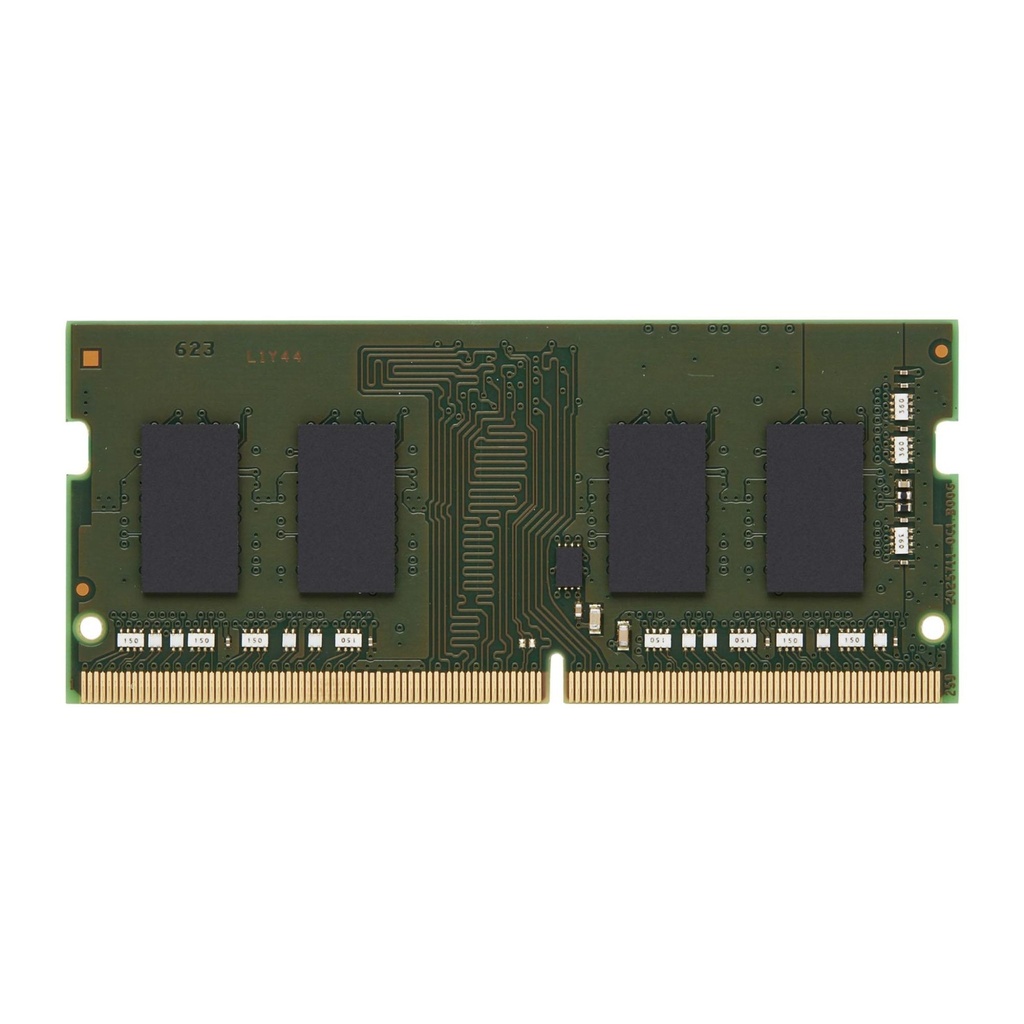

| Summary | Kingston Technology ValueRAM . Component for: Laptop, Internal memory: 32 GB, Memory layout (modules x size): 1 x 32 GB, Internal memory type: DDR4, Memory form factor: 260-pin SO-DIMM, CAS latency: 22 |
| Unit Box Height | 0.01 |
| Unit Box Length | 0.08 |
| Unit Box Width | 0.045 |
| Model | KVR32S22D8/32 |
Features
| Buffered memory type | Unregistered (unbuffered) |
| CAS latency | 22 |
| Component for | Laptop |
| Country of origin | Taiwan |
| ECC | No |
| Internal memory | 32 GB |
| Internal memory type | DDR4 |
| JEDEC standard | Yes |
| Memory data transfer rate | 3200 MT/s |
| Memory form factor | 260-pin SO-DIMM |
| Memory layout (modules x size) | 1 x 32 GB |
| Memory voltage | 1.2 V |
| Programming power voltage (VPP) | 2.5 V |
| Refresh row cycle time | 350 ns |
| Row active time | 32 ns |
| Row cycle time | 45.75 ns |
Operational conditions
| Operating temperature (T-T) | 0 - 85 °C |
| Storage temperature (T-T) | -55 - 100 °C |
Sustainability
| Compliance certificates | RoHS |
| Doesn't contain | Halogen |
Weight & dimensions
| Depth | 3.7 mm |
| Height | 30 mm |
| Width | 69.6 mm |
Logistics data
| Harmonized System (HS) code | 84733020 |
