Built to perform
Bringing next-gen DDR5 memory to your computer, Lexar DDR5 UDIMM Desktop Memory delivers up to 5600MT/s.
On-die ECC offers improved stability
Your system will effortlessly navigate overclocking speeds with on-die error correction code
Keep your cool
Lower power consumption not only means higher efficiency, but also helps keep your system cool.
General
| Unit Calculated Weight | 0.03 kg |
| Unit Calculated Volume | 7.2E-05 cubm |
| Units per Shipping Box | 1 |
| Units per Pallet | 0 |

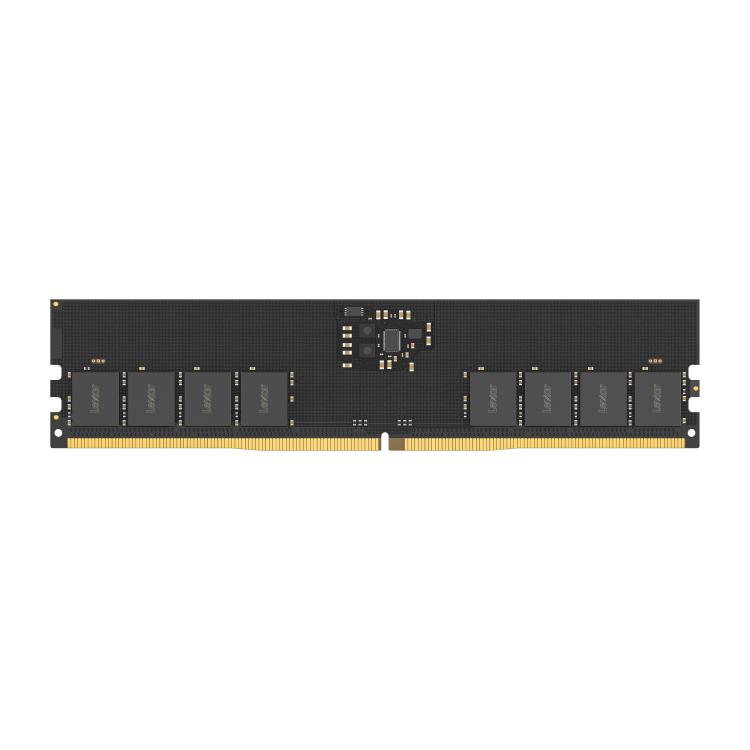

| Model | LD5U16G56C46ST-BGS |
| Summary | Lexar LD5U16G56C46ST-BGS. Component for: PC, Internal memory: 16 GB, Memory layout (modules x size): 1 x 16 GB, Internal memory type: DDR5, CAS latency: 46 |
| Unit Box Height | 0.045 |
| Unit Box Length | 0.16 |
| Unit Box Width | 0.01 |
Features
| CAS latency | 46 |
| Component for | PC |
| Internal memory | 16 GB |
| Internal memory type | DDR5 |
| Memory data transfer rate | 5600 MT/s |
| Memory form factor | 288-pin DIMM |
| Memory layout (modules x size) | 1 x 16 GB |
| Memory voltage | 1.1 V |
| On-Die ECC | Yes |
Operational conditions
| Operating temperature (T-T) | 0 - 85 °C |
| Storage temperature (T-T) | -55 - 100 °C |
Weight & dimensions
| Depth | 31.25 mm |
| Width | 133.35 mm |
