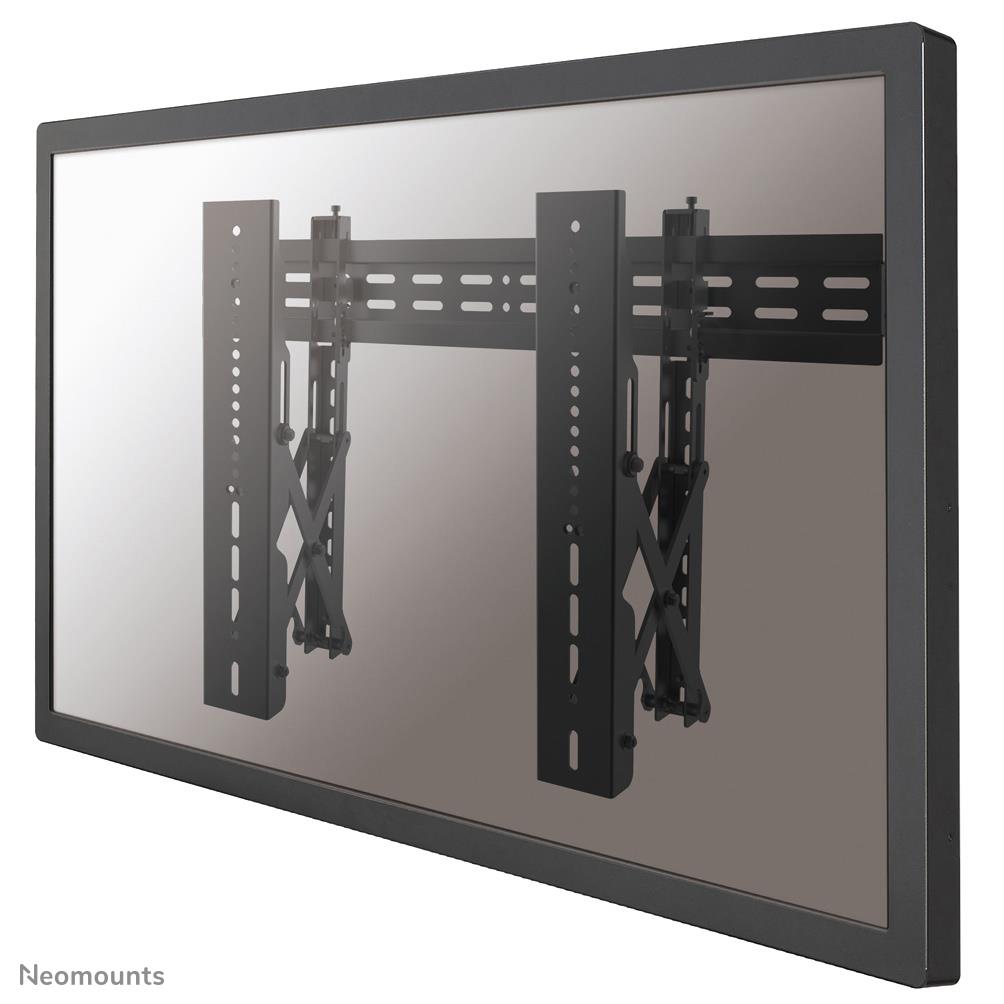

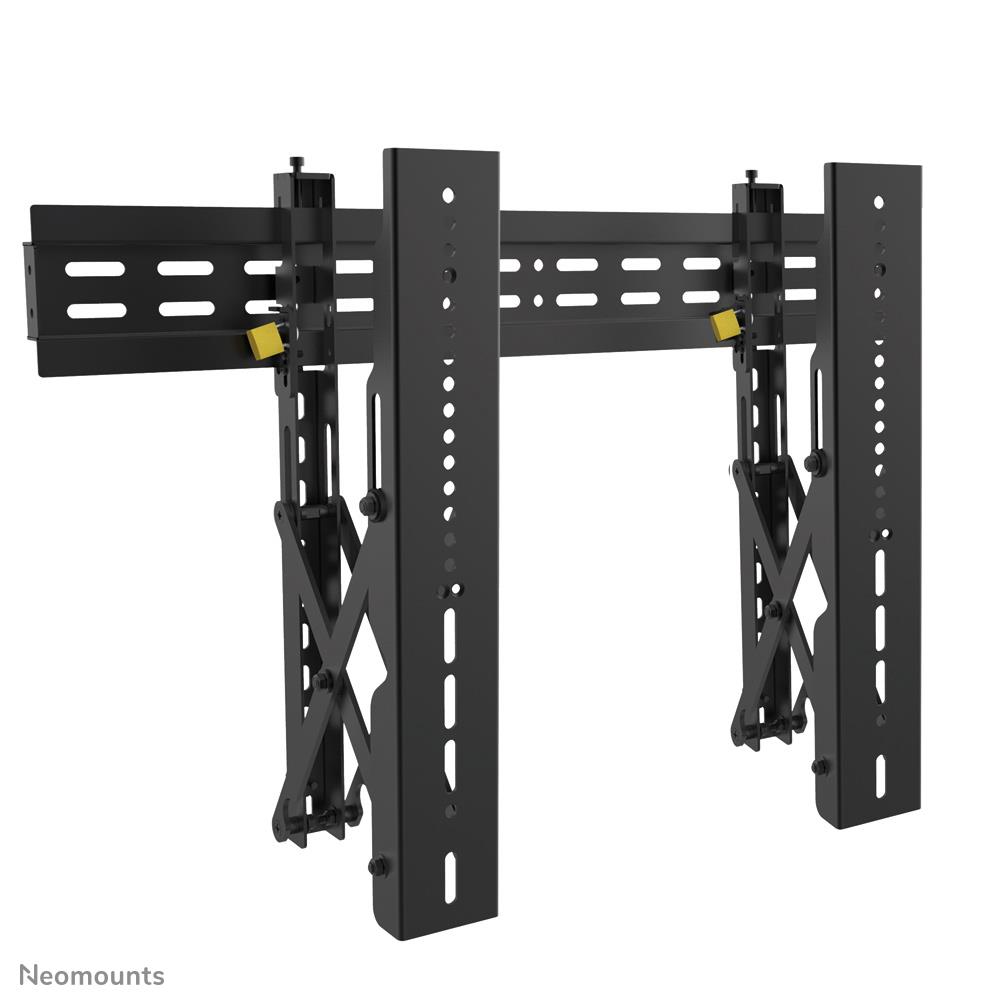

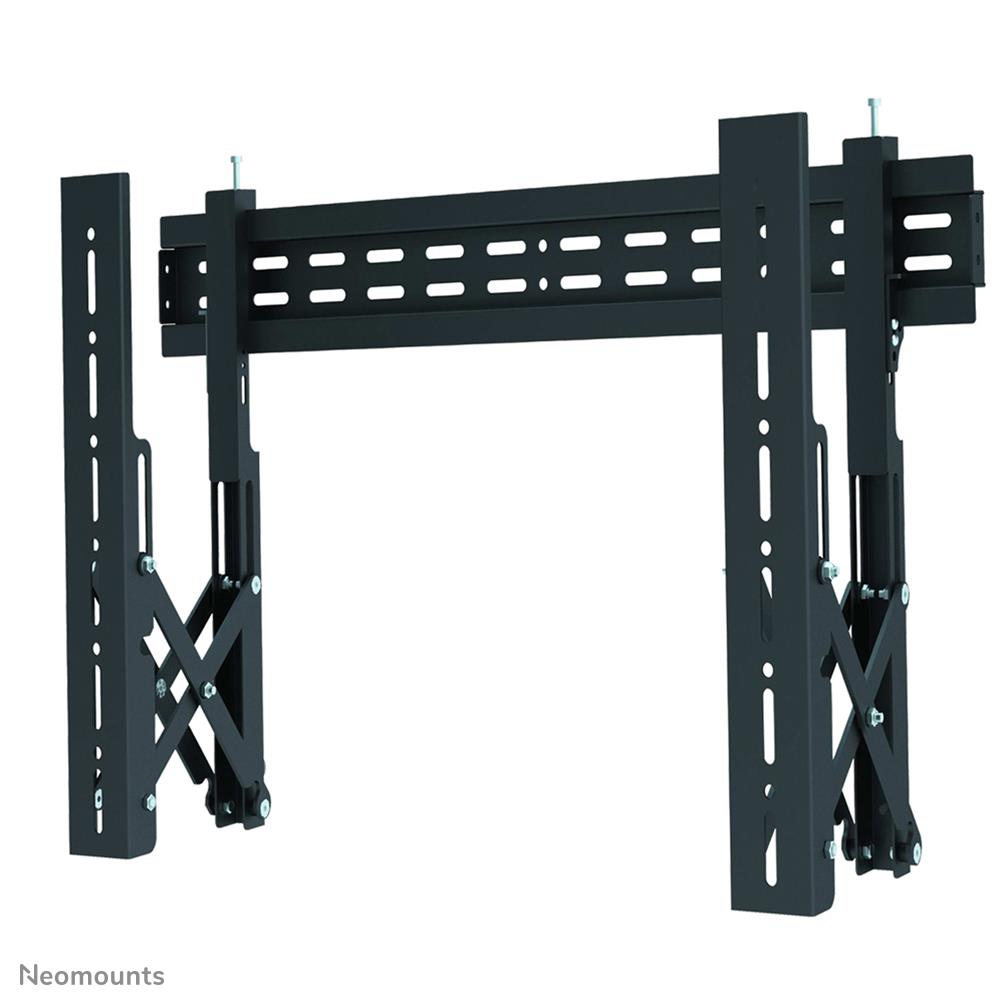

The Neomounts wall mount, model LED-VW1000BLACK is a fixed wall mount for flat screens up to 75". This mount is a great choice when you want the ultimate viewing flexibility with your flat screen. Depth of this mount is 5,6 to 21,5 centimetres. This wall mount is specially made to be used in video walls. The screen easily can be pulled out.
Neomounts LED-VW1000BLACK is suitable for flat screens up to 75". The weight capacity of this product is 50 kg each screen. The wall mount is suitable for screens that meet VESA hole pattern 200x200 to 600x400mm.

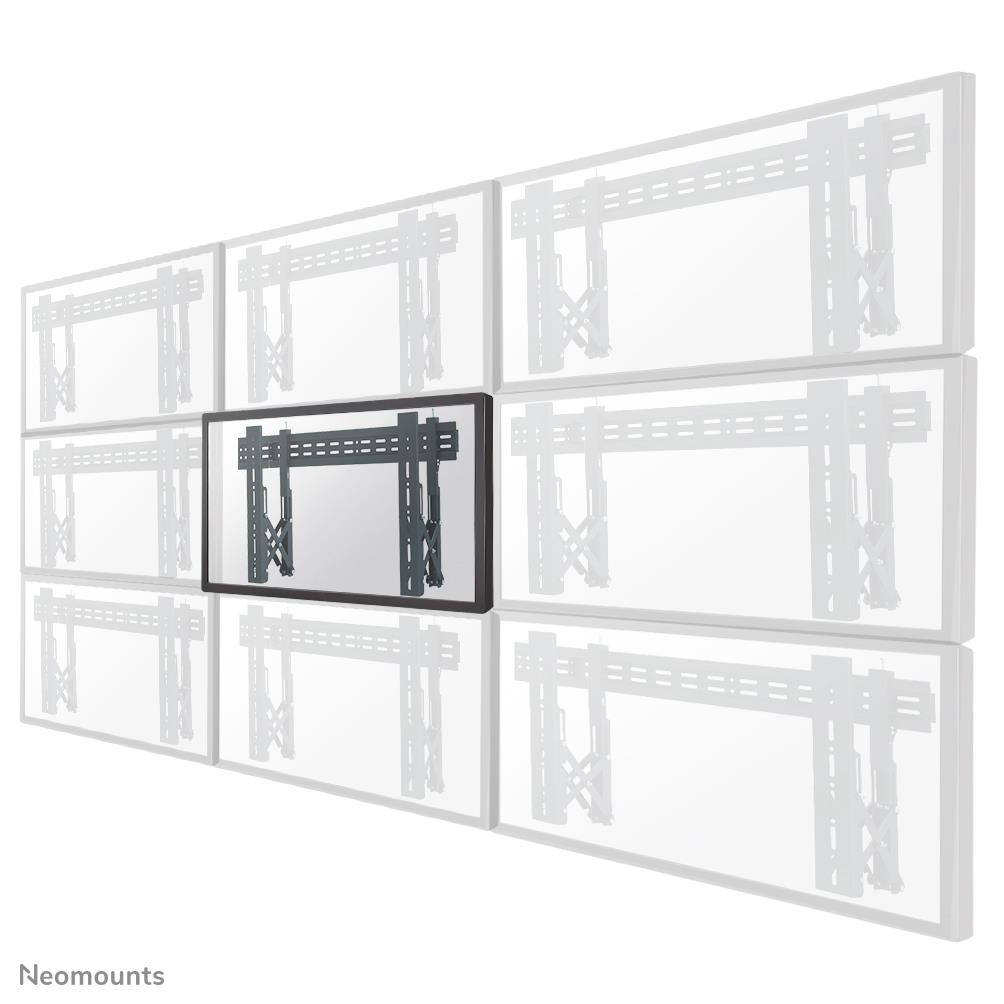

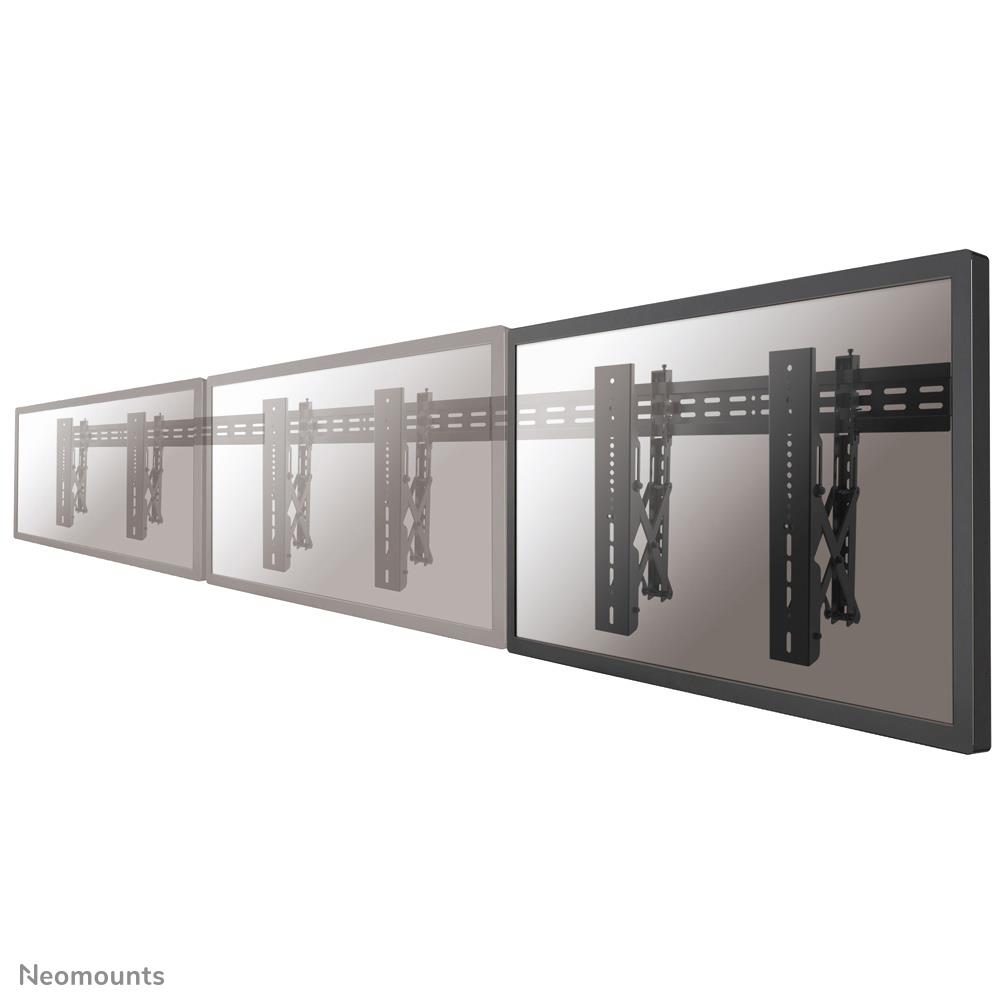

Create a clean design videowall presentation with the Neomounts LED-VW1000BLACK videowall mount solution!
General
| Unit Calculated Weight | 9.17 kg |
| Unit Calculated Volume | 0.0168 cubm |
| Units per Shipping Box | 3 |
| Units per Pallet | 0 |
| Summary | Neomounts LED-VW1000BLACK Videowall wall mount 40-75" - pull-out - max 50 kg. Maximum weight capacity: 50 kg, Minimum screen size: 101.6 cm (40"), Maximum screen size: 190.5 cm (75"), Minimum VESA mount: 200 x 200 mm, Maximum VESA mount: 600 x 400 mm. Product colour: Black |
| Unit Box Height | 0.11 |
| Unit Box Length | 0.965 |
| Unit Box Width | 0.11 |
Mounting
| Maximum screen size | 75 " |
| Maximum VESA mount | 600 x 400 mm |
| Maximum weight capacity | 50 kg |
| Maximum weight capacity (per display) | 50 kg |
| Minimum screen size | 40 " |
| Minimum VESA mount | 200 x 200 mm |
| Mounting type | Wall |
| Number of displays supported | 1 |
| Panel mounting interface | 200 x 200/200 x 300/200 x 400/300 x 200/300 x 300/350 x 350/400 x 200/400 x 300/400 x 400/440 x 400/500 x 400/600 x 200/600 x 300/600 x 400 mm |
Ergonomics

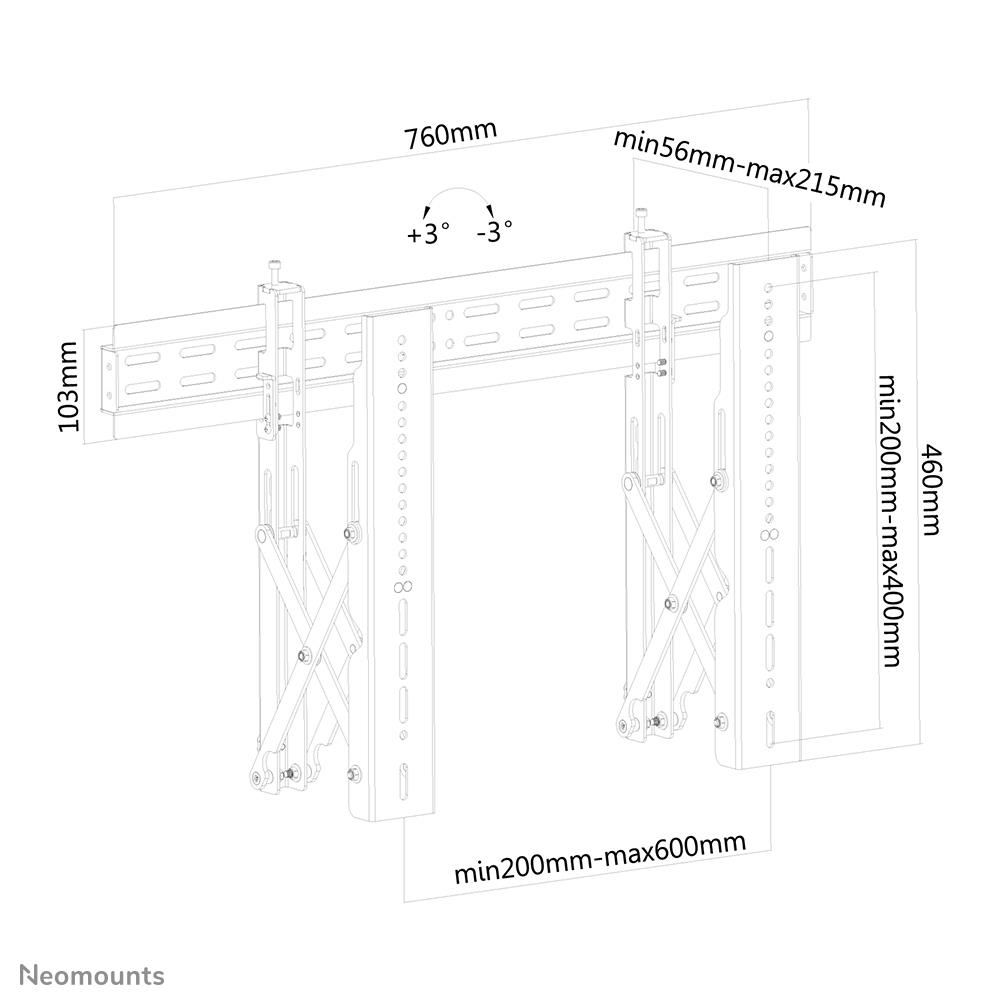

| Distance to the wall (max) | 215 mm |
| Distance to the wall (min) | 56 mm |
Design
| Accepts padlock | Yes |
| Housing material | Steel |
| Product colour | Black |
| Type | Fixed floor stand |
Weight & dimensions
| Weight | 7800 g |
Packaging data
| Package depth | 115 mm |
| Package height | 980 mm |
| Package weight | 9200 g |
| Package width | 112 mm |
Technical details
| Package net weight | 9190 g |
Other features
| Country of origin | China |
Logistics data
| Harmonized System (HS) code | 7326909890 |
| Master (outer) case gross weight | 27600 g |
| Master (outer) case height | 140 mm |
| Master (outer) case length | 360 mm |
| Master (outer) case net weight | 27600 g |
| Master (outer) case width | 1010 mm |
| Products per master (outer) case | 3 pc(s) |
| Products per pallet (EU) | 48 pc(s) |
| Quantity per master (outer) case | 3 pc(s) |
