DISPLAY LCD 105" QPDX-5K/LH105QPD5BGXEN SAMSUNG
General
| Unit Calculated Weight | 78.1 kg |
| Unit Calculated Volume | 0.8559 cubm |
| Units per Pallet | 0 |
| Summary | Samsung QPDX-5K. Product design: Digital signage flat panel. Display diagonal: 2.67 m (105"), Display technology: LCD, Display resolution: 5120 x 2160 pixels, Display brightness: 500 cd/m², HD type: 5K Ultra HD. Wi-Fi. Operating hours (hours/days): 24/7. Operating system installed: Tizen 7.0. Product colour: Black |
| Unit Box Height | 0.275 |
| Unit Box Length | 2.66 |
| Unit Box Width | 1.17 |
| Model name | QPDX-5K |
Display
| Contrast ratio (typical) | 4000:1 |
| Display brightness | 500 cd/m² |
| Display diagonal | 105 " |
| Display resolution | 5120 x 2160 pixels |
| Display technology | LCD |
| Dynamic contrast ratio marketing name | Mega Contrast |
| HD type | 5K Ultra HD |
| Horizontal scan range | 30 - 81 kHz |
| Native aspect ratio | 21:9 |
| Panel type | VA |
| Pixel pitch | 0.1595 x 0.4785 mm |
| Response time | 6 ms |
| Touchscreen | No |
| Vertical scan range | 48 - 75 Hz |
| Viewing angle, horizontal | 178 ° |
| Viewing angle, vertical | 178 ° |

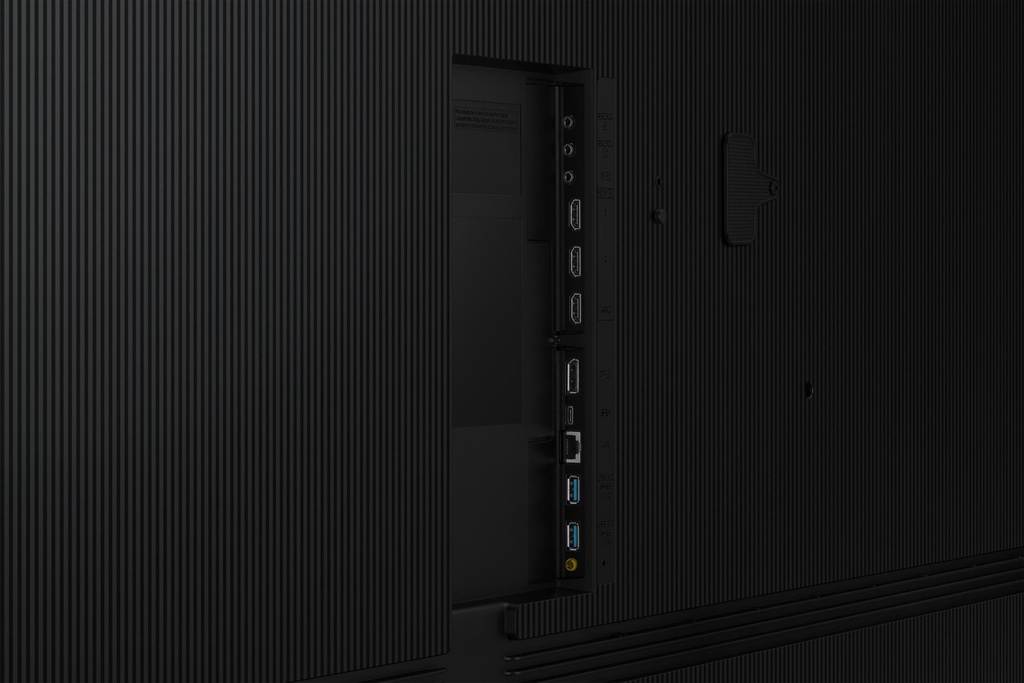

Ports & interfaces
| DisplayPort version | 1.4 |
| DisplayPorts quantity | 1 |
| DVI port | No |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 3 |
| HDMI version | 2.1 |
| RS-232 interface | Yes |
| USB port | Yes |
| USB ports quantity | 3 |
Audio
| Built-in speaker(s) | No |
Design
| Panel mounting interface | 1000 x 400 mm |
| Placement supported | Indoor |
| Product colour | Black |
| Product design | Digital signage flat panel |
| VESA mounting | Yes |
Performance
| HDCP | Yes |
| HDCP version | 2.2 |
| Operating hours (hours/days) | 24/7 |
| Purpose | Corporate |
Power
| AC input frequency | 50/60 Hz |
| AC input voltage | 100 - 240 V |
| Power consumption (standby) | 0.5 W |
| Power consumption (typical) | 550 W |
Computer system
| Internal memory | 16 GB |
| Operating system installed | Tizen 7.0 |
Weight & dimensions
| Display depth | 48.1 mm |
| Display height | 1068 mm |
| Display weight | 55600 g |
| Display width | 2484.3 mm |
Packaging data
| Package depth | 275 mm |
| Package height | 1190 mm |
| Package weight | 78100 g |
| Package width | 2668 mm |
Operational conditions
| Operating relative humidity (H-H) | 10 - 80 % |
| Operating temperature (T-T) | 0 - 40 °C |
Network
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
