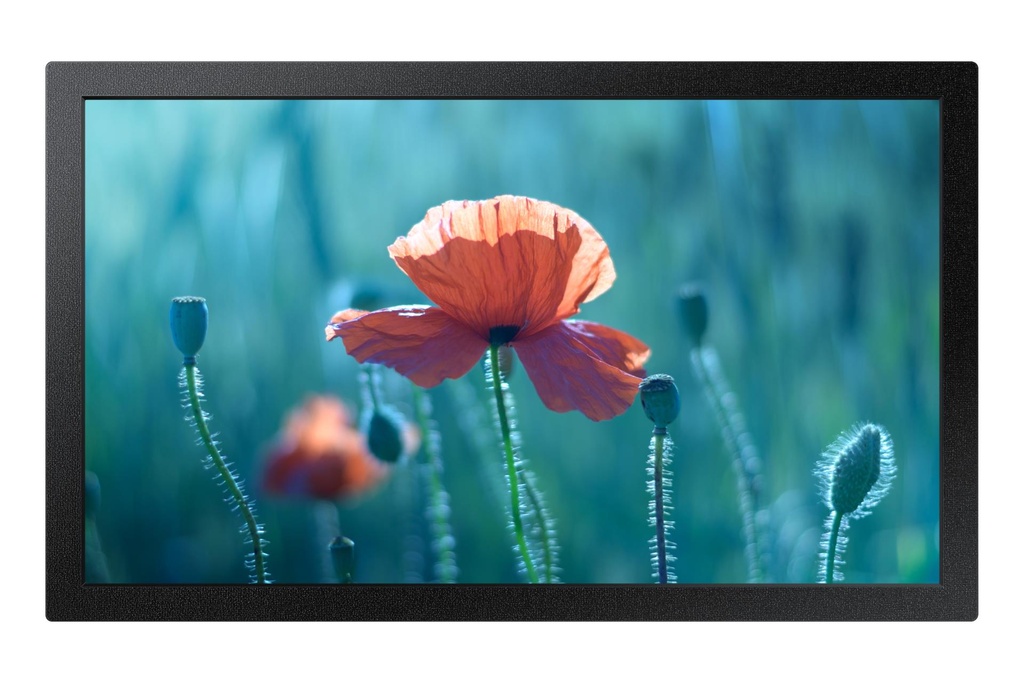

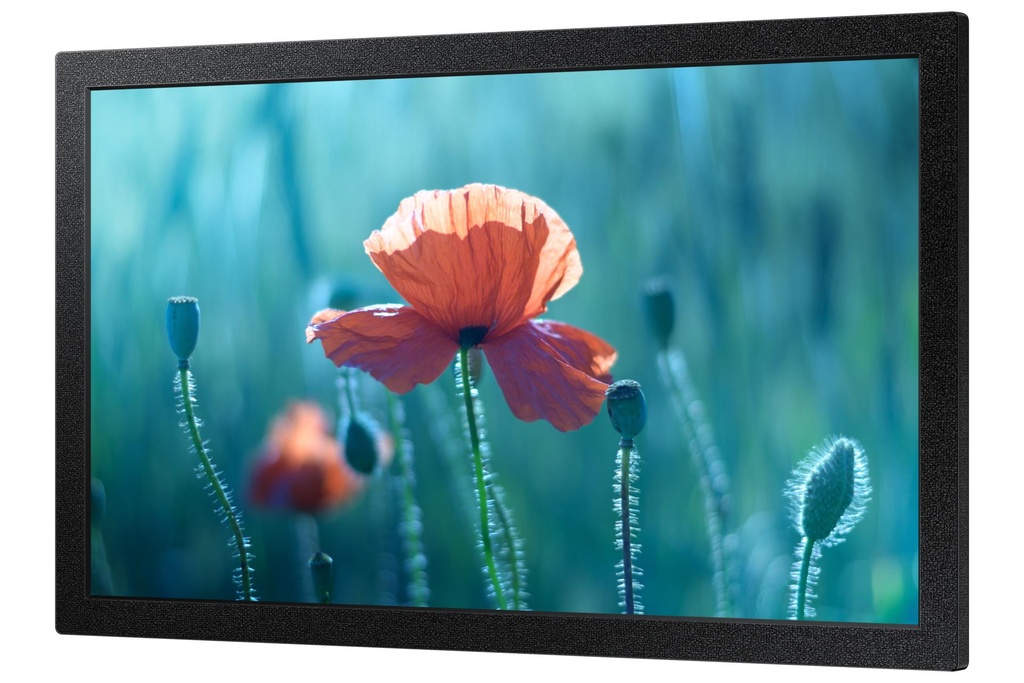

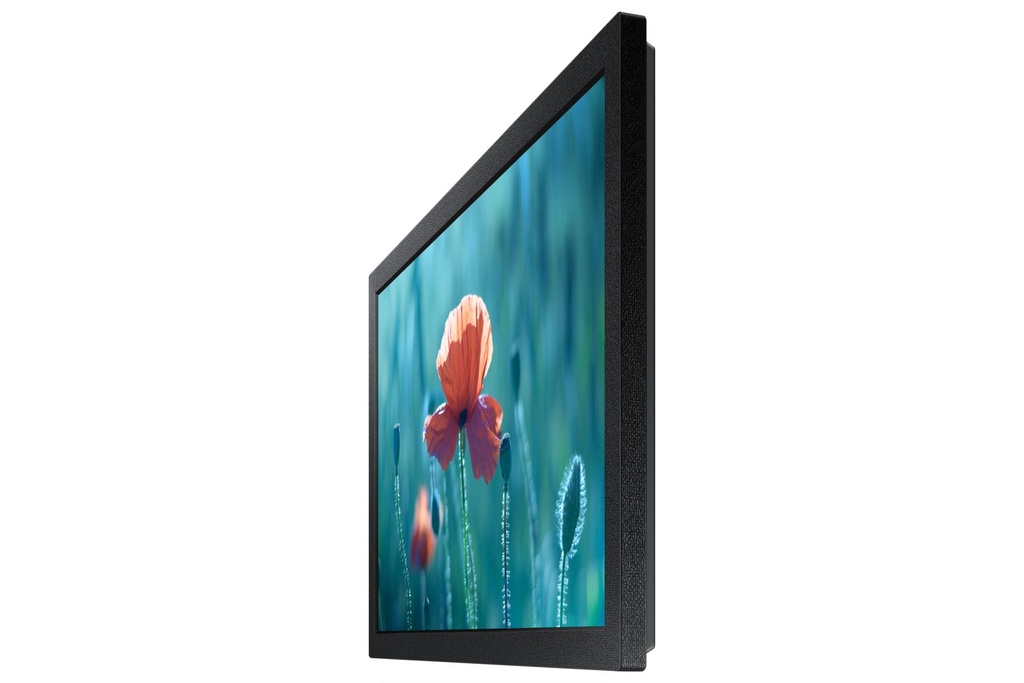

DISPLAY LCD 13" QB13C/LH13QBCEBGBXEN SAMSUNG
General
| Unit Calculated Weight | 1.71 kg |
| Unit Calculated Volume | 0.007332 cubm |
| Units per Pallet | 0 |
| Summary | Samsung QB13C. Display diagonal: 33 cm (13"), Display technology: LCD, Display resolution: 1920 x 1080 pixels, Display brightness: 500 cd/m², HD type: Full HD. Wi-Fi. Operating hours (hours/days): 16/7. Product colour: Black |
| Unit Box Height | 0.06 |
| Unit Box Length | 0.52 |
| Unit Box Width | 0.235 |
| Model name | QB13C |
Display
| Colour gamut | 45 % |
| Contrast ratio (dynamic) | 10000:1 |
| Contrast ratio (typical) | 800:1 |
| Display brightness | 500 cd/m² |
| Display diagonal | 13 " |
| Display resolution | 1920 x 1080 pixels |
| Display technology | LCD |
| HD type | Full HD |
| Horizontal scan range | 56 - 84.5 kHz |
| Native aspect ratio | 16:9 |
| Panel type | ADS |
| Pixel pitch | 0.153 x 0.153 mm |
| Response time | 8 ms |
| Touchscreen | No |
| Vertical scan range | 48 - 75 Hz |
| Viewing angle, horizontal | 178 ° |
| Viewing angle, vertical | 178 ° |

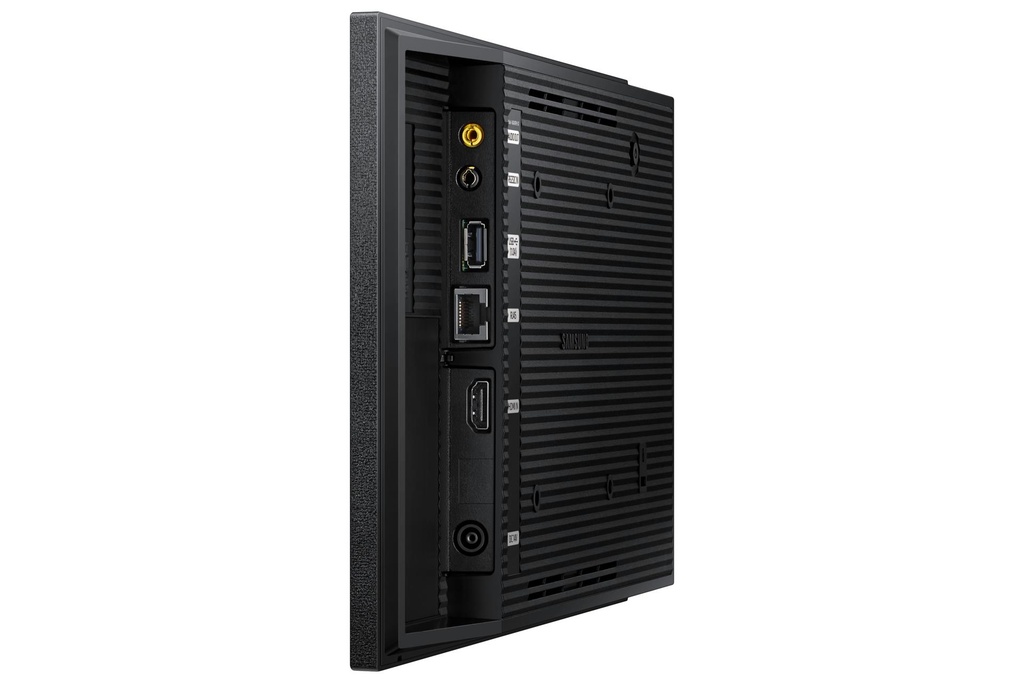

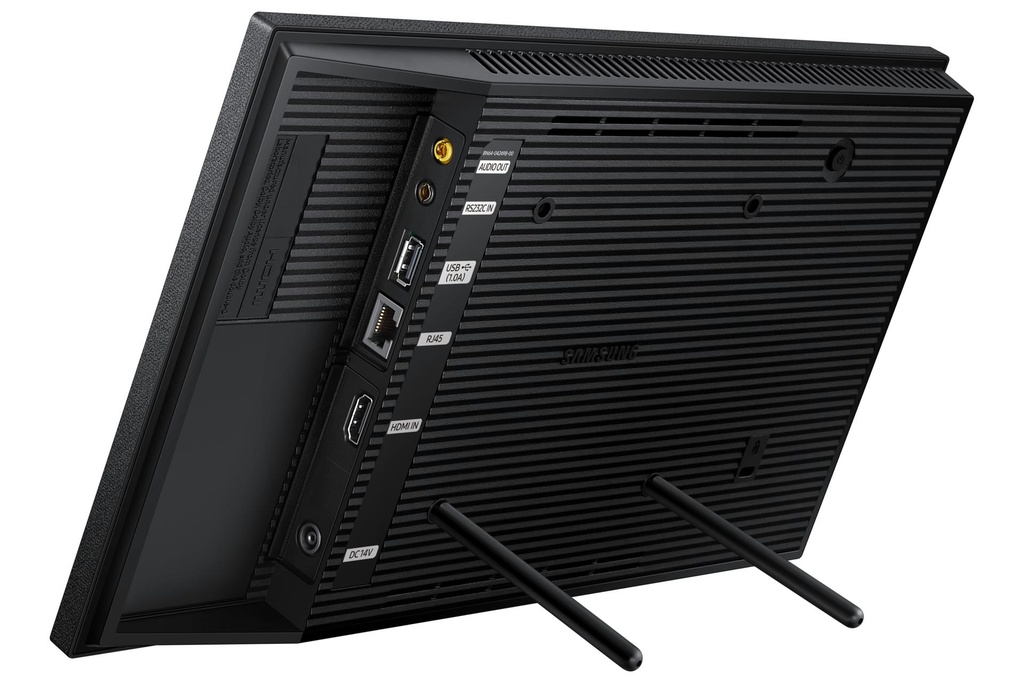

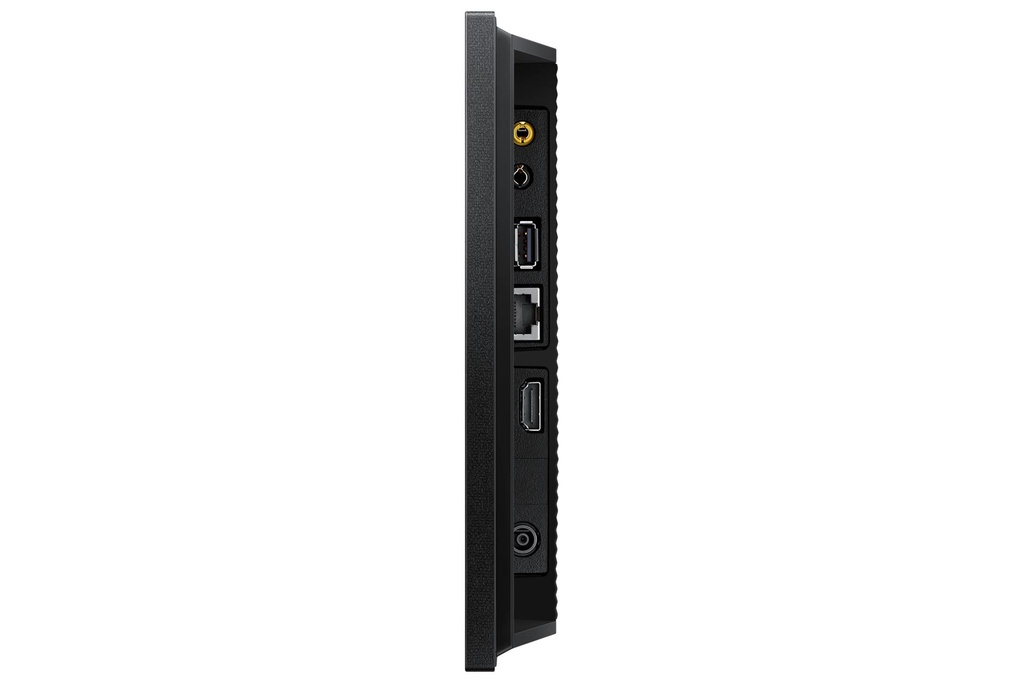

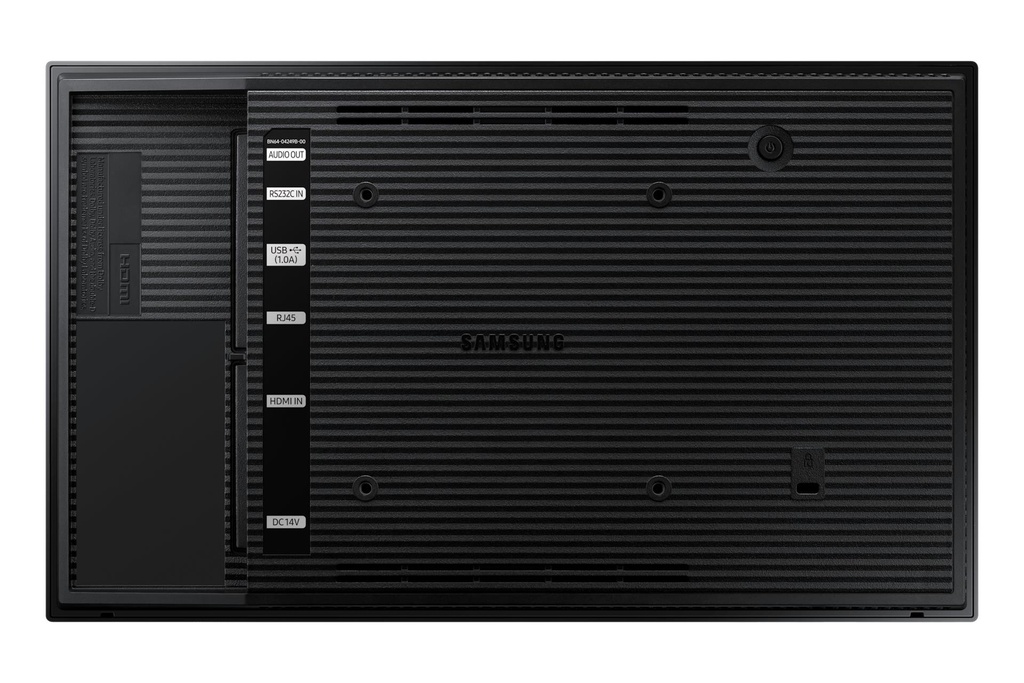

Ports & interfaces
| DVI port | No |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI input ports quantity | 1 |
| HDMI ports quantity | 1 |
| RS-232 interface | Yes |
| USB connector type | USB Type-C |
| USB port | Yes |
| USB ports quantity | 1 |
Design
| Orientation | Horizontal/Vertical |
| Panel mounting interface | 100 x 100 mm |
| Placement supported | Indoor |
| Product colour | Black |
| VESA mounting | Yes |
Performance
| Operating hours (hours/days) | 16/7 |
Power
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100 - 240 V |
| Power consumption (standby) | 0.5 W |
| Power consumption (typical) | 35 W |
Weight & dimensions
| Display depth | 19.9 mm |
| Display height | 193.5 mm |
| Display weight | 800 g |
| Display width | 322 mm |
Packaging data
| Package depth | 64 mm |
| Package height | 238 mm |
| Package weight | 1700 g |
| Package width | 520 mm |
Operational conditions
| Operating relative humidity (H-H) | 10 - 80 % |
| Operating temperature (T-T) | 0 - 40 °C |
Network
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
Other features
| Energy efficiency class (old) | B |
| RS-232 input ports | 1 |
