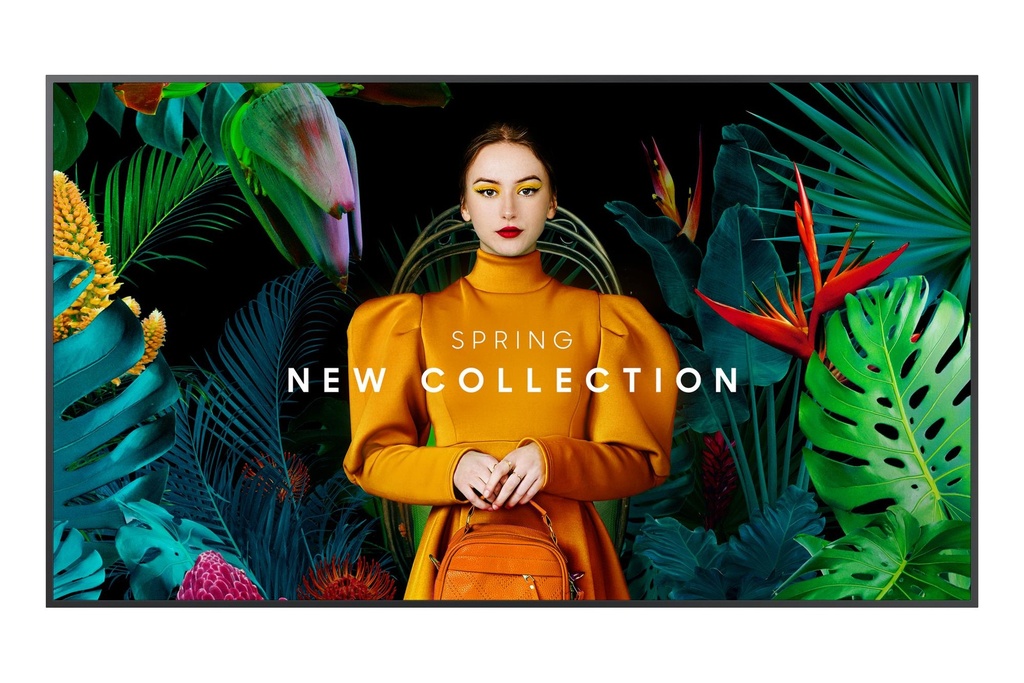

DISPLAY LCD 65" QB65C/LH65QBCEBGCXEN SAMSUNG
General
| Unit Calculated Weight | 27 kg |
| Unit Calculated Volume | 0.2559 cubm |
| Units per Pallet | 0 |
| Summary | Samsung QB65C. Product design: Digital signage flat panel. Display diagonal: 165.1 cm (65"), Display technology: LCD, Display resolution: 3840 x 2160 pixels, Display brightness: 350 cd/m², HD type: 4K Ultra HD. Wi-Fi. Operating hours (hours/days): 16/7. Operating system installed: Tizen 7.0. Product colour: Black |
| Unit Box Height | 0.935 |
| Unit Box Length | 1.61 |
| Unit Box Width | 0.17 |
| Model name | QB65C |
Display
| Contrast ratio (typical) | 4000:1 |
| Display brightness | 350 cd/m² |
| Display diagonal | 65 " |
| Display diagonal (metric) | 163 cm |
| Display resolution | 3840 x 2160 pixels |
| Display technology | LCD |
| Dynamic contrast ratio marketing name | Mega Contrast |
| Haze rate | 2 % |
| HD type | 4K Ultra HD |
| Horizontal scan range | 30 - 81 kHz |
| Panel type | VA |
| Pixel frequency (max) | 594 MHz |
| Pixel pitch | 0.372 x 0.372 mm |
| Response time | 8 ms |
| RGB colour space | NTSC |
| Touchscreen | No |
| Vertical scan range | 48 - 75 Hz |
| Viewing angle, horizontal | 178 ° |
| Viewing angle, vertical | 178 ° |
Ports & interfaces
| DVI port | No |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI input ports quantity | 3 |
| HDMI ports quantity | 3 |
| HDMI version | 2.0 |
| Infrared data port | Yes |
| Remote (IR) input | 1 |
| RS-232 interface | Yes |
| USB port | Yes |
| USB ports quantity | 2 |
Design
| Bezel colour | Charcoal Black |
| Bezel width (bottom) | 11.5 mm |
| Bezel width (side) | 11.5 mm |
| Bezel width (top) | 11.5 mm |
| Panel mounting interface | 400 x 300 mm |
| Placement supported | Indoor |
| Product colour | Black |
| Product design | Digital signage flat panel |
| Screen shape | Flat |
| VESA mounting | Yes |
Performance
| HDCP | Yes |
| HDCP version | 2.2 |
| Operating hours (hours/days) | 16/7 |
| Purpose | Universal |
Power
| AC input frequency | 50/60 Hz |
| AC input voltage | 100 - 240 V |
| Energy consumption (SDR) per 1000 hours | 104 kWh |
| Energy efficiency class (SDR) | G |
| Energy efficiency scale | A to G |
| Power consumption (sleep) | 0.5 W |
| Power consumption (typical) | 187 W |
Computer system
| Built-in processor | Yes |
| Computer system | Yes |
| Computer system type | System on Chip (SoC) |
| Operating system installed | Tizen 7.0 |
Weight & dimensions
| Display depth | 28.5 mm |
| Display height | 831.9 mm |
| Display weight | 21500 g |
| Display width | 1456.8 mm |
Packaging data
| Package depth | 164 mm |
| Package height | 945 mm |
| Package weight | 28000 g |
| Package width | 1616 mm |
Operational conditions
| Operating relative humidity (H-H) | 10 - 80 % |
| Operating temperature (T-T) | 0 - 40 °C |
Certificates
| Certification | Class B 60950-1, 62368-1 |
Network
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
Technical details
| Audio out (mini jack) | 1 |
Other features
| Bluetooth | Yes |
| Flash memory | 8000 MB |
| Optional features | WMN-B50SC STN-L6585C |
| RJ-45 input ports | 1 |
| RS-232 input ports | 1 |
| RS-232 output ports | 1 |
Energy Efficiency
| Data Sheet (Link) | https://eprel.ec.europa.eu/api/product/1653478/fiches?language=EN |
| Energy efficiency class | G |
| EPREL Registration Number | 1653478 |
| EPREL Version Number | 2 |
