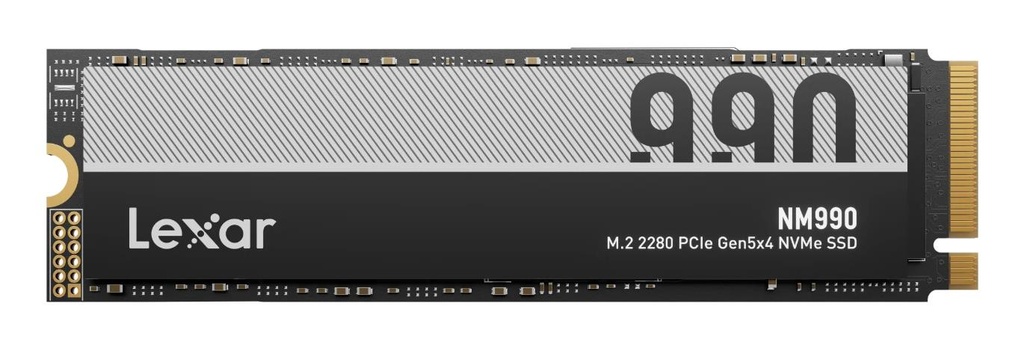

LEXAR NM990 1TB M.2 NVMe Write speed 7500 MBytes/sec Read speed 14000 MBytes/sec 2.45mm TBW 750 TB MTBF 1500000 hours LN
General
| Unit Calculated Weight | 0.068 kg |
| Unit Calculated Volume | 0.0004566 cubm |
| Units per Shipping Box | 120 |
| Units per Pallet | 0 |
| Summary | Lexar NM990. SSD capacity: 1 TB, SSD form factor: M.2, Read speed: 14000 MB/s, Write speed: 7500 MB/s, Component for: PC/Notebook/Game console |
| Unit Box Height | 0.11 |
| Unit Box Length | 0.14 |
| Unit Box Width | 0.015 |
| SSD series | NM990 |
| Model | LNM990X001T-RNNNG |
Features
| Component for | PC/Notebook/Game console |
| Hardware encryption | No |
| Interface | PCI Express 5.0 |
| M.2 SSD size | 2280 (22 x 80 mm) |
| Mean time between failures (MTBF) | 1500000 h |
| NVMe | Yes |
| PCI Express interface data lanes | x4 |
| Random read (4KB) | 1600000 IOPS |
| Random write (4KB) | 1000000 IOPS |
| Read speed | 14000 MB/s |
| SSD capacity | 1000 GB |
| SSD form factor | M.2 |
| TBW rating | 750 |
| Write speed | 7500 MB/s |
Weight & dimensions
| Depth | 22 mm |
| Height | 2.45 mm |
| Weight | 6 g |
| Width | 80 mm |
Operational conditions
| Operating shock | 1500 G |
| Operating temperature (T-T) | 0 - 70 °C |
| Operating vibration | 20 G |
| Storage temperature (T-T) | -40 - 85 °C |
