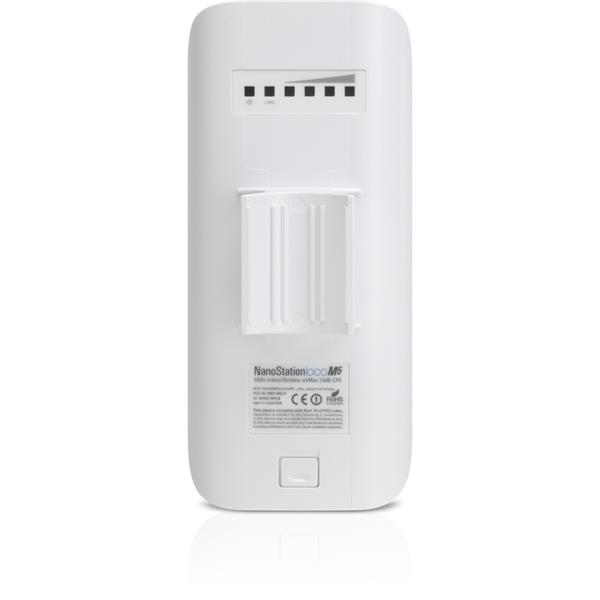

NanoStation Loco M
The NanoStation M combines Powerful airMAX CPE radio and MIMO antenna array performance in a compact form factor.
airMAX TDMA Protocol
airMAX M series Technology provides performance improvements in latency, throughput, & scalability compared to other outdoor systems in its class.
Powerful Software Features
Powered by Ubiquiti's powerful airOS loaded with features and optimizations for outdoor wireless performance, Ubiquiti's airMAX platform also features airView Spectrum Analysis and airControl central device management.
World Class Antenna Design
Ubiquiti's Antenna R&D team applied their years of experience in celular basestation antenna design in developing the revolutionary airMAX.
General
| Unit Calculated Weight | 0.518 kg |
| Unit Calculated Volume | 0.001979 cubm |
| Units per Shipping Box | 20 |
| Units per Pallet | 0 |
| Summary | Ubiquiti LocoM5. Maximum data transfer rate: 150 Mbit/s. Antenna design: Internal, Antenna gain level (max): 13 dBi. Wi-Fi band: Single-band (5 GHz), Frequency band: 5.17 - 5.875 GHz. Ethernet LAN interface type: Fast Ethernet, Ethernet LAN data rates: 10,100 Mbit/s, Networking standards: IEEE 802.3, IEEE 802.3u. Connectivity technology: Wired & Wireless |
| Unit Box Height | 0.095 |
| Unit Box Length | 0.22 |
| Unit Box Width | 0.085 |
Data transmission
| Maximum data transfer rate | 150 Mbit/s |
Antenna
| Antenna design | Internal |
| Antenna gain level (max) | 13 dBi |
Wireless LAN features
| Frequency band | 5.17 - 5.875 GHz |
| Wi-Fi | Yes |
| Wi-Fi band | Single-band (5 GHz) |
Network
| Cabling technology | 10/100Base-T(X) |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10/100 Mbit/s |
| Ethernet LAN interface type | Fast Ethernet |
| Networking standards | IEEE 802.3/IEEE 802.3u |
Ports & interfaces
| Connectivity technology | Wired & Wireless |

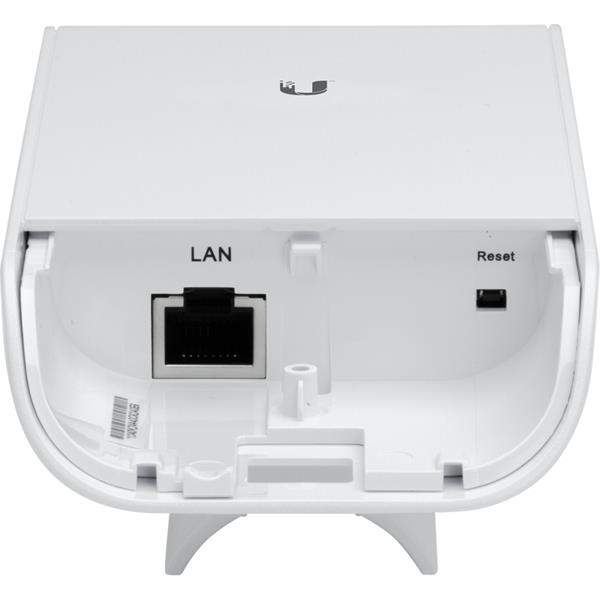

| Ethernet LAN (RJ-45) ports | 1 |
Features
| Internal memory | 64 MB |
| Material | Plastic |
| Mounting type | Pole |
| Processor family | Atheros |
| Processor frequency | 560 MHz |
| Processor model | MIPS 74Kc |
| Product colour | White |
| Product type | Network bridge |
| RAM type | DDR2 |
Power
| Power consumption (max) | 5.5 W |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) voltage | 24 V |
Operational conditions
| Operating relative humidity (H-H) | 5 - 95 % |
| Operating temperature (T-T) | -30 - 75 °C |
Certificates
| Certification | FCC, IC, CE, RoHS |
Weight & dimensions
| Depth | 31 mm |
| Height | 161 mm |
| Weight | 180 g |
| Width | 80 mm |
Memory
| Flash memory | 8 MB |
Logistics data
| Harmonized System (HS) code | 85176990 |
