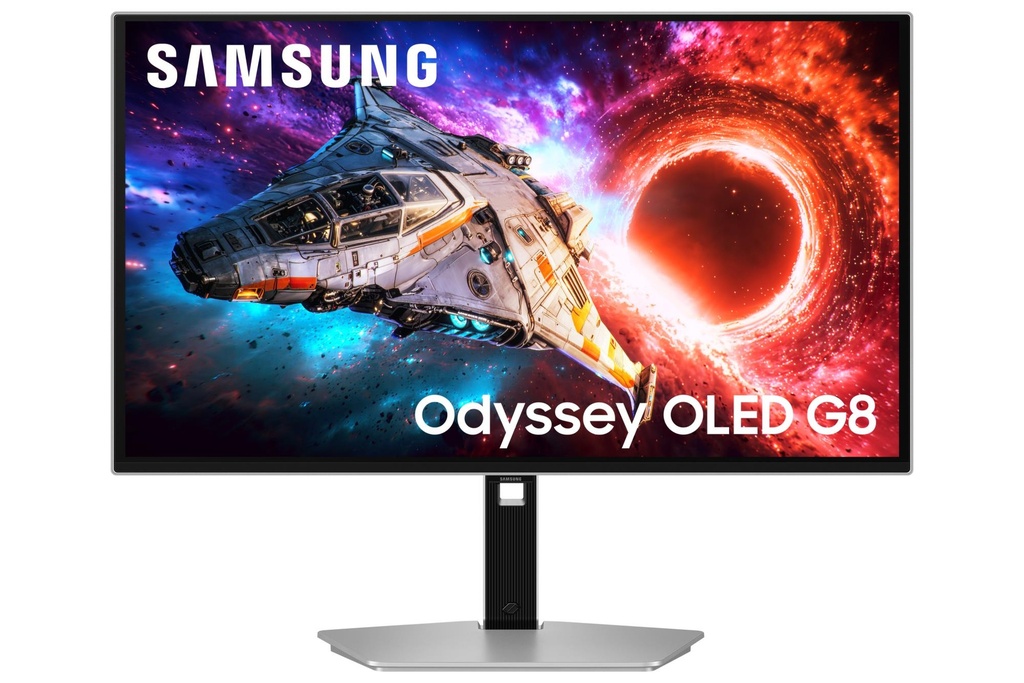

SAMSUNG 27 " 3840 x 2160 pixels 4K Ultra HD Native aspect ratio 16:9 OLED Flat LS27HG800SUXEN
General
| Summary | Samsung G80SH. Display diagonal: 68.6 cm (27"), Display resolution: 3840 x 2160 pixels, HD type: 4K Ultra HD, Display technology: OLED, Response time: 0.03 ms, Native aspect ratio: 16:9, Viewing angle, horizontal: 178°, Viewing angle, vertical: 178°. Built-in USB hub, USB hub version: 3.2 Gen 1 (3.1 Gen 1). VESA mounting, Height adjustment. Product colour: Silver |
| Unit Box Height | 0.19 |
| Unit Box Length | 0.69 |
| Unit Box Width | 0.45 |
| Model name | G80SH |
Display
| Contrast ratio (typical) | 1500000:1 |
| Display brightness (peak) | 1000 cd/m² |
| Display brightness (typical) | 250 cd/m² |
| Display diagonal | 27 " |
| Display diagonal (metric) | 67 cm |
| Display number of colours | 1 billion colours |
| Display resolution | 3840 x 2160 pixels |
| Display technology | OLED |
| HD type | 4K Ultra HD |
| High Dynamic Range (HDR) supported | Yes |
| High Dynamic Range (HDR) technology | DisplayHDR 400 True Black/High Dynamic Range 10+ (HDR10 Plus) |
| Maximum refresh rate | 240 Hz |
| Native aspect ratio | 16:9 |
| Panel type | OLED |
| Response time | 0.03 ms |
| Response time measurement type | GTG (Gray to Gray) |
| Screen shape | Flat |
| sRGB coverage (typical) | 99 % |
| Touchscreen | No |
| Viewable size, horizontal | 589.97 mm |
| Viewable size, vertical | 332.9 mm |
| Viewing angle, horizontal | 178 ° |
| Viewing angle, vertical | 178 ° |
Performance
| AMD FreeSync | Yes |
| AMD FreeSync type | FreeSync Premium Pro |
| Flicker-free technology | Yes |
| NVIDIA G-SYNC | No |
Multimedia
| Built-in camera | No |
| Built-in speaker(s) | No |
Design
| Feet colour | Silver |
| Market positioning | Gaming |
| Product colour | Silver |
Ports & interfaces
| Built-in USB hub | Yes |
| DisplayPorts quantity | 1 |
| HDCP | Yes |
| HDCP version | 2.2 |
| HDMI | Yes |
| HDMI ports quantity | 2 |
| HDMI version | 2.1 |
| Headphone out | Yes |
| Headphone outputs | 1 |
| Number of USB Type-C upstream ports quantity | 1 |
| USB hub version | 3.2 Gen 1 (3.1 Gen 1) |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery up to | 98 W |
| USB Type-A downstream ports quantity | 2 |
Ergonomics
| Adjustable height (max) | 120 mm |
| Black eQualizer function | Yes |
| Height adjustment | Yes |
| Panel mounting interface | 100 x 100 mm |
| Pivot | Yes |
| Pivot angle | -92 - 92 ° |
| Swivel angle range | -30 - 30 ° |
| Swivelling | Yes |
| Tilt adjustment | Yes |
| Tilt angle range | -2 - 25 ° |
| VESA mounting | Yes |
Power
| AC input frequency | 50/60 Hz |
| AC input voltage | 100 - 240 V |
| Energy consumption (HDR) per 1000 hours | 54 kWh |
| Energy consumption (SDR) per 1000 hours | 32 kWh |
| Energy efficiency class (HDR) | G |
| Energy efficiency class (SDR) | G |
| Energy efficiency scale | A to G |
| Power consumption (max) | 220 W |
| Power consumption (standby) | 0.5 W |
| Power consumption (typical) | 32 W |
| Power supply type | External |
Operational conditions
| Operating relative humidity (H-H) | 10 - 80 % |
| Operating temperature (T-T) | 10 - 40 °C |
Weight & dimensions
| Depth (with stand) | 263.9 mm |
| Depth (without stand) | 49.2 mm |
| Height (with stand) | 563.6 mm |
| Height (without stand) | 353.8 mm |
| Weight (with stand) | 6500 g |
| Weight (without stand) | 3800 g |
| Width (with stand) | 611.7 mm |
| Width (without stand) | 611.7 mm |
Packaging data
| Package depth | 185 mm |
| Package height | 451 mm |
| Package weight | 9100 g |
| Package width | 684 mm |
| Stand type | HAS stand |
Packaging content
| Cables included | DisplayPort/Power/USB Type-C |
| Power cable length | 1.5 m |
| Stand included | Yes |
Other features
| Auto source switch+ | Yes |
| Image size | Yes |
| Off Timer Plus | Yes |
| Samsung Eye Saver Mode | Yes |
| Virtual AIM point | Yes |
Energy Efficiency
| Data Sheet (Link) | https://eprel.ec.europa.eu/api/product/2621577/fiches?language=EN |
| Energy efficiency class | G |
| EPREL Registration Number | 2621577 |
| EPREL Version Number | 1 |
