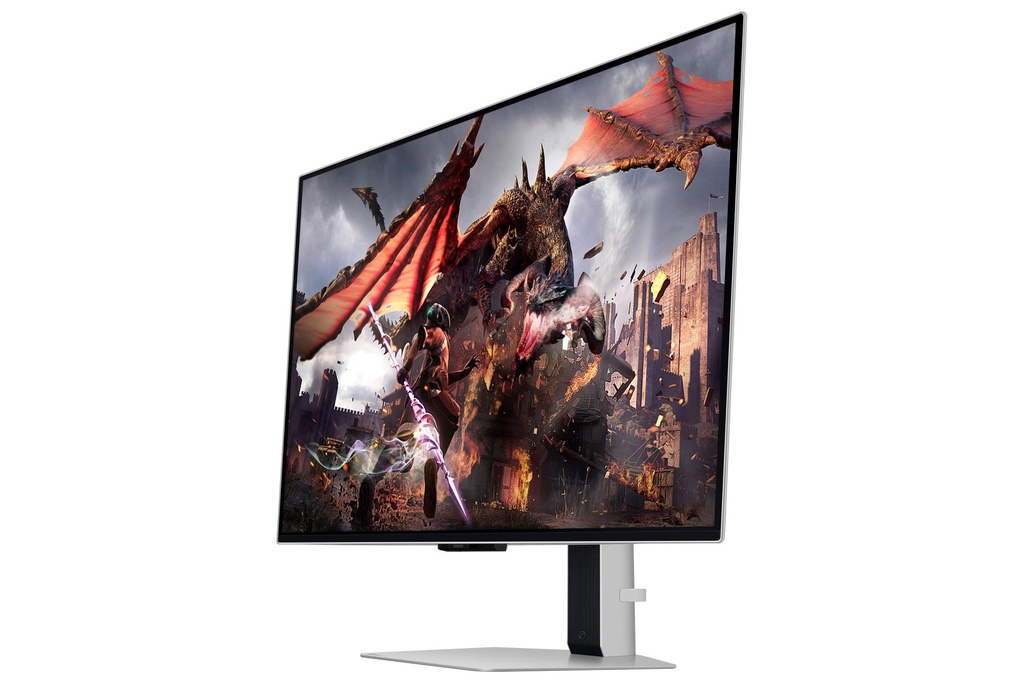

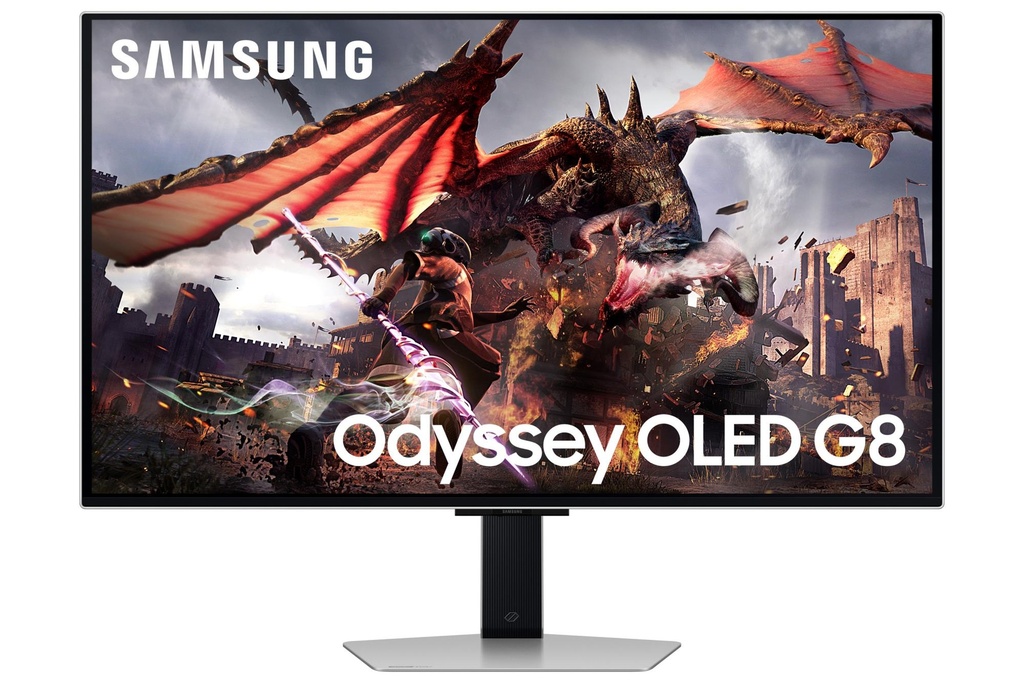

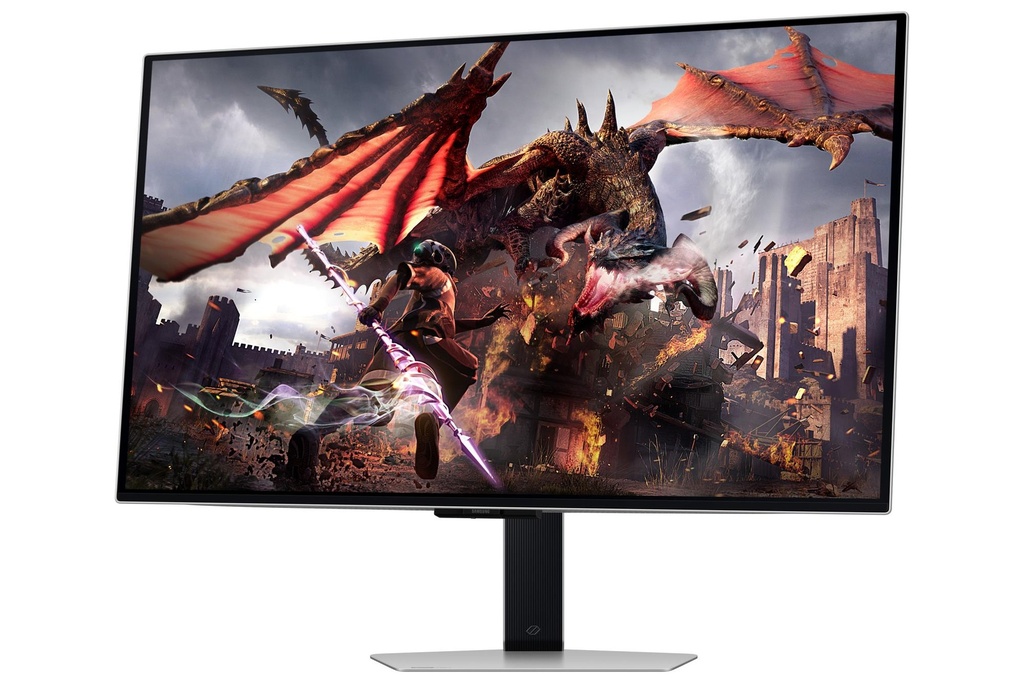

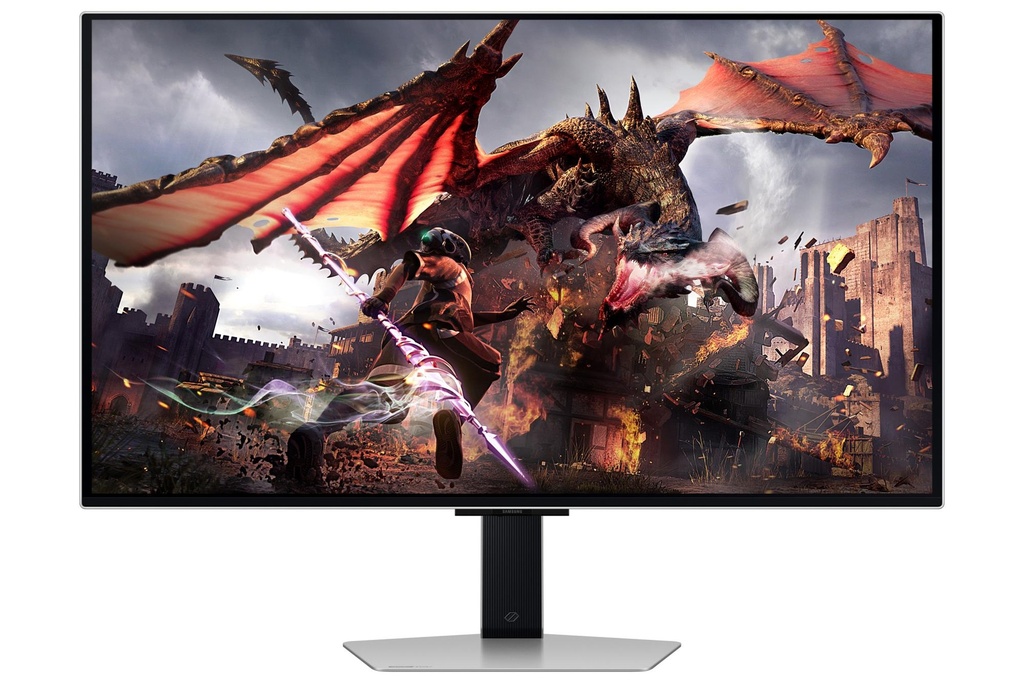

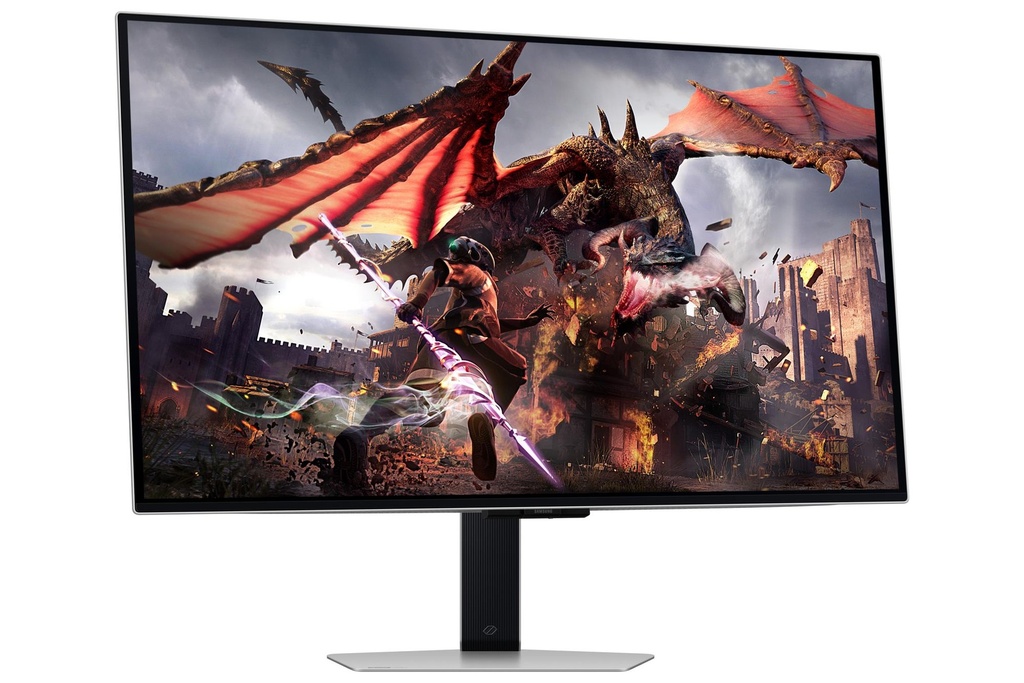

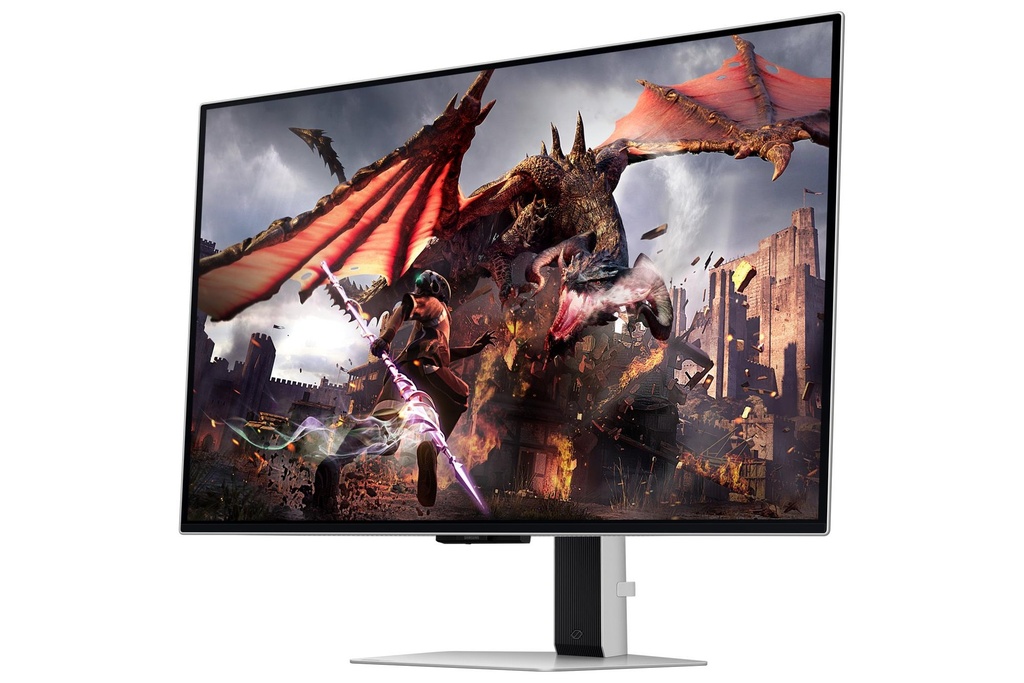

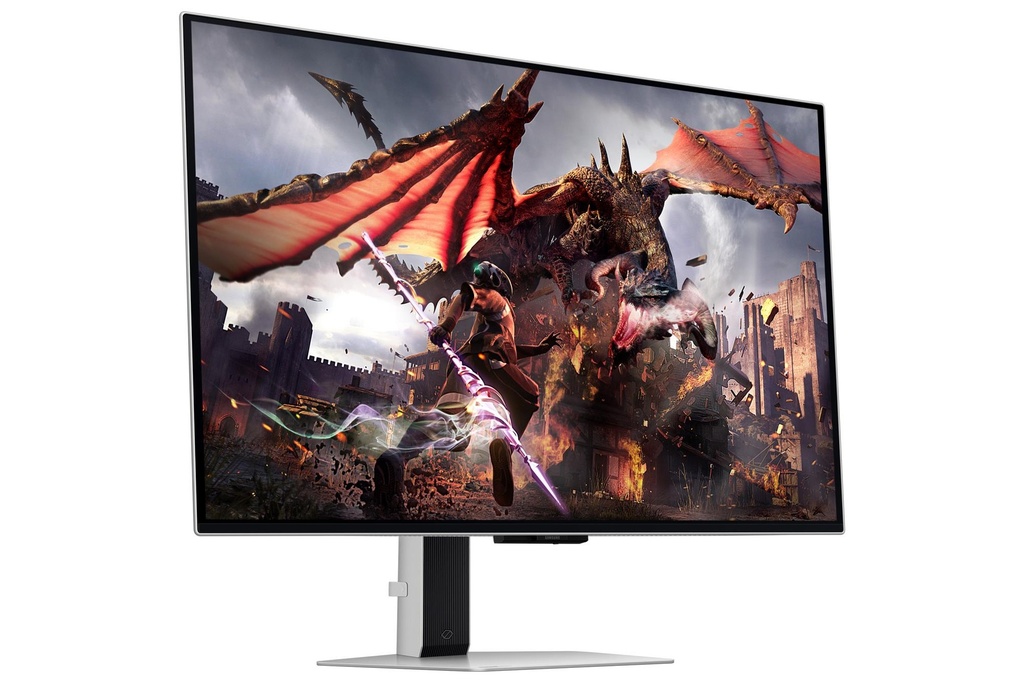

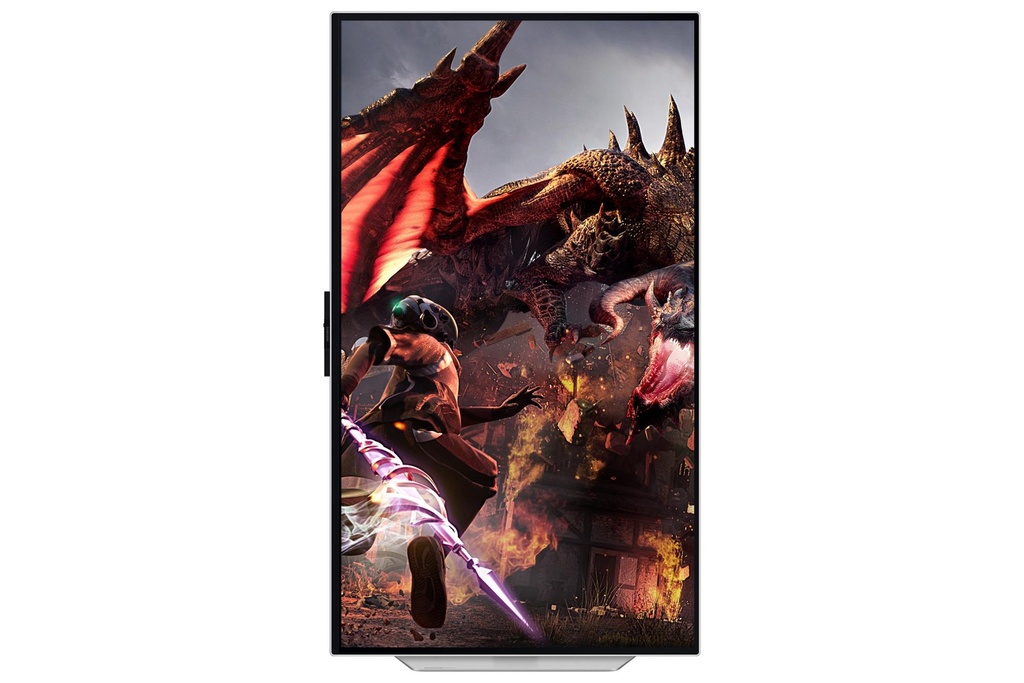

SAMSUNG 32" Gaming/Smart/4K Panel OLED 3840x2160 16:9 0.03 ms Speakers Swivel Pivot Height adjustable Tilt Colour Silver
General
| Unit Calculated Weight | 11.8 kg |
| Product Net Weight | 8.4 kg |
| Unit Calculated Volume | 0.08586 cubm |
| Summary | Samsung G80SD. Display diagonal: 81.3 cm (32"), Display resolution: 3840 x 2160 pixels, HD type: 4K Ultra HD, Display technology: OLED, Response time: 0.03 ms, Native aspect ratio: 16:9, Viewing angle, horizontal: 178°, Viewing angle, vertical: 178°. Built-in speaker(s). Built-in USB hub, USB hub version: 3.2 Gen 1 (3.1 Gen 1). VESA mounting, Height adjustment. Product colour: Silver |
| Unit Box Height | 0.2 |
| Unit Box Length | 0.81 |
| Unit Box Width | 0.53 |
| Model name | G80SD |
| Model | S32DG802SU |
Display
| Colour gamut | 99 % |
| Colour gamut standard | DCI-P3 |
| Contrast ratio (typical) | 1000000:1 |
| Display brightness (min) | 200 cd/m² |
| Display brightness (typical) | 250 cd/m² |
| Display diagonal | 32 " |
| Display diagonal (metric) | 80 cm |
| Display number of colours | 1 billion colours |
| Display resolution | 3840 x 2160 pixels |
| Display technology | OLED |
| Dynamic contrast ratio marketing name | Mega DCR |
| HD type | 4K Ultra HD |
| High Dynamic Range (HDR) supported | Yes |
| High Dynamic Range (HDR) technology | High Dynamic Range 10 (HDR10)/High Dynamic Range 10+ Gaming (HDR10 Plus Gaming) |
| Maximum refresh rate | 240 Hz |
| Native aspect ratio | 16:9 |
| Panel type | OLED |
| Response time | 0.03 ms |
| Response time measurement type | GTG (Gray to Gray) |
| Screen shape | Flat |
| Touchscreen | No |
| Viewable size, horizontal | 699.48 mm |
| Viewable size, vertical | 394.73 mm |
| Viewing angle, horizontal | 178 ° |
| Viewing angle, vertical | 178 ° |
Performance
| AMD FreeSync | Yes |
| AMD FreeSync type | FreeSync Premium Pro |
| Flicker-free technology | Yes |
| Game features | Super Ultrawide GameView |
| Game mode | Yes |
| NVIDIA G-SYNC | Yes |
| NVIDIA G-SYNC type | G-SYNC Compatible |
| Operating system installed | Tizen |
Multimedia
| Adaptive Sound Pro | Yes |
| Built-in camera | No |
| Built-in speaker(s) | Yes |
| Number of speakers | 1 |
| RMS rated power | 10 W |
Design
| Feet colour | Silver |
| Market positioning | Consumer |
| Product colour | Silver |
Ports & interfaces
| Built-in KVM switch | No |
| Built-in USB hub | Yes |
| DC-in jack | Yes |
| DisplayPort out quantity | 1 |
| DisplayPort out version | 1.4 |
| HDCP | Yes |
| HDCP version | 2.2 |
| HDMI | Yes |
| HDMI ports quantity | 2 |
| HDMI version | 2.1 |
| Headphone out | No |
| Number of upstream ports | 1 |
| Service port type | USB Type-A |
| USB hub version | 3.2 Gen 1 (3.1 Gen 1) |
| USB Type-A downstream ports quantity | 2 |
| USB upstream port type | USB Type-B |
Network
| Bluetooth | Yes |
| Bluetooth version | 5.2 |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac) |
Ergonomics
| Adjustable height (max) | 120 mm |
| Cable management | Yes |
| Height adjustment | Yes |
| Panel mounting interface | 100 x 100 mm |
| Pivot | Yes |
| Pivot angle | -30 - 30 ° |
| Swivel angle range | -92 - 92 ° |
| Swivelling | Yes |
| Tilt adjustment | Yes |
| Tilt angle range | -2 - 25 ° |
| VESA mounting | Yes |
Power
| AC input frequency | 50/60 Hz |
| AC input voltage | 100 - 240 V |
| Energy consumption (HDR) per 1000 hours | 65 kWh |
| Energy consumption (SDR) per 1000 hours | 47 kWh |
| Energy efficiency class (HDR) | G |
| Energy efficiency class (SDR) | G |
| Energy efficiency scale | A to F |
| Power consumption (max) | 180 W |
| Power consumption (standby) | 0.5 W |
| Power consumption (typical) | 47 W |
| Power supply type | External |
Operational conditions
| Operating relative humidity (H-H) | 10 - 80 % |
| Operating temperature (T-T) | 0 - 40 °C |
Weight & dimensions
| Depth (with stand) | 563.5 mm |
| Depth (without stand) | 49.2 mm |
| Height (with stand) | 584.6 mm |
| Height (without stand) | 414.7 mm |
| Weight (with stand) | 8400 g |
| Weight (without stand) | 5300 g |
| Width (with stand) | 719.7 mm |
| Width (without stand) | 719.7 mm |
Packaging data
| Package depth | 530 mm |
| Package height | 200 mm |
| Package weight | 12000 g |
| Package width | 815 mm |
| Stand type | HAS stand |
Packaging content
| Cables included | AC/DisplayPort/HDMI/USB |
| Power cable length | 1.5 m |
| Remote control included | Yes |
Other features
| Adaptive picture | Yes |
| Auto source switch+ | Yes |
| Brand specific technologies | Eye Saver,Gaming Hub,Ultrawide GameView,Game Bar 2.0,Smart Calibration,Glare Free,Dynamic Black Equalizer,AI Motion Enhancer Pro,Active Voice Amplifier Pro |
| Certification | Windows 11 |
| Compliance certificates | UL |
| Far-field voice interaction | Yes |
| Multi View | Yes |
| Off Timer Plus | Yes |
| Optical drive player software | Y |
| Samsung Eye Saver Mode | Yes |
| Screen mirroring | Yes |
| Smart calibration | Yes |
| SmartThings app support | Yes |
| Sound mirroring | Yes |
| TV Plus | Yes |
| Universal guide | Yes |
| Virtual assistant | Amazon Alexa & Samsung Bixby |
| Wireless display | Yes |
| Works with Samsung Bixby | Yes |
| Workspace | Yes |
Energy Efficiency
| Data Sheet (Link) | https://eprel.ec.europa.eu/api/product/1993280/fiches?language=EN |
| Energy efficiency class | G |
| EPREL Registration Number | 1993280 |
| EPREL Version Number | 3 |
