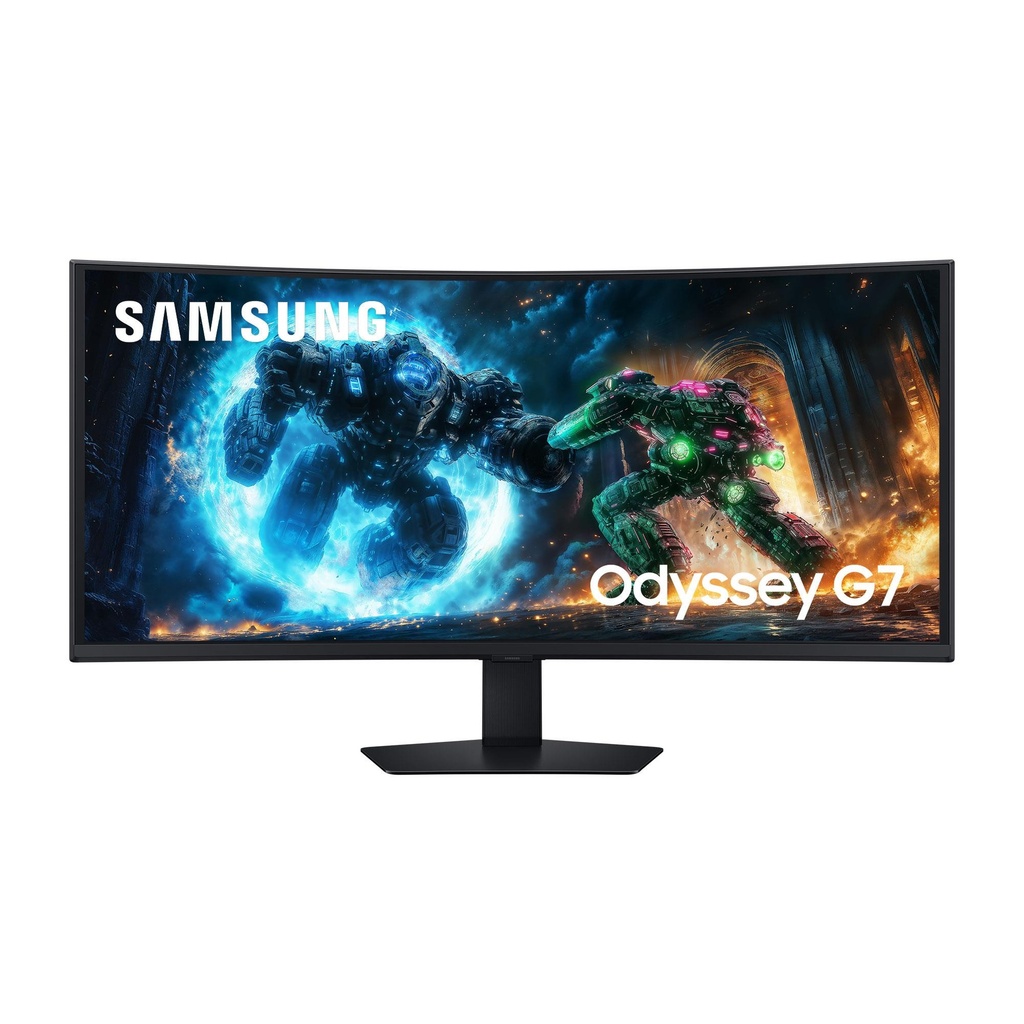

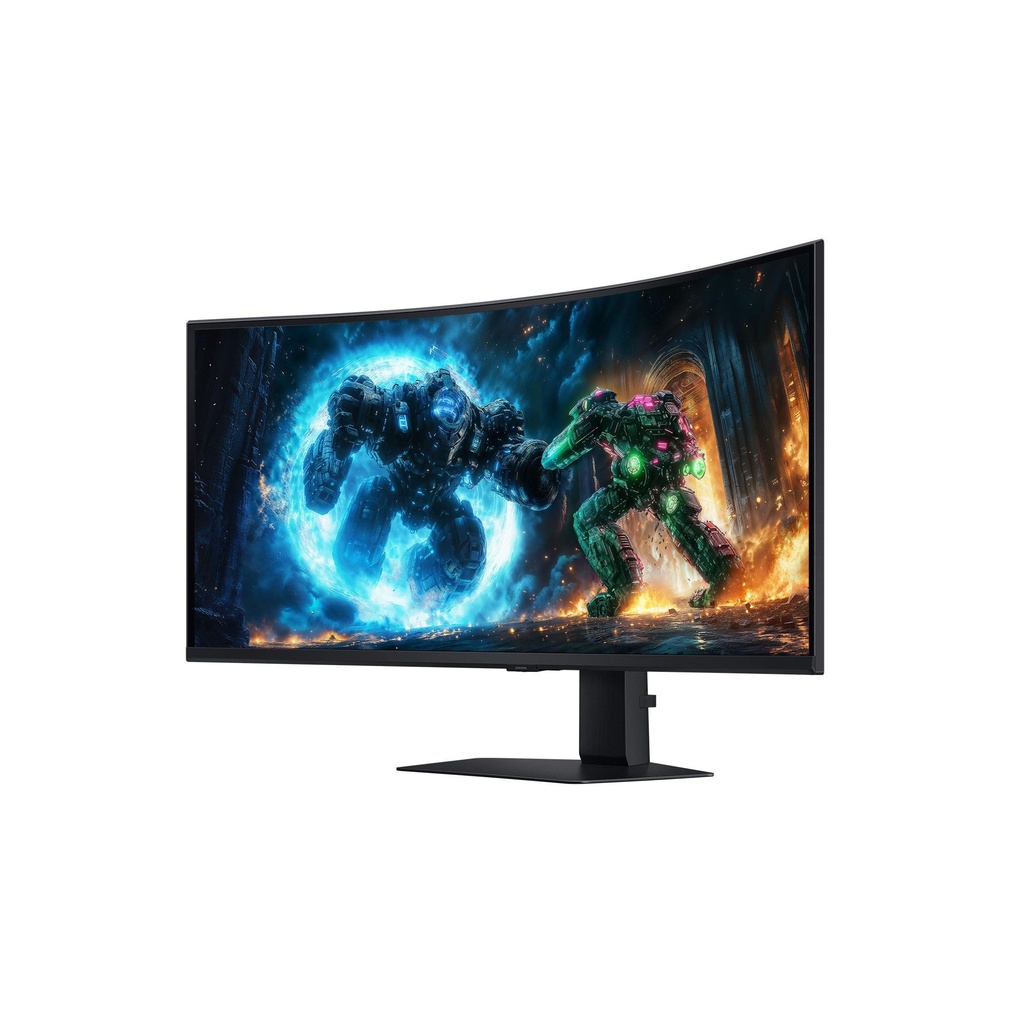

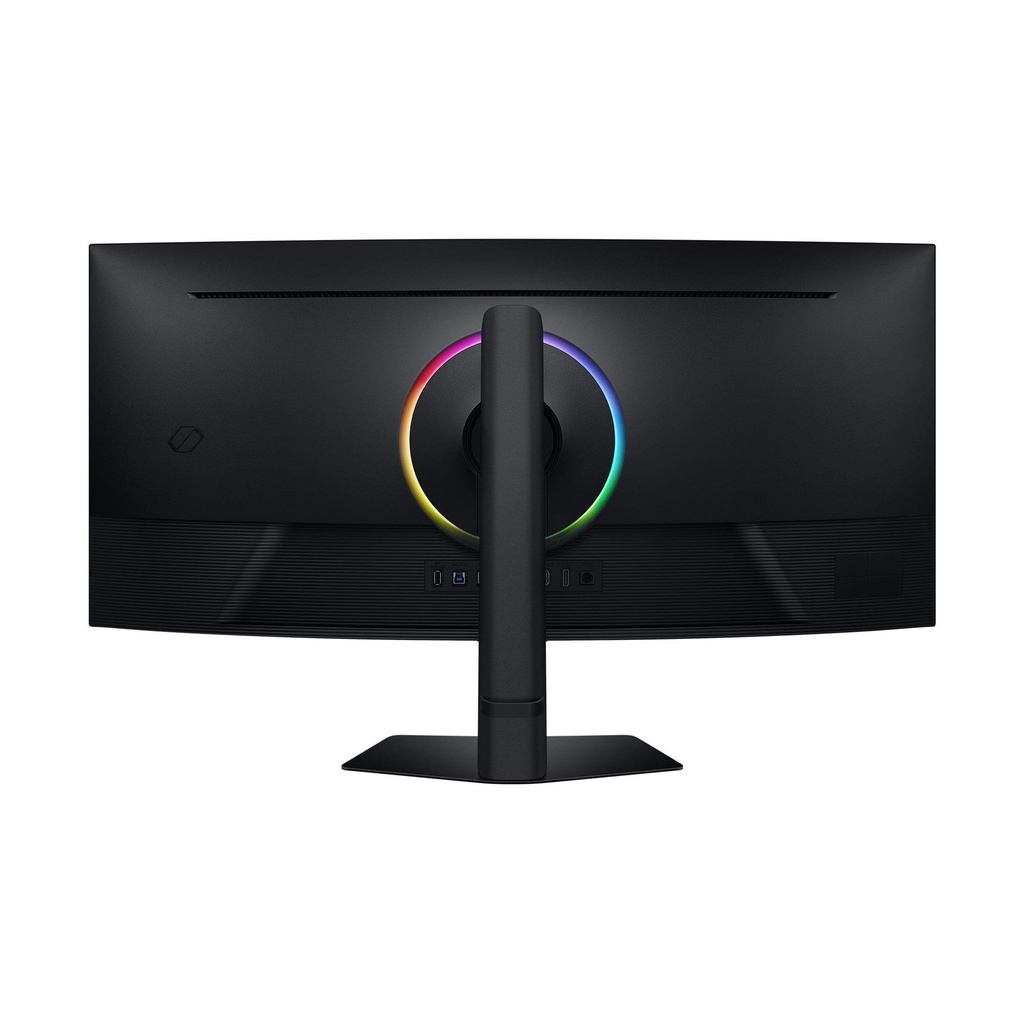

SAMSUNG 40 " 5120 x 2160 pixels WUHD Native aspect ratio 21:9 LCD Curved LS40FG750EUXEN
General
| Unit Calculated Weight | 15.5 kg |
| Product Net Weight | 11.3 kg |
| Unit Calculated Volume | 0.1473 cubm |
| Units per Pallet | 0 |
| Summary | Samsung G75F. Display diagonal: 101.6 cm (40"), Display resolution: 5120 x 2160 pixels, HD type: WUHD, Display technology: LCD, Response time: 1 ms, Native aspect ratio: 21:9, Viewing angle, horizontal: 178°, Viewing angle, vertical: 178°. Built-in USB hub, USB hub version: 3.2 Gen 1 (3.1 Gen 1). VESA mounting, Height adjustment. Product colour: Black |
| Unit Box Height | 0.275 |
| Unit Box Length | 1.03 |
| Unit Box Width | 0.52 |
| Model name | G75F |
Display
| Contrast ratio (typical) | 3000:1 |
| DCI-P3 coverage | 90 % |
| Display brightness (min) | 280 cd/m² |
| Display brightness (peak) | 350 cd/m² |
| Display diagonal | 40 " |
| Display diagonal (metric) | 100 cm |
| Display number of colours | 1.07 billion colours |
| Display resolution | 5120 x 2160 pixels |
| Display technology | LCD |
| HD type | WUHD |
| High Dynamic Range (HDR) supported | Yes |
| High Dynamic Range (HDR) technology | DisplayHDR 600/High Dynamic Range 10+ Gaming (HDR10 Plus Gaming) |
| LED backlight | No |
| Maximum refresh rate | 180 Hz |
| Native aspect ratio | 21:9 |
| Panel type | VA |
| Response time | 1 ms |
| Screen curvature rating | 1000R |
| Screen shape | Curved |
| sRGB coverage (typical) | 99 % |
| Touchscreen | No |
| Viewing angle, horizontal | 178 ° |
| Viewing angle, vertical | 178 ° |
Performance
| AMD FreeSync | Yes |
| AMD FreeSync type | FreeSync Premium Pro |
| Flicker-free technology | Yes |
| Game features | Super Arena Gaming UX |
| NVIDIA G-SYNC | No |
Multimedia
| Built-in camera | No |
| Built-in microphone | No |
| Built-in speaker(s) | No |
Design
| Feet colour | Black |
| Market positioning | Gaming |
| Product colour | Black |
Ports & interfaces
| Built-in USB hub | Yes |
| DisplayPort out quantity | 1 |
| DisplayPort out version | 1.4 |
| HDCP | Yes |
| HDMI | Yes |
| HDMI ports quantity | 2 |
| HDMI version | 2.1 |
| Headphone out | Yes |
| Number of USB Type-B upstream ports quantity | 1 |
| USB hub version | 3.2 Gen 1 (3.1 Gen 1) |
| USB Type-A downstream ports quantity | 2 |
Network
| Ethernet LAN | No |
| Wi-Fi | No |
Ergonomics
| Adjustable height (max) | 120 mm |
| Height adjustment | Yes |
| On Screen Display (OSD) | No |
| Panel mounting interface | 100 x 100 mm |
| Picture-in-Picture | Yes |
| Swivel angle range | -20 - 20 ° |
| Swivelling | Yes |
| Tilt adjustment | Yes |
| Tilt angle range | -5 - 20 ° |
| VESA mounting | Yes |
Power
| AC input frequency | 50/60 Hz |
| AC input voltage | 100 - 240 V |
| Energy consumption (HDR) per 1000 hours | 136 kWh |
| Energy consumption (SDR) per 1000 hours | 39 kWh |
| Energy efficiency class (HDR) | G |
| Energy efficiency class (SDR) | F |
| Energy efficiency scale | A to G |
| Power consumption (off) | 0.3 W |
| Power consumption (standby) | 0.5 W |
| Power consumption (typical) | 39 W |
| Power supply type | External |
Operational conditions
| Operating relative humidity (H-H) | 10 - 80 % |
| Operating temperature (T-T) | 10 - 40 °C |
Weight & dimensions
| Depth (with stand) | 303.8 mm |
| Depth (without stand) | 196.1 mm |
| Height (with stand) | 599 mm |
| Height (without stand) | 422.8 mm |
| Weight (with stand) | 11300 g |
| Weight (without stand) | 7300 g |
| Width (with stand) | 928.6 mm |
| Width (without stand) | 928.6 mm |
Packaging data
| Package depth | 520 mm |
| Package height | 281 mm |
| Package weight | 15300 g |
| Package width | 1030 mm |
| Stand type | HAS stand |
Packaging content
| Cables included | DisplayPort/Power |
| Power cable length | 1.5 m |
| Stand included | Yes |
Other features
| Auto source switch+ | Yes |
| Brand specific technologies | Black Equalizer |
| Digital signal format system | Not supported |
| Factory calibration report | Yes |
| Factory tunning | Yes |
| Image size | Yes |
| Off Timer Plus | Yes |
| Picture-by-Picture (PbP) | Yes |
| Samsung Eye Saver Mode | Yes |
| Virtual AIM point | Yes |
| Warranty period | 2 year(s) |
Energy Efficiency
| Data Sheet (Link) | https://eprel.ec.europa.eu/api/product/2338418/fiches?language=EN |
| Energy efficiency class | F |
| EPREL Registration Number | 2338418 |
| EPREL Version Number | 1 |
