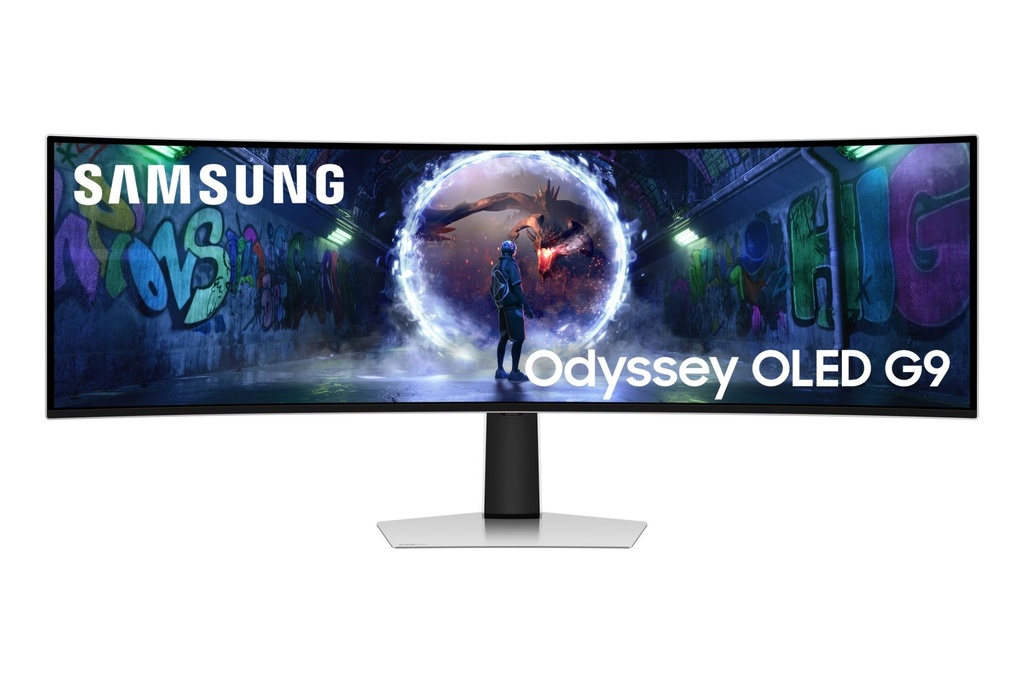

SAMSUNG Odyssey G9 G93SD 49" Gaming/Curved Panel OLED 5120x1440 32:9 240 Hz 0.03 ms Colour White LS49DG934SUXEN
General
| Unit Calculated Weight | 18 kg |
| Product Net Weight | 12.6 kg |
| Unit Calculated Volume | 0.1512 cubm |
| Summary | Samsung G93SD. Display diagonal: 124.5 cm (49"), Display resolution: 5120 x 1440 pixels, HD type: Dual QHD, Display technology: OLED, Response time: 0.03 ms, Native aspect ratio: 32:9, Viewing angle, horizontal: 178°, Viewing angle, vertical: 178°. Built-in USB hub. VESA mounting, Height adjustment. Product colour: Silver |
| Unit Box Height | 0.24 |
| Unit Box Length | 1.34 |
| Unit Box Width | 0.47 |
| Model name | Odyssey G9 G93SD |
| Model | S49DG934SU |
Display
| Anti-glare screen | Yes |
| Colour gamut | 99 % |
| Contrast ratio (typical) | 1000000:1 |
| Display brightness (min) | 200 cd/m² |
| Display brightness (typical) | 250 cd/m² |
| Display diagonal | 49 " |
| Display diagonal (metric) | 124 cm |
| Display number of colours | 1 billion colours |
| Display resolution | 5120 x 1440 pixels |
| Display technology | OLED |
| HD type | Dual QHD |
| Maximum refresh rate | 240 Hz |
| Native aspect ratio | 32:9 |
| Panel type | OLED |
| Quantum dot color technology | Yes |
| Response time | 0.03 ms |
| Screen curvature rating | 1800R |
| Screen shape | Curved |
| Touchscreen | No |
| Viewing angle, horizontal | 178 ° |
| Viewing angle, vertical | 178 ° |
Performance
| AMD FreeSync | Yes |
| AMD FreeSync type | FreeSync Premium Pro |
| Flicker-free technology | Yes |
| Game features | Super Arena Gaming UX |
| Game mode | Yes |
| NVIDIA G-SYNC | No |
Multimedia
| Built-in camera | No |
| Built-in speaker(s) | No |
Design
| Feet colour | Black/Silver |
| Market positioning | Gaming |
| Product colour | Silver |
Ports & interfaces
| Built-in USB hub | Yes |
| DC-in jack | Yes |
| DisplayPort version | 1.4 |
| DisplayPorts quantity | 1 |
| HDCP | Yes |
| HDCP version | 2.2 |
| HDMI | Yes |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| Headphone out | Yes |
| Micro HDMI ports quantity | 1 |
| Number of USB Type-C upstream ports quantity | 1 |
| USB Type-C downstream ports quantity | 2 |
Ergonomics
| Adjustable height (max) | 120 mm |
| Height adjustment | Yes |
| Panel mounting interface | 100 x 100 mm |
| Picture-in-Picture | Yes |
| Tilt adjustment | Yes |
| Tilt angle range | -2 - 15 ° |
| VESA mounting | Yes |
Power
| AC input voltage | 100 - 240 V |
| Energy consumption (HDR) per 1000 hours | 71 kWh |
| Energy consumption (SDR) per 1000 hours | 61 kWh |
| Energy efficiency class (HDR) | G |
| Energy efficiency class (SDR) | G |
| Energy efficiency scale | A to G |
| Power consumption (standby) | 0.5 W |
| Power consumption (typical) | 61 W |
| Power supply type | External |
Operational conditions
| Operating temperature (T-T) | 10 - 40 °C |
| Storage temperature (T-T) | 10 - 80 °C |
Weight & dimensions
| Depth (with stand) | 284.1 mm |
| Depth (without stand) | 180.8 mm |
| Height (with stand) | 529.3 mm |
| Height (without stand) | 365 mm |
| Weight (with stand) | 12600 g |
| Weight (without stand) | 8800 g |
| Width (with stand) | 1194.7 mm |
| Width (without stand) | 1194.7 mm |
Packaging data
| Package depth | 474 mm |
| Package height | 240 mm |
| Package weight | 18100 g |
| Package width | 1352 mm |
| Stand type | HAS stand |
Packaging content
| Cables included | AC/DisplayPort/USB Type-A to USB Type-C |
| Stand included | Yes |
Other features
| Auto source switch+ | Yes |
| Brand specific technologies | Black Equalizer,Eye Saver |
| Image size | Y |
| Off Timer Plus | Yes |
| Picture-by-Picture (PbP) | Yes |
| Virtual AIM point | Yes |
Energy Efficiency
| Data Sheet (Link) | https://eprel.ec.europa.eu/api/product/2051150/fiches?language=EN |
| Energy efficiency class | G |
| EPREL Registration Number | 2051150 |
| EPREL Version Number | 2 |
