Registered DIMM
Includes a register for enhancing clock, command and control signals
Error correction available by added 8 bit parity signals
Supports x4 / x8 Organization / up to 2 ranks per DIMM and 2DPC configuration
Application : Server
General
| Summary | Samsung M321RAJA0MB2-CWM. Component for: Server, Internal memory: 128 GB, Memory layout (modules x size): 1 x 128 GB, Internal memory type: DDR5, Memory clock speed: 5600 MHz, Memory form factor: 288-pin DIMM, ECC |
| Unit Box Height | 0.005 |
| Unit Box Length | 0.135 |
| Unit Box Width | 0.04 |

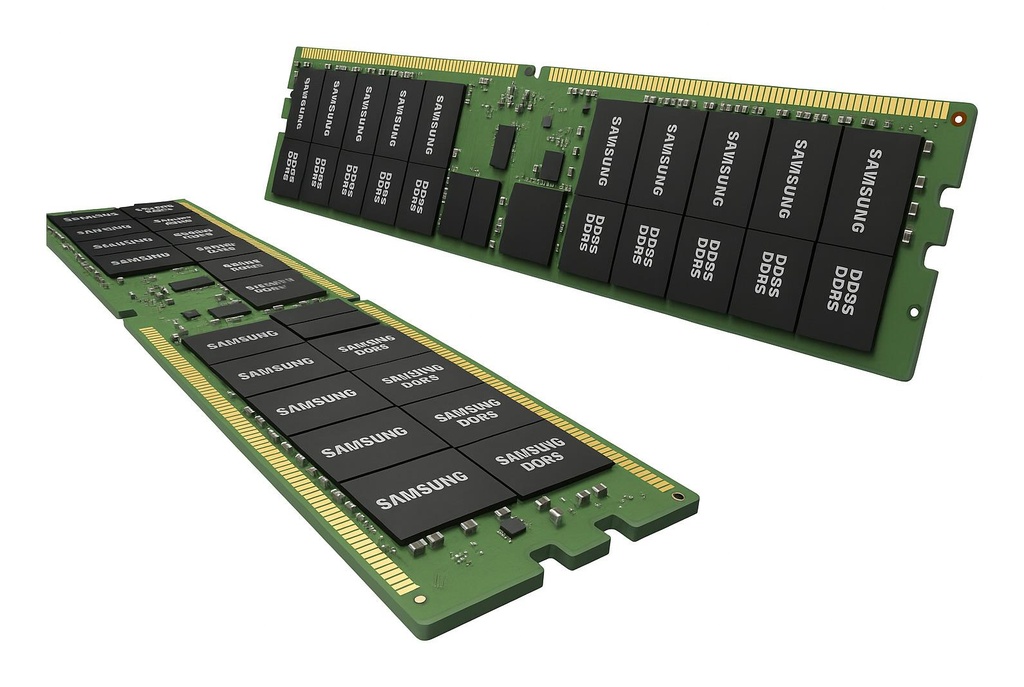

| Name | SERVER MEMORY 128GB DDR5-5600/M321RAJA0MB2-CWM SAMSUNG |
Features
| Backlight | No |
| Memory ranking | 2 |
| ECC | Yes |
| Memory layout (modules x size) | 1 x 128 GB |
| Component for | Server |
| Memory form factor | 288-pin DIMM |
| Memory voltage | 1.1 V |
| Memory clock speed | 5600 MHz |
| Buffered memory type | Registered (buffered) |
| Internal memory | 128 GB |
| Internal memory type | DDR5 |
Other features
| Chips organisation | 2Rx4 |
ELKO Verified Logistics Data
| Unit Height | 0.5 cm |
| Unit Depth | 13.5 cm |
| Unit Width | 4 cm |
| Units per Pallet | 0 |
| Units per Shipping Box | 1 |
| Product Net Weight | 0.03 kg |
| Unit Calculated Weight | 0.03 kg |
ELKO Internal Logistics Data
| Shipping Box Width | 4 cm |
| Shipping Box Depth | 13.5 cm |
| Shipping Box Height | 0.5 cm |
| Shipping Box Weight | 0.03 kg |
| Unit Calculated Volume | 2.7E-05 cubm |
