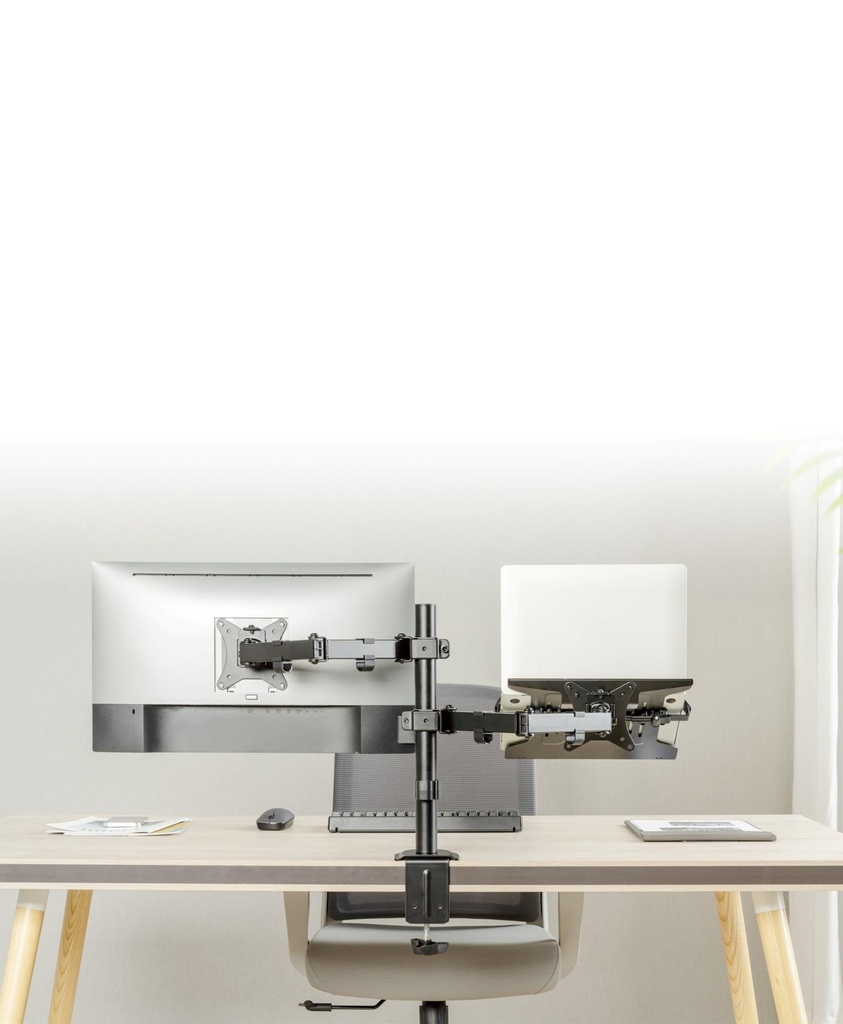

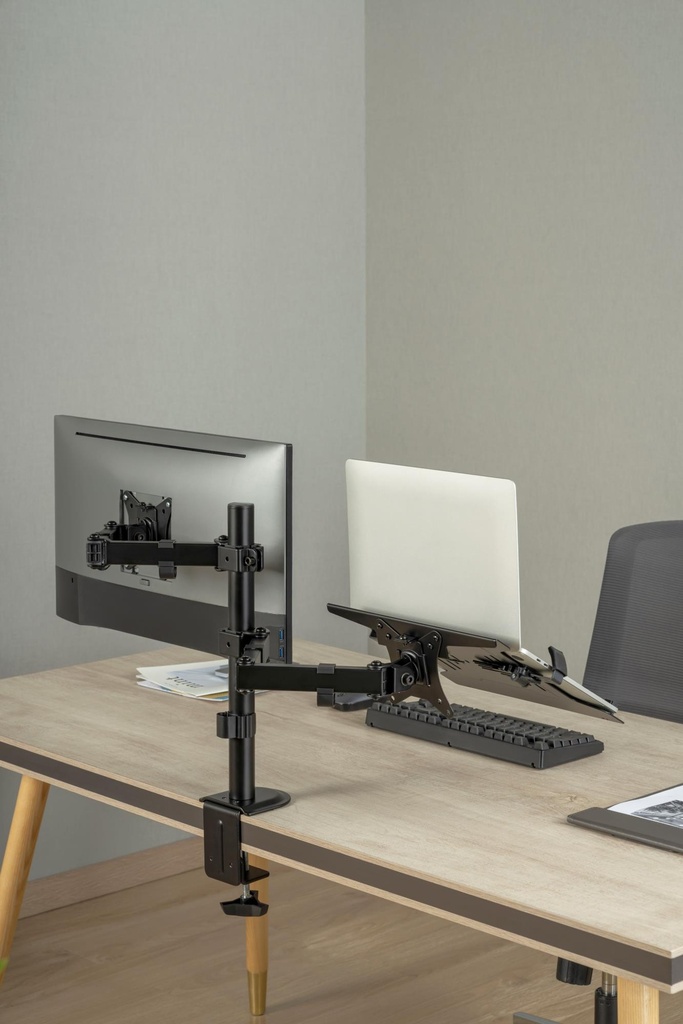

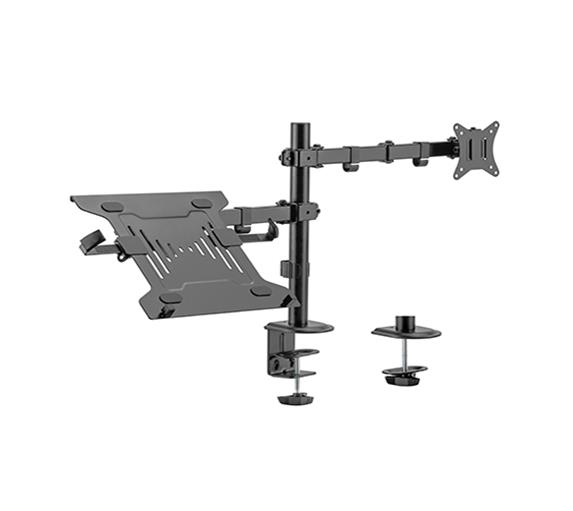

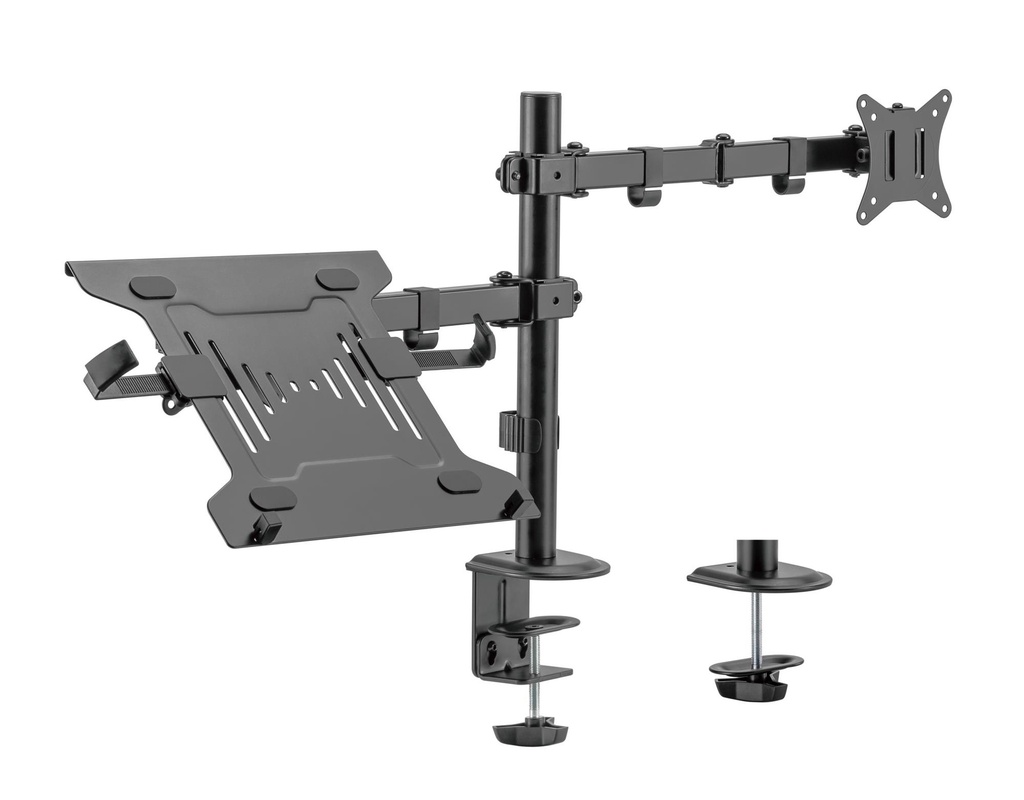

Desk mount with monitor arm and notebook stand
Supports monitors up to 32'' and notebooks up to 15.6''
Arm rotates (+180° ... -180°), tilts (+/-45°) to change reading angles, and allows to rotate display from landscape-to-portrait mode, etc
Works with almost any LCD monitor (max. 32'')
VESA compatible (100 x 100 mm and 75 x 75 mm)

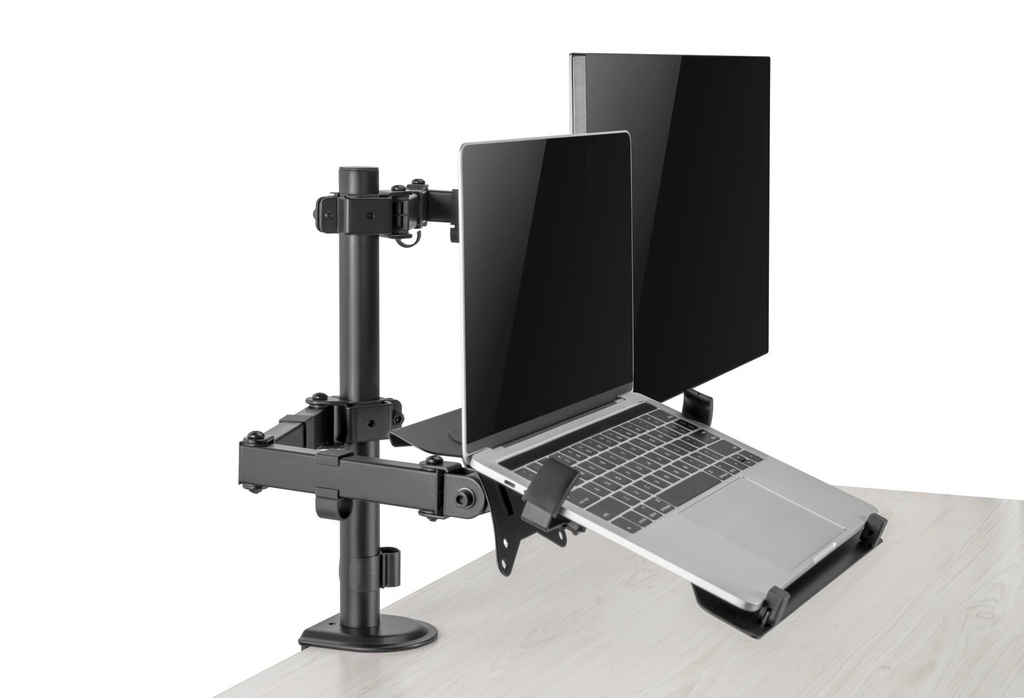

Adjustable metal tray with ventilation holes for a notebook

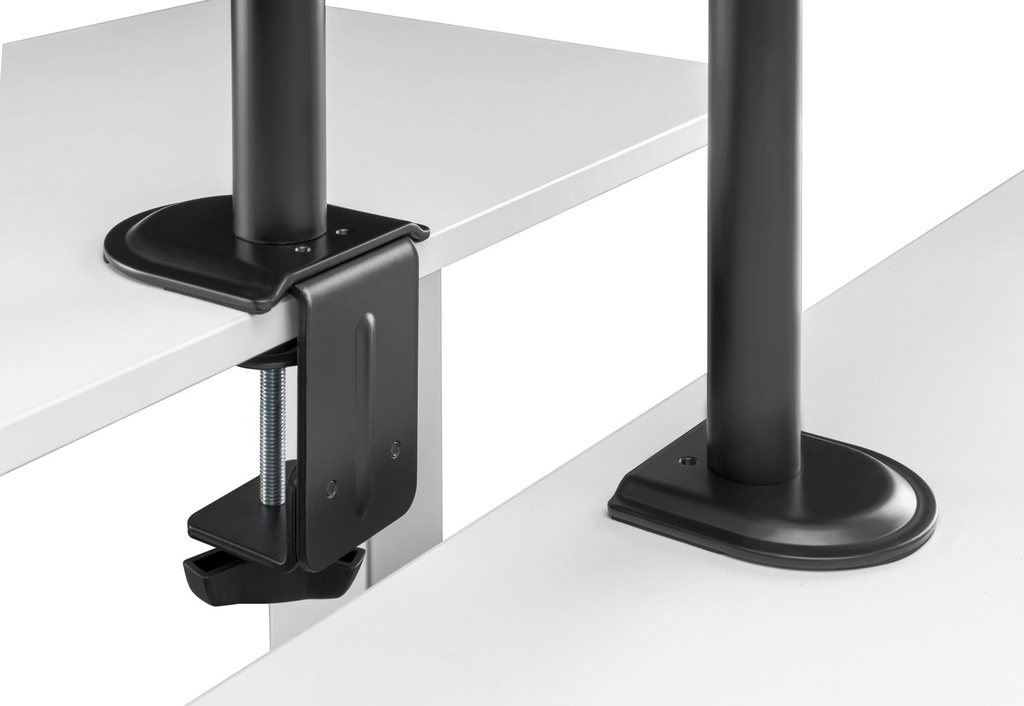

Strong desk clamp or grommet for easy and secure fixation on your desk
Built-in cable management for an organized and neat workspace
- Position your screen perfectly to reduce neck and eye strain
- Increase your productivity by taking advantage of dual screen setup
General
| Unit Calculated Weight | 5.67 kg |
| Unit Calculated Volume | 0.01452 cubm |
| Units per Shipping Box | 1 |
| Summary | Gembird MA-DA-03. Mounting: Clamp/Grommet, Maximum weight capacity: 18 kg, Minimum screen size: 43.2 cm (17"), Maximum screen size: 81.3 cm (32"), Minimum VESA mount: 75 x 75 mm, Maximum VESA mount: 100 x 100 mm. Height adjustment, Swivel angle range: -90 - 90°, Tilt angle range: -45 - 45°. Product colour: Black |
| CnCode | 83021000 |
| Unit Box Height | 0.3 |
| Unit Box Length | 0.44 |
| Unit Box Width | 0.11 |

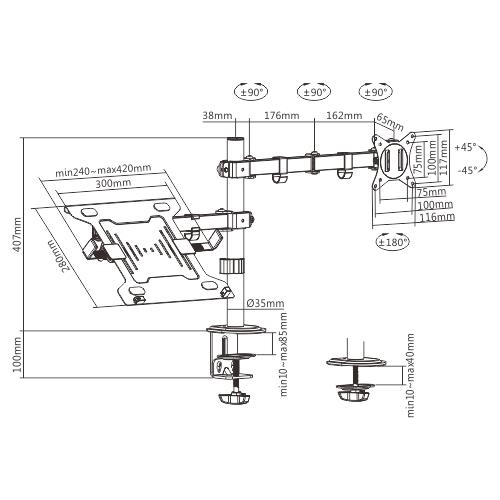

Mounting
| Clamp mount desk thickness (max) | 85 mm |
| Desk thickness (min) | 10 mm |
| Grommet mount desk thickness (max) | 40 mm |
| Maximum screen size | 32 " |
| Maximum VESA mount | 100 x 100 mm |
| Maximum weight capacity | 18 kg |
| Maximum weight capacity (per display) | 9 kg |
| Minimum screen size | 17 " |
| Minimum VESA mount | 75 x 75 mm |
| Mounting | Clamp/Grommet |
| Mounting type | Desk |
| Number of displays supported | 2 |
| Panel mounting interface | 100 x 100/75 x 75 mm |
Ergonomics
| Angle of rotation | 360 ° |
| Cable management | Yes |
| Height adjustment | Yes |
| Height adjustment type | Manual |
| Motorized | No |
| Number of arms | 2 |
| Rotating | Yes |
| Swivel angle range | -90 - 90 ° |
| Swivelling | Yes |
| Tilt adjustment | Yes |
| Tilt angle range | -45 - 45 ° |
Design
| Easy to install | Yes |
| Housing material | Plastic/Steel |
| Product colour | Black |
Weight & dimensions
| Depth | 956 mm |
| Height | 319 mm |
| Weight | 4740 g |
| Width | 561 mm |
Packaging data
| Package depth | 443 mm |
| Package height | 113 mm |
| Package type | Box |
| Package weight | 5897 g |
| Package width | 298 mm |
| Quantity per pack | 1 pc(s) |
Packaging content
| Mounting kit | Yes |
| Packaging content | Desk mount User manual Mounting tools bag |
Logistics data
| Country of origin | China |
| Master (outer) case gross weight | 17690 g |
| Master (outer) case height | 385 mm |
| Master (outer) case length | 460 mm |
| Master (outer) case width | 315 mm |
| Products per master (outer) case | 3 pc(s) |
