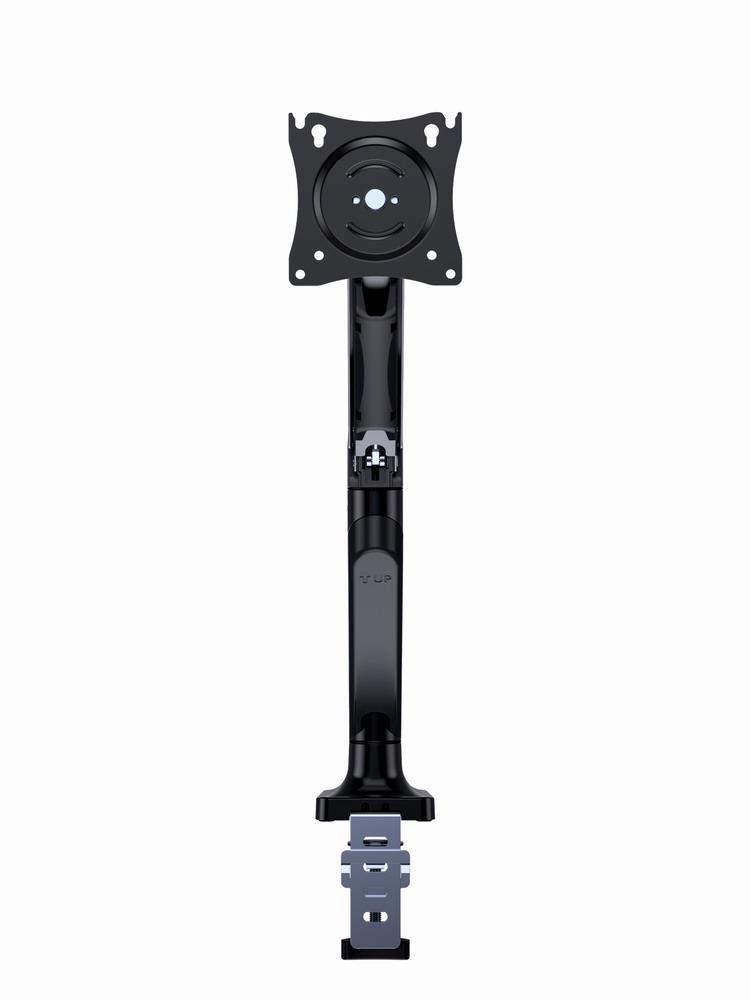

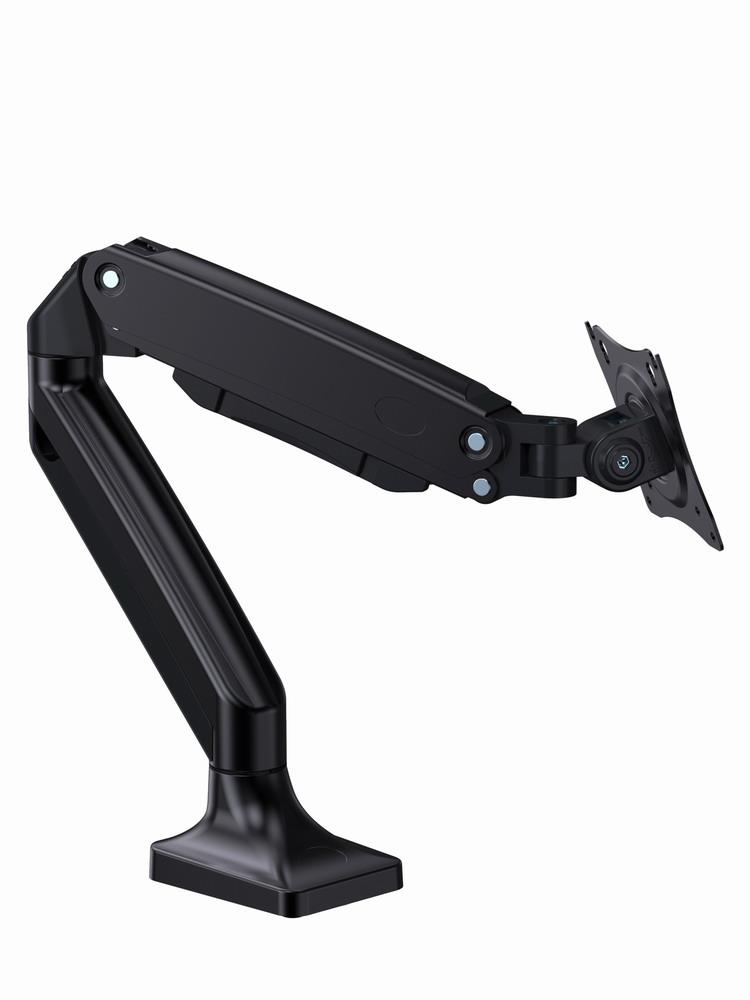

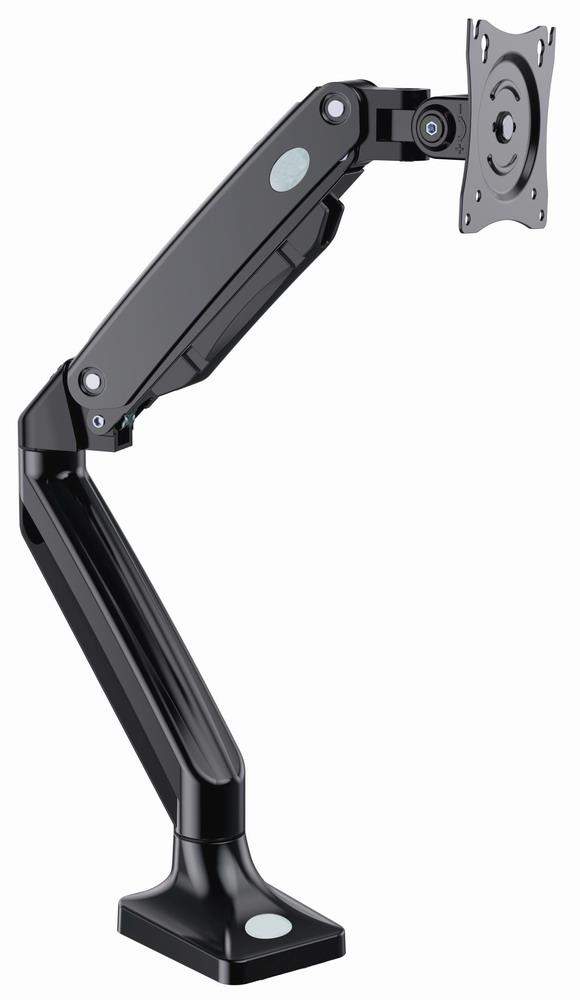

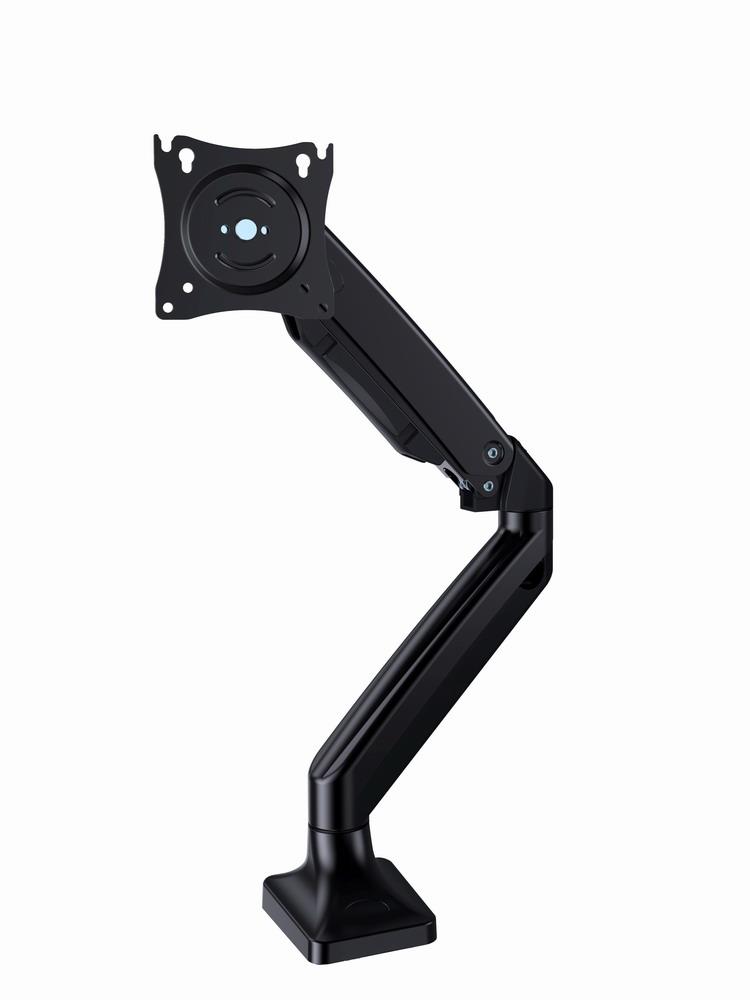

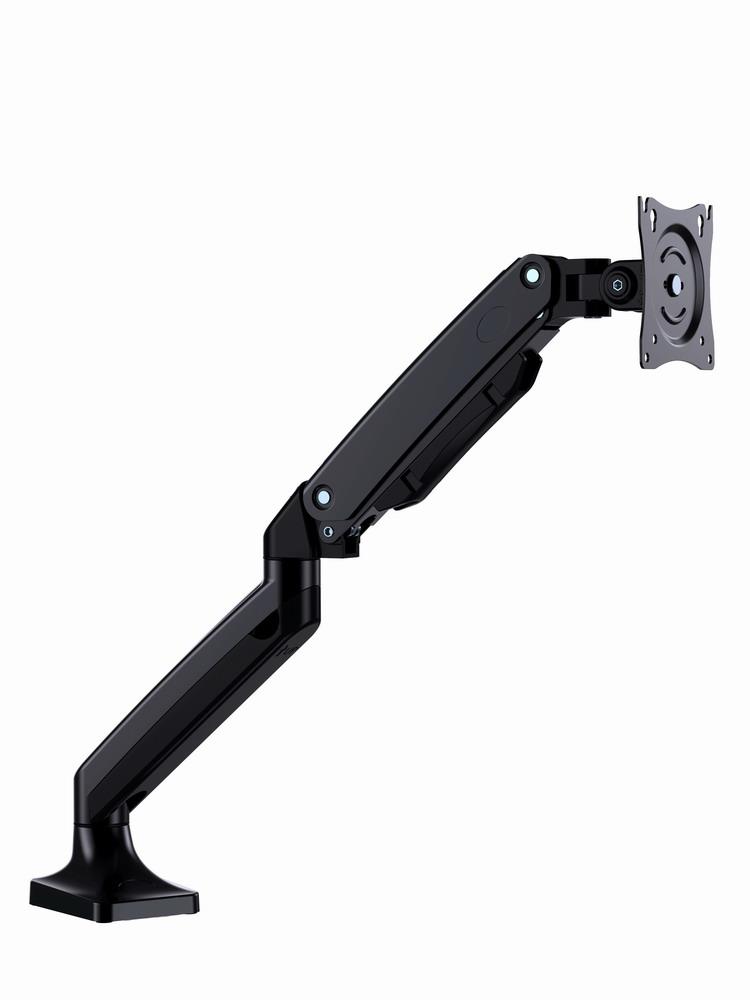

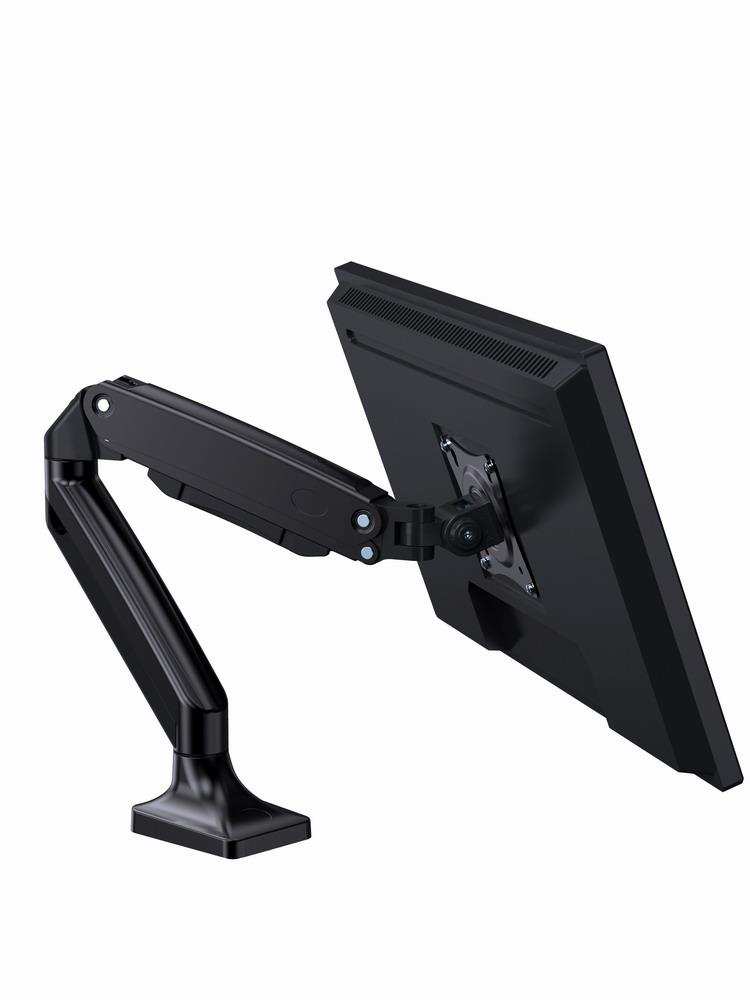

Monitor desk mount with single monitor arm
Full-motion arm rotates, extends and retracts, tilts to change reading angles, and allows to rotate display from landscape-to-portrait mode, etc
Enables easy ergonomic positioning for reduced strain
Works with almost any LCD monitor (max. 35'')
Durable adjustable gas-spring suitable for monitors of 3 - 10 kg
VESA compatible (100 x 100 mm and 75 x 75 mm)

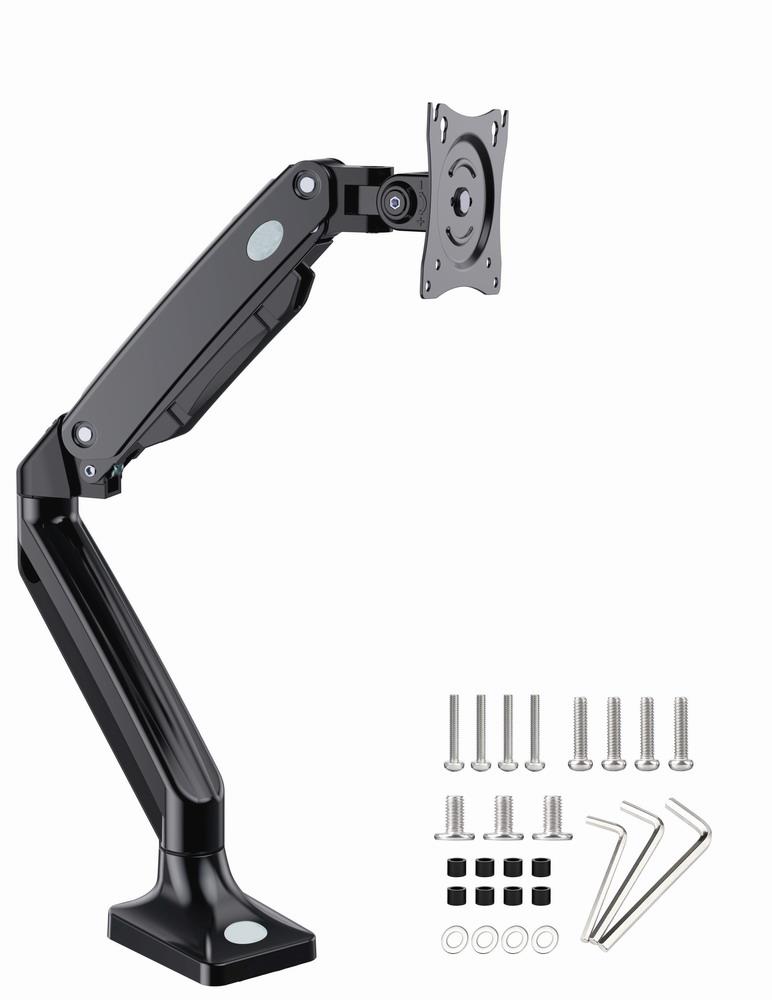

Strong desk clamp or grommet for easy and secure fixation on your desk
- Position your screen perfectly
- Lightweight and tilting design
General
| Unit Calculated Weight | 3 kg |
| Unit Calculated Volume | 0.009555 cubm |
| Units per Shipping Box | 6 |
| Summary | Gembird MA-DA1-03. Mounting: Clamp/Grommet, Maximum weight capacity: 10 kg, Minimum screen size: 43.2 cm (17"), Maximum screen size: 88.9 cm (35"), Minimum VESA mount: 75 x 75 mm, Maximum VESA mount: 100 x 100 mm. Height adjustment, Tilt angle range: -50 - 50°. Product colour: Black |
| Unit Box Height | 0.16 |
| Unit Box Length | 0.435 |
| Unit Box Width | 0.13 |
| Model | MA-DA1-03 |
Mounting
| Maximum screen size | 35 " |
| Maximum VESA mount | 100 x 100 mm |
| Maximum weight capacity | 10 kg |
| Maximum weight capacity (per display) | 10 kg |
| Minimum screen size | 17 " |
| Minimum VESA mount | 75 x 75 mm |
| Mounting | Clamp/Grommet |
| Mounting type | Desk |
| Number of displays supported | 1 |
| Panel mounting interface | 100 x 100/75 x 75 mm |
Ergonomics
| Angle of rotation | 360 ° |
| Cable management | Yes |
| Height adjustment | Yes |
| Height adjustment range | 155 - 470 mm |
| Height adjustment type | Gas spring |
| Number of arms | 1 |
| Rotating | Yes |
| Tilt adjustment | Yes |
| Tilt angle range | -50 - 50 ° |
Design
| Easy to install | Yes |
| Housing material | Aluminium/Steel |
| Product colour | Black |
Weight & dimensions
| Depth | 750 mm |
| Height | 50 mm |
| Weight | 2500000 g |
| Width | 210 mm |
Packaging data
| Package depth | 440 mm |
| Package height | 155 mm |
| Package weight | 3047 g |
| Package width | 12 mm |
| Quantity per pack | 1 pc(s) |
