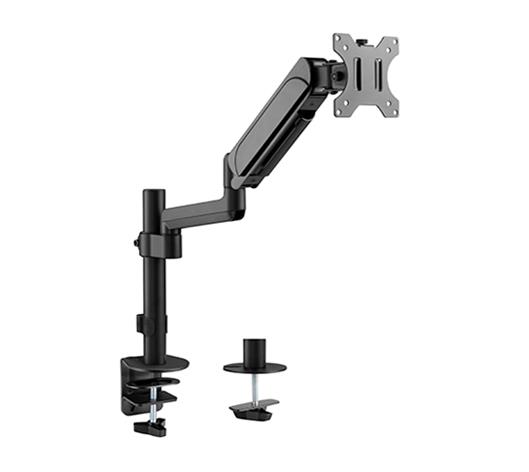

Monitor desk mount with single monitor arm
Arm rotates, extends and retracts, tilts to change reading angles, and allows to rotate display from landscape-to-portrait mode, etc
Enables easy ergonomic positioning for reduced strain
Works with almost any LCD monitor (max. 32'')
Durable adjustable gas-spring suitable for monitors of 1 - 9 kg
Built-in cable management for an organized and neat workspace
Strong desk clamp or grommet for easy and secure fixation on your desk
Detachable VESA plate enables easy installation
VESA compatible (100 x 100 mm and 75 x 75 mm)
- Position your screen perfectly
- Lightweight and tilting design
General
| Unit Calculated Weight | 3.98 kg |
| Unit Calculated Volume | 0.01192 cubm |
| Units per Shipping Box | 4 |
| Units per Pallet | 0 |
| Summary | Gembird MA-DA1P-01. Mounting: Clamp/Grommet, Maximum weight capacity: 9 kg, Minimum screen size: 43.2 cm (17"), Maximum screen size: 81.3 cm (32"), Minimum VESA mount: 75 x 75 mm, Maximum VESA mount: 100 x 100 mm. Height adjustment, Swivel angle range: -90 - 90°, Tilt angle range: -35 - 35°. Product colour: Black |
| CnCode | 83021000 |
| Unit Box Height | 0.22 |
| Unit Box Length | 0.4 |
| Unit Box Width | 0.11 |
Mounting
| Clamp mount desk thickness (max) | 85 mm |
| Desk thickness (min) | 10 mm |
| Grommet mount desk thickness (max) | 40 mm |
| Maximum screen size | 32 " |
| Maximum VESA mount | 100 x 100 mm |
| Maximum weight capacity | 9 kg |
| Maximum weight capacity (per display) | 9 kg |
| Minimum screen size | 17 " |
| Minimum VESA mount | 75 x 75 mm |
| Mounting | Clamp/Grommet |
| Mounting type | Desk |
| Number of displays supported | 1 |
| Panel mounting interface | 100 x 100/75 x 75 mm |
Ergonomics
| Angle of rotation | 360 ° |
| Cable management | Yes |
| Height adjustment | Yes |
| Height adjustment type | Gas spring |
| Number of arms | 1 |
| Rotating | Yes |
| Swivel angle | 180 ° |
| Swivel angle range | -90 - 90 ° |
| Swivelling | Yes |
| Tilt adjustment | Yes |
| Tilt angle range | -35 - 35 ° |
Design
| Easy to install | Yes |
| Housing material | Aluminium/Plastic/Steel |
| Product colour | Black |
Weight & dimensions
| Depth | 715 mm |
| Height | 114 mm |
| Weight | 3300 g |
| Width | 538 mm |
Packaging data
| Package depth | 395 mm |
| Package height | 112 mm |
| Package weight | 4032 g |
| Package width | 215 mm |
| Quantity per pack | 1 pc(s) |
