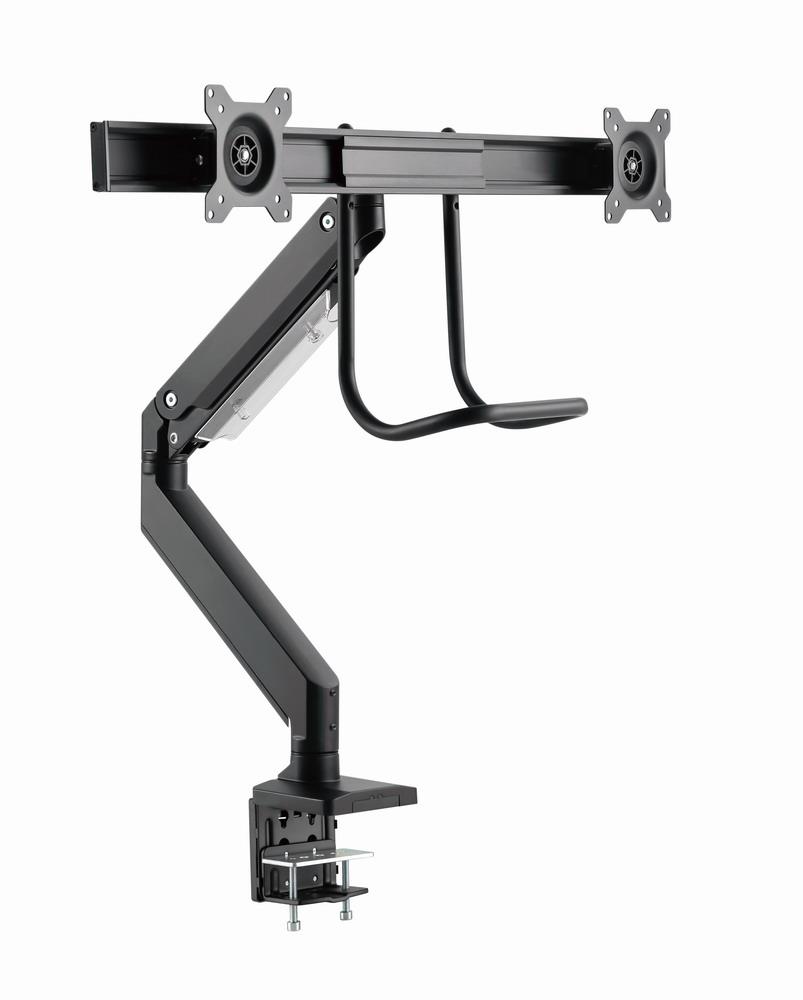

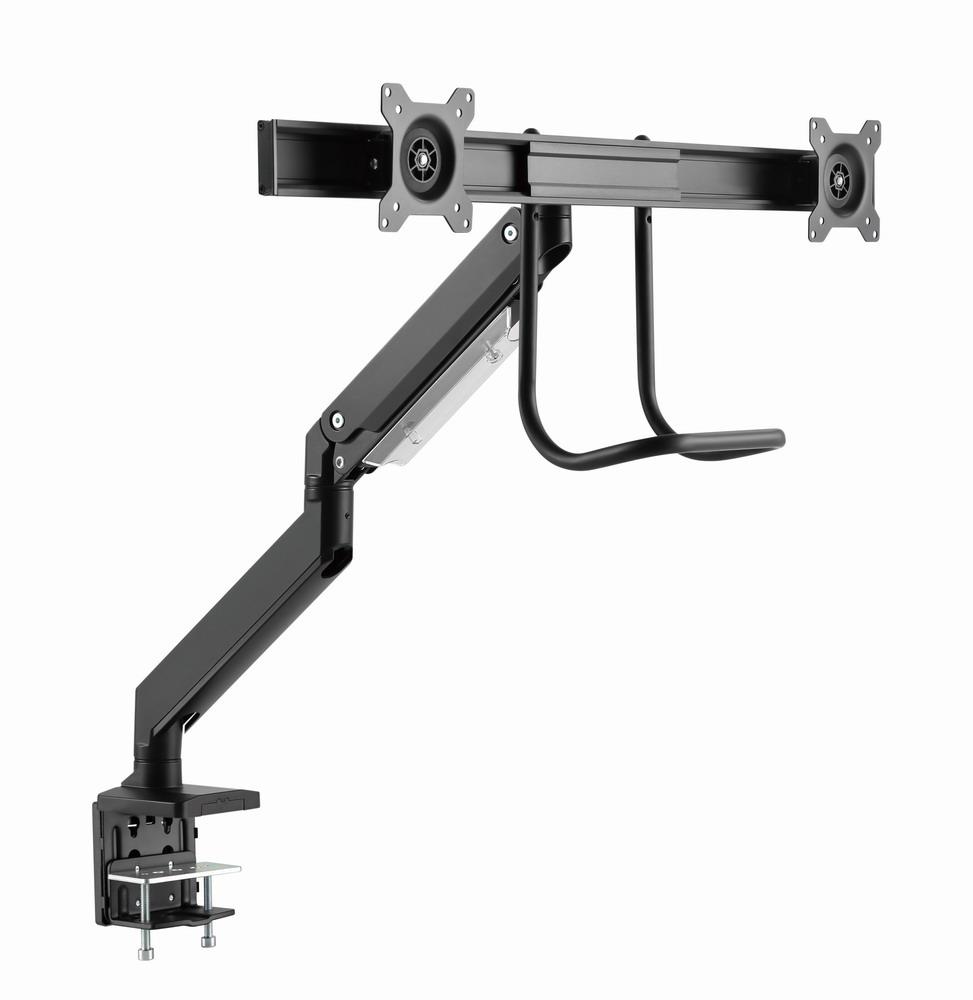

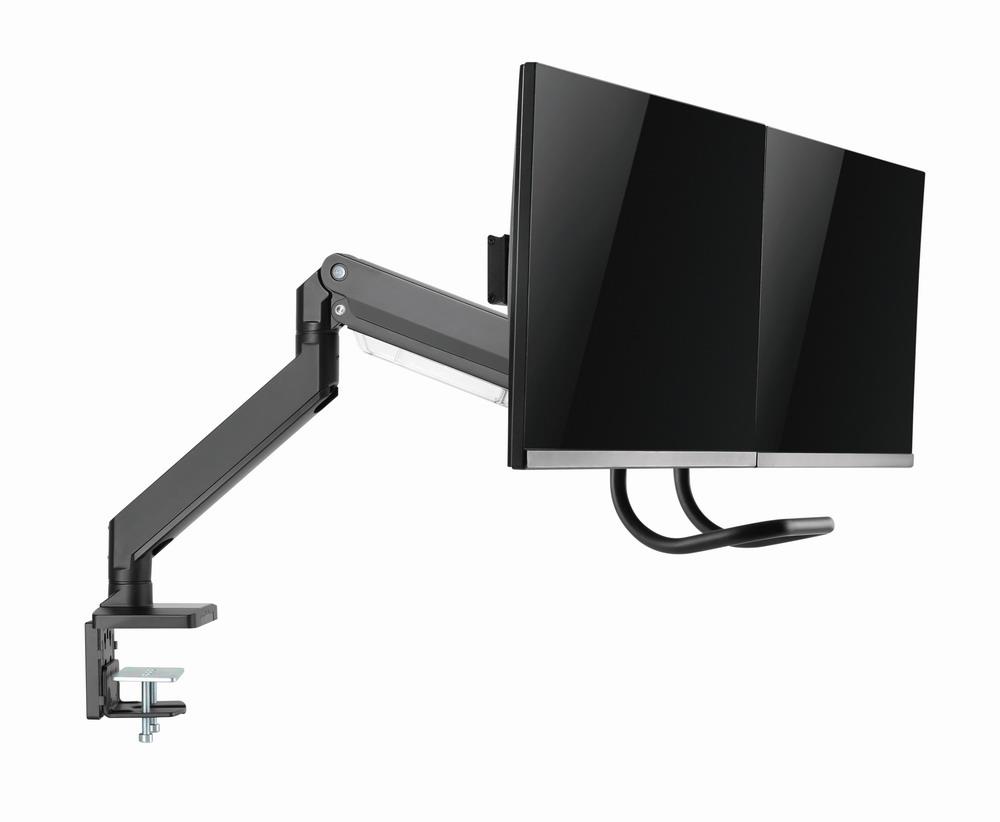

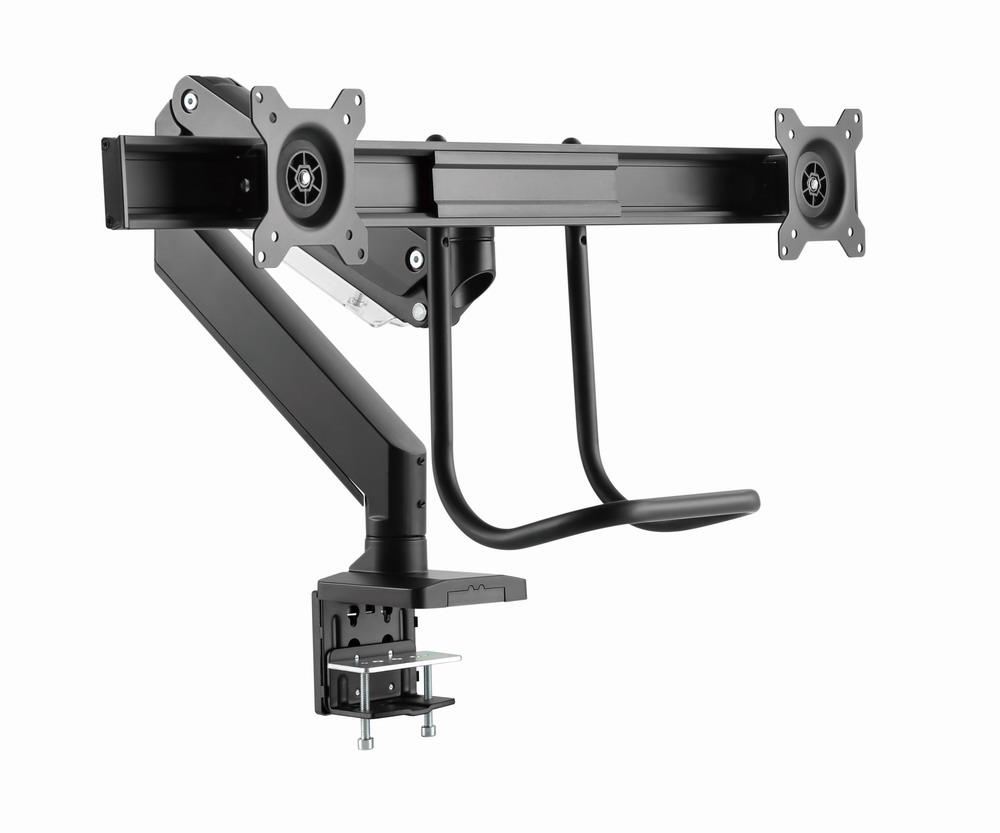

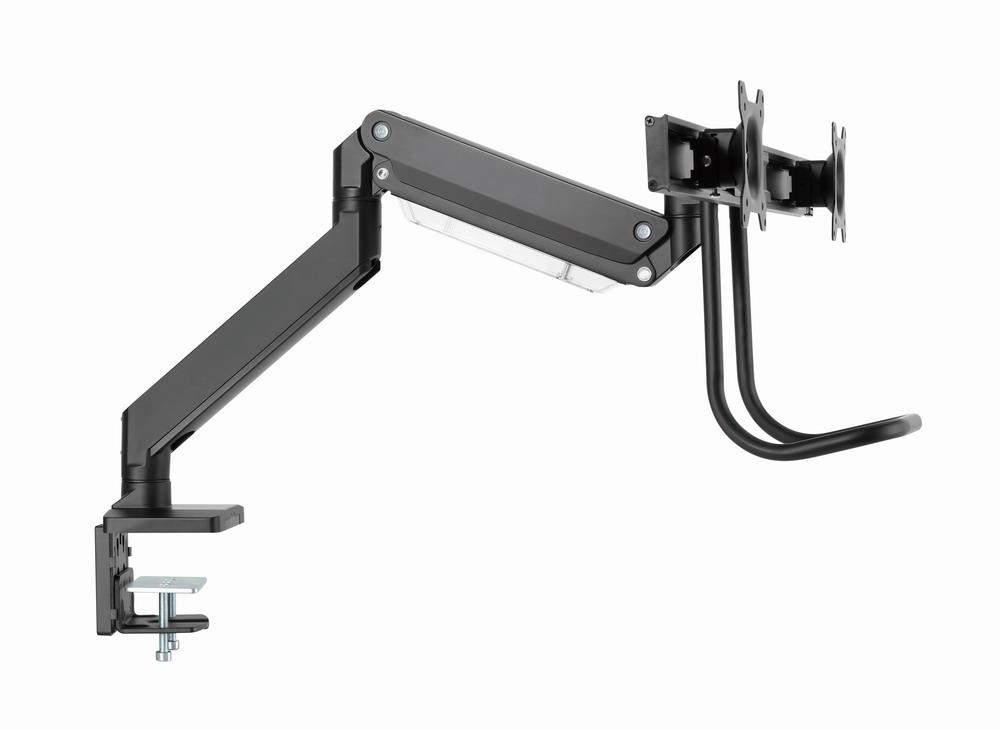

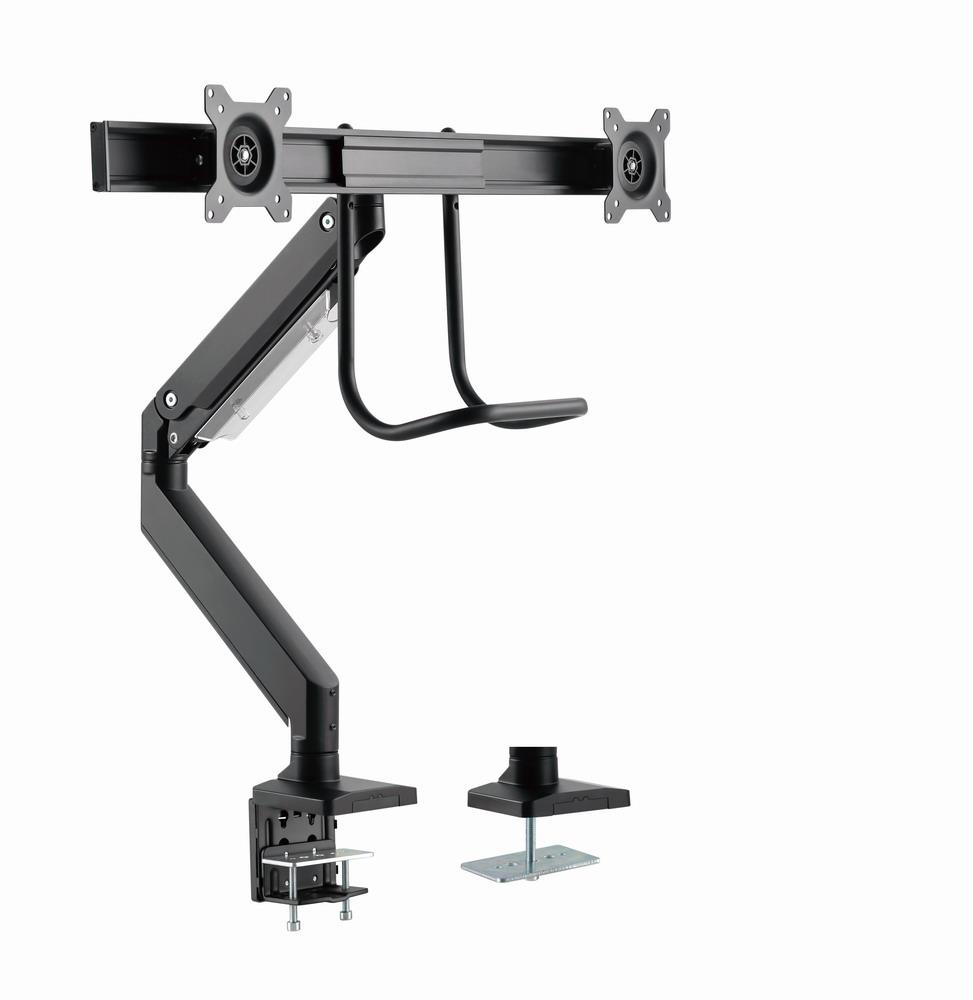

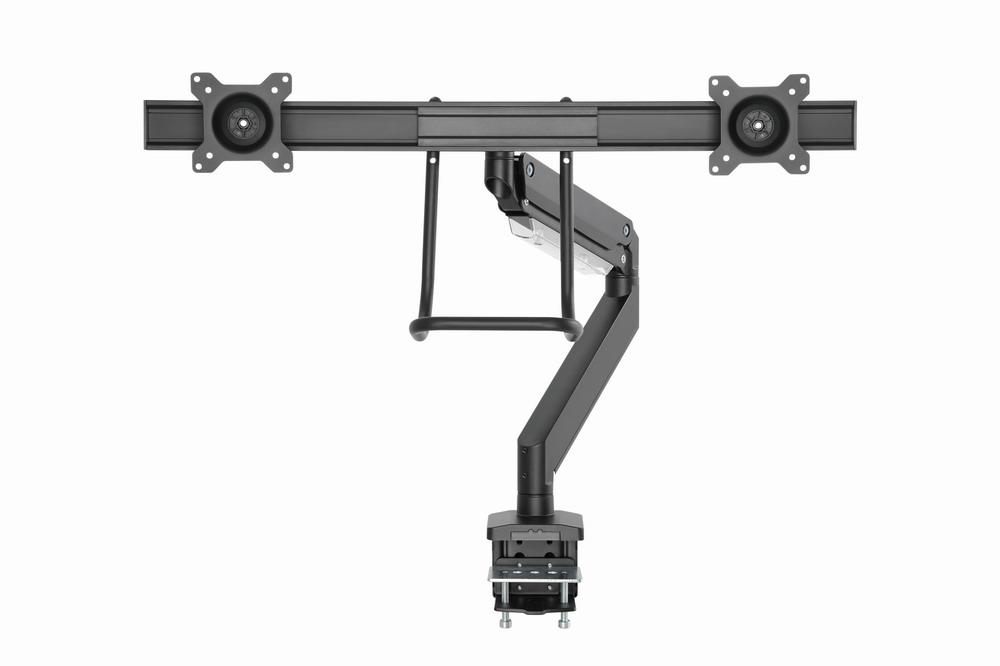

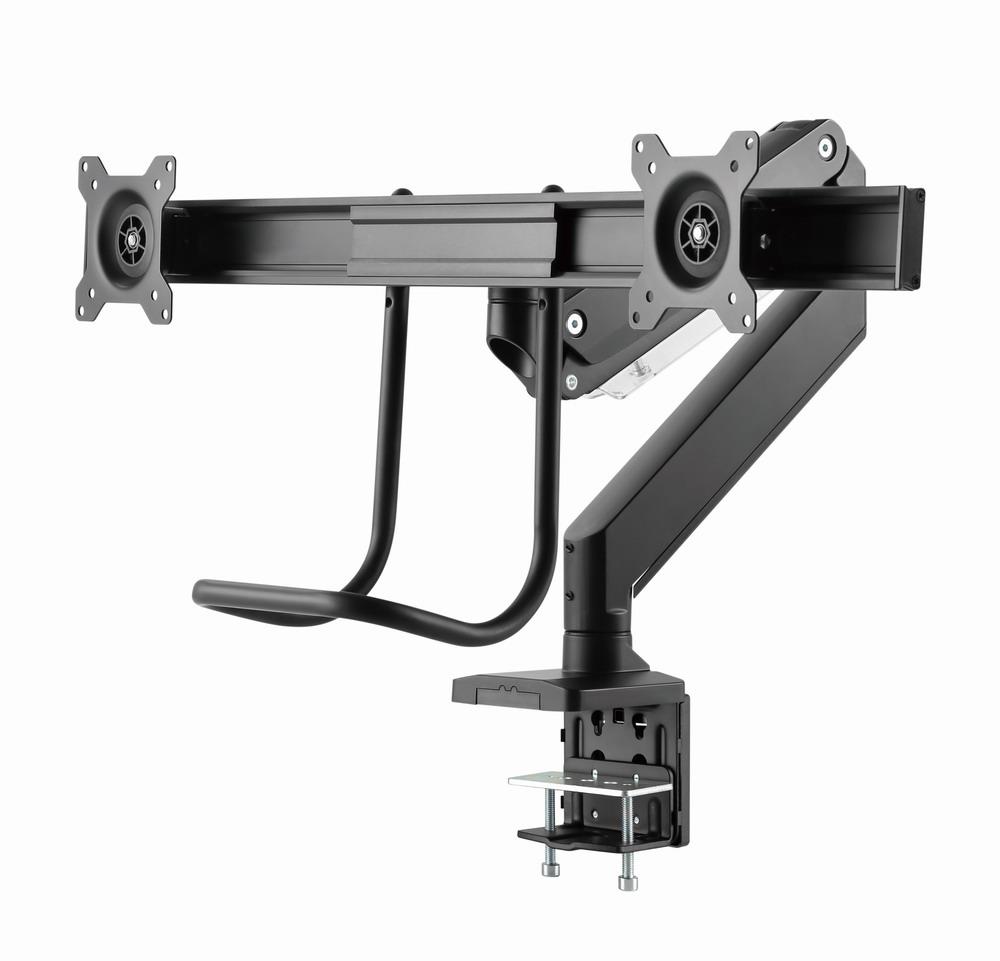

Monitor desk mount with single arm for 2 monitors
Arm rotates, extends and retracts, tilts to change reading angles
Monitor mount bar for side-by-side mounting of 2 monitors
Enables easy ergonomic positioning for reduced strain
Works with almost any LCD monitor (max. 32'')
Durable adjustable gas-springs suitable for monitors of 2 - 8 kg
Strong desk clamp or grommet for easy and secure fixation on your desk
Built-in cable management for an organized and neat workspace
VESA compatible (100 x 100 mm and 75 x 75 mm)
- Position your screen perfectly
- Lightweight and tilting design
General
| Unit Calculated Weight | 9.25 kg |
| Unit Calculated Volume | 0.03974 cubm |
| Units per Shipping Box | 2 |
| Units per Pallet | 0 |
| Summary | Gembird MA-DA2-04. Mounting: Clamp/Grommet, Maximum weight capacity: 8 kg, Minimum screen size: 43.2 cm (17"), Maximum screen size: 81.3 cm (32"), Minimum VESA mount: 75 x 75 mm, Maximum VESA mount: 100 x 100 mm. Swivel angle range: -10 - 10°, Tilt angle range: -10 - 10°. Product colour: Black |
| Unit Box Height | 0.15 |
| Unit Box Length | 0.9 |
| Unit Box Width | 0.23 |
Mounting
| Clamp mount desk thickness (max) | 85 mm |
| Grommet mount desk thickness (max) | 40 mm |
| Maximum screen size | 32 " |
| Maximum VESA mount | 100 x 100 mm |
| Maximum weight capacity | 8 kg |
| Minimum screen size | 17 " |
| Minimum VESA mount | 75 x 75 mm |
| Mounting | Clamp/Grommet |
| Mounting type | Desk |
| Number of displays supported | 2 |
| Panel mounting interface | 100 x 100/75 x 75 mm |
| Suitable for TV | Yes |
Ergonomics
| Angle of rotation | 80 ° |
| Cable management | Yes |
| Swivel angle range | -10 - 10 ° |
| Swivelling | Yes |
| Tilt adjustment | Yes |
| Tilt angle range | -10 - 10 ° |
| Turn angle | 180 ° |
Design
| Housing material | Aluminium/Plastic/Steel |
| Product colour | Black |
Weight & dimensions
| Depth | 832 mm |
| Height | 760 mm |
| Weight | 7120 g |
| Width | 725 mm |
Packaging data
| Package depth | 895 mm |
| Package height | 150 mm |
| Package type | Box |
| Package weight | 9390 g |
| Package width | 225 mm |
Packaging content
| Manual | Yes |
Other features
| Compliance certificates | RoHS |
