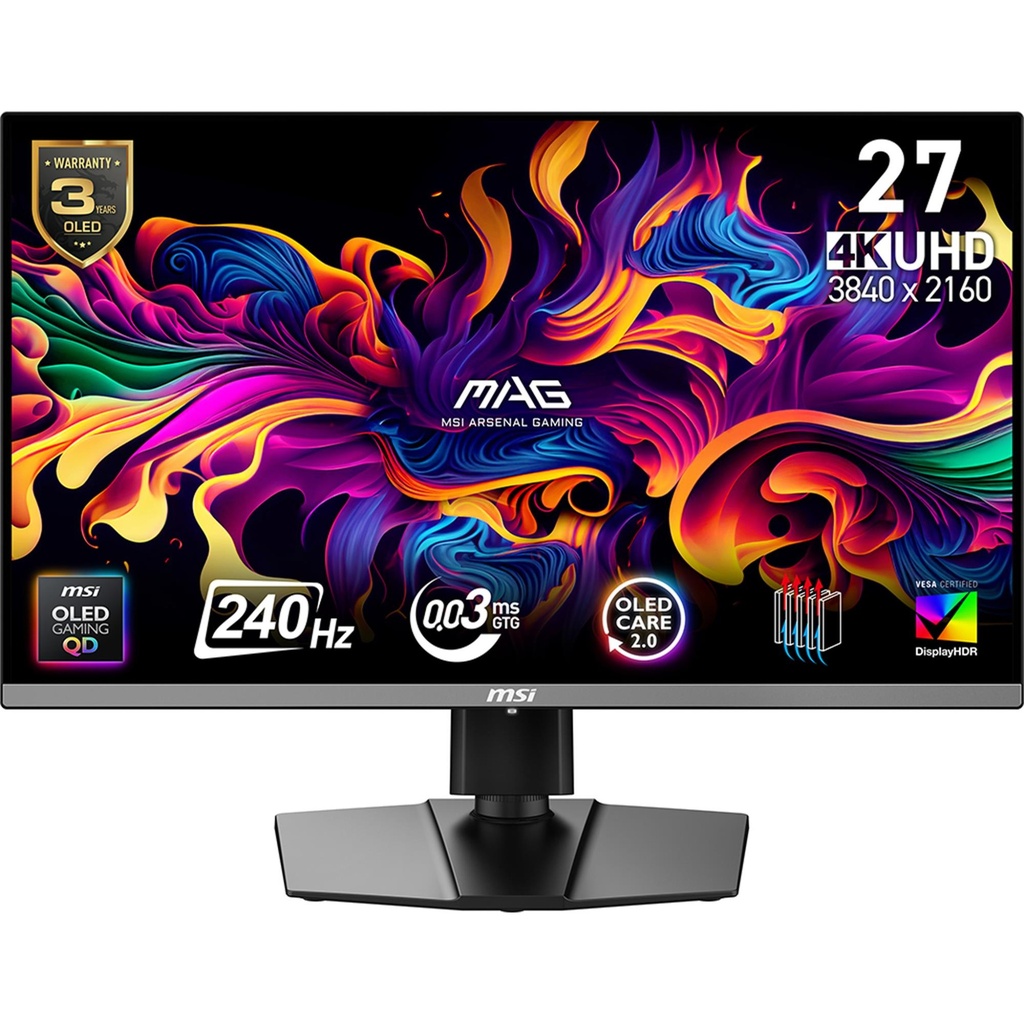

Visualize your victory with the MAG 272UP QD-OLED X24 gaming monitor. It boasts a 3840 x 2160 (UHD) next-gen QD-OLED panel, 240Hz refresh rate, and rapid 0.03ms (GtG) response time. VESA certification for ClearMR 13000 and DisplayHDR True Black 400 ensures exceptionally vivid images and mitigates motion blur. OLED Care 2.0 reduces OLED burn-in risks. For console gamers, the MAG 272UP QD-OLED X24 provide HDMI 2.1 ports with 48Gbps bandwidth, 120Hz support, VRR, and ALLM.
MSI's mainstream MAG series epitomizes stability and durability and is built to withstand the most intense gaming sessions. The entire lineup features robust construction with metallic-like hardness and excellent heat dissipation, ensuring stability for all critical gaming components.
Confidence Guaranteed
MSI OLED monitors are designed for long-lasting, breathtaking visuals. The custom heatsink design and advanced graphene film improve heat dissipation, while dedicated software to reduce the chances of burn-in over time.
- 4th-gen QD-OLED Panel – With stunning image quality and fast response time
- Fastest 0.03ms GtG response time and 240Hz refresh rate
- QD Premium Color – Ensures the color meets the market standard – Delta E≤2
- Incredible HDR visual – VESA DisplayHDR True Black 400
- MSI OLED Care 2.0 – Reduced the risk of OLED image sticking / burn-in
- 3-Year Burn-In Warranty – Including coverage for OLED burn in
General
| Unit Calculated Weight | 11.4 kg |
| Product Net Weight | 8 kg |
| Unit Calculated Volume | 0.07179 cubm |
| Units per Pallet | 0 |
| Included Accessories | 1x DisplayPort Cable (1.4a), 1x HDMI™ (2.1), 1x Power Cord (C13), 1x Quick Guide, 4x VESA Wall Mount Screw, 1x Fiber Cloth |
| Summary | MSI MAG 272UP QD-OLED X24. Display diagonal: 67.3 cm (26.5"), Display resolution: 3840 x 2160 pixels, HD type: 4K Ultra HD, Display technology: QD-OLED, Response time: 0.03 ms, Native aspect ratio: 16:9, Viewing angle, horizontal: 178°, Viewing angle, vertical: 178°. VESA mounting, Height adjustment. Product colour: Black |
| Unit Box Height | 0.515 |
| Unit Box Length | 0.82 |
| Unit Box Width | 0.17 |
| Model name | MAG 272UP QD-OLED X24 |
| Model | MAG 272UP QD-OLED X24 |
Display
| Adobe RGB coverage | 98 % |
| Anti-glare screen | Yes |
| Colour depth | 8 bit |
| Colour gamut | 99 % |
| Colour gamut standard | DCI-P3 |
| Contrast ratio (typical) | 1500000:1 |
| DCI-P3 coverage | 99 % |
| Display brightness (peak) | 450 cd/m² |
| Display brightness (typical) | 250 cd/m² |
| Display diagonal | 26.5 " |
| Display number of colours | 1.07 billion colours |
| Display resolution | 3840 x 2160 pixels |
| Display technology | QD-OLED |
| HD type | 4K Ultra HD |
| Horizontal scan range | 31.2 - 565.42 kHz |
| Maximum refresh rate | 240 Hz |
| Native aspect ratio | 16:9 |
| Panel type | OLED |
| Pixel pitch | 0.2292 x 0.2292 mm |
| Response time | 0.03 ms |
| Response time measurement type | GTG (Gray to Gray) |
| Screen shape | Flat |
| sRGB coverage (typical) | 138 % |
| Touchscreen | No |
| Vertical scan range | 48 - 240 Hz |
| Viewable size, horizontal | 589.97 mm |
| Viewable size, vertical | 332.93 mm |
| Viewing angle, horizontal | 178 ° |
| Viewing angle, vertical | 178 ° |
Performance
| AMD FreeSync | No |
| NVIDIA G-SYNC | No |
| VESA Adaptive Sync support | Yes |
Multimedia
| Built-in camera | No |
| Built-in speaker(s) | No |
Design
| Frameless design | Yes |
| Market positioning | Gaming |
| Product colour | Black |
Ports & interfaces
| Built-in USB hub | No |
| DC-in jack | Yes |
| DisplayPort version | 1.4a |
| DisplayPorts quantity | 1 |
| HDMI | Yes |
| HDMI ports quantity | 2 |
| HDMI version | 2.1 |
| Headphone out | Yes |
| Headphone outputs | 1 |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery up to | 15 W |
| USB Type-C DisplayPort Alternate Mode | Yes |
| USB Type-C downstream ports quantity | 1 |
Ergonomics
| Adjustable height (max) | 110 mm |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Height adjustment | Yes |
| Panel mounting interface | 100 x 100 mm |

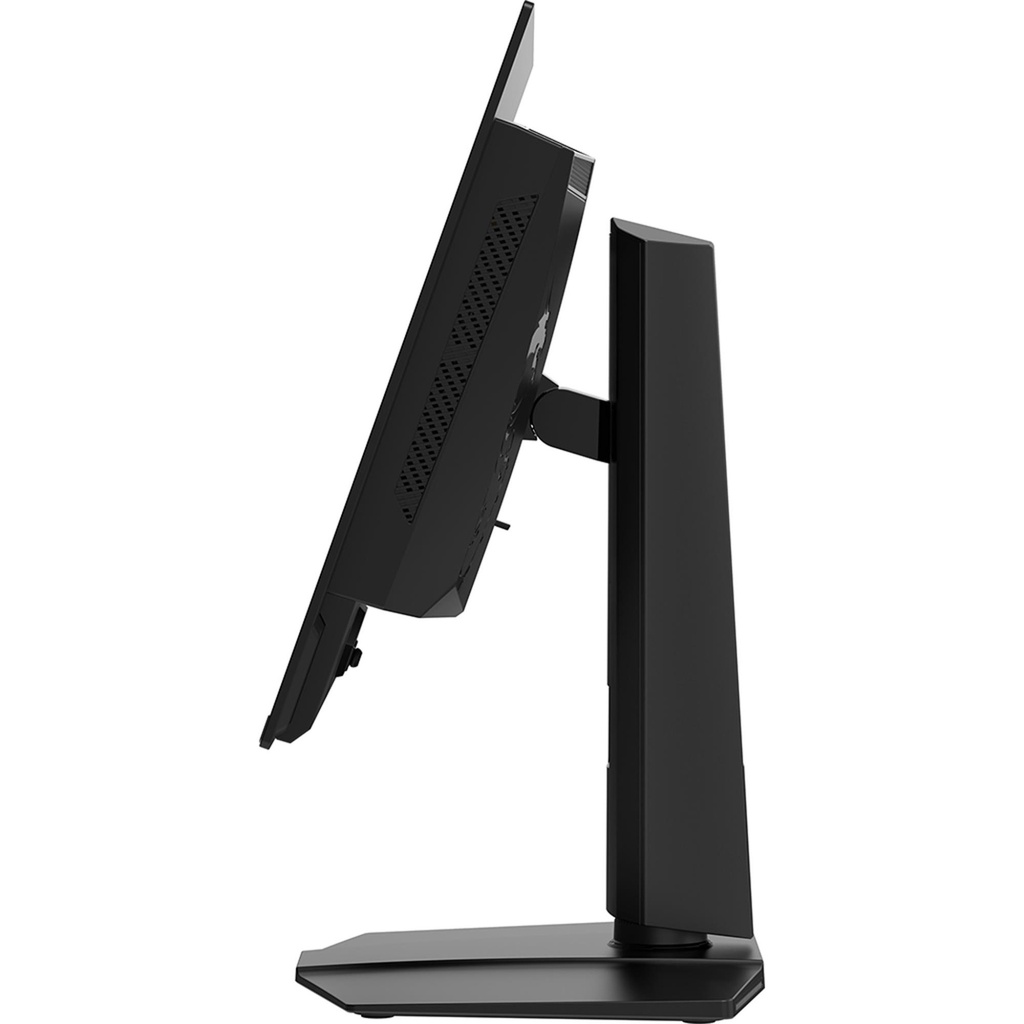

| Pivot | Yes |
| Pivot angle | -90 - 90 ° |
| Swivel angle range | -30 - 30 ° |
| Swivelling | Yes |
| Tilt adjustment | Yes |
| Tilt angle range | -5 - 20 ° |
| VESA mounting | Yes |
Power
| AC input frequency | 50/60 Hz |
| AC input voltage | 100 - 240 V |
| Energy consumption (HDR) per 1000 hours | 31 kWh |
| Energy consumption (SDR) per 1000 hours | 25.4 kWh |
| Energy efficiency class (HDR) | G |
| Energy efficiency class (SDR) | F |
| Energy efficiency scale | A to G |
| Power consumption (off) | 0.3 W |
| Power consumption (standby) | 0.5 W |
| Power supply type | Internal |
Weight & dimensions
| Depth (with stand) | 241.9 mm |
| Depth (without stand) | 69.15 mm |
| Height (with stand) | 532.03 mm |
| Height (without stand) | 532.03 mm |
| Weight (with stand) | 8000 g |
| Width (with stand) | 310.31 mm |
| Width (without stand) | 610.31 mm |
Packaging data
| Package depth | 169 mm |
| Package height | 513 mm |
| Package type | Box |
| Package weight | 11100 g |
| Package width | 820 mm |
Packaging content
| Cables included | DisplayPort/HDMI/Power |
| Quick start guide | Yes |
Other features
| Warranty period | 3 year(s) |
Energy Efficiency
| Data Sheet (Link) | https://eprel.ec.europa.eu/api/product/2259452/fiches?language=EN |
| Energy efficiency class | F |
| EPREL Registration Number | 2259452 |
| EPREL Version Number | 3 |
