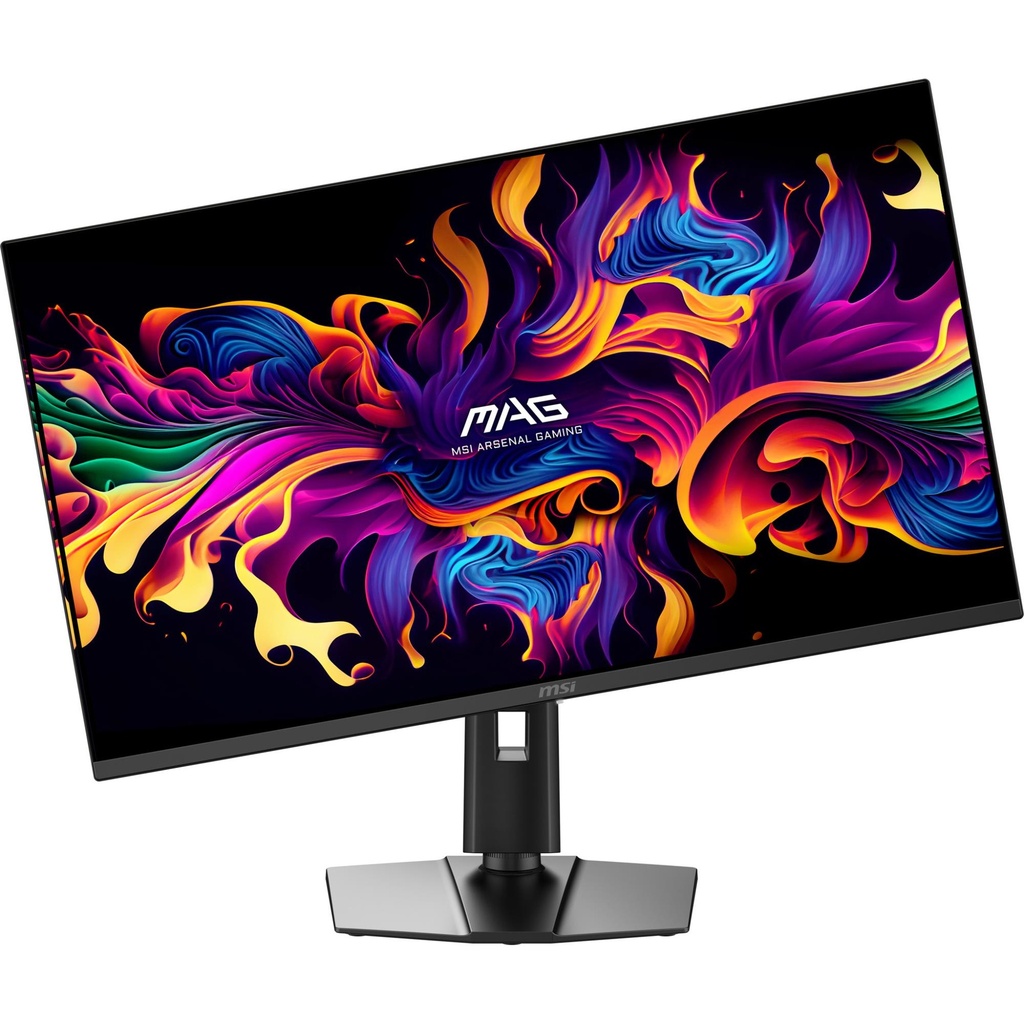

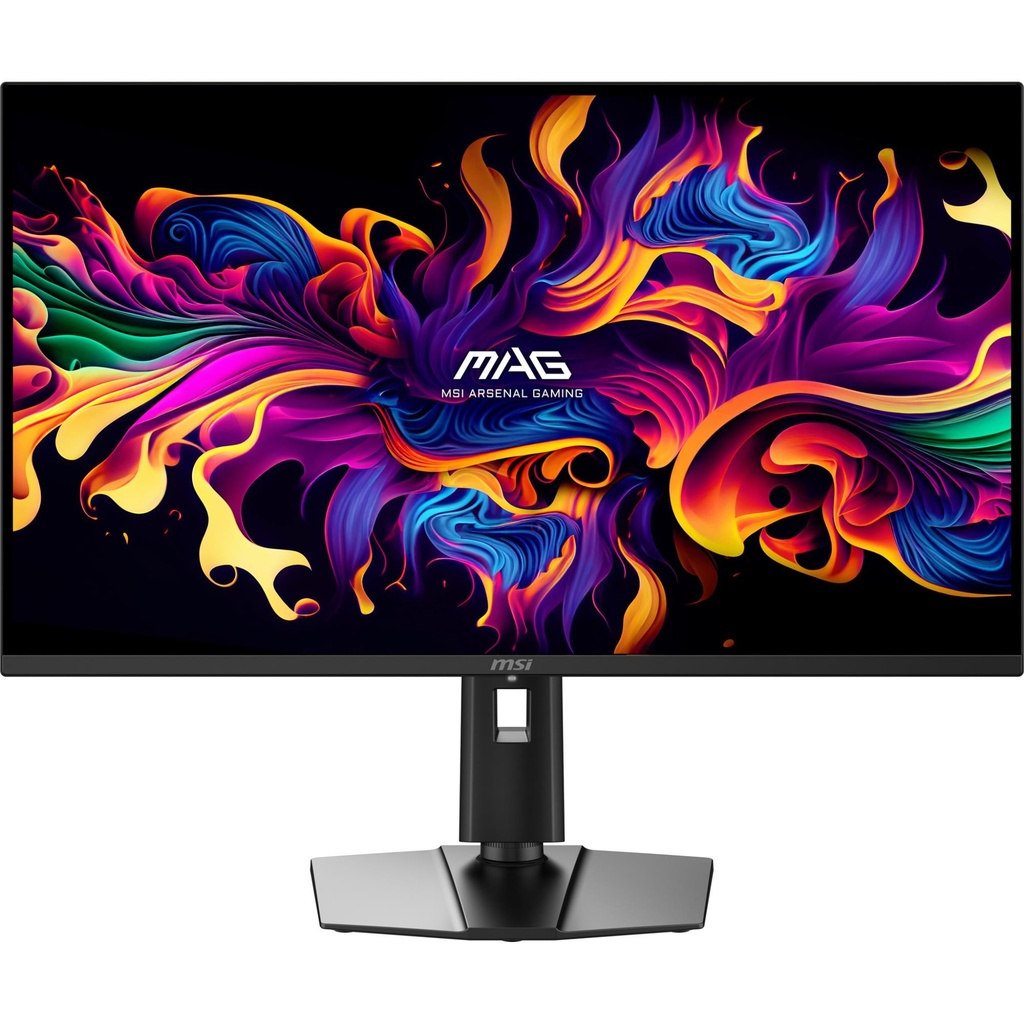

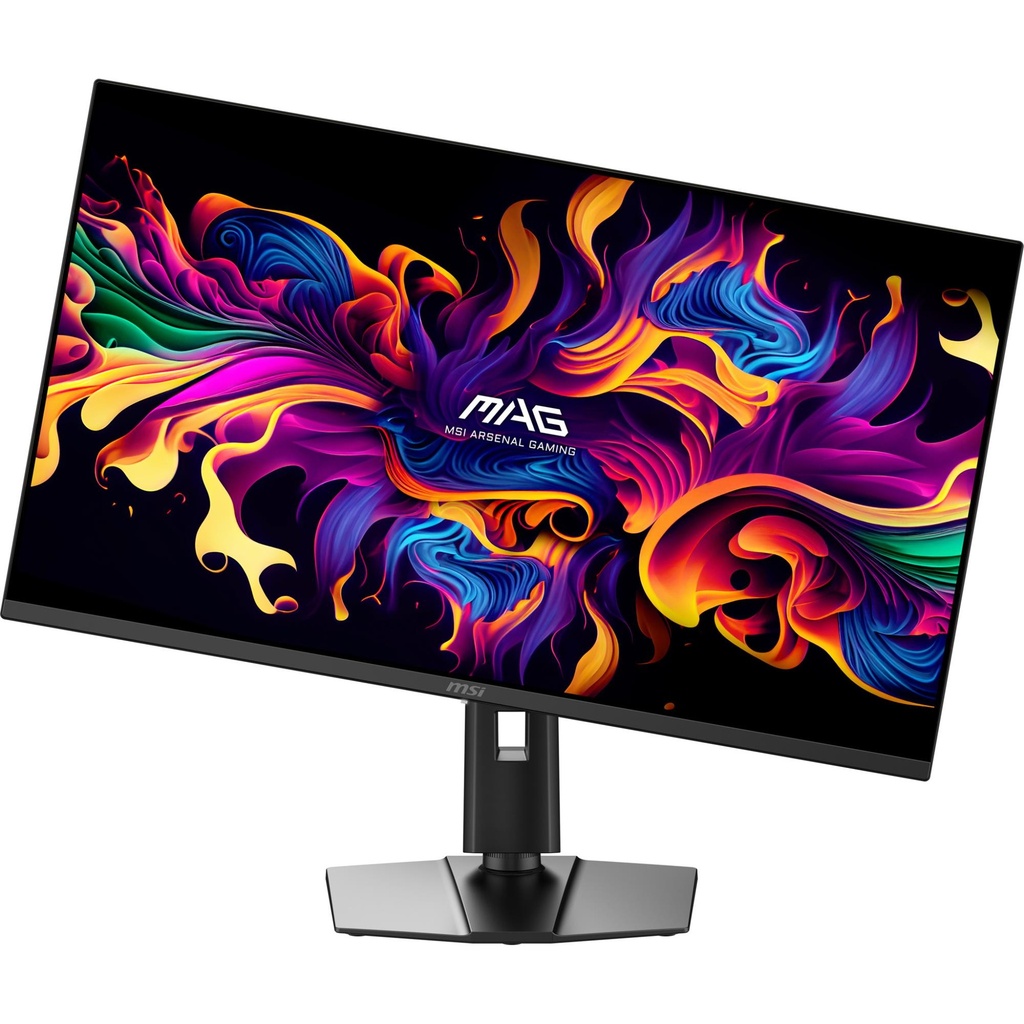

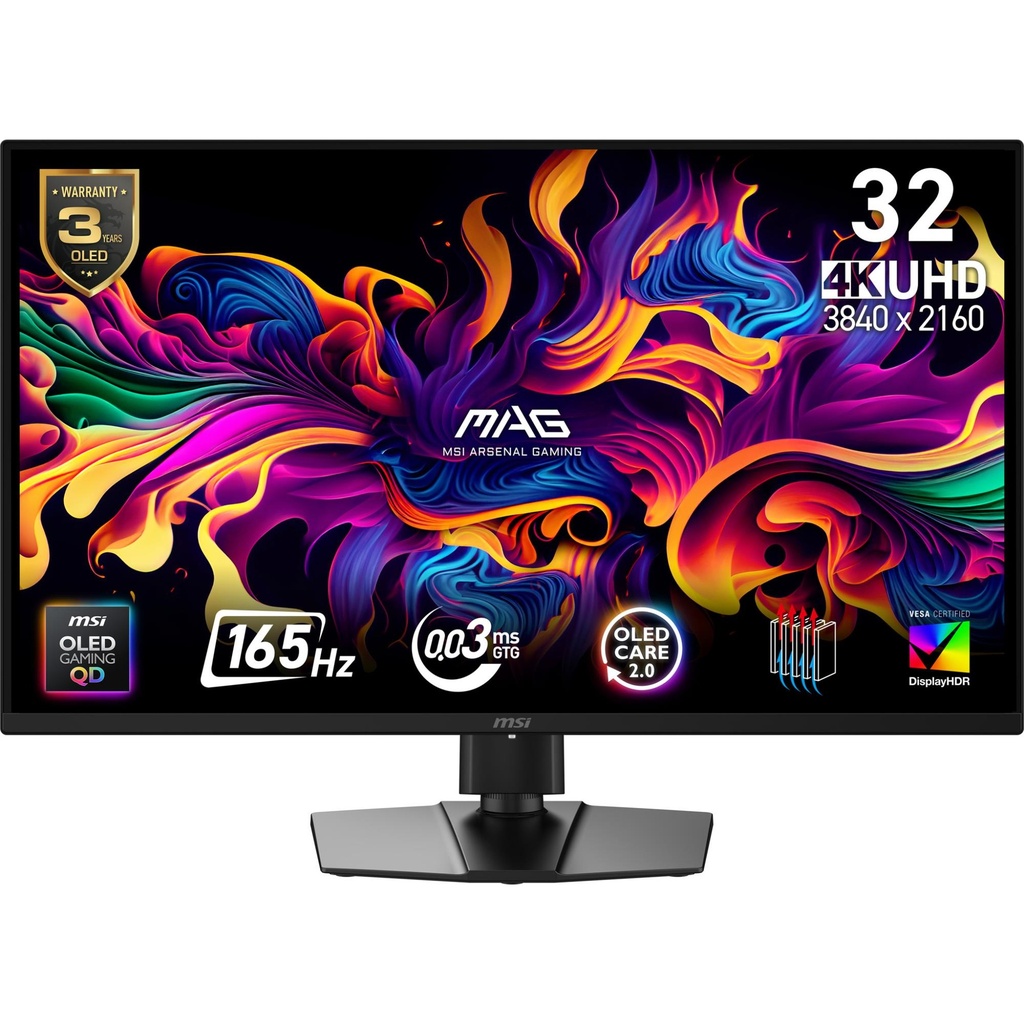

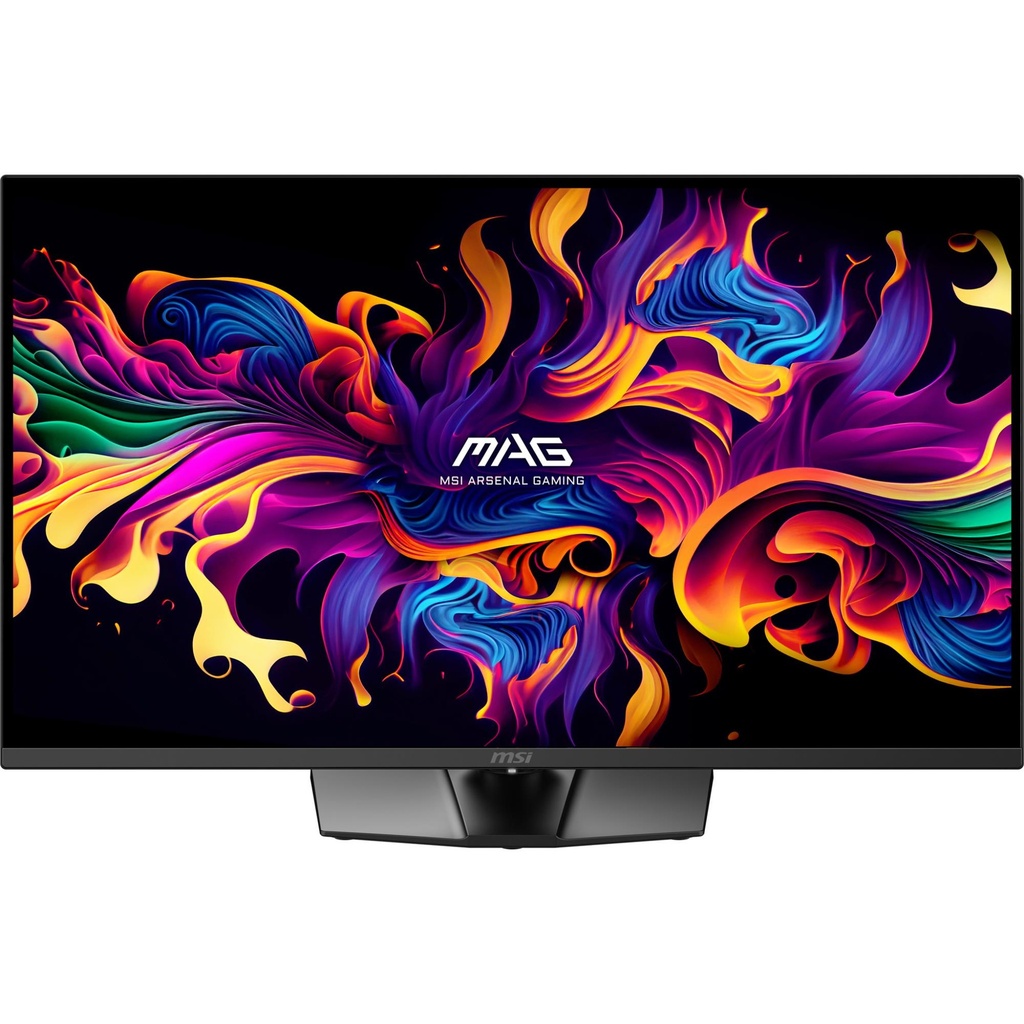

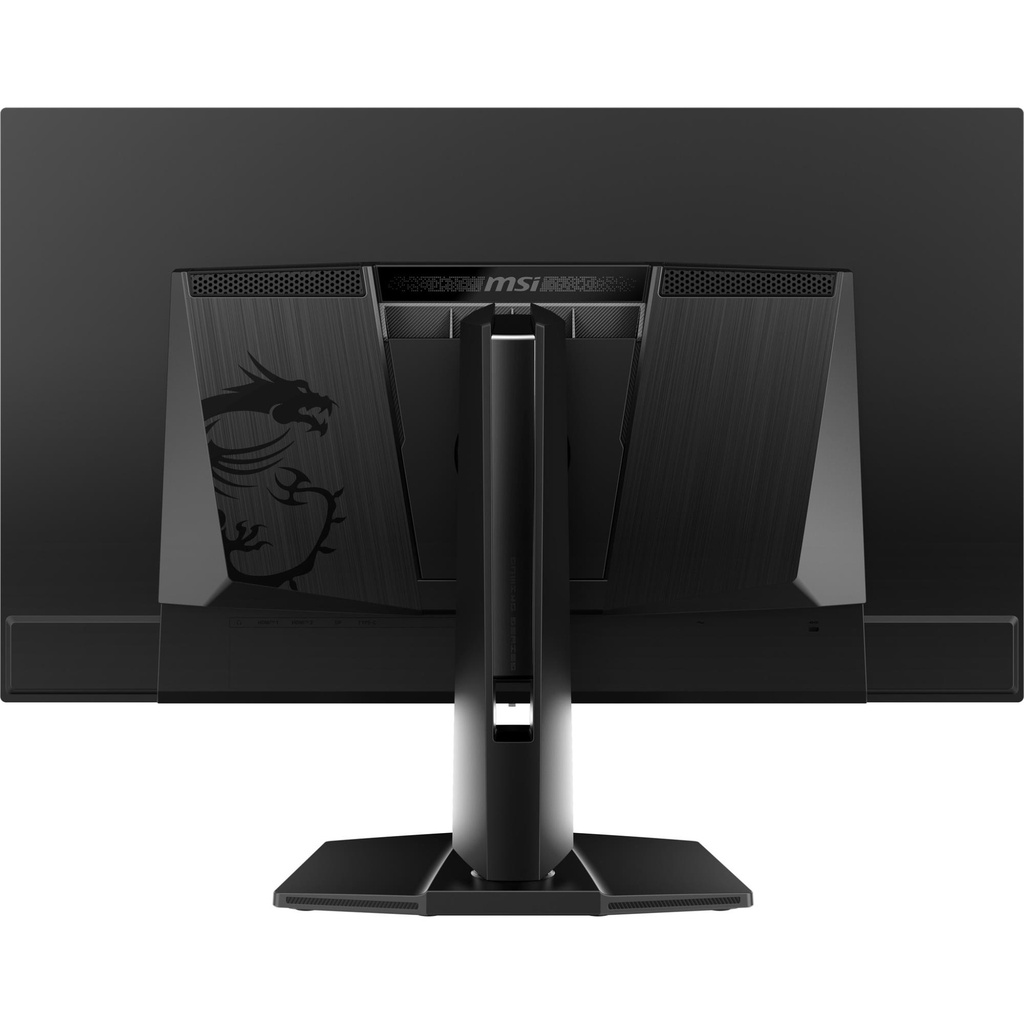

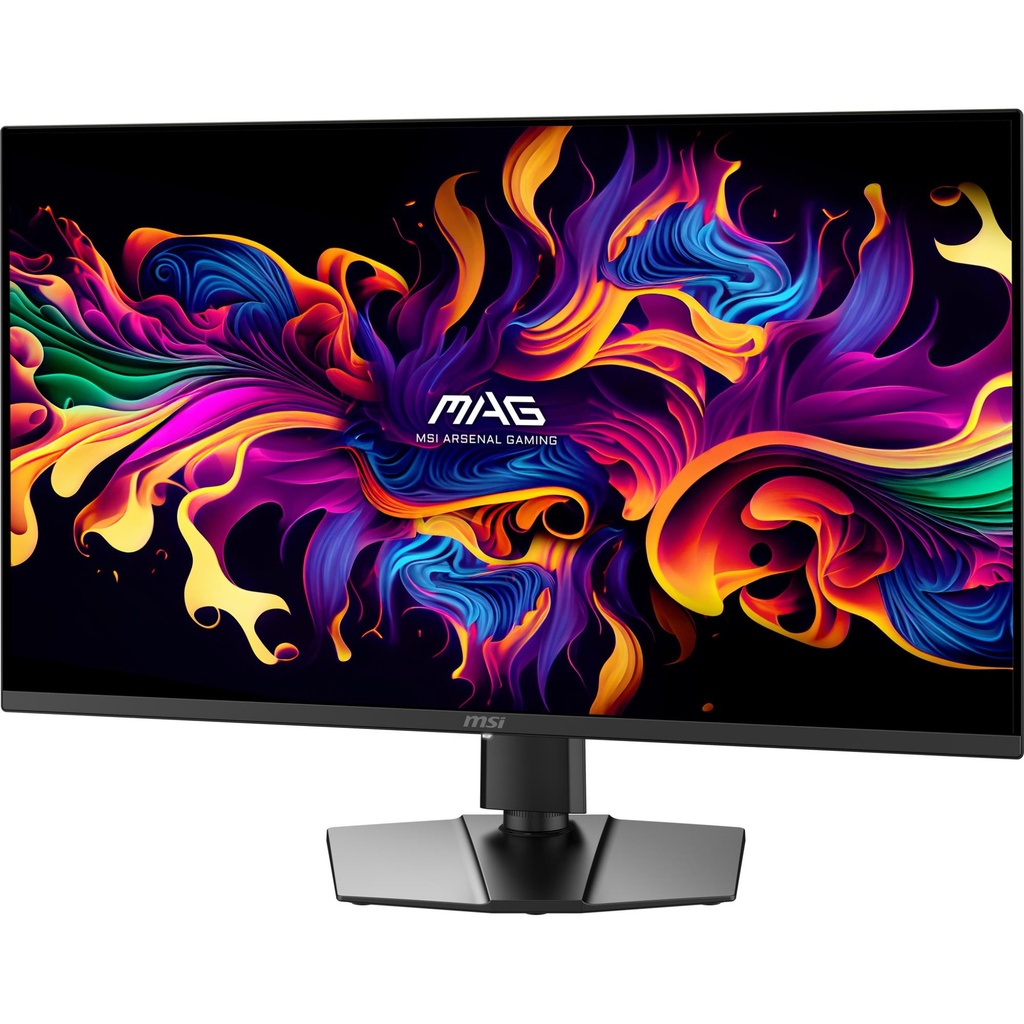

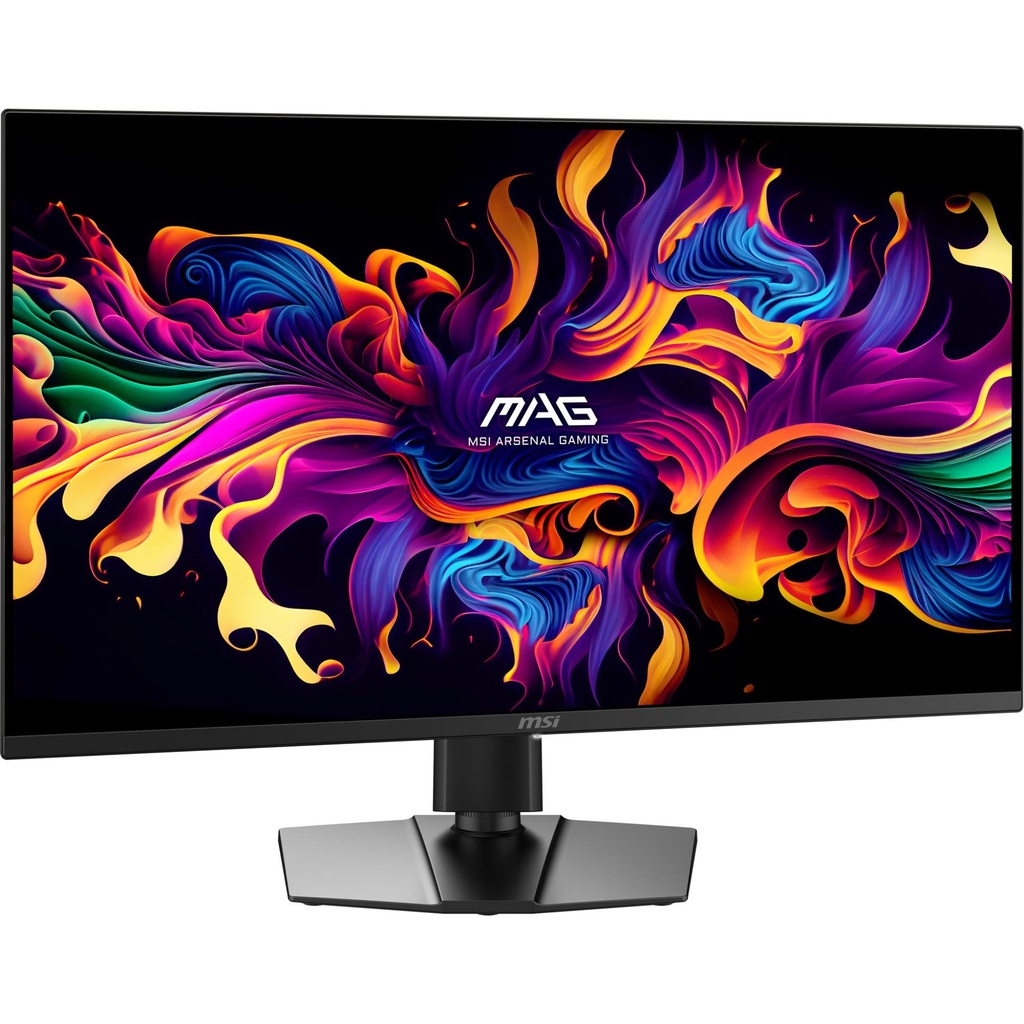

Visualize your victory with the MAG 322UP QD-OLED E16 gaming monitor. It boasts a 3840 x 2160 (UHD) next-gen QD-OLED panel, 165Hz refresh rate, and rapid 0.03ms(GtG) response time. VESA certification for ClearMR 10000 and DisplayHDR True Black 400 ensures exceptionally vivid images and mitigates motion blur. OLED Care 2.0 reduces OLED burn-in risks. For console gamers, the MAG 322UP QD-OLED E16 provide HDMI 2.1 ports with 48Gbps bandwidth, 120Hz support, VRR, and ALLM.
MSI's mainstream MAG series epitomizes stability and durability and is built to withstand the most intense gaming sessions. The entire lineup features robust construction with metallic-like hardness and excellent heat dissipation, ensuring stability for all critical gaming components.
Smarter 24-Hour OLED Refresh
Protection Without Disruption
The panel refresh cycle has been extended from 16 to 24 hours, reducing interruptions during gameplay or work. Users will only see a reminder 30 minutes before the refresh, ensuring minimal disruption. The refresh still activates automatically when the monitor enters standby or powers off, maintaining full OLED protection without compromising your experience.
Confidence Guaranteed
MSI OLED monitors are designed for long-lasting, breathtaking visuals. The custom heatsink design and advanced graphene film improve heat dissipation, while dedicated software to reduce the chances of burn-in over time.
- 3rd Gen QD-OLED Panel – With stunning image quality and fast response time.
- Fastest 0.03ms GtG response time and 165Hz refresh rate.
- QD Premium Color – Ensures the color meets the market standard – Delta E≤2.
- Incredible HDR visual – VESA DisplayHDR True Black 400.
- MSI OLED Care 2.0 – Reduced the risk of OLED image sticking / burn-in.
General
| Unit Calculated Weight | 12.3 kg |
| Unit Calculated Volume | 0.08782 cubm |
| Units per Pallet | 0 |
| Summary | MSI MAG 322UP QD-OLED E16. Display diagonal: 80 cm (31.5"), Display resolution: 3840 x 2160 pixels, HD type: 4K Ultra HD, Display technology: QD-OLED, Display surface: Matt, Response time: 0.03 ms, Native aspect ratio: 16:9, Viewing angle, horizontal: 178°, Viewing angle, vertical: 178°. VESA mounting, Height adjustment. Product colour: Black |
| Unit Box Height | 0.505 |
| Unit Box Length | 0.94 |
| Unit Box Width | 0.185 |
| Model name | MAG 322UP QD-OLED E16 |
Display
| 3D | No |
| Adobe RGB coverage | 98 % |
| Aspect ratio | 16:9 |
| Colour depth | 10 bit |
| Colour gamut | 99 % |
| Colour gamut standard | DCI-P3 |
| Contrast ratio (typical) | 1500000:1 |
| DCI-P3 coverage | 99 % |
| Display brightness (peak) | 450 cd/m² |
| Display brightness (typical) | 250 cd/m² |
| Display diagonal | 31.5 " |
| Display number of colours | 1.07 billion colours |
| Display resolution | 3840 x 2160 pixels |
| Display surface | Matt |
| Display technology | QD-OLED |
| HD type | 4K Ultra HD |
| High Dynamic Range (HDR) supported | Yes |
| High Dynamic Range (HDR) technology | DisplayHDR 400 True Black |
| Horizontal scan range | 30 - 390 kHz |
| Maximum refresh rate | 165 Hz |
| Native aspect ratio | 16:9 |
| Panel type | OLED |
| Pixel pitch | 0.1814 x 0.1814 mm |
| Response time | 0.03 ms |
| Response time measurement type | GTG (Gray to Gray) |
| Screen curvature | 1500 mm |
| Screen shape | Flat |
| sRGB coverage (typical) | 138 % |
| Supported graphics resolutions | 3840 x 2160 |
| Supported video modes | 2160p |
| Touchscreen | No |
| Vertical scan range | 48 - 165 Hz |
| Viewable size, horizontal | 699.48 mm |
| Viewable size, vertical | 394.73 mm |
| Viewing angle, horizontal | 178 ° |
| Viewing angle, vertical | 178 ° |
Performance
| AMD FreeSync | Yes |
| AMD FreeSync type | FreeSync Premium Pro |
| Flicker-free technology | Yes |
| Low Blue Light technology | Yes |
| NVIDIA G-SYNC | No |
| VESA Adaptive Sync support | Yes |
Multimedia
| Built-in camera | No |
| Built-in speaker(s) | No |
Design
| Front bezel colour | Black |
| Market positioning | Gaming |
| Product colour | Black |
Ports & interfaces
| Audio output | Yes |
| Built-in USB hub | No |
| DC-in jack | Yes |
| DisplayPort version | 1.4a |
| DisplayPorts quantity | 1 |
| DVI port | No |
| HDMI | Yes |
| HDMI ports quantity | 2 |
| HDMI version | 2.1 |
| Headphone out | Yes |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery up to | 15 W |
| USB Type-C DisplayPort Alternate Mode | Yes |
Ergonomics
| Adjustable height (max) | 110 mm |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Height adjustment | Yes |
| Panel mounting interface | 100 x 100 mm |
| Pivot | Yes |
| Pivot angle | -10 - 10 ° |
| Plug and Play | Yes |
| Swivel angle range | -30 - 30 ° |
| Swivelling | Yes |
| Tilt adjustment | Yes |
| Tilt angle range | -5 - 15 ° |
| VESA mounting | Yes |
Power
| AC input frequency | 50/60 Hz |
| AC input voltage | 100 - 240 V |
| Energy consumption (HDR) per 1000 hours | 35 kWh |
| Energy consumption (SDR) per 1000 hours | 32 kWh |
| Energy efficiency class (HDR) | G |
| Energy efficiency class (SDR) | F |
| Energy efficiency scale | A to G |
| External power adapter | Yes |
| Power consumption (off) | 0.3 W |
| Power consumption (standby) | 0.5 W |
| Power supply type | Internal |
Weight & dimensions
| Depth (with stand) | 241.9 mm |
| Depth (without stand) | 69.3 mm |
| Height (with stand) | 593.9 mm |
| Height (without stand) | 418.3 mm |
| Weight (with stand) | 7700 g |
| Width (with stand) | 719.1 mm |
| Width (without stand) | 719.1 mm |
Packaging data
| Package depth | 185 mm |
| Package height | 513 mm |
| Package type | Box |
| Package weight | 12300 g |
| Package width | 935 mm |
Packaging content
| Cables included | DisplayPort/Power |
| Quick start guide | Yes |
Other features
| AC adapter included | Yes |
| Brand specific technologies | MSI OLED Care 2.0,QD Premium Color |
| TV tuner integrated | No |
| Warranty period | 3 year(s) |
Energy Efficiency
| Data Sheet (Link) | https://eprel.ec.europa.eu/api/product/2303372/fiches?language=EN |
| Energy efficiency class | F |
| EPREL Registration Number | 2303372 |
| EPREL Version Number | 2 |
