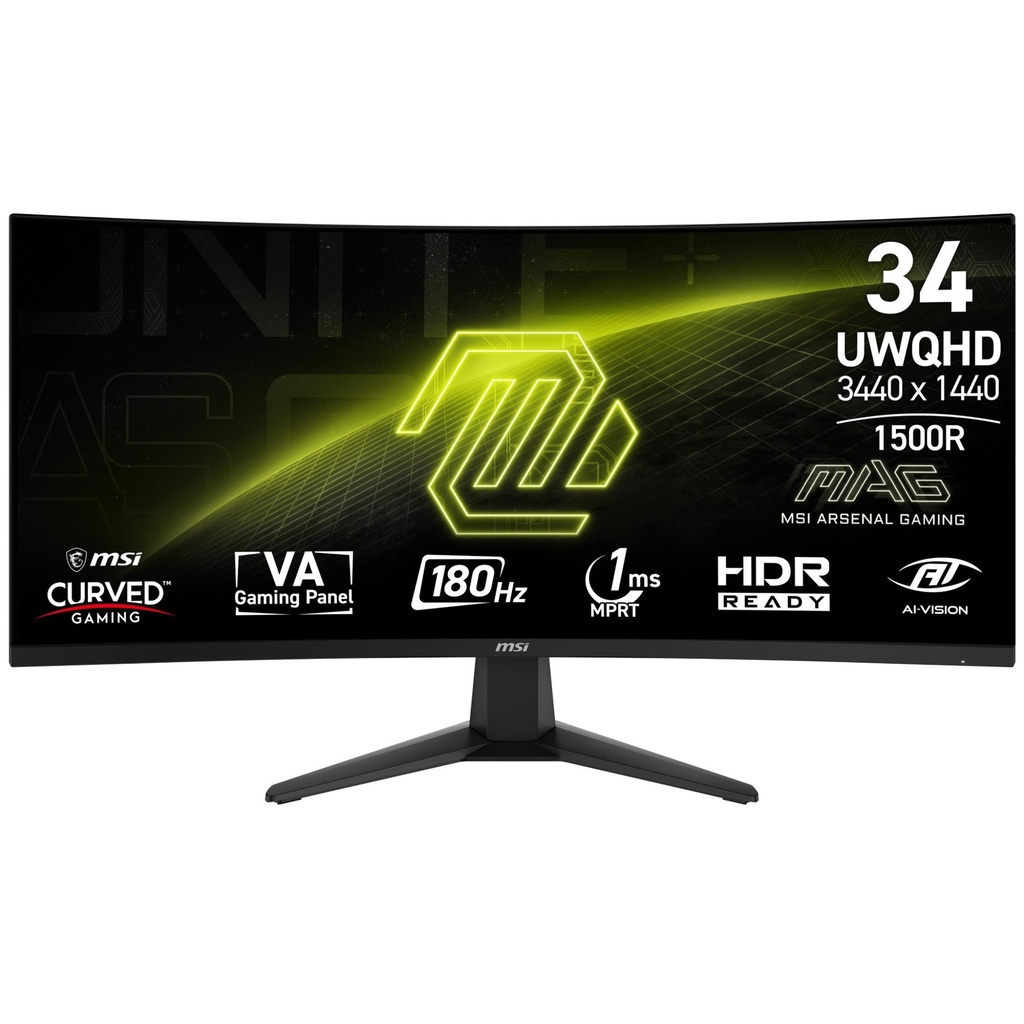

- 86.4cm (34") UltraWide Dual Quad HD 3440 x 1440 VA
- 4ms, 21:9, 300cd/m², 4000:1
- HDMI, DisplayPort
General
| Unit Calculated Weight | 10 kg |
| Product Net Weight | 6.3 kg |
| Unit Calculated Volume | 0.07194 cubm |
| Units per Pallet | 0 |
| Included Accessories | 1x DP Cable (1.4a), 1x Power Cord (C13), 1x Quick Guide. |
| Summary | MSI MAG 346CQ. Display diagonal: 86.4 cm (34"), Display resolution: 3440 x 1440 pixels, HD type: UltraWide Dual Quad HD, Display technology: LCD, Response time: 1 ms, Native aspect ratio: 16:9, Viewing angle, horizontal: 178°, Viewing angle, vertical: 178°. VESA mounting. Product colour: Black |
| Unit Box Height | 0.46 |
| Unit Box Length | 0.92 |
| Unit Box Width | 0.17 |
| Model name | MAG 346CQ |
| Model | MAG 346CQ |
Display
| Anti-glare screen | Yes |
| Aspect ratio | 21:9 |
| Colour gamut | 105 % |
| Colour gamut standard | NTSC |
| Contrast ratio (dynamic) | 100000000:1 |
| Contrast ratio (typical) | 4000:1 |
| Display brightness (typical) | 300 cd/m² |
| Display diagonal | 34 " |
| Display diagonal (metric) | 86.36 cm |
| Display number of colours | 1.07 billion colours |
| Display resolution | 3440 x 1440 pixels |
| Display technology | LCD |
| HD type | UltraWide Dual Quad HD |
| Horizontal scan range | 71.04 - 268.2 kHz |
| Maximum refresh rate | 180 Hz |
| Native aspect ratio | 16:9 |
| Panel type | VA |
| Pixel pitch | 0.23175 x 0.23175 mm |
| Response time | 1 ms |
| Response time (MPRT) | 1 ms |
| Screen curvature rating | 1500R |
| Screen shape | Curved |
| sRGB coverage (typical) | 125 % |
| Supported graphics resolutions | 3440 x 1440 |
| Supported video modes | 1440p |
| Touchscreen | No |
| Vertical scan range | 48 - 180 Hz |
| Viewable size, horizontal | 797.22 mm |
| Viewable size, vertical | 333.72 mm |
| Viewing angle, horizontal | 178 ° |
| Viewing angle, vertical | 178 ° |
Performance
| AMD FreeSync | No |
| NVIDIA G-SYNC | No |
| VESA Adaptive Sync support | Yes |
Multimedia
| Built-in camera | No |
| Built-in speaker(s) | No |
Design
| Feet colour | Black |
| Frameless design | Yes |
| Market positioning | Gaming |
| Product colour | Black |
Ports & interfaces
| Built-in USB hub | No |
| DisplayPort version | 1.4a |
| DisplayPorts quantity | 1 |
| HDMI | Yes |
| HDMI ports quantity | 2 |
| HDMI version | 2.0b |
| Headphone out | Yes |
| Headphone outputs | 1 |
Ergonomics
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Height adjustment | No |
| Panel mounting interface | 100 x 100 mm |
| Pivot | No |
| Swivelling | No |
| Tilt adjustment | Yes |
| Tilt angle range | -5 - 20 ° |
| VESA mounting | Yes |
Power
| AC input frequency | 50/60 Hz |
| AC input voltage | 100 - 240 V |
| Energy consumption (HDR) per 1000 hours | 51 kWh |
| Energy consumption (SDR) per 1000 hours | 31 kWh |
| Energy efficiency class (HDR) | G |
| Energy efficiency class (SDR) | F |
| Energy efficiency scale | A to G |
| Power consumption (off) | 0.3 W |
| Power consumption (standby) | 0.5 W |
| Power supply type | Internal |
Weight & dimensions
| Depth (with stand) | 269.49 mm |
| Depth (without stand) | 111.93 mm |
| Height (with stand) | 458.82 mm |
| Height (without stand) | 363.92 mm |
| Weight (with stand) | 6300 g |
| Weight (without stand) | 5500 g |
| Width (with stand) | 808 mm |
| Width (without stand) | 808 mm |
Packaging data
| Package depth | 190 mm |
| Package height | 501 mm |
| Package type | Box |
| Package weight | 8520 g |
| Package width | 940 mm |
Packaging content
| Cables included | AC/Audio (3.5mm)/DisplayPort/Power |
| Quick start guide | Yes |
| Stand included | Yes |
Other features
| Warranty period | 3 year(s) |
Logistics data
| Harmonized System (HS) code | 85285210 |
Energy Efficiency
| Data Sheet (Link) | https://eprel.ec.europa.eu/api/product/2223008/fiches?language=EN |
| Energy efficiency class | F |
| EPREL Registration Number | 2223008 |
| EPREL Version Number | 3 |
