Featuring ATX 3.1 and PCIe 5.1 support with native 12V-2x6 connectors, these PSUs are built to handle NVIDIA’s 50 series graphics cards and AI PCs with ease. Advanced thermal solutions ensure cool, stable, and efficient operation, even under heavy loads, giving you the reliability and durability you need for gaming, streaming, or AI-powered tasks.
MAG msi arsenal gaming
MSI's mainstream MAG series epitomizes stability and durability and is built to withstand the most intense gaming sessions. The entire lineup features robust construction with metallic-like hardness and excellent heat dissipation, ensuring stability for all critical gaming components.
- Premium protection, GPU Safeguard and Fan Safeguard
- Supports Nvidia® GeForce RTXTM 50 series graphics cards
- Native 12V-2x6 connector
- Dual-color 12V-2x6 cable
- 80 PLUS Platinum certified
- Optimized the sound level
- Main 105oC capacitor
- Embossed Jacket Cables, the cables are more bending and routing
- Industrial level protection with OCP/ OTP/ OPP/ SCP/ OVP/ UVP/ SIP/ NLO
General
| Unit Calculated Weight | 3.3 kg |
| Unit Calculated Volume | 0.011 cubm |
| Units per Shipping Box | 4 |
| Units per Pallet | 0 |
| Model name | MAG A1000PLS PCIE5 |

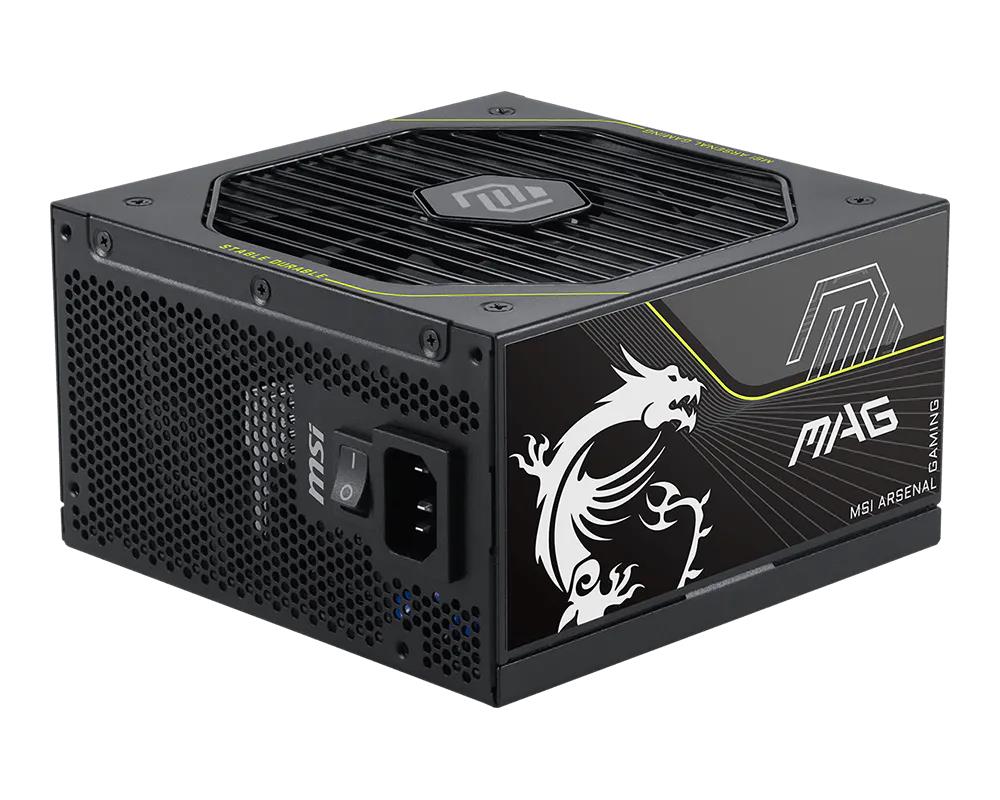

| Summary | MSI MAG A1000PLS PCIE5. Total power: 1000 W, AC input voltage: 100 - 240 V, AC input frequency: 50/60 Hz. Motherboard power connector: 24-pin ATX, Motherboard power cable length: 60 cm, SATA power cable length: 150,500 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Platinum. Product colour: Black, Cooling type: Active, Fan diameter: 13.5 cm. Width: 150 mm, Depth: 150 mm, Height: 86 mm |
| Unit Box Height | 0.13 |
| Unit Box Length | 0.3 |
| Unit Box Width | 0.225 |
Power
| AC input frequency | 50/60 Hz |
| AC input voltage | 100 - 240 V |
| Combined power (+12V) | 999.6 W |
| Combined power (+3.3V) | 100 W |
| Combined power (+5V) | 100 W |
| Combined power (+5Vsb) | 15 W |
| Max output current (+12V) | 83.3 A |
| Max output current (+3.3V) | 20 A |
| Max output current (+5V) | 20 A |
| Max output current (+5Vsb) | 3 A |
| Max output current (-12V) | 0.3 A |
| Number of +12V rail(s) | 1 |
| Power Factor Correction (PFC) type | Active |
| Power protection features | Over current/Over power/Over voltage/Overheating/Short circuit/Under voltage |
| Total power | 1000 W |
Ports & interfaces

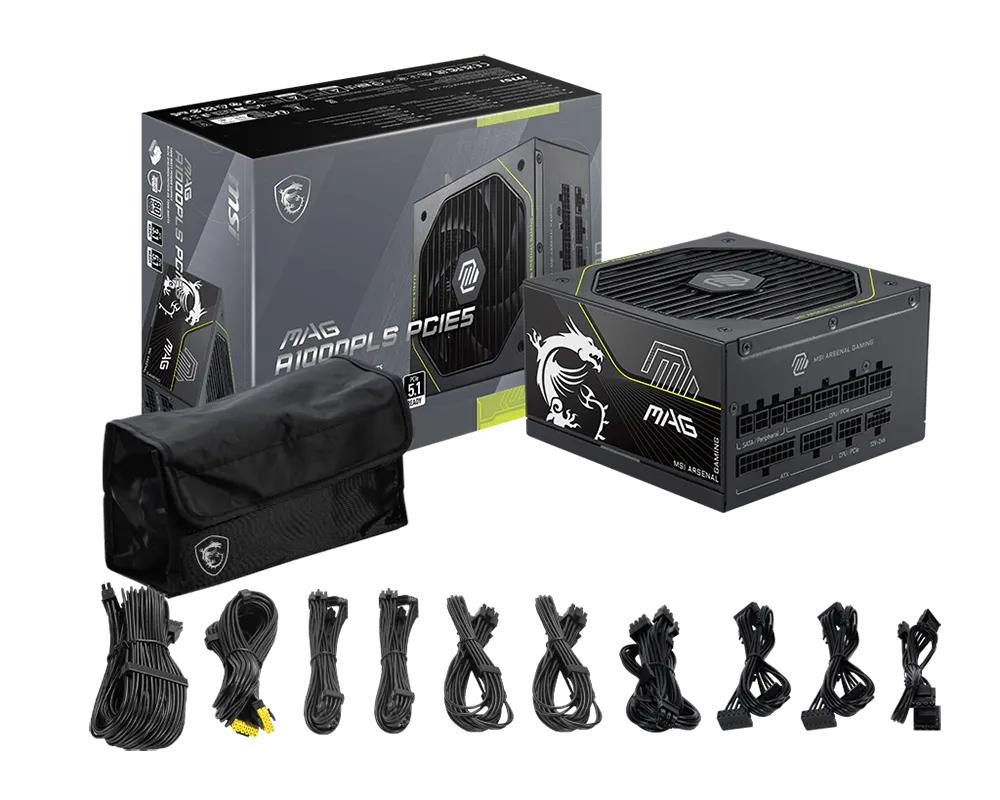

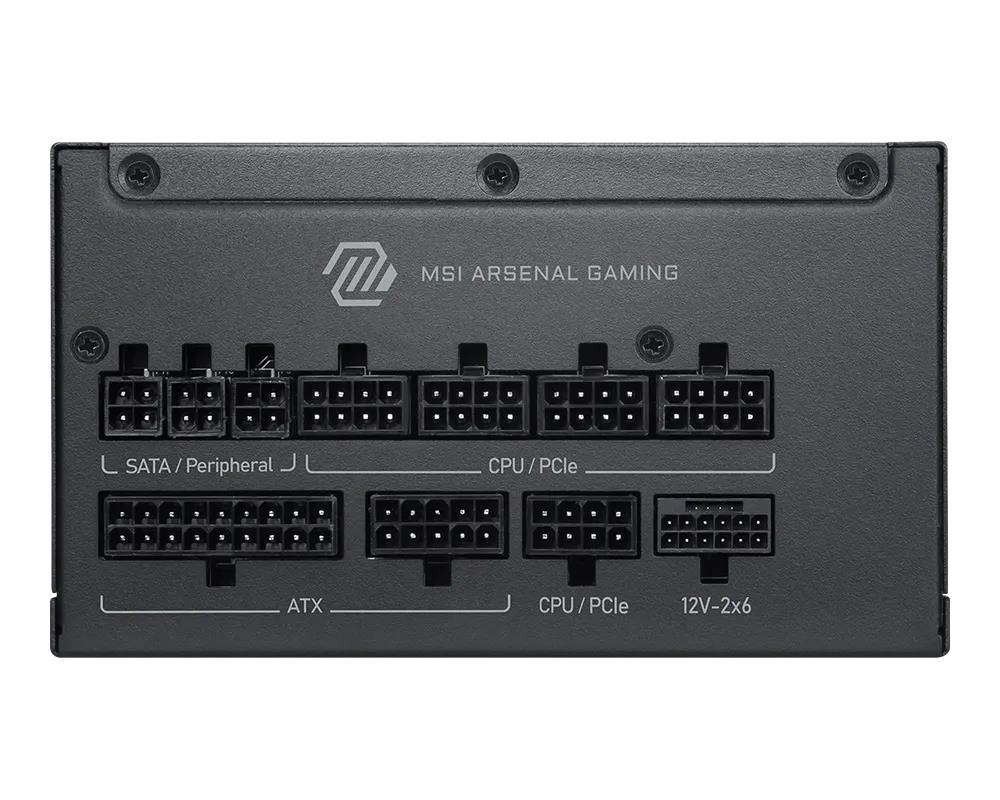

| Cabling type | Fully-Modular |
| EPS power connector (4+4 pin) | Yes |
| EPS power connector (8-pin) | No |
| Motherboard power cable length | 600 mm |
| Motherboard power connector | 24-pin ATX |
| Number of SATA power connectors | 6 |
| PCI Express power connectors (16-pin) | 1 |
| PCI Express power connectors (6+2 pin) | 4 |
| Peripheral (Molex) power cable length | 450/500 mm |
| Peripheral (Molex) power connectors (4-pin) | 1 |
| SATA power cable length | 150/500 mm |
Performance
| 80 PLUS certification | 80 PLUS Platinum |
| ATX version | 3.1 |
| Bearing technology | FDB |
| Power supply unit (PSU) form factor | ATX |
| Purpose | PC |
Design
| Cooling type | Active |

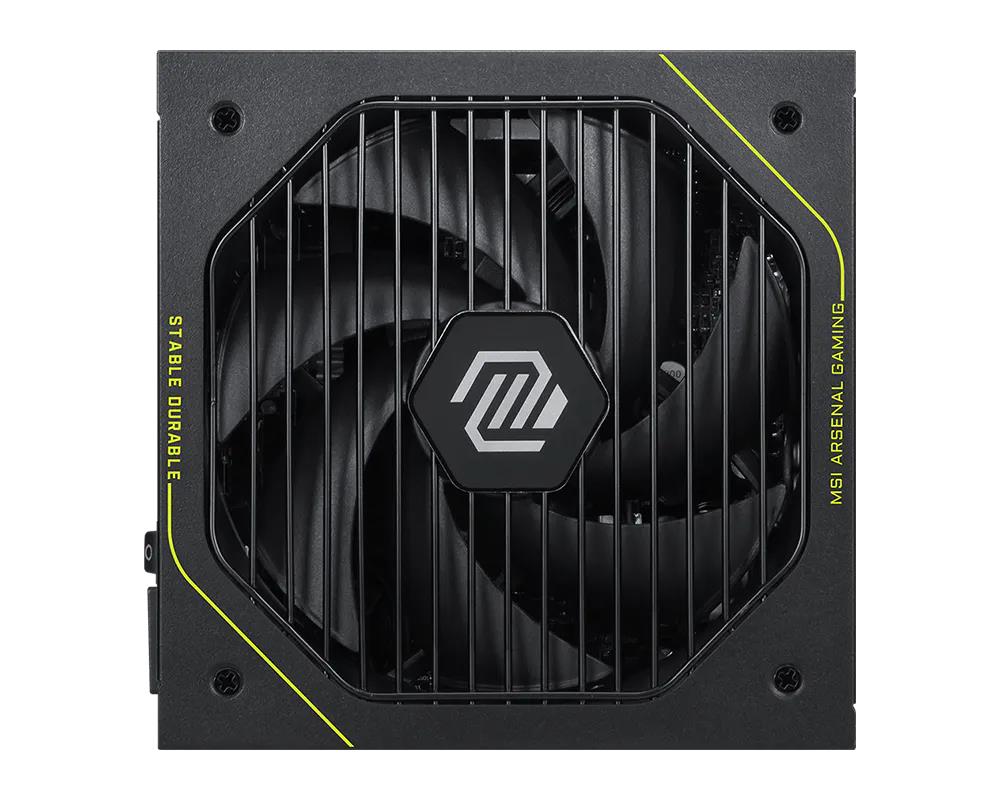

| Fan diameter | 135 mm |
| Illumination | No |
| Number of fans | 1 fan(s) |
| On/off switch | Yes |
| Product colour | Black |
Weight & dimensions
| Depth | 150 mm |
| Height | 86 mm |
| Width | 150 mm |
