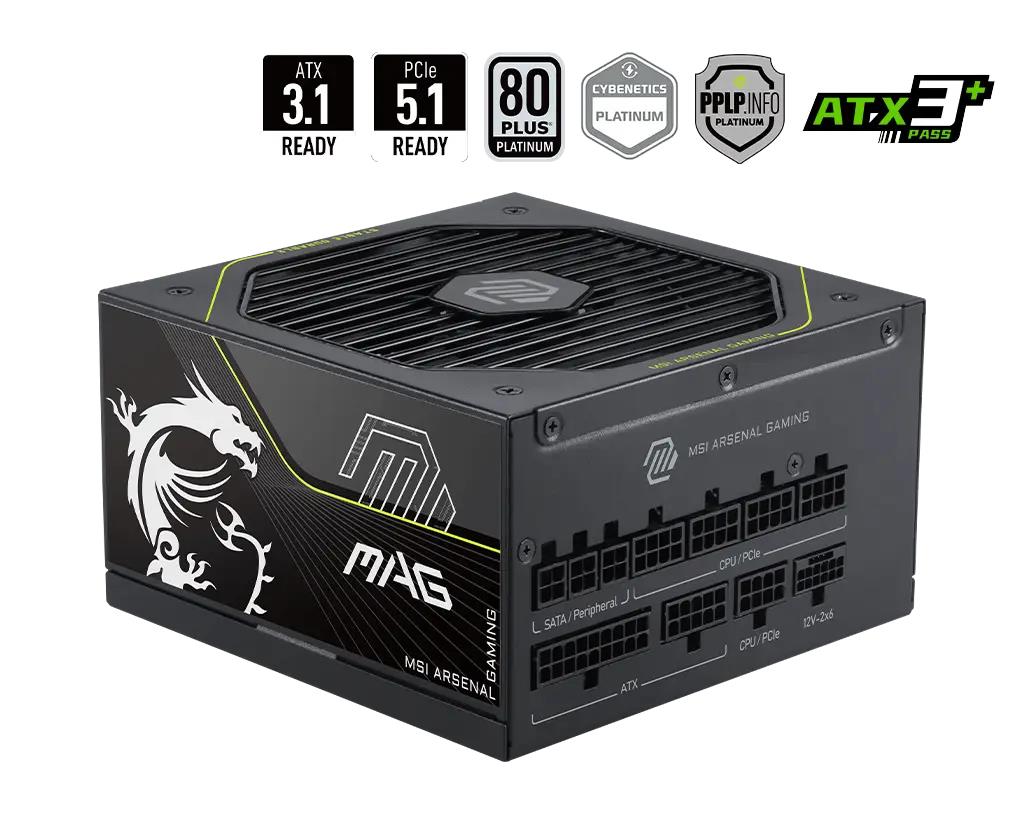

Featuring ATX 3.1 and PCIe 5.1 support with native 12V-2x6 connectors, these PSUs are built to handle NVIDIA’s 50 series graphics cards and AI PCs with ease. Advanced thermal solutions ensure cool, stable, and efficient operation, even under heavy loads, giving you the reliability and durability you need for gaming, streaming, or AI-powered tasks.
MSI's mainstream MAG series epitomizes stability and durability and is built to withstand the most intense gaming sessions. The entire lineup features robust construction with metallic-like hardness and excellent heat dissipation, ensuring stability for all critical gaming components.
OPTIMIZED SOUND LEVEL
This power supply is designed for quiet operation, delivering low noise levels like in the night, ensuring a serene computing experience free from disturbances.
- Premium protection, GPU Safeguard and Fan Safeguard
- Supports Nvidia® GeForce RTXTM 50 series graphics cards
- Native 12V-2x6 connector
- Dual-color 12V-2x6 cable
- 80 PLUS Platinum certified
- Optimized the sound level
- Main 105oC capacitor

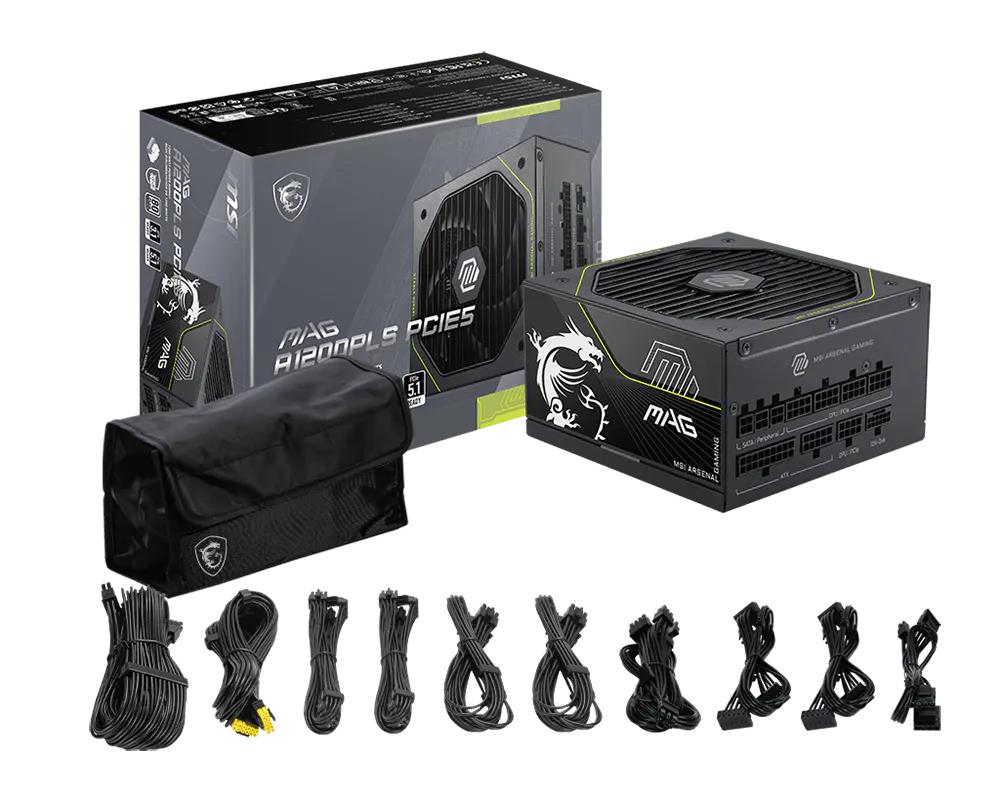

- Embossed Jacket Cables, the cables are more bending and routing
- Industrial level protection with OCP/ OTP/ OPP/ SCP/ OVP/ UVP/ SIP/ NLO
General
| Unit Calculated Weight | 3.55 kg |
| Unit Calculated Volume | 0.01117 cubm |
| Units per Shipping Box | 4 |
| Units per Pallet | 0 |

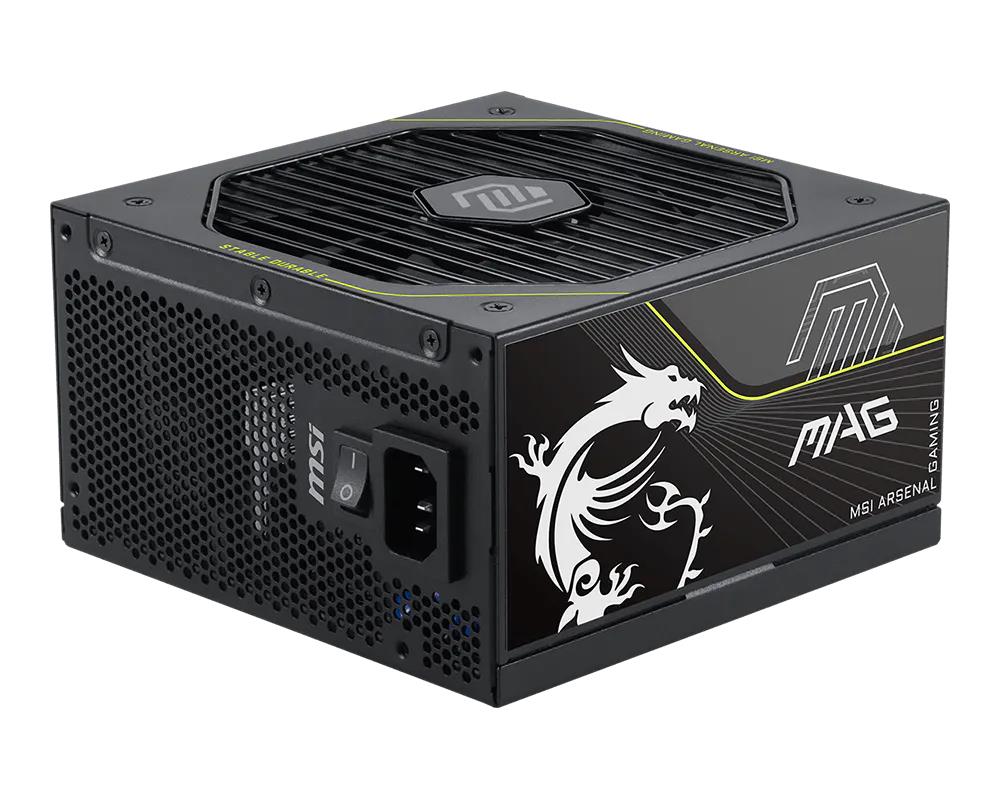

| Model name | MAG A1200PLS PCIE5 |
| Summary | MSI MAG A1200PLS PCIE5. Total power: 1200 W, AC input voltage: 100 - 240 V, AC input frequency: 50/60 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 60 cm, Cabling type: Fully-Modular. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Platinum. Product colour: Black, Cooling type: Active, Fan diameter: 13.5 cm. Width: 150 mm, Depth: 150 mm, Height: 86 mm |
| Unit Box Height | 0.13 |
| Unit Box Length | 0.3 |
| Unit Box Width | 0.23 |
Power
| AC input frequency | 50/60 Hz |
| AC input voltage | 100 - 240 V |
| Combined power (+12V) | 1200 W |
| Combined power (+3.3V) | 100 W |
| Combined power (+5V) | 100 W |
| Combined power (+5Vsb) | 15 W |
| Max output current (+12V) | 100 A |
| Max output current (+3.3V) | 20 A |
| Max output current (+5Vsb) | 3 A |
| Power Factor Correction (PFC) type | Active |
| Total power | 1200 W |
Ports & interfaces

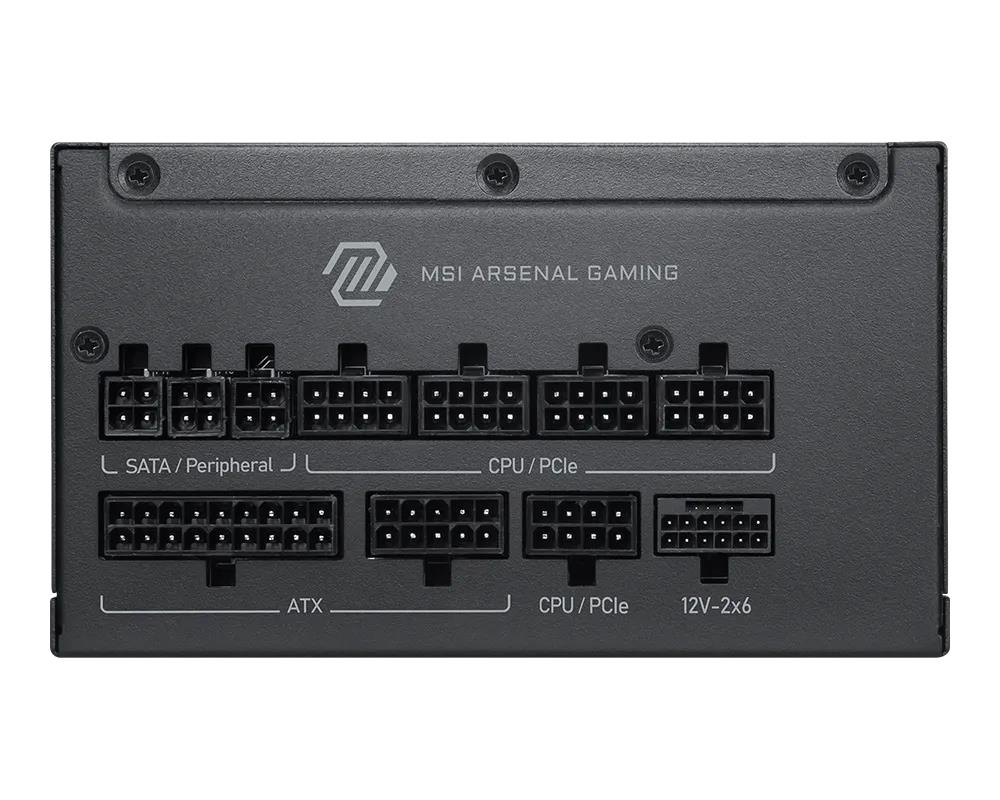

| ATX power connector (20+4 pin) | Yes |
| ATX Power connector (24-pin) | No |
| Cabling type | Fully-Modular |
| CPU power connector (4+4 pin) | Yes |
| EPS power connector (4+4 pin) | Yes |
| Floppy disk drive connector | No |
| Motherboard power cable length | 600 mm |
| Motherboard power connector | 20+4 pin ATX |
| Number of SATA power connectors | 6 |
| PCI Express power connectors (6+2 pin) | 3 |
| Peripheral (Molex) power connectors (4-pin) | 2 |
Performance
| 80 PLUS certification | 80 PLUS Platinum |
| Power supply unit (PSU) form factor | ATX |
| Purpose | PC |
Design
| Cooling type | Active |

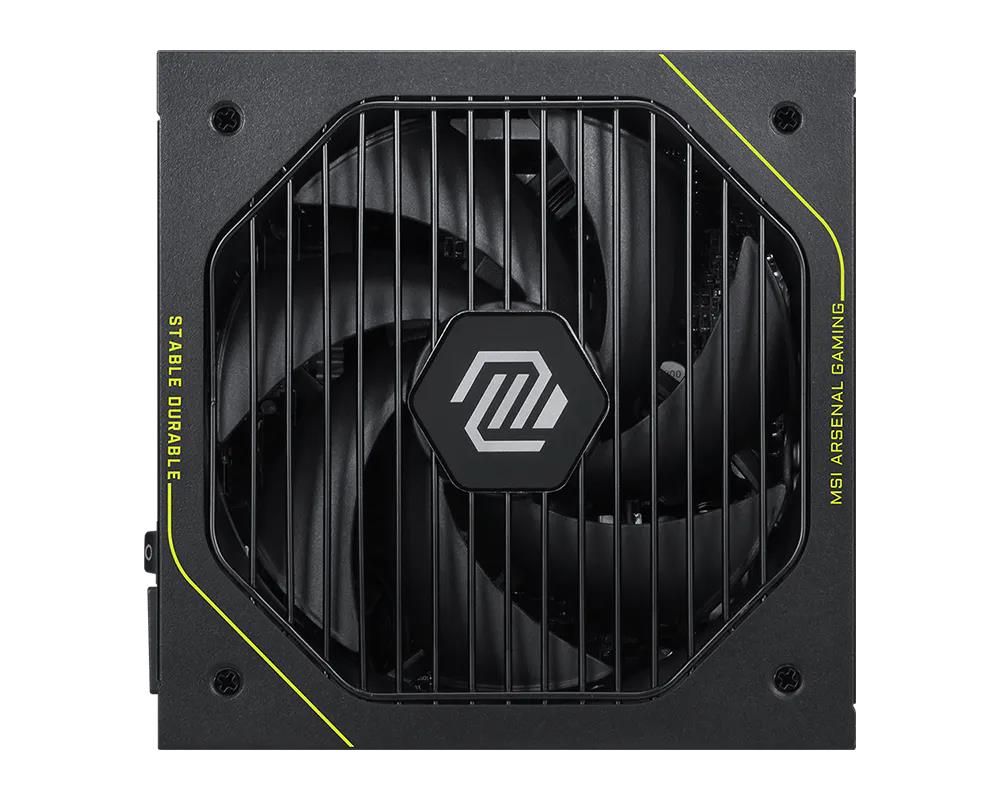

| Fan diameter | 135 mm |
| Illumination | No |
| Number of fans | 1 fan(s) |
| On/off switch | Yes |
| Product colour | Black |
Weight & dimensions
| Depth | 150 mm |
| Height | 86 mm |
| Width | 150 mm |
