The MAG series fights alongside gamers in pursuit of honor.
With added military-inspired elements in these gaming products, they were reborn as the symbol of sturdiness and durability.
MESH CERTIFIED MAKES IT WORK

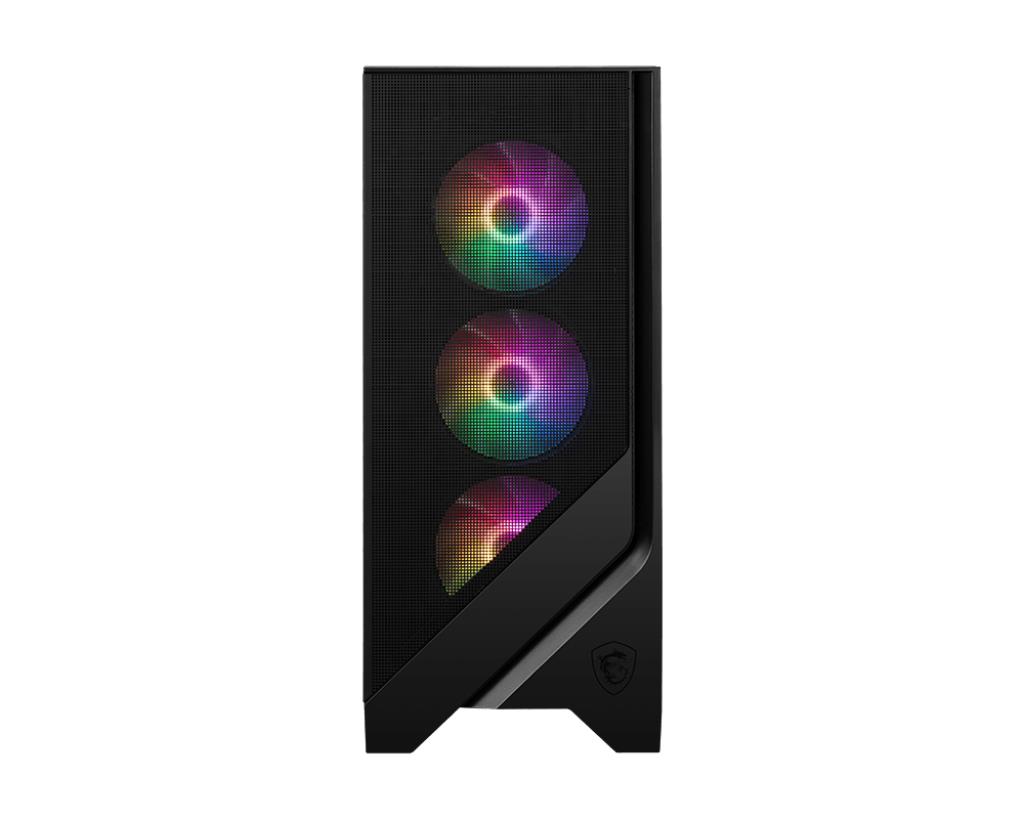

The front mesh panel allows air to flow into the case easily without obstruction, providing the best system cooling performance. The Mid Tower chassis provides small footprint but big perfromance.
- Supports up to 240 mm AIO liquid cooler and latest 40 series GPUs
- Supports up to 8 x system fans configuration, providing ventilation and stable performance to the whole system
- Built-in Auto-RGB fans, providing striking lighting effects

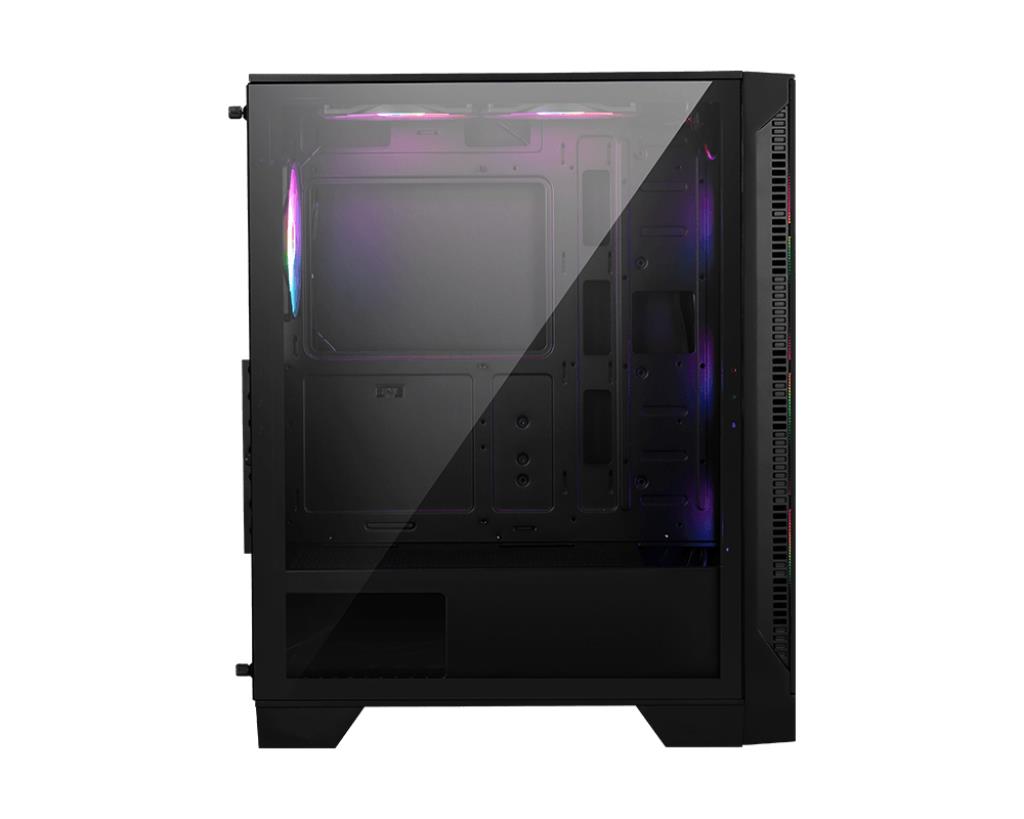

- Tempered Glass Side Panel displays RGB lighting
- The Magnetic Dust Filter on the top vents being easily remove for cleaning
- Lighting On and Off is only one click by the LED On/Off button
General
| Unit Calculated Weight | 7 kg |
| Unit Calculated Volume | 0.0725 cubm |
| Units per Shipping Box | 1 |
| Summary | MSI MAG Forge 120A AIRFLOW. Form factor: Midi Tower, Type: PC, Product colour: Black, Transparent. Power supply location: Bottom. Front fans installed: 3x 120 mm, Front fans diameters supported: 120,140 mm, Rear fans installed: 1x 120 mm. Supported HDD sizes: 2.5,3.5". Width: 210 mm, Depth: 411.6 mm, Height: 498 mm |
| Unit Box Height | 0.48 |
| Unit Box Length | 0.57 |
| Unit Box Width | 0.265 |
| Cooling & Ventilation System | Front: 3 x 120 mm, Top: 2 x 120 mm, Rear: 1 x 120 mm |
| Model name | MAG FORGE 120A AIRFLOW |
Design
| Anti-dust filter | Yes |
| Form factor | Midi Tower |
| Illumination | Yes |
| Illumination colour | Multi |
| Illumination location | Case fans |
| LED indicators | Yes |
| Material | Mesh/Plaster |
| Number of 2.5" bays | 3 |
| Number of 3.5" bays | 2 |
| On/off button | Yes |
| Product colour | Black/Transparent |
| Reset button | Yes |
| Side window | Yes |
| Suitable for | Gaming |
| Supported motherboard form factors | ATX/micro ATX/Mini-ITX |
| Tempered glass panel(s) | Yes |
| Type | PC |
Power supply
| Power supply included | No |
| Power supply location | Bottom |
Ports & interfaces
| Audio input | Yes |
| Audio output | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
Cooling
| Front fans diameters supported | 120/140 mm |
| Front fans installed | 3x 120 mm |
| Front radiator sizes supported | 120/240 mm |
| Number of front fans supported (max) | 3 |
| Number of rear fans supported (max) | 1 |
| Number of top fans supported (max) | 2 |
| Rear fans diameters supported | 120 mm |
| Rear fans installed | 1x 120 mm |
| Rear radiator sizes supported | 120 mm |
| Top fans diameters supported | 120/140 mm |
| Top fans installed | 2x 120 mm |
| Top radiator sizes supported | 120/240 mm |
Storage
| HDD/SSD combo cage | Yes |
| Supported HDD sizes | 2.5/3.5 " |
Weight & dimensions
| Depth | 411.6 mm |
| Height | 498 mm |
| Weight | 6000 g |
| Width | 210 mm |
Packaging data
| Package weight | 6960 g |
