- Complete protection against blackout and power surges (overvoltages and undervoltages)
- Recommended for Personal Computers, DVR / NVR and video surveillance systems, ADSL / fiber modem, switch / router, cash registers
- Not suitable with power supplies with Active PFC circuit (Server, PC game, video game console, workstation, Mac computer), lamps and electric motors
- AVR Automatic Voltage Regulator electronic circuit
- n 2 Italy / Schuko output sockets and n 1 schuko input cable
- outputs socket protected against blackout
- outputs socket protected against overvoltages
- multifunction LED and on-off button
- USB port for UPS control / monitoring and ignition programming / shutdown via Tecnomanager software
- UPS management software TecnoManager compatible with Windows, Mac OS X, Linux etc
General
| Unit Calculated Weight | 4.69 kg |
| Unit Calculated Volume | 0.01229 cubm |
| Units per Shipping Box | 4 |
| Units per Pallet | 0 |

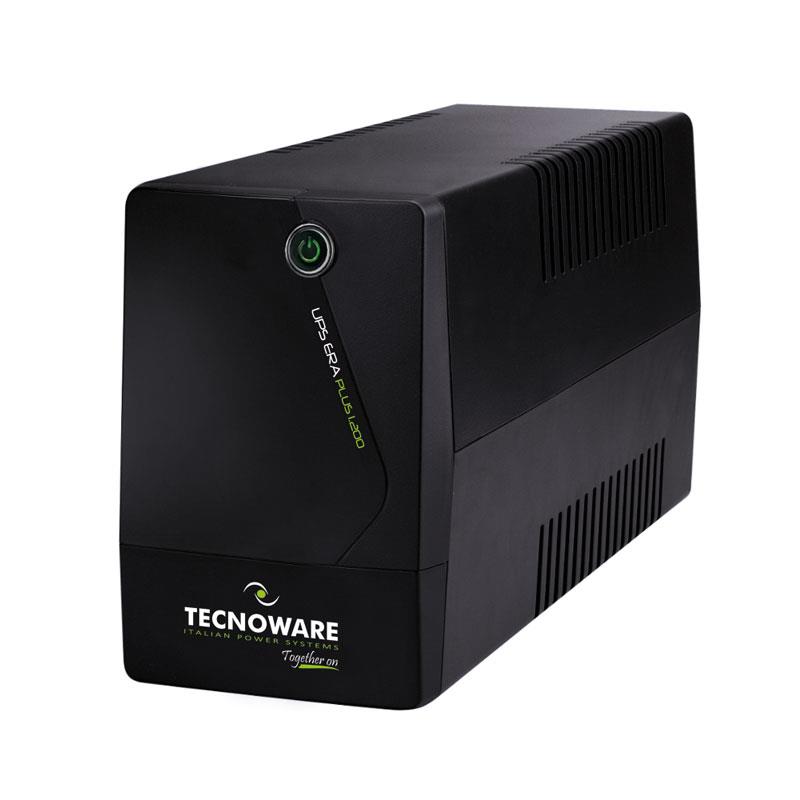

| Summary | Tecnoware FGCERAPL1202SCH. UPS topology: Standby (Offline), Output power capacity: 1.2 kVA, Output power: 840 W. AC outlet types: Type F, AC outlets quantity: 2 AC outlet(s), USB port type: Micro-USB B. Battery technology: Sealed Lead Acid (VRLA), Typical backup time at full load: 10 min, Typical backup time at half load: 40 min. Form factor: Compact, Product colour: Black, International Protection (IP) code: IP20. Width: 101 mm, Depth: 279 mm, Height: 142 mm |
| Unit Box Height | 0.22 |
| Unit Box Length | 0.34 |
| Unit Box Width | 0.185 |
Features
| Input frequency | 50/60 Hz |
| Input operation voltage (max) | 230 V |
| Input operation voltage (min) | 230 V |
| Noise level | 40 dB |
| Number of input phases | 1 |
| Number of output phases | 1 |
| Output frequency | 50/60 Hz |
| Output operation voltage (min) | 230 V |
| Output power | 840 W |
| Output power capacity | 1.2 kVA |
| Power factor | 0.7 |
| UPS topology | Standby (Offline) |
Ports & interfaces
| AC outlet types | Type F |
| AC outlets quantity | 2 AC outlet(s) |
| USB port | Yes |
| USB port type | Micro-USB B |
Battery
| Battery technology | Sealed Lead Acid (VRLA) |
| Typical backup time at full load | 10 min |
| Typical backup time at half load | 40 min |
Design
| Form factor | Compact |
| International Protection (IP) code | IP20 |
| Product colour | Black |
Operational conditions
| Operating temperature (T-T) | 20 - 25 °C |
Weight & dimensions
| Depth | 279 mm |
| Height | 142 mm |
| Weight | 4500 g |
| Width | 101 mm |
Packaging data
| Package depth | 340 mm |
| Package height | 220 mm |
| Package width | 180 mm |
