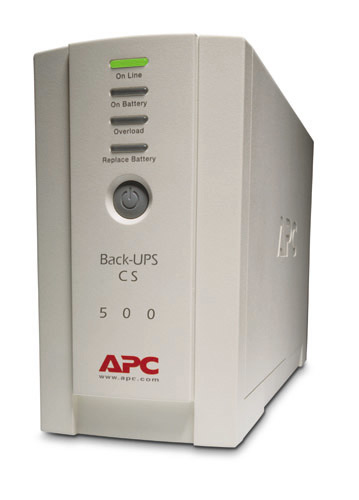

APC Back-UPS CS, 300 Watts / 500 VA,Input 230V / Output 230V, Interface Port DB-9 RS-232, USB
Highlights
| Product Highlights | - Standby (Offline)
- 0.5 kVA 300 W
- Waveform: Sine
- 4 AC outlet(s)
- Sealed Lead Acid (VRLA) 12 V 7 Ah
- Tower Beige
|
Features
| UPS Topology | Standby (Offline) |
| Output Power Capacity | 0.5 kVA |
| Output Power | 300 W |
| Waveform | Sine |
| Input Operation Voltage (min) | 160 V |
| Input Operation Voltage (max) | 300 V |
| Input Frequency | 50/60 Hz |
| Efficiency | 99% |
| Noise Level | 40 dB |
Ports & Interfaces
| AC Outlet Types | C13 coupler |
| Power Plug | C14 coupler |
| AC Outlets Quantity | 4 AC outlet(s) |
| USB Port | Yes |
Battery
| Battery Technology | Sealed Lead Acid (VRLA) |
| Battery Capacity | 7 Ah |
| Battery Voltage | 12 V |
| Typical Backup Time At Half Load | 13.8 min |
Design
| Form Factor | Tower |
| Product Colour | Beige |
Operational Conditions
| Operating Temperature (T-T) | 0 - 40 °C |
| Operating Relative Humidity (H-H) | 0 - 95% |
| Operating Altitude | 0 - 3000 m |
Packaging Content
| Cables Included | Phone (RJ-11), USB cable |
| Quick Installation Guide | Yes |
Weight & Dimensions
| Width | 91 mm |
| Depth | 284 mm |
| Height | 165 mm |
| Weight | 6.32 kg |
Warranty and Other
| Warranty Terms | 24 months |
| Product Condition | Original |
| Manufacturer Datasheet | https://www.tdbaltic.ee/leaflets/APC/BK500EI.pdf |
