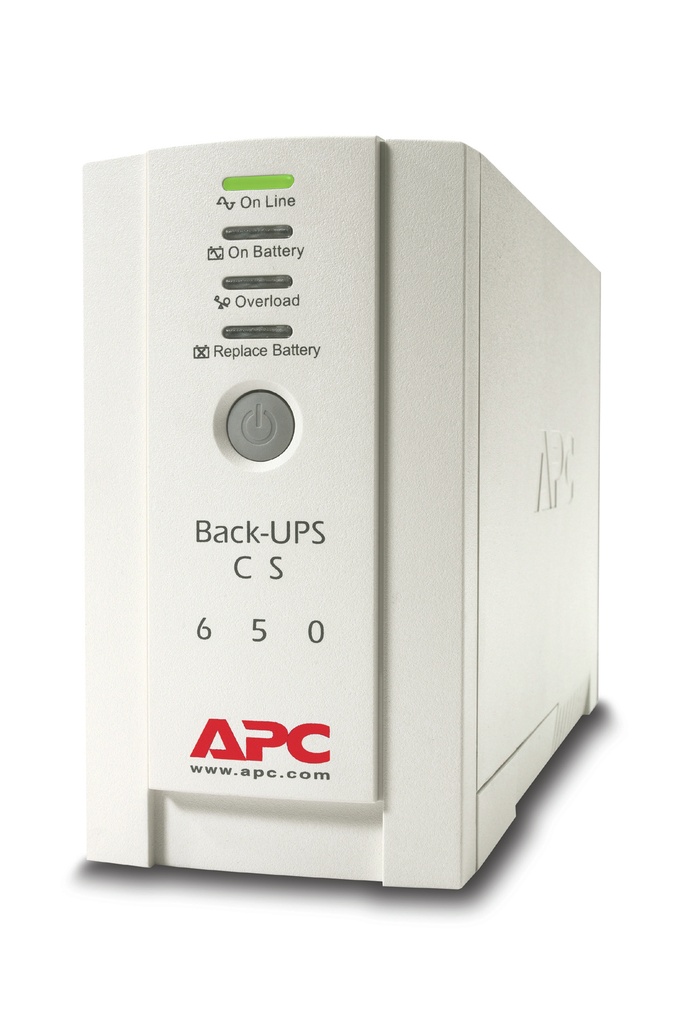

The Back-UPS CS provides professional-grade power protection for office and home office systems. Battery powered & surge protected power outlets, built-in phone/fax/modem line (DSL compatible) protection, safe system shutdown software with sophisticated power management features and pro-active audio-visual status indicators ensure office systems and their valuable data are protected from dangerous power surges, spikes and blackouts. Serial or USB connectivity gives users more flexibility making installation quicker and easier. Easy access to a hot-swappable, user-replaceable battery also makes servicing the Back-UPS CS hassle-free. These features along with its classic styling make the Back-UPS CS a perfect choice for protecting your important office and home office systems.
Highlights
| Product Highlights | - Standby (Offline)
- 0.65 kVA 400 W
- Waveform: Sine
- 4 AC outlet(s)
- Sealed Lead Acid (VRLA) 12 V 9 Ah
- Tower Beige
|
Features
| UPS Topology | Standby (Offline) |
| Output Power Capacity | 0.65 kVA |
| Output Power | 400 W |
| Waveform | Sine |
| Input Operation Voltage (min) | 160 V |
| Input Operation Voltage (max) | 286 V |
| Input Frequency | 50/60 Hz |
| Efficiency | 98.9% |
| Noise Level | 45 dB |
Ports & Interfaces
| AC Outlet Types | C13 coupler |
| Power Plug | C14 coupler |
| AC Outlets Quantity | 4 AC outlet(s) |
| USB Port | Yes |
Battery
| Battery Technology | Sealed Lead Acid (VRLA) |
| Battery Capacity | 9 Ah |
| Battery Voltage | 12 V |
| Typical Backup Time At Half Load | 14.7 min |
Design
| Form Factor | Tower |
| Product Colour | Beige |
Operational Conditions
| Operating Temperature (T-T) | 0 - 40 °C |
| Operating Relative Humidity (H-H) | 5 - 95% |
| Operating Altitude | 0 - 3048 m |
Packaging Content
| Cables Included | USB cable |
| Quick Installation Guide | Yes |
Weight & Dimensions
| Width | 91 mm |
| Depth | 284 mm |
| Height | 165 mm |
| Weight | 6.03 kg |
Warranty and Other
| Warranty Terms | 24 months |
| Product Condition | Original |
| Manufacturer Datasheet | https://www.tdbaltic.ee/leaflets/APC/BK650EI.pdf |
