Plug Your Nano SIM Card and Play
Fully compatible with FDD-LTE and TDD-LTE to work with most service providers worldwide. Insert a nano SIM card and turn on the router to share your 4G LTE network with multiple Wi-Fi devices.
Get Wi-Fi Where You Need It
Enjoy unmatched convenience and versatility and the utilize fast and stable Wi-Fi, whether you're at home or working remote.
Superfast 4G LTE Speed for Reliable Wi-Fi
Working as a 4G router, the MB130-4G uses 4G LTE technology to achieve super-fast speeds up to 150 Mbps download and 50
Mbps upload. It can also share a dual-band Wi-Fi network with speeds of 867 Mbps on 5 GHz for bandwidth-intensive tasks like HD streaming and gaming and 300 Mbps on 2.4 GHz for internet surfing, email, and social media.
Share the WiFi with Friends
An remarkable number of wireless gadgets are compatible with this 4G router without any issues. Up to 64 simultaneous
connections for tablets, laptops, mobile phones, and other devices.
Full of Strong and Stable Signal

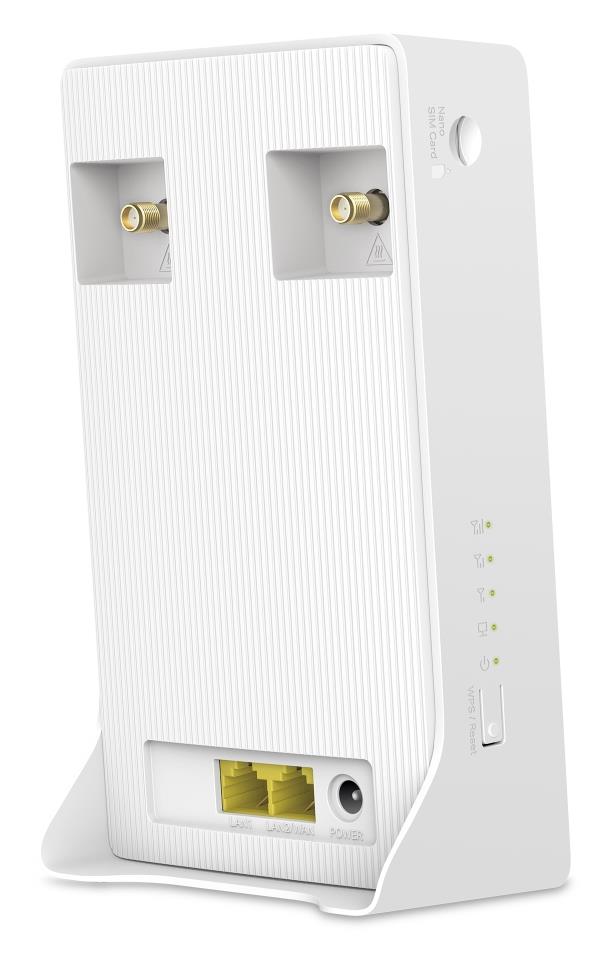

Internal high-gain antennas strengthen the WiFi signal, extend the range of connection establishment, and boost the sensitivity of the router. Additionally, by connecting your extra 4G antennas to the external antenna ports, you may further strengthen the signal.
Available WAN Connection Backup
With a fully functional WAN/LAN port, MB130-4G can work as a router that is compatible with cable, fiber, and DSL modems, or provide internet for wired devices. The reliable access is for up to 64 devices Simultaneously.
Easy Setup and Management via MERCUSYS App
Set up and manage your Wi-Fi through the MERCUSYS app from your smartphone (Android, iOS).
- 4G network – Enjoy the 4G LTE download speeds up to 150 Mbps
- Plug a SIM card and play – No configurations needed, compatibility of SIM cards are assured by years of field tests
- Dual Band 1200 Mbps WiFi – Fast WiFi speeds up to 300 Mbps on the 2.4 GHz band and 867 Mbps on the 5 GHz band
- Simultaneous Connection– Share internet access with up to 32 Wi-Fi devices
- External Antennas Ports – Plug in your 4G/3G Antennas to enhance the Network Signal
- Wi-Fi router mode – Plug an Ethernet cable into the LAN/WAN port for flexible access if you can't get a 4G connection
General
| Unit Calculated Weight | 0.5 kg |
| Unit Calculated Volume | 0.00371 cubm |
| Units per Shipping Box | 12 |
| Units per Pallet | 0 |
| Summary | Mercusys AC1200 Wireless Dual Band 4G LTE Router. WAN connection type: RJ-45. Wi-Fi band: Dual-band (2.4 GHz / 5 GHz), Top Wi-Fi standard: Wi-Fi 5 (802.11ac), WLAN data transfer rate (max): 867 Mbit/s. Ethernet LAN interface type: Ethernet, Ethernet LAN data rates: 10,100 Mbit/s. Mobile network generation: 4G, 3G standards: HSPA+, UMTS, 4G standard: LTE-TDD & LTE-FDD. Security algorithms: WPA, WPA-PSK, WPA2, WPA2-PSK |
| Unit Box Height | 0.21 |
| Unit Box Length | 0.11 |
| Unit Box Width | 0.13 |
| Model name | MB130-4G |
Wireless LAN features
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
| Wi-Fi standards | 802.11b/802.11g/Wi-Fi 4 (802.11n) |
| WLAN data transfer rate (max) | 867 Mbit/s |
WAN connection
| 3G/4G USB modem compatibility | Yes |
| DSL WAN | No |
| Ethernet WAN | Yes |
| SIM card slot | Yes |
| WAN connection type | RJ-45 |
Network
| Dynamic DNS (DDNS) | Yes |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10/100 Mbit/s |
| Ethernet LAN interface type | Ethernet |
| Port forwarding | Yes |
| Port triggering | Yes |
Mobile network
| 3G bands supported | 2100/850/900 MHz |
| 3G standards | HSPA+/UMTS |
| 4G bands supported | 1800/2100/2600/700/800/850/900 MHz |
| 4G standard | LTE-TDD & LTE-FDD |
| Dual SIM support | No |
| Mobile network generation | 4G |
| SIM card type | NanoSIM |
Ports & interfaces
| DC-in jack | Yes |
| Ethernet LAN (RJ-45) ports | 2 |
| USB port | No |
Management features
| Reset button | Yes |
| Wi-Fi Multimedia (WMM)/(WME) | Yes |
| WPS push button | Yes |
Security
| DMZ support | Yes |
| Firewall | Yes |
| Security algorithms | WPA/WPA2/WPA2-PSK/WPA-PSK |
Protocols
| DHCP client | Yes |
| DHCP server | Yes |
| Universal Plug and Play (UPnP) | Yes |
| VoIP protocols | IPv4, IPv6 |
Design
| Indication light | Yes |
| Product colour | White |
| Product type | Tabletop router |
Packaging content
| AC adapter included | Yes |
| Antenna included | Yes |
| Quick installation guide | Yes |
Antenna
| Antenna design | Internal |
| Antenna type | 2x2 |
Features
| Firmware upgradeable | Yes |
Power
| Output current | 1 A |
| Output voltage | 12 V |
| Power source type | DC |
Operational conditions
| Operating relative humidity (H-H) | 10 - 90 % |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage relative humidity (H-H) | 5 - 90 % |
| Storage temperature (T-T) | -40 - 60 °C |
Weight & dimensions
| Depth | 61.05 mm |
| Height | 165.97 mm |
| Width | 95 mm |
