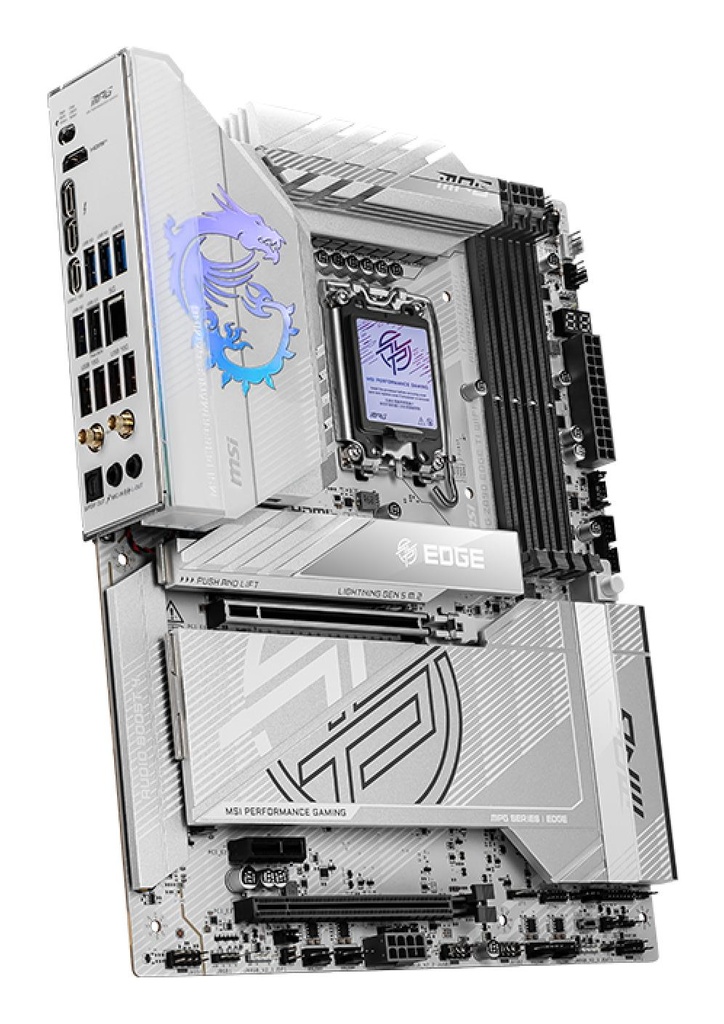

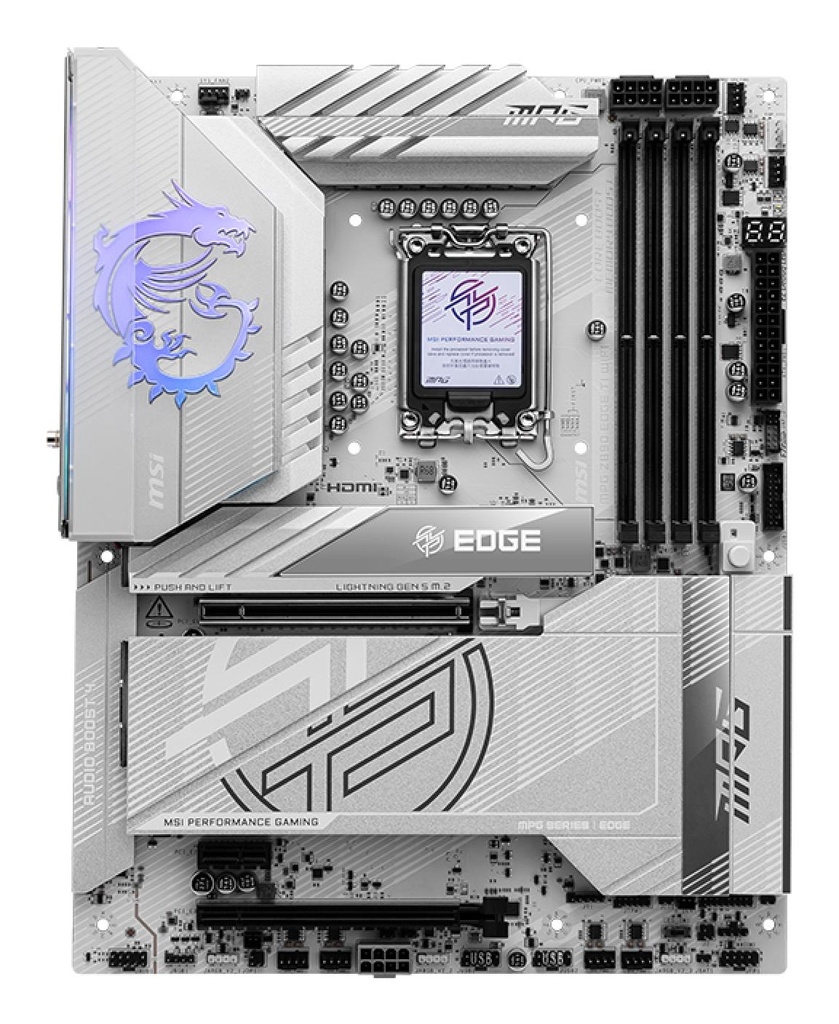

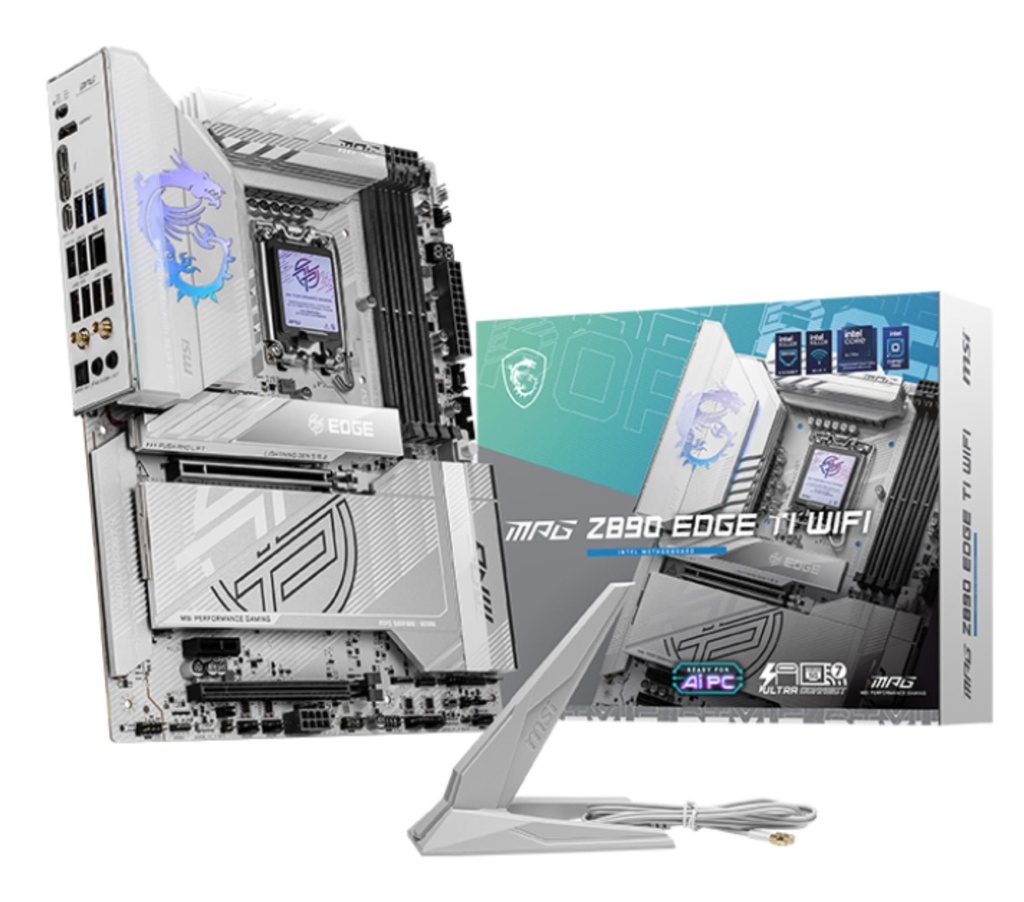

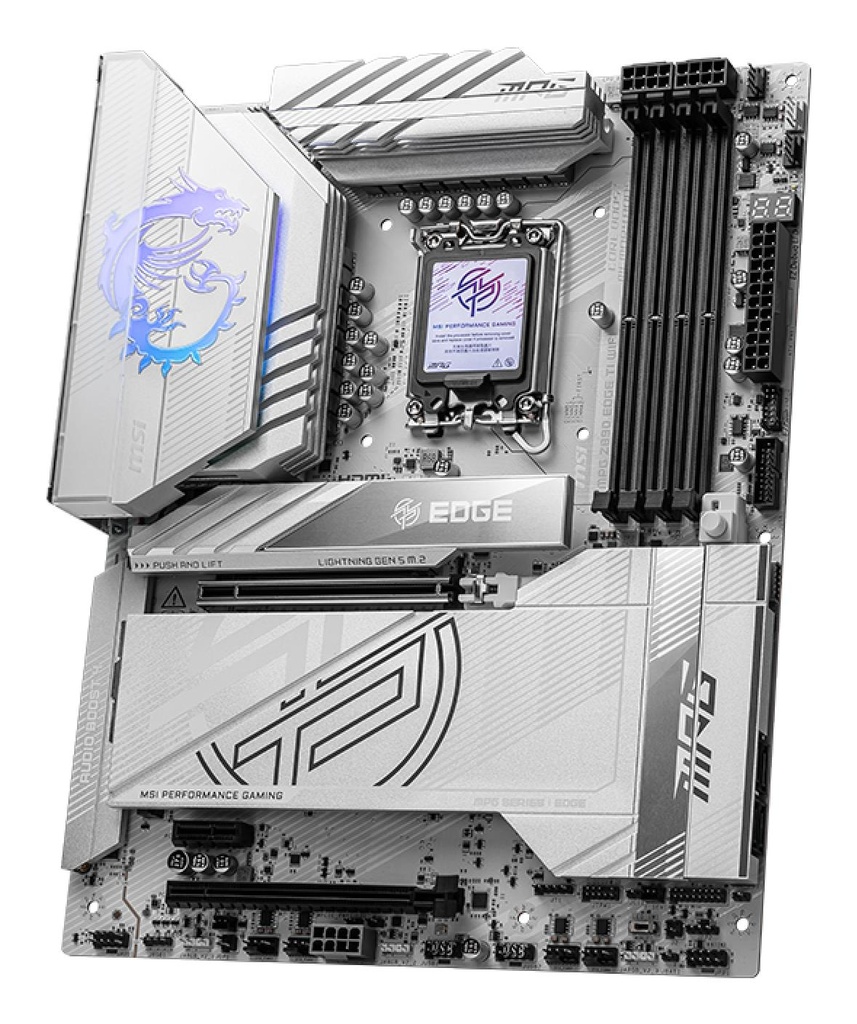

MPG Z890 EDGE TI WIFI
MPG Z890 EDGE TI WIFI is covered with a silver-white color scheme for white PC build lovers to show off different identity. It is also powerful because of its Killer Wi-Fi 7 solution and 5G LAN, Thunderbolt 4, and the latest PCIe 5.0 compatibility, Supplemental PCIe Power and this is the best white theme Z890 ATX motherboard for Intel Core Ultra processors.
MSI's premium MPG (MSI PERFORMANCE GAMING) series is engineered for gamers who demand strong performance and sleek design. Each product showcases cutting-edge aesthetics and vibrant colors, reflecting MPG's commitment to exceptional design. With optimized configurations, MPG creates a visually striking and powerful gaming experience that leads the trends.
MSI motherboards are designed with advanced hardware and technology, well-supporting the demanding computing usage of gaming and AI. Moreover, we also introduce AI to MSI Center and BIOS, making everything more effortless than before.
16+1+1+1 DRPS POWER DESIGN
Unleash and sustain the maximum performance with a flagship VRM design built with a total of 16+1+1+1 Duet Rail Power System. Combining dual power connectors and 90A Smart Power Stage, MPG Z890 EDGE TI WIFI is ready for the challenge of high-end processors.
HIGH-BANDWIDTH AND LOW-LATENCY NETWORK
MSI's premium network solution provides incredible data transfer speed for demanding users.
- Support Intel® Core™ Ultra Processors (Series 2) for LGA 1851 socket
- Supports DDR5 Memory, up to 9200+ MT/s (OC)
- Ultra Performance: 16+1+1+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, Memory Boost, 8-layer PCB made by 2oz thickened copper and server-grade level material
- Frozr Guard: Enlarged heatsink with heat-pipe, MOSFET thermal pads rated for 7W/mk, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop gaming experience
- EZ DIY: EZ PCIe Release, EZ M.2 Shield Frozr II, EZ M.2 Clip II and EZ Antenna
- Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 5 M.2
- Ultra Connect: Thunderbolt™ 4 and Intel® Killer™ 5G LAN with Wi-Fi 7 Solution - The latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission
- Audio Boost 4: Reward your ears with studio grade sound quality for the most immersive gaming experience
General
| Unit Calculated Weight | 2.52 kg |
| Unit Calculated Volume | 0.008339 cubm |
| Units per Shipping Box | 5 |
| Summary | MSI MPG Z890 EDGE TI WIFI. Processor manufacturer: Intel, Processor socket: LGA 1851 (Socket V1), Compatible processor series: Intel Core Ultra (Series 2). Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 5, 10. Ethernet interface type: 5 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 7 (802.11be), Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E.... Component for: PC, Motherboard form factor: ATX, Motherboard chipset family: Intel |
| Unit Box Height | 0.075 |
| Unit Box Length | 0.346 |
| Unit Box Width | 0.273 |
| Model | MPG Z890 EDGE TI WIFI |
Features
| Audio chip | Realtek ALC1220P |
| Audio output channels | 7.1 channels |
| Component for | PC |
| Motherboard chipset | Intel Z890 |
| Motherboard chipset family | Intel |
| Motherboard form factor | ATX |
| Product colour | White |
| Windows operating systems supported | Windows 11 x64 |
Processor
| Compatible processor series | Intel Core Ultra (Series 2) |
| Maximum internal memory supported by processor | 256 GB |
| Processor manufacturer | Intel |
| Processor socket | LGA 1851 (Socket V1) |
| Supported processor sockets | LGA 1851 |
Memory
| Maximum internal memory | 256 GB |
| Memory channels | Dual-channel |
| Memory slots type | DIMM |
| Number of memory slots | 4 |
| Supported memory clock speed (max) | 9200 MHz |
| Supported memory clock speeds | 4800/6400/9200 MHz |
| Supported memory types | DDR5-SDRAM |
Storage controllers
| Number of HDDs supported | 9 |
| Number of storage drives supported | 4 |
| RAID levels | 0/10/5 |
| RAID support | Yes |
| Supported storage drive interfaces | M.2,SATA III |
| Supported storage drive types | HDD & SSD |
Internal I/O
| CPU fan connector | Yes |
| Number of SATA III connectors | 4 |
| Total number of SATA connectors | 4 |
| USB 2.0 connectors | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |

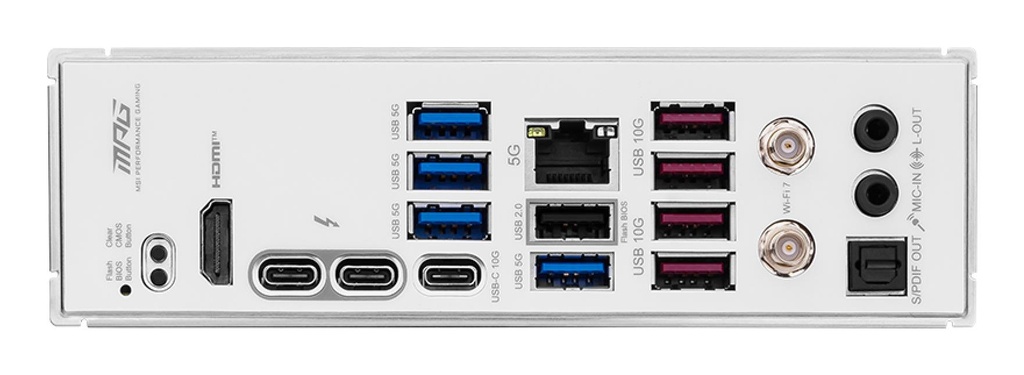

Rear panel I/O ports
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| Thunderbolt ports quantity | 2 |
| USB 2.0 ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
Network
| Bluetooth | Yes |
| Bluetooth version | 5.4 |
| Ethernet interface type | 5 Gigabit Ethernet |
| Ethernet LAN | Yes |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax)/Wi-Fi 6E (802.11ax)/Wi-Fi 7 (802.11be) |
| WLAN controller model | Killer Wi-Fi 7 BE1750 |
Expansion slots
| Number of M.2 (M) slots | 5 |
| PCI Express x1 slots | 1 |
| PCI Express x16 slots | 2 |
Weight & dimensions
| Depth | 304.8 mm |
| Width | 243.84 mm |
